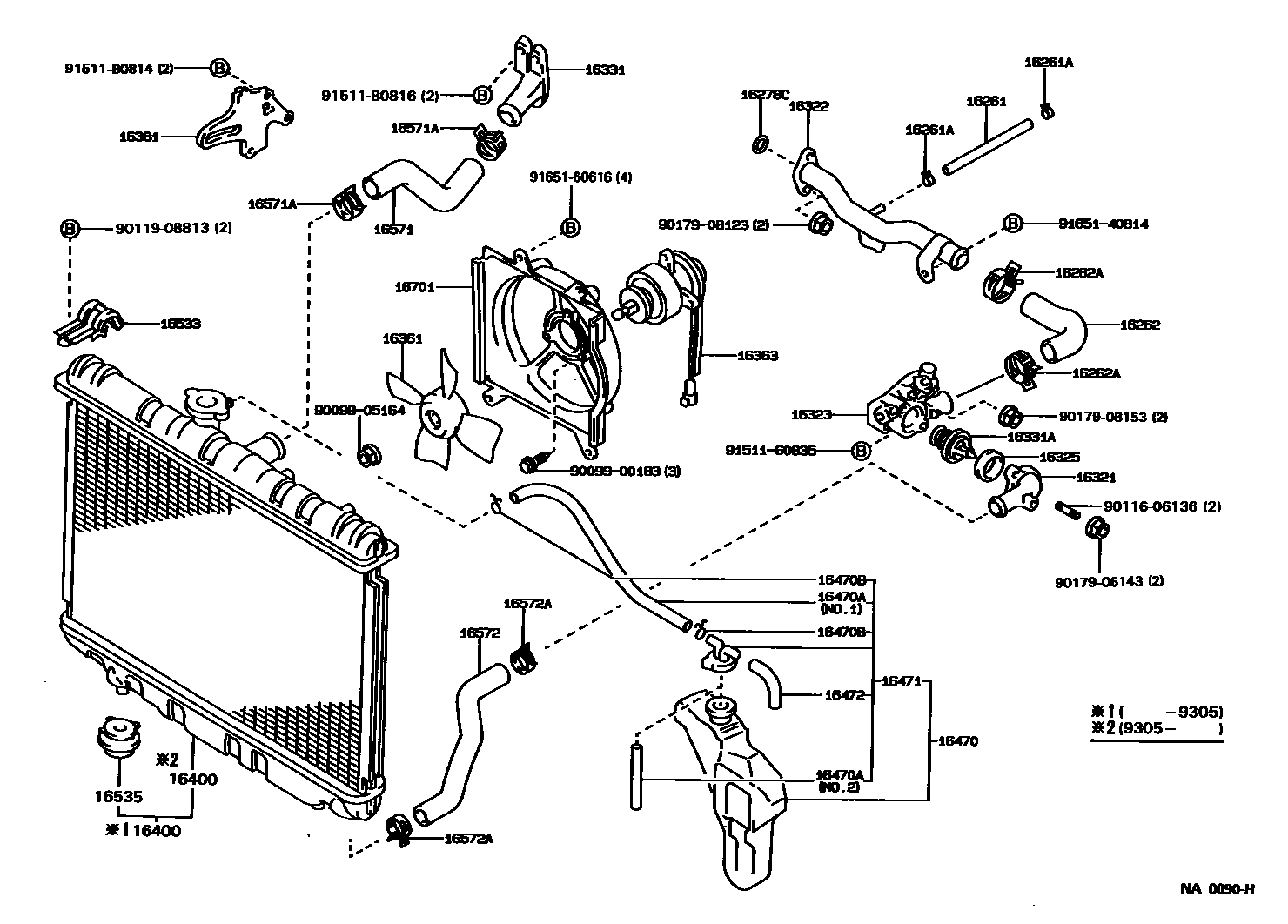

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
*H,L=200
16262HOSE, WATER INLET
16262ACLIP(FOR WATER INLET HOSE)
16321INLET, WATER
16322PIPE, WATER INLET
16323HOUSING, WATER INLET
NEW ZEALAND SPEC
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
16363MOTOR, COOLING FAN
16381BAR, FAN BELT ADJUSTING
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=600,NO.2
L=460,NO.1
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-34004
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-34004
16701SHROUD SUB-ASSY, FAN
9009900183
main90099-00183
9009905164
main90099-05164
9011606136
main90116-06136
9011908813
main90119-08813
9017906143
main90179-06143
9017908123
main90179-08123
9017908153
main90179-08153
9151160835
main91511-60835
91511B0814
main91511-B0814
91511B0816
main91511-B0816
9165140814
main91651-40814
9165160616
main91651-60616
39 parts on this diagram · 3 diagrams in section
