STANDARD TOOL

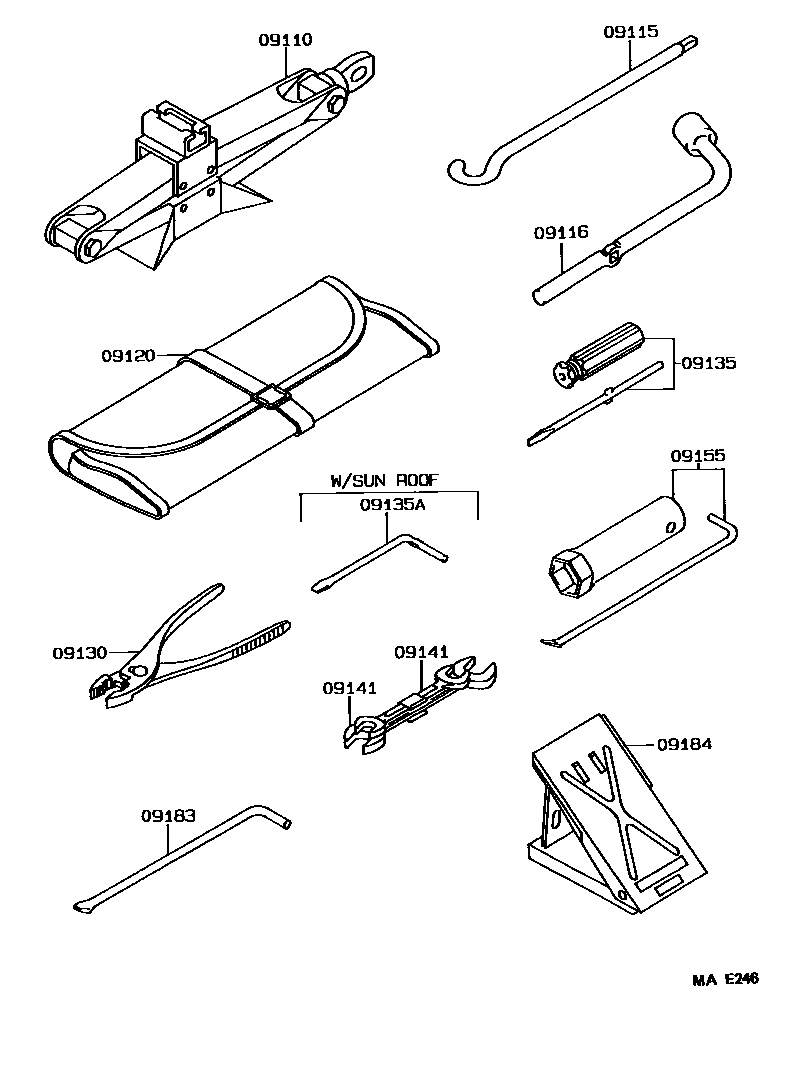

Parts diagram

09110JACK ASSY

main09110-12050i199009-199508

main09111-12100i199009-199508

main09111-12130i199107-199402

09115ROD SUB-ASSY, JACK HANDLE

main09115-16030i199009-199508

09116LEVER, JACK HANDLE

main09116-16010i199009-199508

09120BAG, TOOL

main09120-12011i199009-199508

09130PLIERS

main99913-11500i199009-199508

09135DRIVER, SCREW

main99915-10700i199009-199508

09135ABIT, SCREW DRIVER

main09135-00012i199009-199508

09141SPANNER

main99914-10810i199009-199508

8 X 10

main99914-11214i199009-199508

12 X 14

09155WRENCH, SPARK PLUG

main09155-74020i199009-199508

09183WRENCH, WHEEL CAP

main09183-00010i199009-199508

09184STOPPER, WHEEL

main09184-00010i199009-199508

11 parts on this diagram · 1 diagram in section
