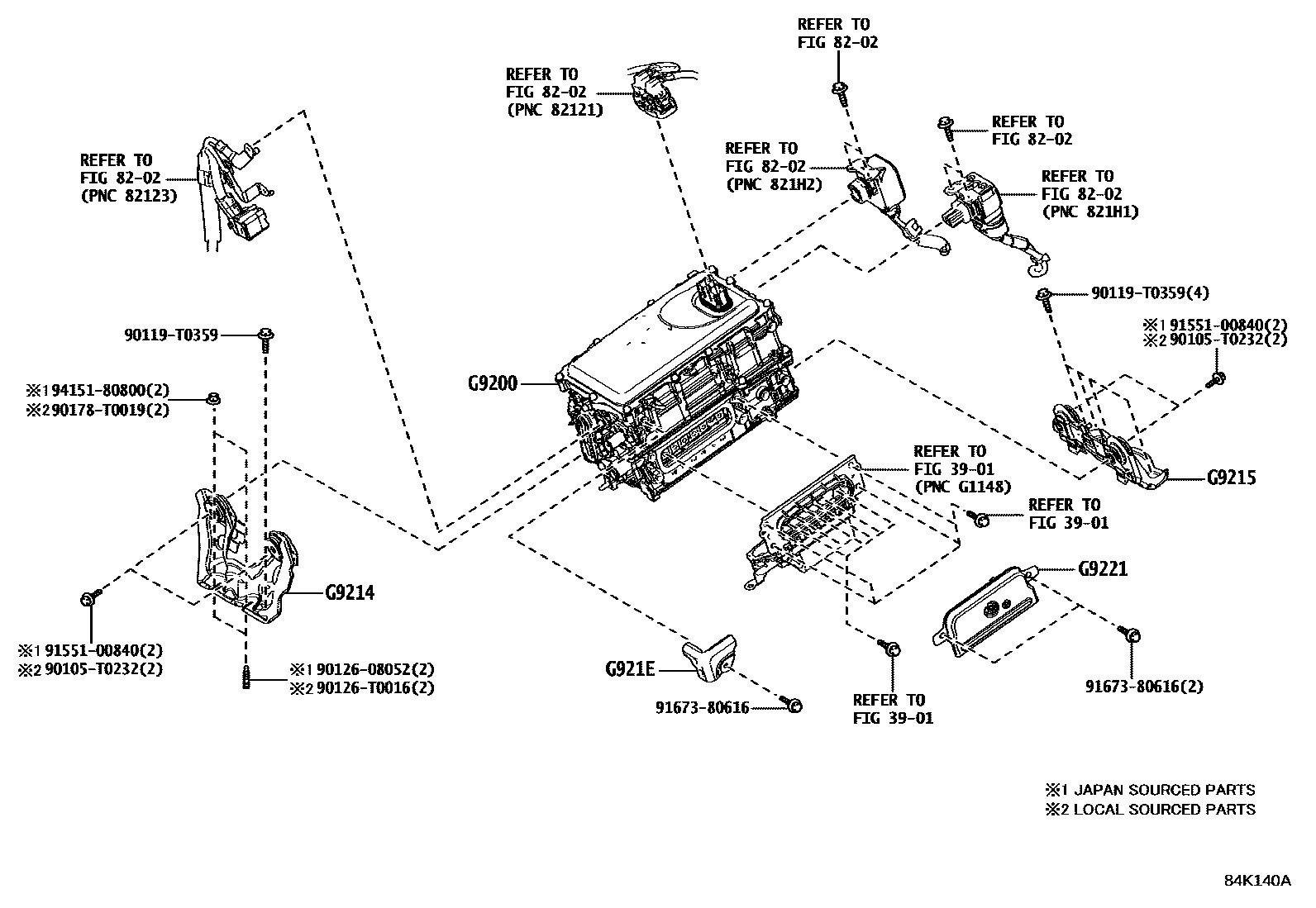

HEV INVERTER

0001 1 0002 1 0003 1

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9200INVERTER ASSY, W/CONVERTER

mainG920049135iZWE211..GEN,IDN,MA,PHL,SGP,TH201908-202105

mainG920049136iZWE211..E;ZWE211..MA202105-202306

mainG92A047100iZWE211..GCC,TAIW201904-202104

mainG92A047101iZWE211..TAIW202105-202305

G9214BRACKET, INVERTER, NO.1

mainG921447070iZWE211..TAIW201904-202410

G9215BRACKET, INVERTER, NO.2

mainG921547050iZWE211..E;ZWE211..MA201904-202410

G921EPROTECTOR, INVERTER

mainG921E47010iZWE211..E;ZWE211..MA201904-202410

G9221COVER, INVERTER

mainG902247050iZWE211..E;ZWE211..MA201904-202410

90105T0232

main90105-T0232

90119T0359

main90119-T0359

9012608052

main90126-08052

90126T0016

main90126-T0016

90178T0019

main90178-T0019

9155100840

main91551-00840

9167380616

main91673-80616

9415180800

main94151-80800

15 parts on this diagram · 3 diagrams in section
