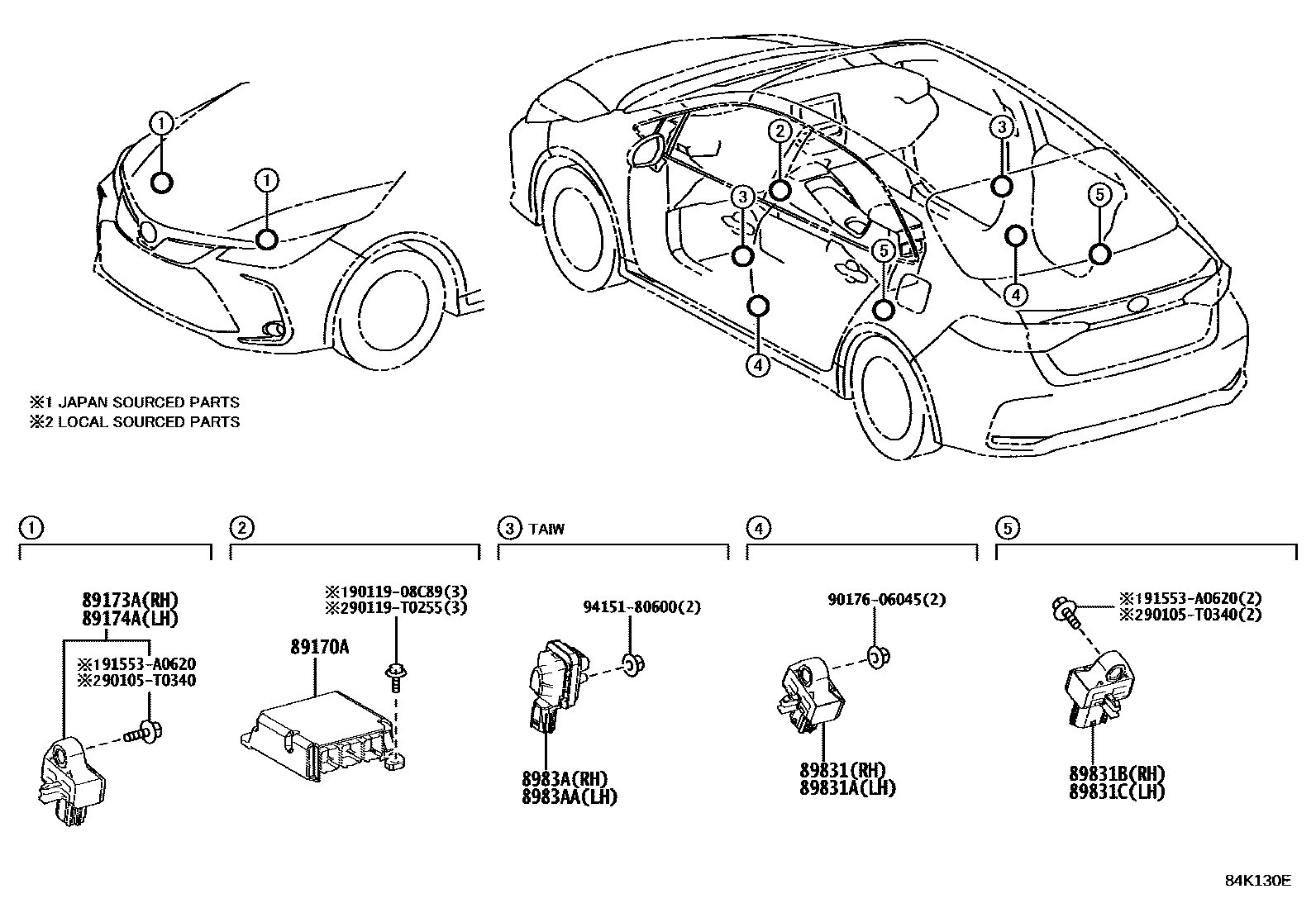

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-02M10iZRE211..TAIW201904-202304

main89170-02M11iZRE211..TAIW202304-202405

main89170-02M20iZWE211..TAIW201904-202304

main89170-02M21iZWE211..TAIW202304

main89170-02M50iMZEA1#,ZRE210,217..GCC202305

main89170-02M60iZWE211..GCC201904-202305

main89170-02Q40iZRE210..6F201908-202112

main89170-02Q50iZWE211..V..(PHL,TH)202306-202410

main89170-02S30iZRE210..GEN201908-202306

TRINIDAD & TOBAGO,BARBADOSE SPEC

89173ASENSOR, AIRBAG, FRONT RH

main89173-09D00iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main89173-49495iZRE211,ZWE211..TAIW201904-202304

89174ASENSOR, AIRBAG, FRONT LH

main89173-09D00iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main89173-49495iZRE211..TAIW202304-202405

89831SENSOR, SIDE AIRBAG, RH, NO.1

main89831-06190iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main89831-47050iZRE211,ZWE211..TAIW201904-202304

89831ASENSOR, SIDE AIRBAG, LH, NO.1

main89831-06190iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main89831-47050iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

89831BSENSOR, SIDE AIRBAG, RH, NO.2

main89831-0K070iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main89831-28040iZRE211..TAIW202304-202405

89831CSENSOR, SIDE AIRBAG, LH, NO.2

main89831-0K070iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main89831-28040iMZEA12,ZRE218,ZWE211..TAIW202304

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-33010iZRE211,ZWE211..TAIW201904-202012

main8983A-33011iZRE211..TAIW202304-202405

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-33010iZRE211,ZWE211..TAIW201904-202012

main8983A-33011iZRE211..TAIW202304-202405

90105T0340

main90105-T0340

9011908C89

main90119-08C89

90119T0255

main90119-T0255

9017606045

main90176-06045

91553A0620

main91553-A0620

9415180600

main94151-80600

15 parts on this diagram · 1 diagram in section
