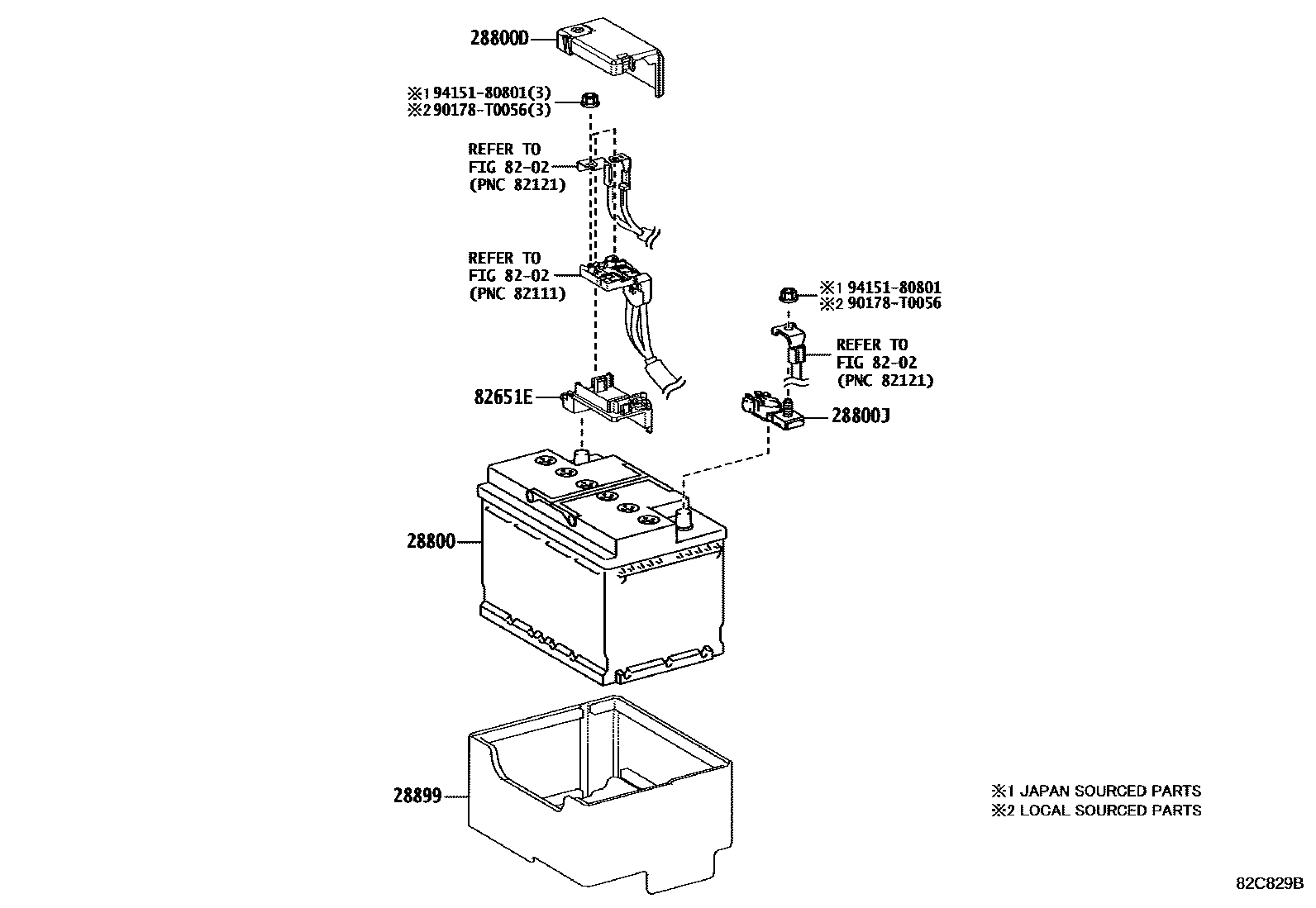

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0006 1HV BATTERY 0009 1HV BATTERY 0012 1HV BATTERY 0014 1HV BATTERY 0016 1HV BATTERY

28800BATTERY

main28800-0C210i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN201908-202211

LN0

main28800-0C211i2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,TH,VN202212-202306

LN0

main28800-0T131i1ZRFE..ZRE210..6F;2ZRFXE..ZWE211..MA201908-202112

LN1

main28800-0T132i2ZRFE..ZRE211..G..PHL202306-202410

LN1

main28800-0T160i2ZRFE..ZRE211..TAIW201904-202211

LN1

main28800-0T161i2ZRFE..ZRE211..TAIW202304-202405

LN1

main28800-0T180iM15AFKS,M20AFKS,1ZRFE..MZEA1#,ZRE210..GCC201904-202208

LN1

main28800-0T181iM15AFKS,M20AFKS,1ZRFE..MZEA1#,ZRE210..GCC202209-202305

LN1

main28800-0T240i2ZRFXE..ZWE211..TAIW201904-202211

LN0

main28800-0T241i2ZRFXE..ZWE211..TAIW202212-202304

LN0

main28800-0T250i2ZRFXE..ZWE211..GCC201904-202208

LN0

main28800-0T251i2ZRFXE..ZWE211..GCC202209-202305

LN0

main28800-0T340i1ZRFBE,2ZRFBE..ZRE21#..TH202104-202211

LN1

main28800-0T341i2ZRFE..ZRE211..D,E;1ZRFAE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..(D,E,G,V)..(GEN,IDN,SGP,VN)202411

LN1

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-10010i2ZRFE..ZRE211..TAIW202304-202405

main82621-47020i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN201904-202306

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i1ZRFE..ZRE210..6F201904-202112

28899INSULATOR, BATTERY

main28899-0T020i2ZRFXE..ZWE211..MA201908-202012

main28899-0T040i1ZR#,2ZRFBE,2ZRFE..ZRE21#..IDN,MA,PHL,SGP,TH201908-202011

main28899-0T070iM15AFKS,M20AFKS,1ZRFE..MZEA1#,ZRE210..GCC201904-202305

main28899-0T100i2ZRFXE..ZWE211..IDN,PHL,SGP,TH201908-202012

main28899-0T120i2ZRFXE..ZWE211..MA202101-202112

main28899-0T140i2ZRFE..ZRE211..D,E,X;1ZRFAE,1ZRFBE,2ZRFBE,2ZRFE..ZRE210,211..IDN,SGP,TH,VN202306

main28899-0T150i2ZRFXE..ZWE211..E202101-202112

8202WIRING & CLAMP

→ Go to FIG 82-02

82651EBLOCK, TERMINAL

main82651-10010iZRE211..TAIW202304-202405

90178T0056

main90178-T0056

9415180801

main94151-80801

8 parts on this diagram · 8 diagrams in section
