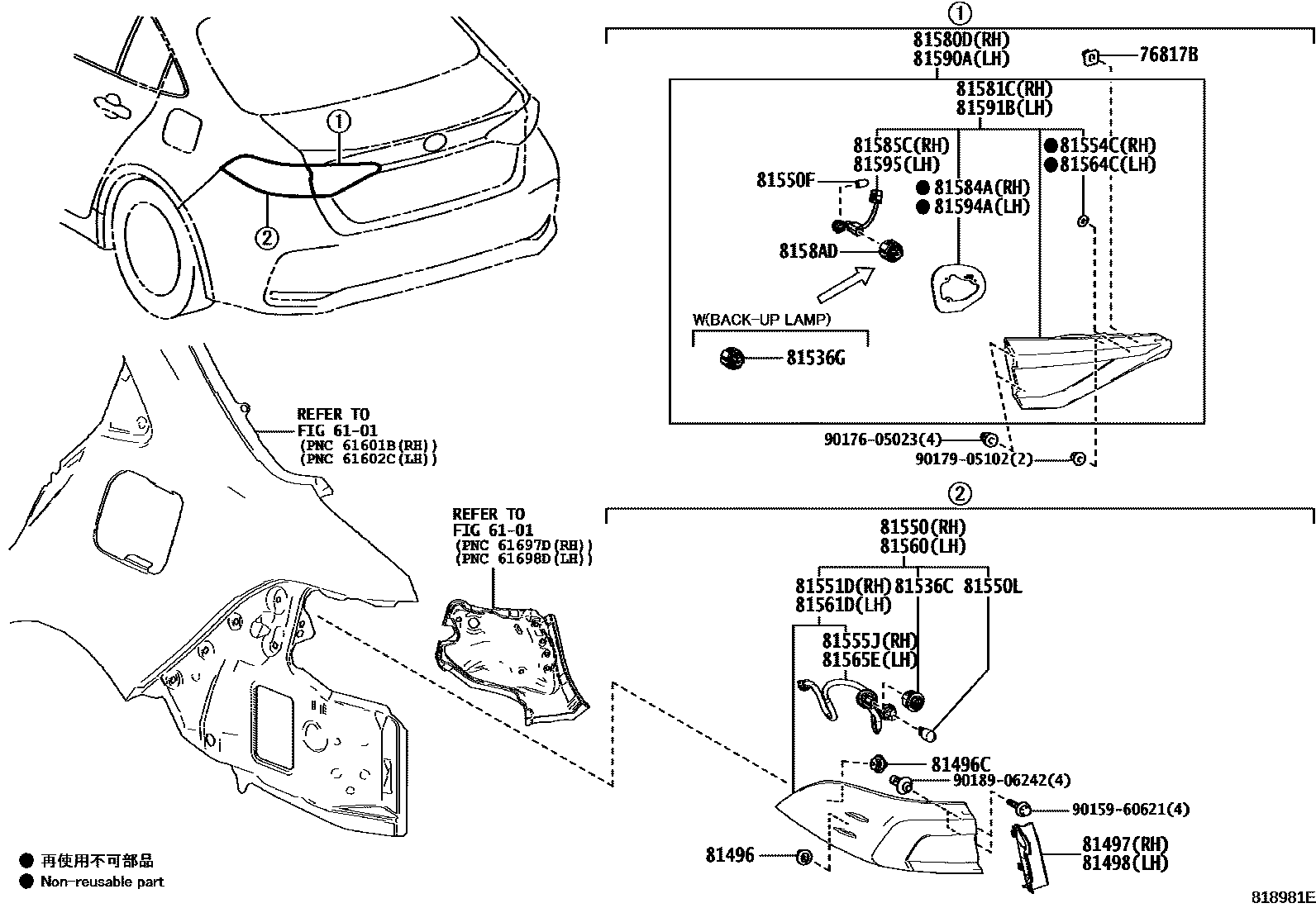

REAR COMBINATION LAMP

0001 1BULB TYPE(TAIL LAMP & TURN LA0002 1LED TYPE(TAIL LAMP & TURN LAM0003 1BULB TYPE(TAIL LAMP & TURN LA0004 1LED TYPE(TAIL LAMP & TURN LAM0005 1 0006 1

6101

76817BCLIP, REAR LAMP

main76817-26040iMZEA1#,ZRE210,ZWE211..GCC201904-202410

81496GUIDE, REAR COMBINATION LAMP

main81496-0D040iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

(L)

main81496-52020iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

(J)

main81496-52020iZRE211,ZWE211..TAIW201904-202405

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202410

81497COVER, REAR COMBINATION LAMP, RH

main81497-02070iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

main81497-02090iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

81498COVER, REAR COMBINATION LAMP, LH

main81498-02070iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main81498-02090iZRE211..TAIW201904-202405

81536CLED, TAIL & STOP LAMP

main81536-02E50iZRE211..(D,E)..TAIW201904-202305

main81536-15120iZRE210..TH201908-202405

main81965-70010iZRE210..TH202405

81536GLED, BACK-UP LAMP

main8158A-02C90iMZEA1#,ZRE210,ZWE211..N..GCC201904-202405

main8158A-02E00iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

main8158A-12260iZRE211..D;ZWE211..G;ZWE211..(N,V)..(GEN,IDN,SGP,VN);ZRE210,211..(D,E,G,V)..(GEN,IDN,SGP,TH,VN)201908-202410

81550LAMP ASSY, REAR COMBINATION, RH

main81550-02A20iZRE211..E..TAIW201904-201910

SPORTY PACKAGE

main81550-02A21iMZEA1#,ZRE210,ZWE211..N..GCC201910-202305

main81550-02B90iZWE211..V..TAIW202304-202405

X PACKAGE

main81550-02D40iZRE211..D;ZRE211,ZWE211..(E,G)..(IDN,MA,TH,VN);ZRE210,ZWE211..(D,E,G,N,V)..(GEN,IDN,SGP,VN)201908-202410

main81550-02E40iZWE211..E201908-202306

main81550-02E50iMZEA12,ZRE21#,ZWE211..LHD..CVT..(D,E)201904-201910

main81550-02E51iMZEA1#,ZRE210,ZWE211..D..GCC201910-202305

main81550-02F80iZRE211,ZWE211..X202411

main81550-02F90iMZEA12..TAIW202405

81550FBULB, TAILLAMP

main90981-11069iMZEA12,ZRE21#,ZWE211..LHD..CVT..(D,E)201904-202306

12V 5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iZRE211..(D,E)..TAIW201904-202306

12V 21W,AMBER

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-02A20iMZEA12,ZRE21#,ZWE211..(G,N,V)..(GCC,TAIW)201904-201910

SPORTY PACKAGE

main81551-02A21iZRE211,ZWE211..(G,V)..TAIW201910-202305

main81551-02B90iZRE211..TAIW202304-202405

X PACKAGE

main81551-02D40iZRE211..D;ZRE211,ZWE211..(E,G)..(IDN,MA,TH,VN);ZRE210,ZWE211..(D,E,G,N,V)..(GEN,IDN,SGP,VN)201908-202410

main81551-02E40iZRE210..TH201908-202306

main81551-02E50iMZEA12,ZRE21#,ZWE211..LHD..CVT..(D,E)201904-201910

main81551-02E51iMZEA17,18,ZRE217,218,ZWE211..D,E201910-202305

main81551-02F80iZRE211,ZWE211..X202411

81554CPACKING, REAR COMBINATION LAMP BODY, RH

main81554-12A00iZRE211..TAIW201904-202410

81555JSOCKET & WIRE, REAR COMBINATION LAMP, RH

main81555-02A20iZRE211..TAIW201904-202405

main81555-02D40iZRE210..6F;ZWE211..MA201908-202410

main81555-02E40iZRE210..TH201908-202306

main81555-02E50iMZEA17,18,ZRE217,218,ZWE211..D,E201904-202305

81560LAMP ASSY, REAR COMBINATION, LH

main81560-02A20iMZEA12,ZRE21#,ZWE211..(G,N,V)..(GCC,TAIW)201904-201910

SPORTY PACKAGE

main81560-02A21iMZEA1#,ZRE210,ZWE211..N..GCC201910-202305

main81560-02B90iZRE211..TAIW202304-202405

X PACKAGE

main81560-02D50iZRE210..6F;ZWE211..MA201908-202410

main81560-02E40iZWE211..E201908-202306

main81560-02E50iMZEA12,ZRE21#,ZWE211..LHD..CVT..(D,E)201904-201910

main81560-02E51iMZEA17,18,ZRE217,218,ZWE211..D,E201910-202305

main81560-02F80iZRE211,ZWE211..X202411

main81560-02F90iMZEA12..TAIW202405

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-02A20iMZEA12,ZRE21#,ZWE211..(G,N,V)..(GCC,TAIW)201904-201910

SPORTY PACKAGE

main81561-02A21iMZEA1#,ZRE210,ZWE211..N..GCC201910-202305

main81561-02B90iZRE211..TAIW202304-202405

X PACKAGE

main81561-02D50iZRE211..D;ZRE211,ZWE211..(E,G)..(IDN,MA,TH,VN);ZRE210,ZWE211..(D,E,G,N,V)..(GEN,IDN,SGP,VN)201908-202410

main81561-02E40iZRE210..TH201908-202306

main81561-02E50iMZEA12,ZRE21#,ZWE211..LHD..CVT..(D,E)201904-201910

main81561-02E51iZRE211..(D,E)..TAIW201910-202305

main81561-02F80iZRE211,ZWE211..X202411

81564CPACKING, REAR COMBINATION LAMP BODY, LH

main81554-12A00iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202410

81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH

main81555-02A20iZRE211,ZWE211..(G,V)..TAIW201904-202405

main81555-02D40iZRE211,ZWE211..X202411

main81555-02E50iMZEA17,18,ZRE217,218,ZWE211..D,E201904-202305

81580DLAMP ASSY, REAR, RH

main81580-02270iZRE211..TAIW202304-202405

X PACKAGE

main81580-02C80iZRE211..D;ZRE211,ZWE211..(E,G)..(IDN,TH,VN);ZRE210,ZWE211..(D,E,G,N,V)..(GEN,IDN,SGP,VN)201908-202410

main81580-02C90iZRE211..E..MA201908-202306

main81580-02E00iMZEA12,ZRE21#,ZWE211..(G,N,V)..(GCC,TAIW)201904-201910

SPORTY PACKAGE

main81580-02E01iMZEA1#,ZRE210,ZWE211..N..GCC201910-202305

main81580-02E20iMZEA12,ZRE21#,ZWE211..LHD..CVT..(D,E)201904-201910

main81580-02E21iMZEA1#,ZRE210,ZWE211..D..GCC201910-202305

main81580-02E30iZRE210..TH201908-202306

main81580-02F40iZRE211..X..MA202411

main81580-02F50iMZEA12..TAIW202405

main81580-02F60iZRE211,ZWE211..X..(IDN,PHL,SGP,TH,VN)202411

81581CLENS AND BODY, REAR LAMP, RH

main81581-02270iZWE211..V..TAIW202304-202405

X PACKAGE

main81581-02C80iZRE211..IDN,TH,VN;ZWE211..(G,V)..TH;ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP,VN)201908-202410

main81581-02C90iZRE211..E..MA201908-202306

main81581-02E00iZRE211..E..TAIW201904-201910

SPORTY PACKAGE

main81581-02E01iMZEA11,12,ZRE210,ZWE211..(N,V)..(GCC,TAIW)201910-202305

main81581-02E20iMZEA12,ZRE21#,ZWE211..LHD..CVT..(D,E)201904-201910

main81581-02E21iMZEA1#,ZRE210,ZWE211..D..GCC201910-202305

main81581-02E30iZWE211..E201908-202306

81584AGASKET, REAR LAMP RH

main81584-02E00iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main81584-02E30iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-02C80iZRE210..6F201908-202410

main81585-02C90iZWE211..MA201908-202306

main81585-02E00iZRE211,ZWE211..(G,V)..TAIW201904-202405

main81585-02E20iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

main81585-02E30iZWE211..E201908-202306

8158ADLED, REAR FOG LAMP

main8158A-02C90iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

main8158A-02E00iMZEA11,12,ZRE210,ZWE211..(N,V)..(GCC,TAIW)201904-202405

main8158A-0D610iZRE211..E..MA201908-202306

81590ALAMP ASSY, REAR, LH

main81590-02600iZRE211..TAIW202304-202405

X PACKAGE

main81590-02C80iZRE210..6F;ZWE211..MA201908-202410

main81590-02C90iMZEA12,ZRE21#,ZWE211..(G,N,V)..(GCC,TAIW)201904-201910

SPORTY PACKAGE

main81590-02C91iMZEA1#,ZRE210,ZWE211..N..GCC201910-202305

main81590-02D90iZRE210..TH201908-202306

main81590-02E00iMZEA12,ZRE21#,ZWE211..LHD..CVT..(D,E)201904-201910

main81590-02E01iMZEA1#,ZRE210,ZWE211..D..GCC201910-202305

main81590-02F40iZRE211,ZWE211..X202411

main81590-02F50iMZEA12..TAIW202405

81591BLENS AND BODY, REAR LAMP, LH

main81591-02600iZRE211..TAIW202304-202405

X PACKAGE

main81591-02C80iZWE211..(G,V)..TH;ZRE211..(E,G)..(IDN,MA,TH,VN);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP,VN)201908-202410

main81591-02C90iZRE211..E..TAIW201904-201910

SPORTY PACKAGE

main81591-02C91iMZEA11,12,ZRE210,ZWE211..(N,V)..(GCC,TAIW)201910-202305

main81591-02D90iZWE211..E201908-202306

main81591-02E00iMZEA12,ZRE21#,ZWE211..LHD..CVT..(D,E)201904-201910

main81591-02E01iMZEA17,18,ZRE217,218,ZWE211..D,E201910-202305

81594AGASKET, REAR LAMP LH

main81594-02C90iMZEA11,12,ZRE210..N;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

main81594-02D90iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

81595SOCKET & WIRE, REAR LAMP, LH

main81585-02C80iZRE210..6F;ZWE211..MA201908-202410

main81585-02E30iZRE210..TH201908-202306

main81595-02C90iMZEA1#,ZRE210,ZWE211..N..GCC201904-202405

main81595-02E00iZRE211..(D,E)..TAIW201904-202305

9015960621

main90159-60621

9017605023

main90176-05023

9017905102

main90179-05102

9018906242

main90189-06242

31 parts on this diagram · 6 diagrams in section
