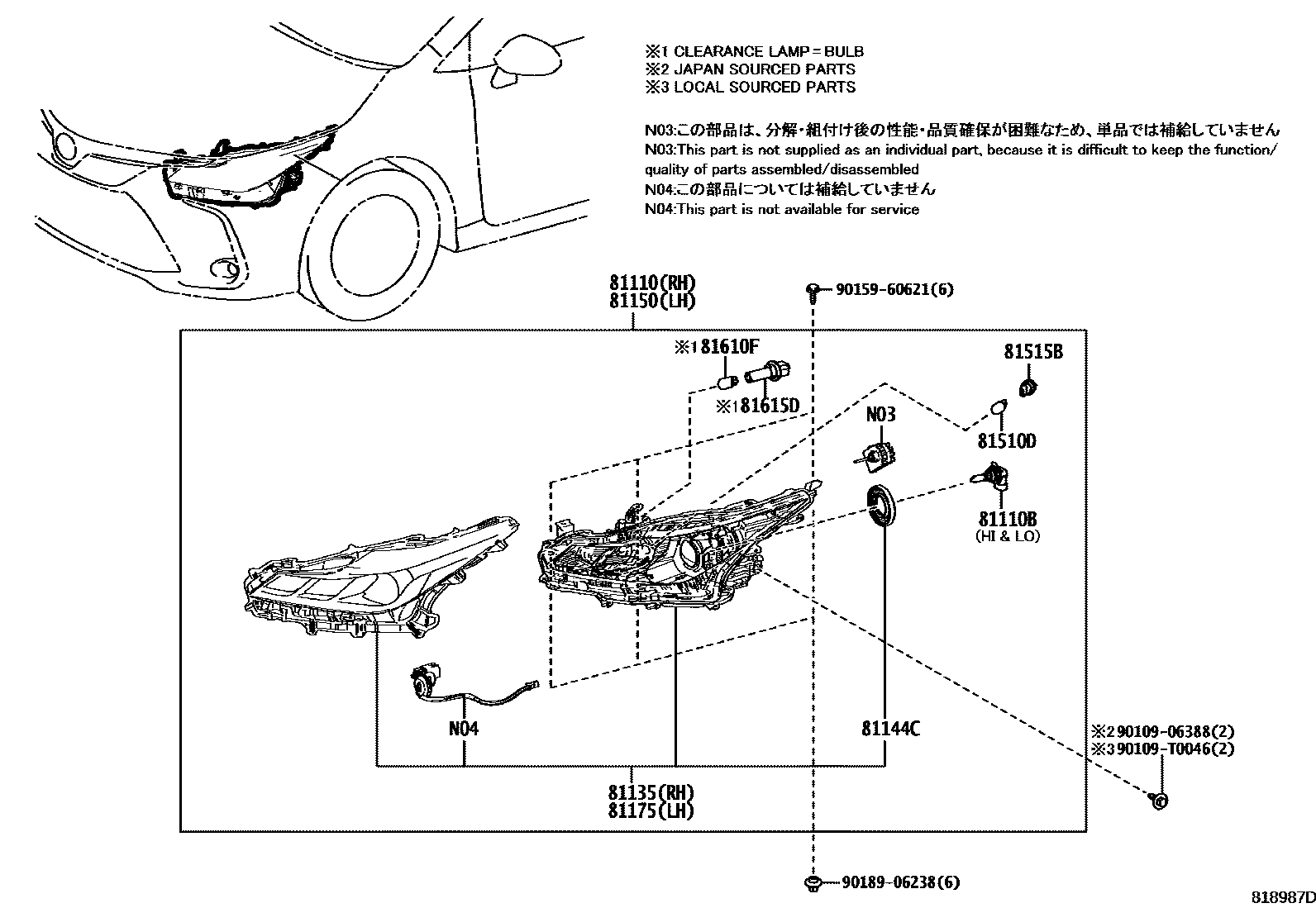

HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1LED HEADLAMP 0003 1HALOGEN HEADLAMP 0004 1LED HEADLAMP

81110HEADLAMP ASSY, RH

main81110-02M40iZWE211..PHL,VN201908-202306

main81110-02M50iZWE211..GEN,IDN;ZWE211..(G,V)..TH201908-202306

main81110-02M60iZWE211..E201908-202112

main81110-02T90iZRE210..6F201908-202112

main81110-02U10iZRE211..(E,G)..(IDN,MA);ZRE210..(D,G)..(GEN,SGP)201908-202306

main81110-02U20iZRE210..V;ZRE211..VN201908-202306

main81110-02U30iZRE210,211..(E,G)..(MA,SGP); ZRE211..IDN; ZRE211..TH;ZRE210..E..GEN201908-202306

TOYOTA SAFETY SENSE-WITH; UP GRADE PACKAGE

main81110-02U50iZRE211..TAIW201904-202304

main81110-02U60iMZEA12..TAIW202304

main81110-02W00iZRE210..TH201908-202306

main81110-02W10supersedes 81110-02W30iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main81110-02W40supersedes 81110-02W50iZWE211..E; ZWE211..V..TAIW202304

LOW GRADE PACKAGE

main81110-02X50iZWE211..V..SGP202306

main81110-02W30iMZEA11,ZRE210..D..GCC201904-202305

LOW GRADE PACKAGE

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13091×2iZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-02M60iZWE211..E201908-202112

main81130-02T90iZRE211..G..PHL202306-202410

main81130-02U10iZRE211..E..MA;ZRE210..(D,G)..(GEN,SGP)202306

main81130-02U50iZRE211..TAIW201904-202304

main81130-02W00iZRE210..TH202306

main81130-02W10supersedes 81130-02W30iMZEA11,12,18,ZRE210,ZWE211..GCC; MZEA12..GCC; MZEA17,ZRE217202305

SAUDI ARABIA SPEC&UP GRADE PACKAGE; UP GRADE PACKAGE

main81130-02W40supersedes 81145-02W50iZWE211..E; ZWE211..V..TAIW202304

LOW GRADE PACKAGE

main81130-02X50iZWE211..V..SGP202306

main81140-02M40iZWE211..VN;ZWE211..X..PHL202306

main81140-02M50iZWE211..SGP201908-202201

main81140-02U20iZRE210,211..LHD..(GEN,VN)202306

main81140-02U30iZRE210,211..(E,G)..(MA,SGP); ZRE211..IDN; ZRE211..TH;ZRE210..E..GEN201908-202306

TOYOTA SAFETY SENSE-WITH; UP GRADE PACKAGE

main81145-02U60iMZEA12..TAIW202304

main81130-02W30iMZEA17,ZRE217; MZEA18202305

SAUDI ARABIA SPEC&LOW GRADE PACKAGE

81144CCOVER, HEADLAMP SOCKET

main90075-65006×2iZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

81150HEADLAMP ASSY, LH

main81150-02L30iZWE211..VN;ZWE211..X..PHL202306

main81150-02M30iZWE211..MA201908-202112

main81150-02M40iZWE211..E201908-202112

main81150-02M50supersedes 81150-02M60iZWE211..E; ZWE211..V..TAIW202304

LOW GRADE PACKAGE

main81150-02T80iZRE210..CVT..(D,G)..PHL201908-202306

main81150-02U00iZRE211..E..MA;ZRE210..(D,G)..(GEN,SGP)202306

main81150-02U10iZRE210..V;ZRE211..VN201908-202306

main81150-02U20iZRE210,211..(E,G)..(MA,SGP); ZRE210..E;ZWE211..(G,X)..TH;ZRE211..RHD..(G,X)202306

TOYOTA SAFETY SENSE-WITH

main81150-02U40iZRE211..TAIW201904-202304

main81150-02U50iMZEA12..TAIW202304

main81150-02W00iZRE210..TH202306

main81150-02W10supersedes 81150-02L10iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main81150-02W30iZWE211..SGP202201-202306

main81150-02L10iMZEA12..D202204-202305

SAUDI ARABIA SPEC& LOW GRADE PACKAGE

81175UNIT ASSY, HEADLAMP, LH

main81070-02L30iZWE211..PHL202306-202410

main81070-02M30iZWE211..GEN,IDN;ZWE211..(G,V)..TH201908-202306

main81070-02U10iZRE210..V;ZRE211..VN201908-202306

main81070-02U20iZRE210,211..(E,G)..(MA,SGP); ZRE210..E;ZWE211..(G,X)..TH;ZRE211..RHD..(G,X)202306

TOYOTA SAFETY SENSE-WITH

main81170-02M40iZWE211..E201908-202112

main81170-02M50supersedes 81185-02M60iZWE211..E; ZWE211..V..TAIW202304

LOW GRADE PACKAGE

main81170-02T80iZRE211..(D,X)..PHL202306

main81170-02U00iZRE211..E..MA;ZRE210..(D,G)..(GEN,SGP)202306

main81170-02U40iZRE211..TAIW201904-202304

main81170-02W00iZRE210..TH202306

main81170-02W10supersedes 81170-02L10iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main81170-02W30iZWE211..V..SGP202306

main81185-02U50iMZEA12..TAIW202304

main81170-02L10iMZEA17,ZRE217; MZEA18202305

SAUDI ARABIA SPEC&LOW GRADE PACKAGE

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

81610FBULB(FOR CLEARANCE LAMP)

main90981-11069×2iMZEA17,ZRE217; MZEA18202305

12V 5W; 12V 5W,SAUDI ARABIA SPEC&LOW GRADE PACKAGE

81615DSOCKET, CLEARANCE LAMP

main90075-60086×2iMZEA17,ZRE217; MZEA18202305

SAUDI ARABIA SPEC&LOW GRADE PACKAGE

9010906388

main90109-06388

90109T0046

main90109-T0046

9015960621

main90159-60621

9018906238

main90189-06238

14 parts on this diagram · 4 diagrams in section
