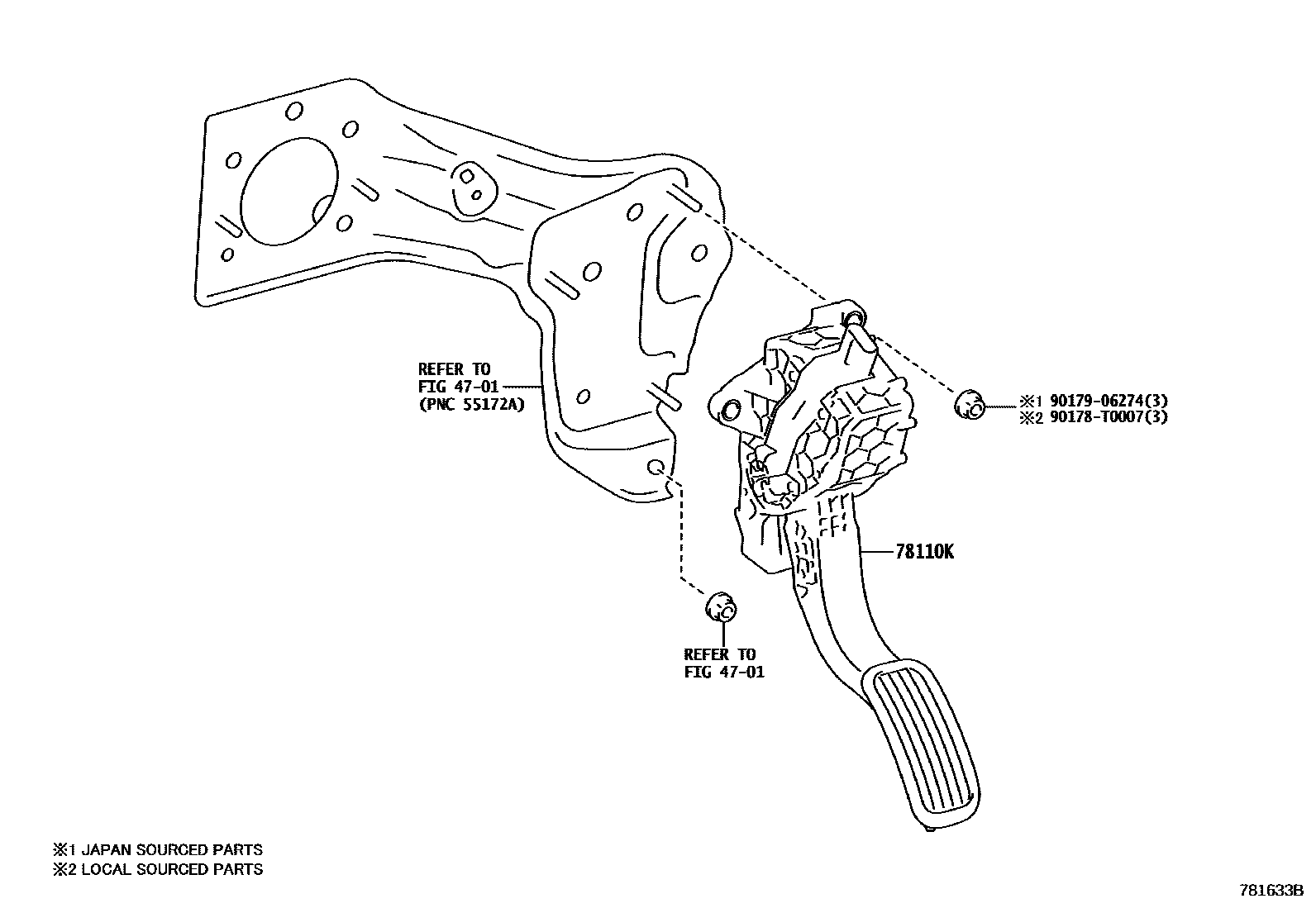

ACCELERATOR LINK

0001 1 0002 1

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-02230iZRE210,ZWE211..PHL201908-202101

main78110-02231iZRE210,ZWE211..PHL202102-202107

main78110-02232iZRE211,ZWE211..(G,V)..PHL202306-202410

main78110-02240iZRE21#,ZWE211..RHD201908-202101

main78110-02241iZWE211..(E,G,V)..TH;ZRE21#..RHD..(D,E,G);ZWE211..GEN,IDN,MA,SGP202102-202106

main78110-02242iZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE210,211..RHD..(D,E,G)202107-202306

main78110-12100iMZEA1#,ZRE21#,ZWE211..GCC,TAIW201904-202010

main78110-12101iZRE211..TAIW202304-202405

90178T0007

main90178-T0007

9017906274

main90179-06274

4 parts on this diagram · 2 diagrams in section
