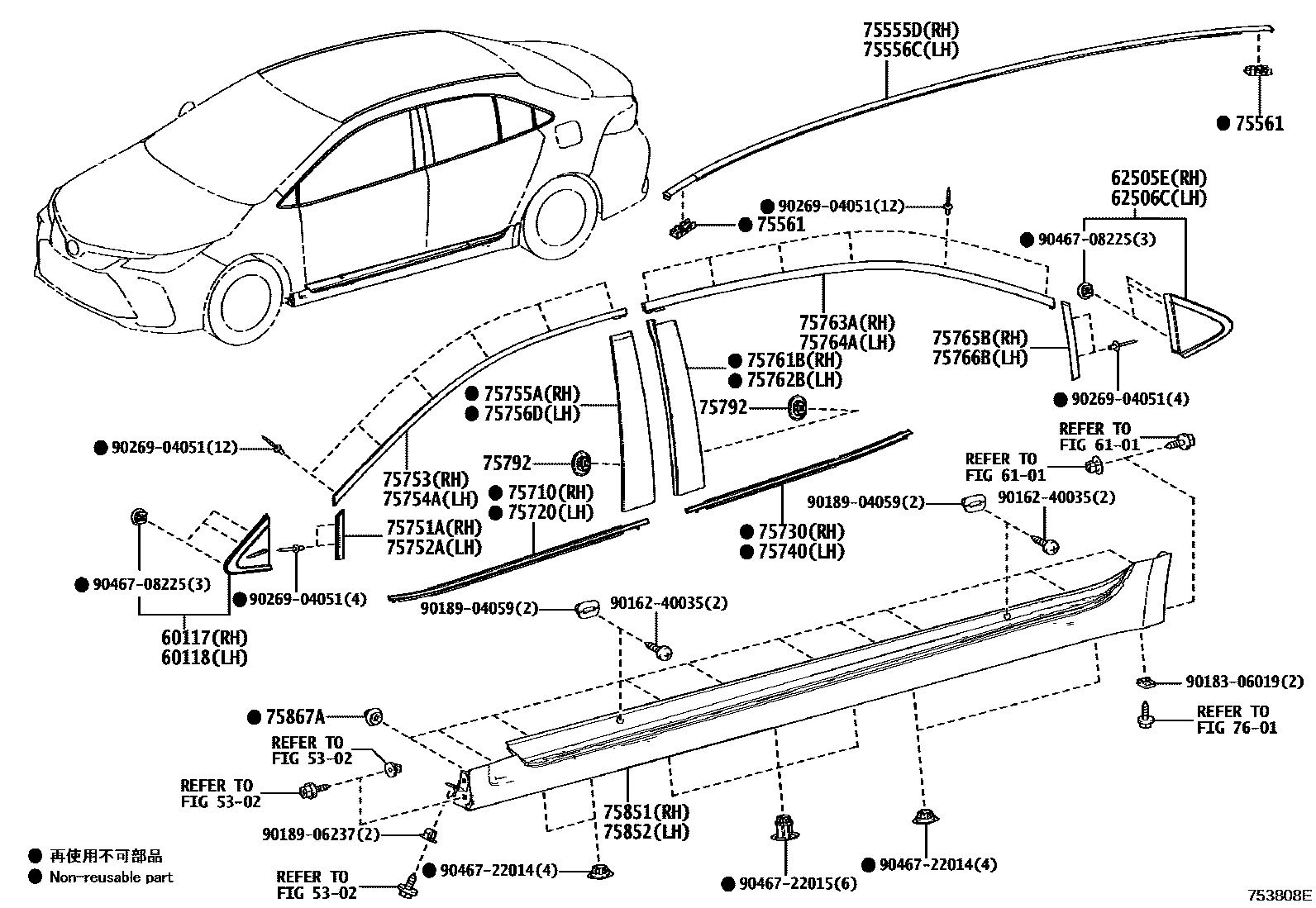

SIDE MOULDING

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-02290iZRE210..6F201908-202112

main60117-02310iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

main60117-02390iZRE210,211..(E,G)..(MA,SGP); ZRE211..E..MA; ZWE211..(G,V)..TH;ZRE210,211..(E,G)..(GEN,IDN,TH,VN);ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

SPORTY PACKAGE; UP GRADE PACKAGE

main60117-02400iZRE211,ZWE211..(G,V)..TAIW202304-202405

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-02290iZRE211..G..PHL202306-202410

main60118-02310iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

main60118-02390iZRE210,211..(E,G)..(MA,SGP); ZRE211..E..MA; ZWE211..(G,V)..TH;ZRE210,211..(E,G)..(GEN,IDN,TH,VN);ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

SPORTY PACKAGE; UP GRADE PACKAGE

main60118-02400iZRE211,ZWE211..(G,V)..TAIW202304-202405

6101SIDE MEMBER

→ Go to FIG 61-01

62505ECOVER SUB-ASSY, QUARTER PILLAR, RH

main62505-02070iZRE210..6F201908-202112

NO PAINT REQ.

main62505-02090iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

NO PAINT REQ.

main62505-02170iZWE211..E;ZWE211..MA201908-202112

NO PAINT REQ.

main62505-02180iZRE211,ZWE211..(E,G,V)..TAIW201904-202304

NO PAINT REQ.

62506CCOVER SUB-ASSY, QUARTER PILLAR, LH

main62506-02070iZRE211..E..MA;ZRE210..CVT..(D,G)..(GEN,PHL,SGP)201908-202306

NO PAINT REQ.

main62506-02090iZWE211..V..TAIW202405

NO PAINT REQ.

main62506-02170iZRE211..MA; ZWE211..V..(PHL,TH)202306-202410

NO PAINT REQ.; NO PAINT REQ.,X PACKAGE

main62506-02180iMZEA11,12,ZRE210,ZWE211..N..GCC202304

NO PAINT REQ.

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-02330iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main75555-02340iMZEA1#,ZRE210,ZWE211..GCC201904-202305

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-02310iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main75556-02320iZRE211..TAIW202304-202405

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030×4iZRE211..G..PHL;ZWE211..V..(PHL,TH)202304-202410

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-02530iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main75710-02550iZRE211..TAIW202304-202405

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-02530iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main75720-02550iZRE211..TAIW202304-202405

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-02530iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main75730-02550iMZEA1#,ZRE210,ZWE211..GCC201904-202305

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-02530iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main75740-02550iZRE211..TAIW202304-202405

75751AMOULDING, FRONT DOOR WINDOW FRAME, RH(FRONT PILLAR SIDE)

main75751-02040iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main75751-02060iZRE211..TAIW202304-202405

75752AMOULDING, FRONT DOOR WINDOW FRAME, LH(FRONT PILLAR SIDE)

main75752-02040iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main75752-02060iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-02070iZRE211..E..MA;ZRE210..(D,G)..(GEN,SGP);ZRE211,ZWE211..(D,X)..(IDN,MA,PHL,SGP,TH,VN)202306

main75753-02080iZRE210,211..(E,G)..(MA,SGP); ZRE211..E..MA; ZWE211..(G,V)..TH;ZRE210,211..(E,G)..(GEN,IDN,TH,VN);ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

SPORTY PACKAGE; UP GRADE PACKAGE

main75753-02090iMZEA12,ZRE218..TAIW;MZEA17,18,ZRE217,ZWE211..D,E202304

main75753-02160iZRE211,ZWE211..(E,G,V)..TAIW201904-202304

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-02070iZRE210..6F201908-202112

main75754-02080iZRE211..MA; ZWE211..V..(PHL,TH)202306-202410

X PACKAGE

main75754-02090iZRE211..D201904-202304

main75754-02160iMZEA1#,ZRE210,ZWE211..N..GCC201904-202305

75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75755-02150iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main75755-02160iZRE211..TAIW202304-202405

75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75756-02150iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main75756-02160iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75761-02160iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main75761-02170iMZEA1#,ZRE210,ZWE211..GCC201904-202305

75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75762-02160iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main75762-02170iMZEA1#,ZRE210,ZWE211..GCC201904-202305

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-02090iZRE210..6F201908-202112

main75763-02100iZRE211..MA; ZWE211..V..(PHL,TH)202306-202410

X PACKAGE

main75763-02110iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

main75763-02180iMZEA1#,ZRE210,ZWE211..N..GCC201904-202305

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-02090iZRE211..E..MA;ZRE210..(D,G)..(GEN,SGP);ZRE211,ZWE211..(D,X)..(IDN,MA,PHL,SGP,TH,VN)202306

main75764-02100iZRE210,211..(E,G)..(MA,SGP); ZRE211..E..MA; ZWE211..(G,V)..TH;ZRE210,211..(E,G)..(GEN,IDN,TH,VN);ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

SPORTY PACKAGE; UP GRADE PACKAGE

main75764-02110iZRE211..D201904-202304

main75764-02180iMZEA11,12,ZRE210,ZWE211..N..GCC202304

75765BMOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)

main75765-02050iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main75765-02070iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

75766BMOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)

main75766-02050iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main75766-02070iZRE211,ZWE211..TAIW201904-202304

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-0D020×2iMZEA1#,ZRE210,ZWE211..GCC201904-202305

(L)

main75792-47010×2iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

(J)

75851MOULDING, ROCKER PANEL, RH

main75851-02907iMZEA1#,ZRE210,ZWE211..GCC201904-202305

PAINT REQ.

main75851-02908iZRE211..D;ZWE211..G;ZWE211..(N,V)..(GEN,IDN,SGP,VN);ZRE210,211..(D,E,G,V)..(GEN,IDN,MA,SGP,TH,VN)202306

PAINT REQ.

main75851-02914iZRE211..G..PHL;ZWE211..V..(PHL,TH)202304-202410

PAINT REQ.

75852MOULDING, ROCKER PANEL, LH

main75852-02907iMZEA1#,ZRE210,ZWE211..GCC201904-202305

PAINT REQ.

main75852-02908iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

PAINT REQ.

main75852-02914iZRE211..TAIW; ZWE211..V..TAIW202304-202405

PAINT REQ.; PAINT REQ.,X PACKAGE

75867ACLIP, ROCKER PANEL MOULDING

main75867-52020×20iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201904-202306

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9016240035

main90162-40035

9018306019

main90183-06019

9018904059

main90189-04059

9018906237

main90189-06237

9026904051

main90269-04051

9046708225

main90467-08225

9046722014

main90467-22014

9046722015

main90467-22015

38 parts on this diagram · 1 diagram in section
