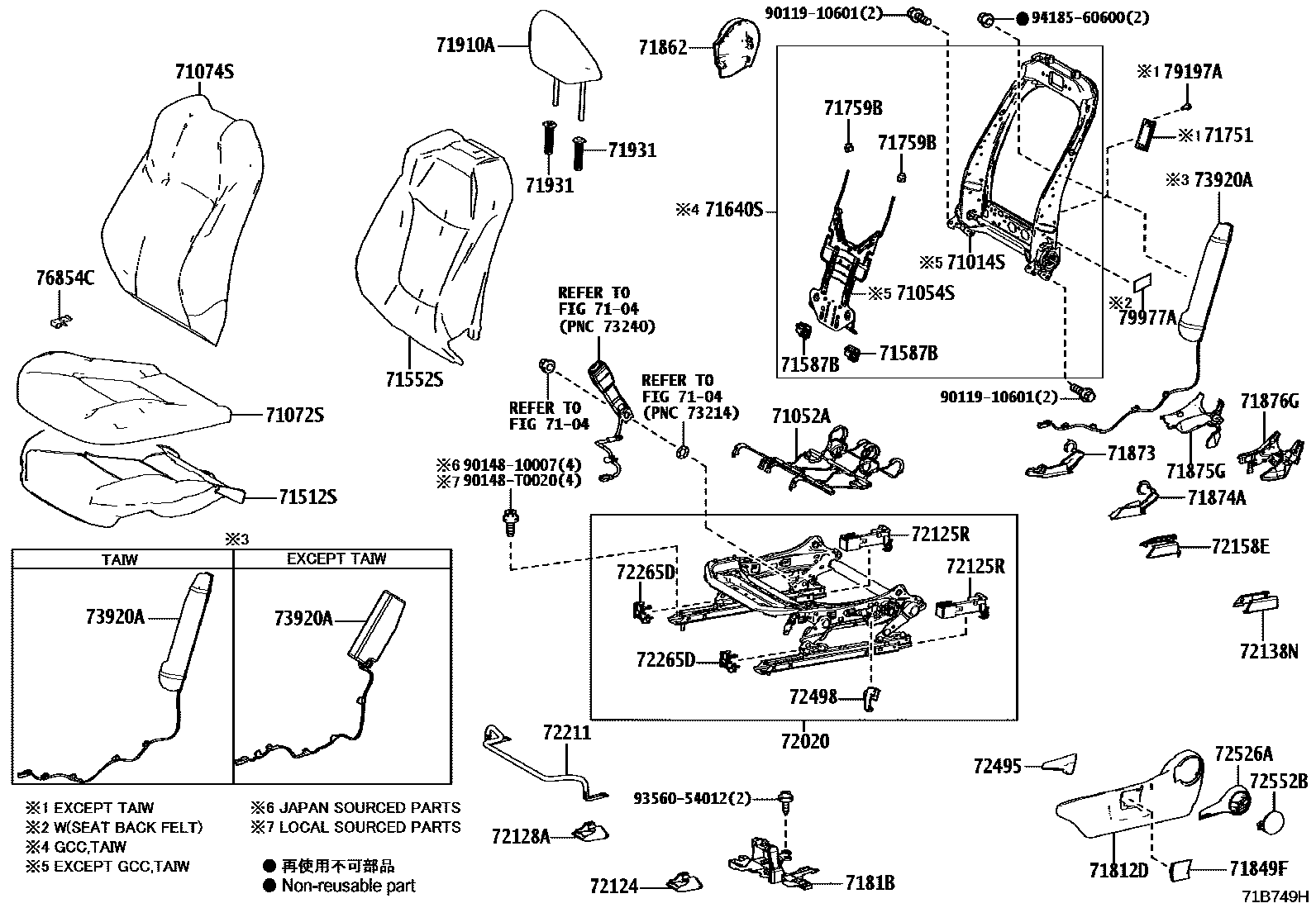

FRONT SEAT & SEAT TRACK
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-06560iZWE211..G;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(D,E,G)..(GEN,PHL,SGP,TH)201908-202306
7104SEAT BELT & CHILD RESTRAINT SEAT
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-06120iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
MIDDLE GRADE PACKAGE
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
FROMAGE,TRIM0#
LT. GRAY,TRIM1#
LT. GRAY,TRIM1#
FROMAGE,TRIM0#
BLACK / GRAY DOT,TRIM2#
LT. GRAY,TRIM1#
FROMAGE,TRIM0#
BLACK / GRAY DOT,TRIM2#
BRUNEI SPEC,FROMAGE,TRIM0#; FROMAGE,TRIM0#
main71072-0ZN50-C4supersedes 71072-0ZN70-C0iZRE211..E..MA; ZWE211..GEN,IDN;ZRE210,ZWE211..G..TH201908-202306
BLACK,TRIM2#; BRUNEI SPEC& UP GRADE PACKAGE,BLACK,TRIM2#; BRUNEI SPEC,BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
FROMAGE,TRIM0#
BLACK,TRIM2#
BLACK/FROMAGE,TRIM0#
BLACK/LT.GRAY,TRIM1#
BLACK/BLACK,TRIM2#; LOW GRADE PACKAGE,BLACK/BLACK,TRIM2#
BLACK/NEUTRAL WARM GRAY,TRIM1#; LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,BLACK/NEUTRAL WARM GRAY,TRIM1#
BLACK/ORCHID BROWN,TRIM0#
BLACK/GRAY,TRIM1#
BLACK/GR RED GOSEN Y55,TRIM2#; X PACKAGE,BLACK/GR RED GOSEN Y55,TRIM2#
BLACK/GR RED,TRIM2#
BLACK/GR RED,TRIM2#
BLACK/GR RED,TRIM2#
BLACK/GR RED,TRIM2#
X PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,BLACK/DK.CRIMSON,TRIM3#
BLACK/DARK ROSE,TRIM3#; X PACKAGE,BLACK/DARK ROSE,TRIM3#
BRUNEI SPEC& SPORTY PACKAGE,BLACK,TRIM2#; SPORTY PACKAGE,BLACK,TRIM2#; UP GRADE PACKAGE&FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM2#
X PACKAGE&FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK/GR RED GOSEN Y55,TRIM2#
UP GRADE PACKAGE,BLACK,TRIM2#
X PACKAGE,BLACK/GR RED,TRIM20
UP GRADE PACKAGE&FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK/NEUTRAL WARMGRAY,TRIM1#
UP GRADE PACKAGE&FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK/BLACK,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
BLACK/GR RED,TRIM2#
BLACK/GR RED,TRIM2#
GRAY,TRIM1#
BLACK,TRIM2#
BALCK,TRIM2#
ORCHID BROWN,TRIM0#
ORCHID BROWN,TRIM0#
GRAY,TRIM1#
ORCHID BROWN,TRIM0#
GRAY,TRIM1#
ORCHID BROWN,TRIM0#
GRAY,TRIM1#
ORCHID BROWN,TRIM0#
ORCHID BROWN,TRIM0#
BLACK,TRIM2#
main71074-0ZV30-C4iZRE210..(G,V)..(GEN,TH);ZWE211..(N,V)..(GEN,IDN,VN);ZRE211,ZWE211..(E,G)..(TH,VN); ZRE211..E..MA202306
BLACK,TRIM2#; BRUNEI SPEC,BLACK,TRIM2#
main71074-0ZV30-E3iZRE211..E..MA; ZWE211..G;ZRE211..VN;ZRE210,ZWE211..(N,V)..(GEN,PHL,VN)201908-202306
BRUNEI SPEC& UP GRADE PACKAGE,ORCHID BROWN,TRIM0#; BRUNEI SPEC,ORCHID BROWN,TRIM0#; ORCHID BROWN,TRIM0#; UP GRADE PACKAGE,ORCHID BROWN,TRIM0#
BRUNEI SPEC,ORCHID BROWN,TRIM0#; ORCHID BROWN,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
LT.GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#
FROMAGE,TRIM0#
LT. GRAY,TRIM1#
FROMAGE,TRIM0#
LT. GRAY,TRIM1#
main71074-F2610-C0iZRE210..SGP; ZRE211..G..VN;ZRE210,ZWE211..V..PHL; ZRE211..TH;ZWE211..V..TH202201-202306
BLACK/GR RED GOSEN Y55,TRIM2#; X PACKAGE&FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK/GR RED GOSEN Y55,TRIM2#; X PACKAGE,BLACK/GR RED GOSEN Y55,TRIM2#
BLACK/GR RED,TRIM2#; X PACKAGE,BLACK/GR RED,TRIM2#
BRUNEI SPEC& SPORTY PACKAGE,BLACK,TRIM2#; SPORTY PACKAGE,BLACK,TRIM2#; UP GRADE PACKAGE&FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM2#
BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
X PACKAGE,BLACK/DK.CRIMSON,TRIM3#
BLACK/DARK ROSE,TRIM3#; X PACKAGE,BLACK/DARK ROSE,TRIM3#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-02300supersedes 71502-02310iZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA)201908-202306
UP GRADE PACKAGE
main71512-02C00supersedes 71512-02C10iZRE218;MZEA11,12,ZRE210,ZWE211..(E,N,X)..(GCC,TAIW); ZWE211..V..TAIW202304
LOW GRADE PACKAGE
UP GRADE PACKAGE&FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
X PACKAGE; X PACKAGE&FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT
main71552-02C20supersedes 71552-02C10iZRE211..D;ZWE211..G;ZWE211..(N,V)..(GEN,IDN,SGP,VN);ZRE210,211..(D,E,G,V)..(GEN,MA,SGP,TH,VN)202306
71587BPROTECTOR, FRONT SEATBACK EDGE
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT
UP GRADE PACKAGE&FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT
71751HANGER, SEAT COVER
71759BHOOK, FRONT SEATBACK
71812DSHIELD, FRONT SEAT CUSHION, LH
BLACK,TRIM1#,2#
BLACK,TRIM0#
BLACK,TRIM0#,2#; BLACK,TRIM2#
BLACK,TRIM0#,2#; BLACK,TRIM1#
main71812-06620-C0iZRE210..RHD; ZRE211,ZWE211..IDN; ZWE211..G;ZWE211..GEN;ZRE211..E..MA201908-202306
BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,2#; BLACK,TRIM2#
7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
UP GRADE PACKAGE&FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT
71849FCAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)
BLACK,TRIM2#; LOW GRADE PACKAGE,BLACK,TRIM2#,3#
BLACK,TRIM0#,2#; BLACK,TRIM1#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
BLACK,TRIM3#; X PACKAGE,BLACK,TRIM2#,3#
BLACK,TRIM0#,2#; BLACK,TRIM1#
BLACK,TRIM0#,1#,2#; MIDDLE GRADE PACKAGE,BLACK,TRIM0#,2#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
FOR RH SEAT
main71874-02330iMZEA11,12,ZRE210..N;MZEA17,18,ZRE217,218,ZWE211..LHD..(D,E,N); ZWE211..V..TAIW202304
FOR LH SEAT
FOR LH SEAT
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71873-06620supersedes 71874-06570iZWE211..G;ZRE210,211..RHD;ZWE211..GEN,IDN,SGP; ZWE211..V..TAIW; ZWE211..X..TH;ZWE211..V..TAIW202304
FOR RH SEAT; LOW GRADE PACKAGE
FOR LH SEAT
UP GRADE PACKAGE&FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
X PACKAGE
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
BLACK,TRIM1#,2#; LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,2#; BLACK,TRIM1#
BLACK,TRIM0#,1#; BLACK,TRIM0#,2#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
BLACK,TRIM0#,1#
BLACK,TRIM0#,2#; BLACK,TRIM2#
main71876-06540-C0iZRE210..RHD; ZRE211,ZWE211..IDN; ZWE211..G;ZWE211..GEN;ZRE211..E..MA201908-202306
BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,2#; BLACK,TRIM2#
71910AHEADREST ASSY, FRONT SEAT
GRAY,TRIM1#; LOW GRADE PACKAGE,GRAY,TRIM1#
GRAY,TRIM1#
LOW GRADE PACKAGE,ORCHID BROWN,TRIM0#; ORCHID BROWN,TRIM0#
ORCHID BROWN,TRIM0#
GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
BALCK,TRIM2#
BALCK,TRIM2#
ORCHID BROWN,TRIM0#
ORCHID BROWN,TRIM0#
ORCHID BROWN,TRIM0#
main71910-02T50-C1×2iZRE210..V;ZRE210..TH;ZWE211..(G,N,V)..(GEN,IDN,MA,PHL,SGP,TH); ZRE211..MA201908-202005
BLACK,TRIM2#; BRUNEI SPEC& UP GRADE PACKAGE,BLACK,TRIM2#; BRUNEI SPEC,BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
BLACK,TRIM2#
main71910-02T50-C5×2iZRE210..(G,V)..(GEN,TH);ZWE211..(N,V)..(GEN,IDN,VN);ZRE211,ZWE211..(E,G)..(TH,VN); ZRE211..E..MA202306
BLACK,TRIM2#; BRUNEI SPEC,BLACK,TRIM2#
main71910-02T50-E1×2iZRE210..V;ZRE210..TH;ZWE211..(G,N,V)..(GEN,MA,PHL,SGP,TH); ZRE211..MA201908-202005
BRUNEI SPEC& UP GRADE PACKAGE,ORCHID BROWN,TRIM0#; BRUNEI SPEC,ORCHID BROWN,TRIM0#; ORCHID BROWN,TRIM0#; UP GRADE PACKAGE,ORCHID BROWN,TRIM0#
ORCHID BROWN,TRIM0#
BRUNEI SPEC,ORCHID BROWN,TRIM0#; ORCHID BROWN,TRIM0#
GRAY,TRIM1#
GRAY,TRIM1#
ORCHID BROWN,TRIM0#
ORCHID BROWN,TRIM0#
ORCHID BROWN,TRIM0#
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
BLACK,TRIM2#
BLACK/DK.CRIMSON,TRIM3#
BLACK/SHELL,TRIM2#
BLACK,TRIM2#
FROMAGE,TRIM0#
LT. GRAY,TRIM1#
FROMAGE,TRIM0#
LT. GRAY,TRIM1#
GRAY,TRIM1#
ORCHID BROWN,TRIM0#
ORCHID BROWN,TRIM0#
BLACK/GR RED,TRIM2#
main71910-0Z050-C0×2iZRE210..SGP; ZRE211..G..VN;ZRE210,ZWE211..V..PHL; ZRE211..TH;ZWE211..V..TH202201-202306
BLACK/GR RED GOSEN Y55,TRIM2#; X PACKAGE&FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK/GR RED GOSEN Y55,TRIM2#; X PACKAGE,BLACK/GR RED GOSEN Y55,TRIM2#
BRUNEI SPEC& SPORTY PACKAGE,BLACK,TRIM2#; SPORTY PACKAGE,BLACK,TRIM2#; UP GRADE PACKAGE&FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM2#
X PACKAGE,BLACK/DK.CRIMSON,TRIM3#
BLACK/DARK ROSE,TRIM3#; X PACKAGE,BLACK/DARK ROSE,TRIM3#
71931SUPPORT, FRONT SEAT HEADREST
main71930-0K050-C1×2iZRE210..CVT..D..PHL; ZRE210..RHD;ZWE211..SGP; ZWE211..(G,V)..TH;ZRE211..(E,G)..(IDN,MA,TH,VN);ZRE210,ZWE211..(G,N,V)..(GEN,IDN,PHL,VN)201908-202306
W(LOCK),BLACK,TRIM1#; W(LOCK),BLACK,TRIM1#,2#; W(LOCK),BLACK,TRIM2#
W(LOCK),ORCHID BROWN,TRIM0#
W(LOCK),FROMAGE,TRIM0#
W(LOCK),LT.GRAY,TRIM1#
W(LOCK),BLACK,TRIM2#; W(LOCK),BLACK,TRIM2#,3#
W(LOCK),ORCHID BROWN,TRIM0#
main71931-0K040-C1×2iZRE210..CVT..D..PHL; ZRE210..RHD;ZWE211..SGP; ZWE211..(G,V)..TH;ZRE211..(E,G)..(IDN,MA,TH,VN);ZRE210,ZWE211..(G,N,V)..(GEN,IDN,PHL,VN)201908-202306
W/O(LOCK),BLACK,TRIM1#; W/O(LOCK),BLACK,TRIM1#,2#; W/O(LOCK),BLACK,TRIM2#
W/O(LOCK),ORCHID BROWN,TRIM0#
W/O(LOCK),FROMAGE,TRIM0#
W/O(LOCK),LT.GRAY,TRIM1#
W/O(LOCK),BLACK,TRIM2#; W/O(LOCK),BLACK,TRIM2#,3#
W/O(LOCK),ORCHID BROWN,TRIM0#
72020ADJUSTER ASSY, FRONT SEAT, LH
LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT
main72020-02841supersedes 72020-02850iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..LHD..(D,E,N); ZWE211..V..TAIW202304
LOW GRADE PACKAGE
MIDDLE GRADE PACKAGE
UP GRADE PACKAGE&FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72123-06130iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306
72125RCOVER, SEAT TRACK, UPPER REAR NO.1
main72125-02100×4supersedes 72125-02110iMZEA11..N;ZWE211..(D,V)..(GCC,TAIW); MZEA17,18,ZRE217;MZEA12,ZRE210,ZWE211..(E,N,X)..(GCC,TAIW); ZRE218; ZWE211..V..TAIW202304
FOR RH SEAT; LOW GRADE PACKAGE,FOR LH SEAT
main72125-06090×2supersedes 72125-06100iZRE210,211,ZWE211..LHD..(GEN,VN);ZRE211,ZWE211..X..(IDN,MA,PHL,SGP); ZRE211..D;ZWE211..(N,V)..(GEN,IDN,SGP);ZRE210,211,ZWE211..RHD..(D,E,G)202306
FOR LH SEAT; FOR RH SEAT
main72125-06100×4iZRE210..SGP; ZRE211..G..VN;ZRE210,ZWE211..V..PHL; ZRE211..TH; ZRE211..TH;ZWE211..V..TH202201-202306
FOR RH SEAT; MIDDLE GRADE PACKAGE,FOR RH SEAT; X PACKAGE&FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT,FOR RH SEAT; X PACKAGE,FOR RH SEAT
UP GRADE PACKAGE&FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT,FOR LH SEAT
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH
72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH
72211HANDLE, SEAT TRACK ADJUSTING
LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT
main72211-06150×2iZRE210,211..IDN,SGP; ZRE211..IDN;ZRE210..CVT..(D,G)..(GEN,PHL,SGP,TH); ZWE211..G;ZRE211..(E,G)..(MA,VN);ZRE210,ZWE211..CVT..(E,N,V)..(GEN,IDN,PHL,VN)201908-202306
UP GRADE PACKAGE&FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT
72265DCOVER, SEAT TRACK UPPER RAIL
FOR RH SEAT
main72265-06060×2iZRE211..VN;ZRE210,ZWE211..V..(PHL,VN); ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA)201908-202306
FOR LH SEAT; FOR RH SEAT
main72265-47010×4supersedes 72265-47020iMZEA12..TAIW;MZEA17,18,ZRE217,ZWE211..LHD..(D,E,N); ZRE218; ZWE211..V..TAIW; ZWE211..V..TAIW;MZEA11,12,ZRE210..N202304
FOR RH SEAT; LOW GRADE PACKAGE,FOR LH SEAT
UP GRADE PACKAGE&FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT,FOR LH SEAT
72495HANDLE, VERTICAL ADJUSTING, LH
BLACK,TRIM1#,2#; LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,2#; BLACK,TRIM1#
BLACK,TRIM0#; BLACK,TRIM2#
72498COVER, VERTICAL ADJUSTER BRACKET
LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
BLACK,TRIM1#,2#; LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,BLACK,TRIM1#,2#,3#
main72526-06140-C0iZRE210..CVT..D..PHL; ZRE210..RHD; ZRE211,ZWE211..IDN; ZWE211..G;ZWE211..GEN;ZRE210,211..CVT..(E,G)..(MA,PHL)201908-202306
BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,2#; BLACK,TRIM1#; BLACK,TRIM2#
BLACK,TRIM0#; BLACK,TRIM2#
72552BCOVER, RECLINING HINGE, LH
BLACK,TRIM0#
BLACK,TRIM0#,1#; BLACK,TRIM0#,2#; BLACK,TRIM1#
73920AAIRBAG ASSY, FRONT SEAT, LH
76854CRETAINER, FRONT SEAT CUSHION COVER
main76854-44010iZWE211..G;ZWE211..X..PHL;ZRE210,211..GEN,IDN,MA,SGP,TH,VN;MZEA11,12,ZRE210,211..(N,X)..(GCC,PHL,TAIW);MZEA17,18,ZRE217,218,ZWE211..GCC,GEN,IDN,SGP,TAIW,VN202304
79197ARIVET
main79197-0K010×2iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201904-202306
79977AFELT, SEATBACK
LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT
9011910601
main90119-10601
9014810007
main90148-10007
90148T0020
main90148-T0020
9356054012
main93560-54012
9418560600
main94185-60600
44 parts on this diagram · 7 diagrams in section
