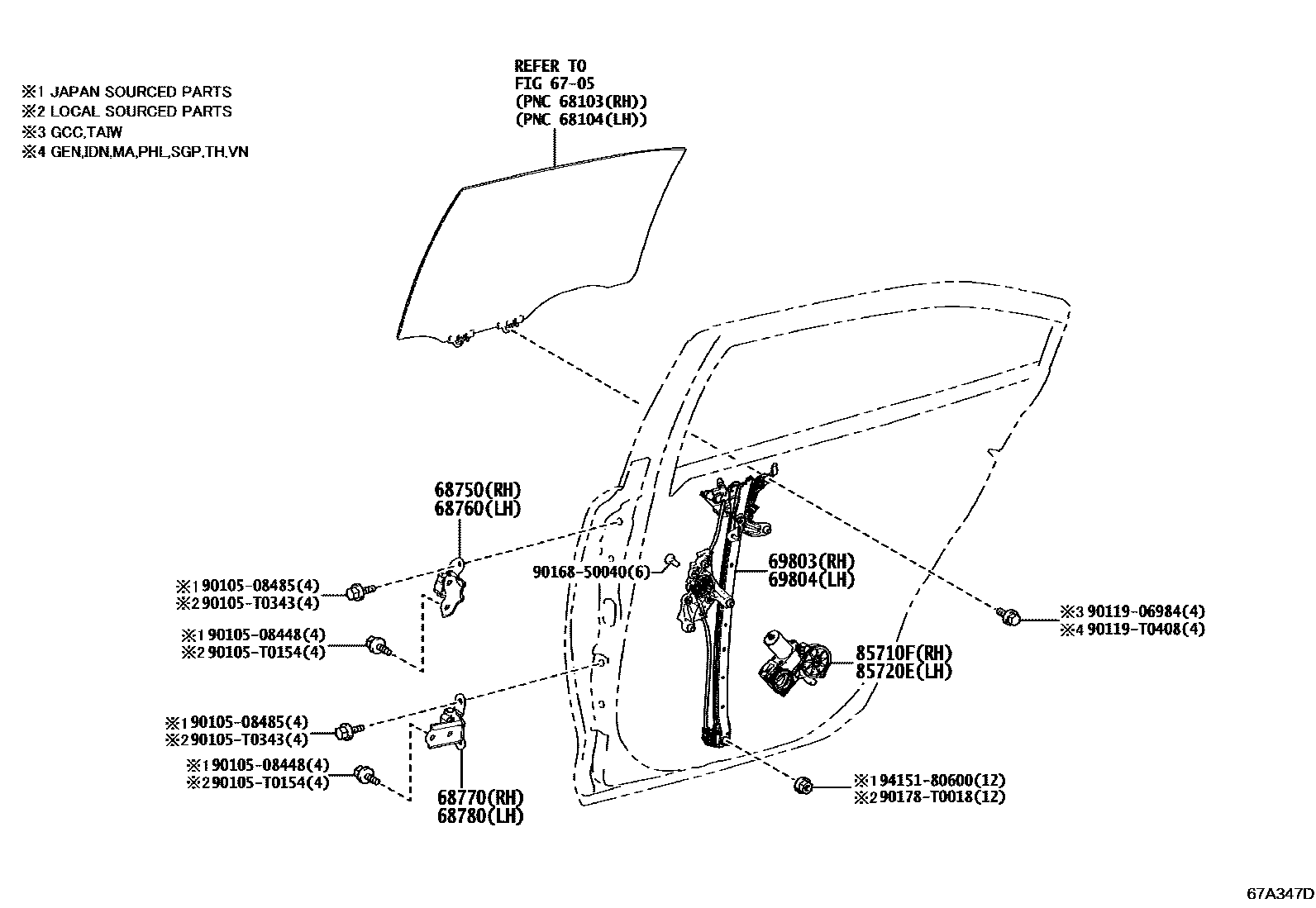

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0D030iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main68750-20122iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

W(CCC MARK)

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0D030iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main68760-20122iZRE211,ZWE211..TAIW201904-202304

W(CCC MARK)

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02100iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

W/O(CCC MARK)

main68770-06070iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main68770-33050iMZEA1#,ZRE210,ZWE211..GCC201904-202305

W(CCC MARK)

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02100iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

W/O(CCC MARK)

main68780-06070iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main68780-33050iZRE211..TAIW202304-202405

W(CCC MARK)

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-02360iZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH201908-202102

main69803-02361iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)202103-202306

main69803-02400iMZEA12,ZRE21#,ZWE211..GCC,TAIW201904-202005

main69803-02401iMZEA1#,ZRE21#,ZWE211..GCC,TAIW202006-202208

main69803-02402iMZEA1#,ZRE210,ZWE211..GCC202209-202305

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-02360iZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH201908-202102

main69804-02361iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main69804-02400iMZEA12,ZRE21#,ZWE211..GCC,TAIW201904-202005

main69804-02401iMZEA1#,ZRE21#,ZWE211..GCC,TAIW202006-202208

main69804-02402iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-02600iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main85710-02700iZRE211..TAIW202304-202405

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-02630iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main85720-02750iZRE211..TAIW202304-202405

9010508448

main90105-08448

9010508485

main90105-08485

90105T0154

main90105-T0154

90105T0343

main90105-T0343

9011906984

main90119-06984

90119T0408

main90119-T0408

9016850040

main90168-50040

90178T0018

main90178-T0018

9415180600

main94151-80600

18 parts on this diagram · 1 diagram in section
