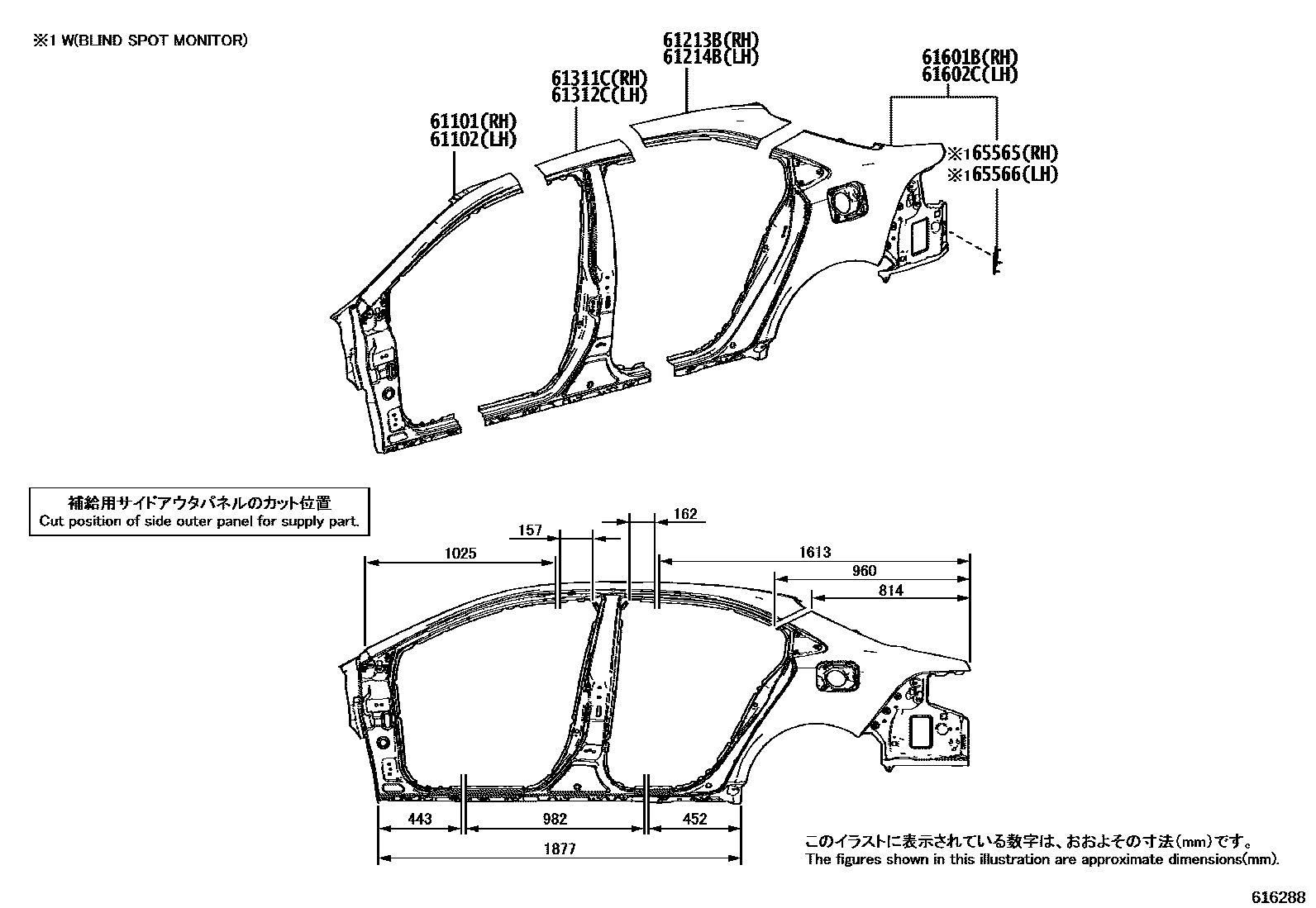

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, LH 0003 1INNER PANEL, LH 0004 1INNER PANEL, RH 0005 1INNER PANEL, RH

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-02150iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

main61131-02430iZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH201908-202004

main61131-02431iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-02140iZRE211..TAIW202304-202405

main61132-02450iZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH201908-202004

main61132-02451iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-02250iZRE211..TAIW202304-202405

main61213-02260iZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH201908-202004

main61213-02261iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)202005-202112

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-02260iZRE211,ZWE211..TAIW201904-202304

main61214-02270iZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH201908-202004

main61214-02271iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)202005-202306

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-02360iZRE211..TAIW202304-202405

main61311-02370iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

61312CPANEL, REAR BODY FRONT OUTSIDE, LH

main61312-02360iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main61312-02370iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-02540iZWE211..E202405

main61601-02550iZWE211..GCC;MZEA11,12,ZRE210..N;MZEA17,18,ZRE217,218202304

main61601-02560iZWE211..MA201908-202112

main61601-02570iZWE211..GEN,PHL;ZRE211..(E,G)..(IDN,MA,VN);ZRE210..CVT..(GEN,PHL,SGP,TH)201908-202306

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-02570iMZEA12,ZWE211..(V,X)..TAIW; ZRE218..E202304

MIDDLE GRADE PACKAGE

main61602-02580iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main61602-02590iZWE211..V..(PHL,TH)202306-202410

main61602-02600iZRE211..G..PHL202306-202410

65565PATCH, SIDE PANEL REAR END, RH

main65565-02080iZRE211,ZWE211..(G,V)..TAIW201904-202304

65566PATCH, SIDE PANEL REAR END, LH

main65565-02080iMZEA12,ZWE211..(V,X)..TAIW; ZRE218..E202304

MIDDLE GRADE PACKAGE

10 parts on this diagram · 5 diagrams in section
