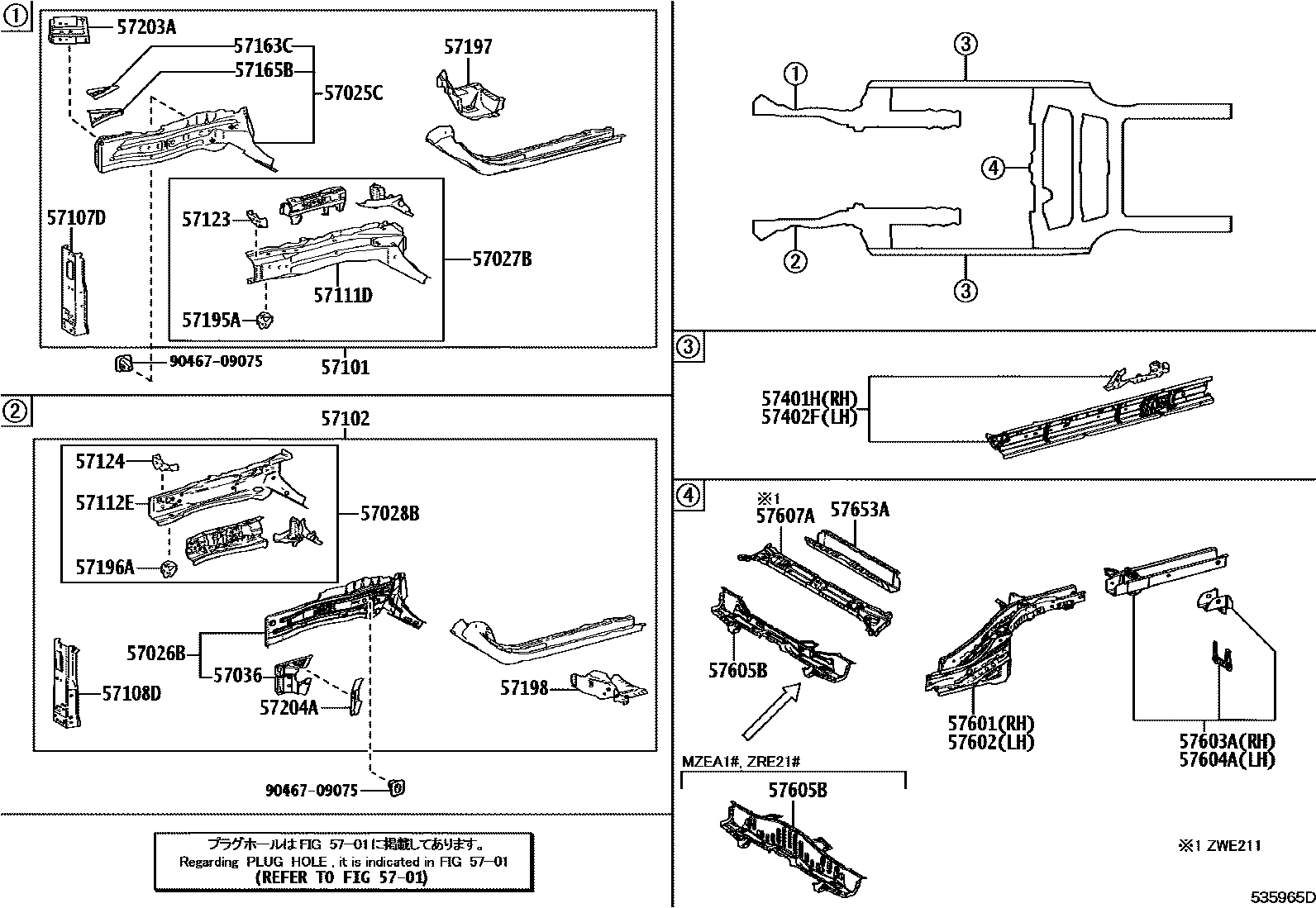

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1

5701HOLE PLUG

→ Go to FIG 57-01

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-02080iZRE211..TAIW202304-202405

main57025-02110iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-02100iMZEA12,ZRE21#,ZWE211..GCC,TAIW201904-201912

main57026-02101iZRE211..TAIW202304-202405

main57026-F4020iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-02110iZRE211,ZWE211..TAIW201904-202304

main57027-02140iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-02120iMZEA12,ZRE21#,ZWE211..GCC,TAIW201904-201912

main57028-02121iZRE211..TAIW202304-202405

main57028-F4020iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

57036PANEL SUB-ASSY, FRONT STEP, LH

main57036-02070iMZEA12,ZRE21#,ZWE211..GCC,TAIW201904-201912

main57036-02071iZRE211..TAIW202304-202405

main57036-F4020iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-02580iZRE211..TAIW202304-202405

main57101-02928iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-02790iMZEA12,ZRE21#,ZWE211..GCC,TAIW201904-201912

main57102-02791iZRE211..TAIW202304-202405

main57102-02945iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-02110iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main57107-02120iZRE211..TAIW202304-202405

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-02110iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main57108-02120iMZEA1#,ZRE210,ZWE211..GCC201904-202305

57111DMEMBER, FRONT SIDE, INNER RH

main57111-02240iZRE211..TAIW202304-202405

57112EMEMBER, FRONT SIDE, INNER LH

main57112-02200iMZEA12,ZRE21#,ZWE211..GCC,TAIW201904-201912

main57112-02201iZRE211,ZWE211..TAIW201912-202304

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-02080iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main57123-47020iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE21#..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)202201-202205

(J)

main57123-F4020iZRE210,211,ZWE211..GEN,IDN,MA,PHL,SGP,TH,VN202205-202306

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-02080iZRE211,ZWE211..TAIW201904-202304

main57124-47020iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE21#..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)202201-202205

(J)

main57124-F4020iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

57163CREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

main57163-02110iZRE211,ZWE211..TAIW201904-202304

57165BREINFORCEMENT, FRONT CROSSMEMBER, NO.2 RH

main57165-02150iZRE211,ZWE211..TAIW201904-202304

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-02080iZRE211,ZWE211..TAIW201904-202304

main57195-47010iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE21#..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)202201-202205

(J)

main57195-F4020iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-02090iZRE211,ZWE211..TAIW201904-202304

main57196-47030iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE21#..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)202201-202205

(J)

main57196-F4020iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE21#..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)202201-202205

(L)

57197BOX, TORQUE, FRONT RH

main57197-02150iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main57197-02180iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

57198BOX, TORQUE, FRONT LH

main57198-02150iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main57198-02180iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57215-02040iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main57215-02070iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57204-02070iMZEA12,ZRE21#,ZWE211..GCC,TAIW201904-201912

main57204-02071iZRE211,ZWE211..TAIW201912-202304

main57204-F4020iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-02380iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main57401-02390iZRE211,ZWE211..TAIW201904-202304

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-02390iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main57402-02400iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-02530iZRE211..TAIW202304-202405

main57601-02560iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main57601-02600iMZEA17,18,ZRE217,218202304

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-02620iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main57602-02650iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main57602-02700iMZEA17,18,ZRE217,218202304

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-02230iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main57603-02240iZRE211..TAIW202304-202405

main57603-02320iMZEA17,18,ZRE217,218202304

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-02130iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main57604-02140iZRE211..TAIW202304-202405

main57604-02220iMZEA17,18,ZRE217,218202304

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-02330iZWE211..GCC,TAIW201904-202007

main57605-02331iZWE211..TAIW202007-202304

main57605-02340iMZEA12,ZRE21#..GCC,TAIW201904-202007

main57605-02341iMZEA11,12,ZRE210..N,X202304

main57605-0A041iMZEA17,18,ZRE217,218202304

main57605-F4040iZWE211..GEN,IDN,MA,PHL,SGP,TH201908-202105

main57605-F4041iZWE211..V..(PHL,TH)202306-202410

main57605-F4050iZRE21#..GEN,IDN,MA,PHL,SGP,TH201908-202105

main57605-F4051iZRE211..G..PHL202306-202410

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-02030iZWE211..GCC,TAIW201904-202007

main57607-02031iZWE211..GCC,TAIW202304-202404

main57607-02032iZWE211..GCC,TAIW202405

main57607-F4020iZWE211..GEN,IDN,MA,PHL,SGP,TH201908-202011

main57607-F4021iZWE211..E;ZWE211..MA202011-202112

main57607-F4022iZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH)202411

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57606-02400iMZEA17,18,ZRE217,218202304

main57653-02200iZWE211..GCC,TAIW;MZEA11,12,ZRE210..N,X202304

main57653-F4020iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

9046709075

main90467-09075

32 parts on this diagram · 3 diagrams in section
