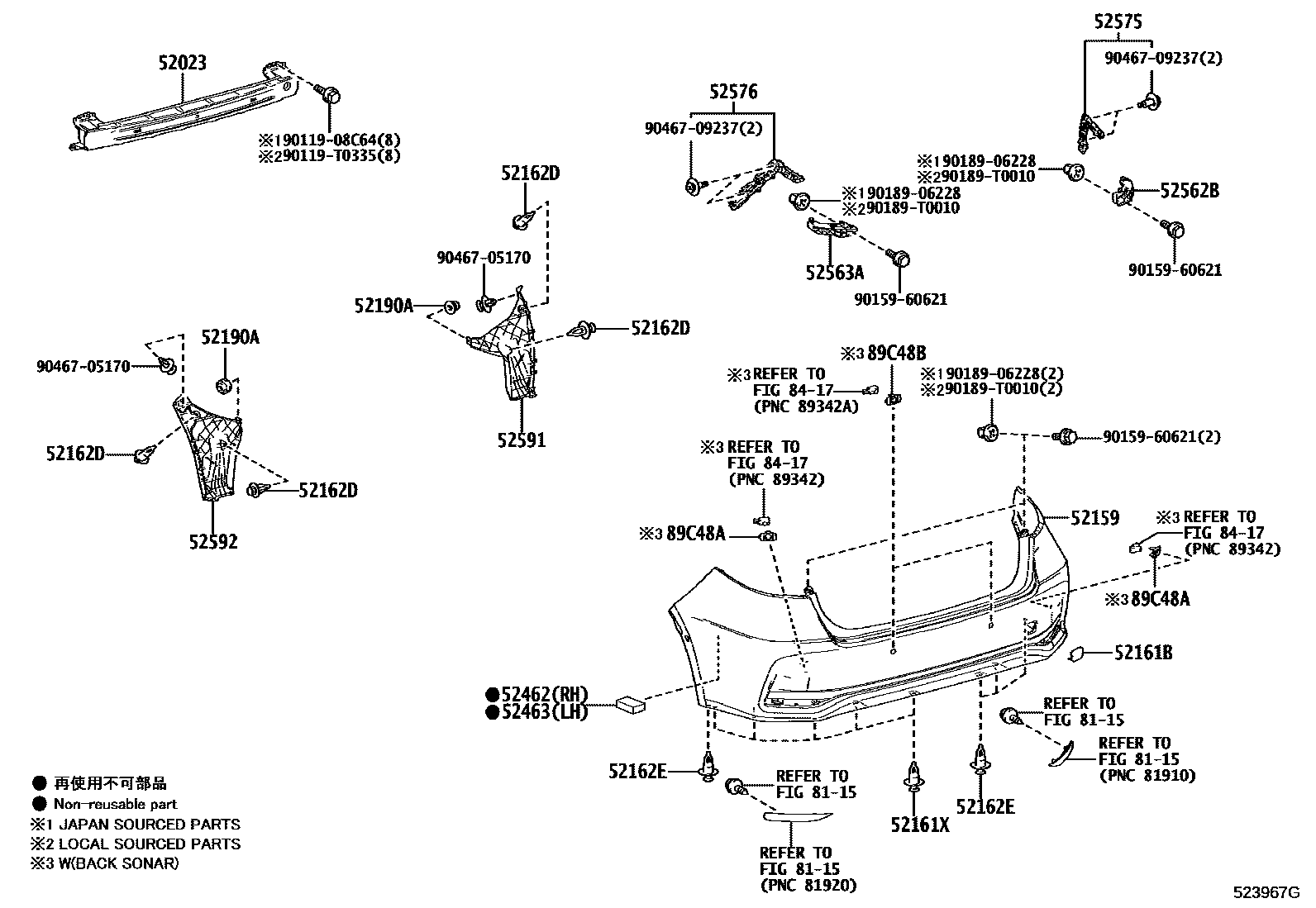

REAR BUMPER & BUMPER STAY

0001 1 0002 1W(REAR SPOILER)

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-02240iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main52023-02250iZRE211,ZWE211..TAIW201904-202304

52159COVER, REAR BUMPER

main52159-0Z959iMZEA11,12,ZRE210..N;MZEA17,18,ZRE217,218,ZWE211..LHD..(D,N)202304

PAINT REQ.

main52159-0Z960iZRE211,ZWE211..(E,G,V)..TAIW201904-202304

PAINT REQ.

main52159-0Z961iZWE211..SGP;ZRE210..CVT..(D,G)..(PHL,SGP,TH)201908-202306

PAINT REQ.

main52159-0Z962iZRE211..TH;ZWE211..V..TH201908-202201

PAINT REQ.

main52159-0Z963iZRE211..E..MA;ZRE211..G..(IDN,VN);ZRE210,ZWE211..CVT..(E,V)..(GEN,IDN,PHL,VN)201908-202306

PAINT REQ.

main52159-0Z971iZRE211..TAIW; ZWE211..V..TAIW202304-202405

PAINT REQ.; PAINT REQ.,X PACKAGE

main52159-0Z976iZRE211,ZWE211..X..(IDN,MA,PHL,TH,VN)202306

PAINT REQ.

main52159-0Z977iZWE211..X..SGP202411

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-02901iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main52161-02905iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main52161-02907iZRE211,ZWE211..(G,V)..TAIW202004-202304

X PACKAGE

52161XPIECE, REAR BUMPER

main52161-0K040×5iZRE211..X..PHL;ZRE211..IDN,MA,TH,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,ZWE211..(G,N,V,X)..(GEN,IDN,SGP,VN)202306

(L)

main52161-0K060×5iMZEA12; MZEA12,ZWE211..GCC201904-202305

(L); SAUDI ARABIA SPEC,(L)

main52161-16010×5iZRE211..G..PHL;ZWE211..V..(PHL,TH)202304-202410

(J)

52162DPIECE, REAR BUMPER

main52161-0K040×4iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

(L)

main52161-0K060×4iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

(L)

main52161-16010×4iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

(J)

52162EPIECE, REAR BUMPER

main52161-0K040×4iZRE211..D;ZWE211..G;ZWE211..(N,V)..(GEN,IDN,SGP,VN);ZRE210,211..(D,E,G,V)..(GEN,IDN,MA,SGP,TH,VN)202306

(L)

main52161-0K060×4iMZEA11,12,ZRE210..N;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

(L)

main52161-16010×4iZRE211..TH;ZWE211..V..TH201904-202201

(J)

52190ACLIP

main90467-06206-C0×2iMZEA1#,ZRE210,ZWE211..GCC201904-202305

BLACK

52462PAD, REAR BUMPER, RH

main52462-02310iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

NO PAINT REQ.

main52462-02340iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

NO PAINT REQ.

52463PAD, REAR BUMPER, LH

main52462-02310iZRE211..TAIW202304-202405

NO PAINT REQ.

main52462-02340iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-02330iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main52562-02340iZRE211..TAIW202304-202405

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-02300iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main52563-02310iZRE211..TAIW202304-202405

52575RETAINER, REAR BUMPER SIDE, RH

main52575-02220iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main52575-02230iZRE211,ZWE211..TAIW201904-202304

52576RETAINER, REAR BUMPER SIDE, LH

main52576-02220iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main52576-02230iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

52591SEAL, REAR BUMPER SIDE, RH

main52591-02420iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main52591-02430iZRE211..TAIW202304-202405

52592SEAL, REAR BUMPER SIDE, LH

main52592-02390iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main52592-02400iMZEA1#,ZRE210,ZWE211..GCC201904-202305

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-02190×2iZWE211..MA201908-202112

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-02190×2iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,TH,VN202306

main89348-02330×2iMZEA12,ZRE218,ZWE211..(E,V,X)..TAIW202304

9011908C64

main90119-08C64

90119T0335

main90119-T0335

9015960621

main90159-60621

9018906228

main90189-06228

90189T0010

main90189-T0010

9046705170

main90467-05170

9046709237

main90467-09237

26 parts on this diagram · 2 diagrams in section
