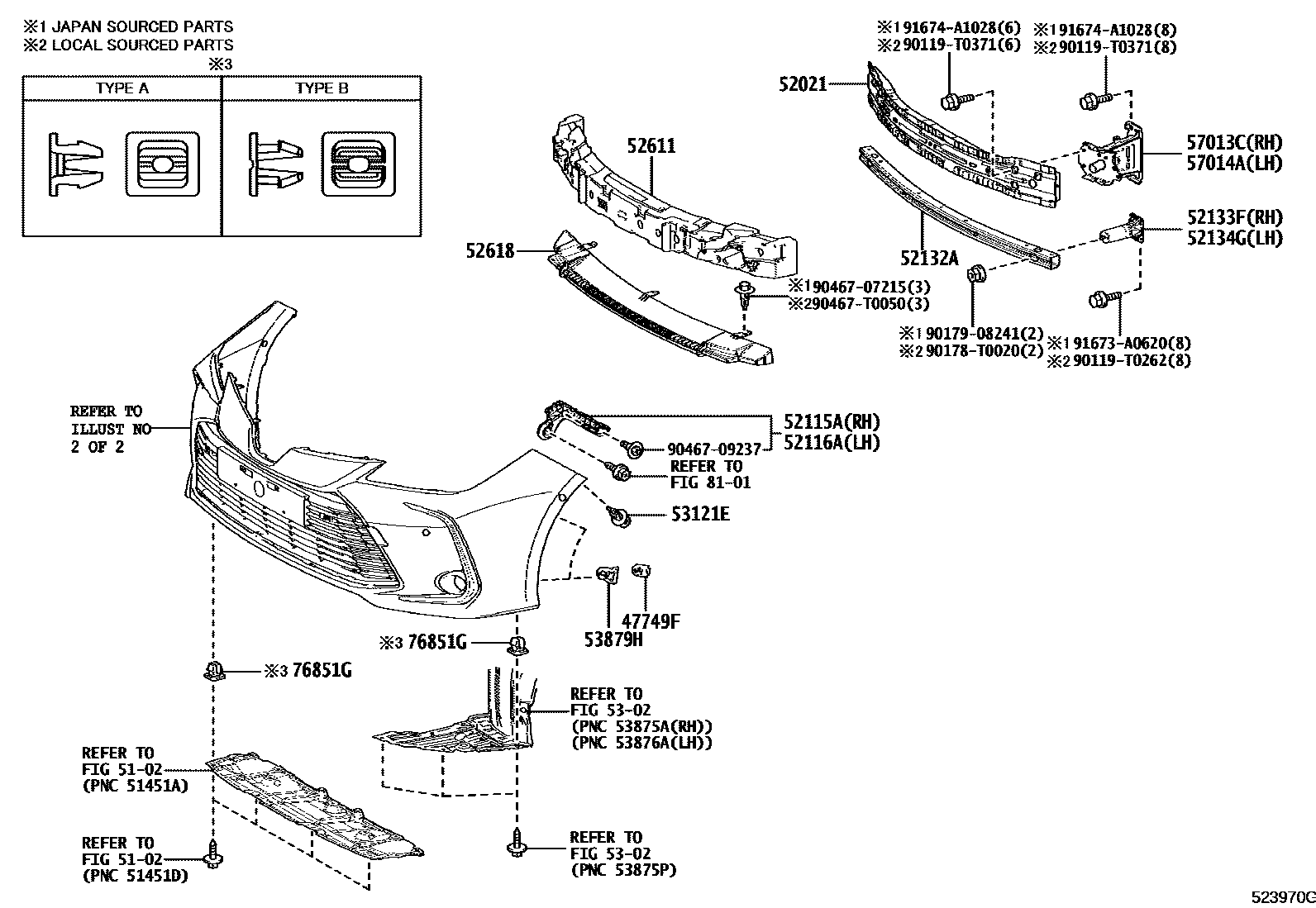

FRONT BUMPER & BUMPER STAY

0001 1 0002 1GR SPORT 0003 1 0004 1 0005 1GR SPORT 0006 1

47749FCLIP, PIN HOLD

main47749-33030×4iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-02320iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main52021-02330iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-02510iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main52115-02520iMZEA1#,ZRE210,ZWE211..GCC201904-202305

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-02500iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main52116-02510iMZEA1#,ZRE210,ZWE211..GCC201904-202305

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-02080iZWE211..MA201904-202112

52133FBRACKET, FRONT BUMPER, RH

main52133-02140iZRE210,211,ZWE211..RHD..(GEN,MA)202306

main52133-12190iMZEA12,ZRE218,ZWE211..TAIW202304

52134GBRACKET, FRONT BUMPER, LH

main52133-02140iZRE210,211,ZWE211..RHD..(GEN,MA)202306

main52133-12190iZRE211,ZWE211..TAIW201904-202304

52611ABSORBER, FRONT BUMPER ENERGY

main52611-02560iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main52611-02570iZRE211,ZWE211..TAIW201904-202304

main52611-02680iZRE210..SGP;ZRE210,ZWE211..V..PHL; ZRE211..TH;ZWE211..V..TH202201-202306

X PACKAGE

main52611-02690iMZEA12,ZRE211,ZWE211..X202405

52618ABSORBER, FRONT BUMPER, LOWER

main52618-02220iZWE211..MA201908-202112

main52618-02230iZRE211..TAIW202304-202405

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53121ECLIP(FOR FRONT BUMPER), NO.1

main90467-05170×2iZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH201904-202102

main90467-T0047×2iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)202102-202306

(L)

53879HRETAINER, FRONT FENDER LINER

main53879-33030×4iMZEA1#,ZRE210,ZWE211..GCC201904-202305

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-02210iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main57013-02220iZRE211..TAIW202304-202405

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-02210iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main57014-02220iZRE211..TAIW202304-202405

76851GGROMMET, SCREW, NO.1

main90189-06193×4iZRE211,ZWE211..TAIW201904-202304

TYPE A:REFER ILLUST.

main90189-06237×4iMZEA1#,ZRE210,ZWE211..GCC201904-202305

TYPE B:REFER ILLUST.

main90189-T0024×4iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)202102-202306

(L)

8101HEADLAMP

→ Go to FIG 81-01

90119T0262

main90119-T0262

90119T0371

main90119-T0371

90178T0020

main90178-T0020

9017908241

main90179-08241

9046707215

main90467-07215

9046709237

main90467-09237

90467T0050

main90467-T0050

91673A0620

main91673-A0620

91674A1028

main91674-A1028

26 parts on this diagram · 6 diagrams in section
