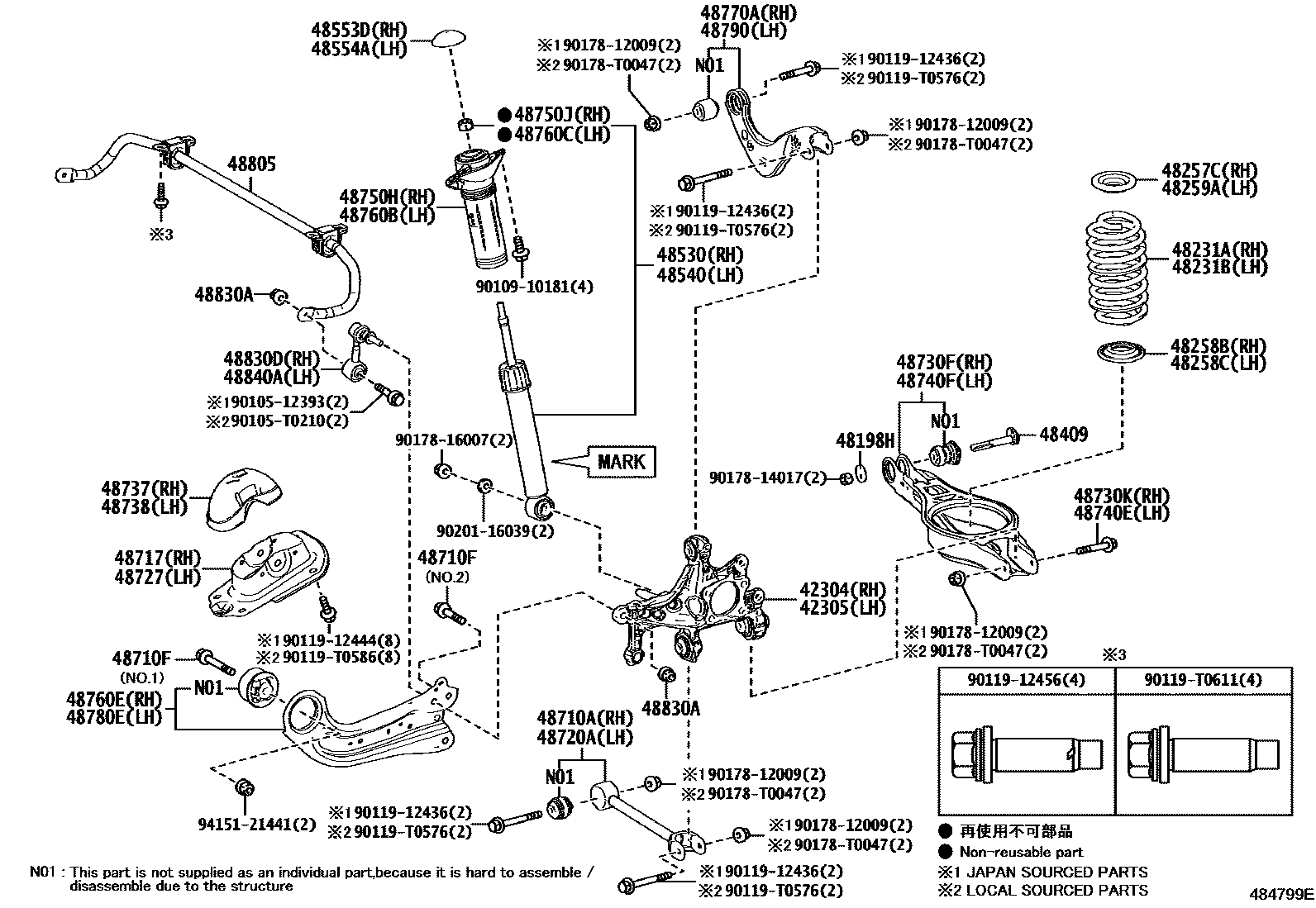

REAR SPRING & SHOCK ABSORBER

0001 1W(STABILIZER) 0002 1W/O(STABILIZER) 0003 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-02290iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

main42304-02300iZRE211,ZWE211..TAIW201904-202405

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-02290iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main42305-02300iZRE211..TAIW201904-202405

48198HCAM, CAMBER ADJUST, NO.2

main48198-47010iZRE211..TAIW201904-202410

48231ASPRING, COIL, REAR RH

main48231-02N90iZRE210..6F201908-202410

main48231-02N90iZRE210..D201908-202306

TRINIDAD & TOBAGO,BARBADOSE SPEC

main48231-02N90iZRE210..D201908-202306

BRUNEI SPEC

main48231-02N90iZRE210..CVT..D..PHL;ZRE210,211..CVT..(E,G,V)..(GEN,MA,PHL,SGP,VN)201908-202306

TIRE & DISC WHEEL-205/55R16 ALUMINUM

main48231-02P10iZWE211..SGP201908-202306

main48231-02P20iZRE210..D..GEN201908-202306

MYANMAR SPEC

main48231-02P20iZRE210..D..GEN201908-202306

NEPAL OR BANGLADESH SPEC

main48231-02P20iZRE210..(G,V)..PHL201908-202306

CAMBODIA SPEC

main48231-02P20iZRE210..D202306

NEPAL, BANGLADESH, SRI LANKA SPEC

main48231-02P30iZWE211..G;ZWE211..GEN,VN201908-202410

main48231-02P40iZRE210..TH201908-202306

main48231-02P80iMZEA11,12,ZRE210..GCC201904-202305

main48231-02P90iZWE211..TAIW202304

main48231-02P91iMZEA1#,ZRE210..D..GCC201904-202305

main48231-02Q00iZWE211..TAIW201904-202304

main48231-02Q20iZWE211..GCC201904-202305

main48231-02T40iMZEA17,18,ZRE217,218202304

main48231-02T60iZRE211..IDN201908-202306

main48231-02T70iZWE211..IDN201908-202306

main48231-02V50iZRE210..V;ZRE210,211..G..(SGP,VN)202201-202306

X PACKAGE

main48231-02V50iZRE211..X202411

main48231-02V60iZWE211..X..(PHL,TH)202306-202410

main48231-02V60iZWE211..PHL202201-202306

X PACKAGE

main48231-02V80iMZEA12..TAIW202304-202405

main48231-02Y80iZWE211..X..SGP202411

main48231-02Y90iZWE211..X..IDN202411

48231BSPRING, COIL, REAR LH

main48231-02N90iZRE210..D201908-202306

BRUNEI SPEC

main48231-02N90iZRE211..D;ZRE210,211..(E,G,V)..(GEN,MA,SGP,TH,VN)201908-202306

TRINIDAD & TOBAGO,BARBADOSE SPEC

main48231-02N90iZRE210..TH201908-202306

TIRE & DISC WHEEL-205/55R16 ALUMINUM

main48231-02N90iZRE210..6F201908-202410

main48231-02P10iZWE211..V..SGP201908-202306

main48231-02P20iZRE210..D201908-202306

CAMBODIA SPEC

main48231-02P20iZRE210..D..GEN201908-202306

MYANMAR SPEC

main48231-02P20iZRE210..(G,V)..PHL201908-202306

NEPAL OR BANGLADESH SPEC

main48231-02P20iZRE210..V202306

NEPAL, BANGLADESH, SRI LANKA SPEC

main48231-02P30iZWE211..G;ZWE211..GEN,PHL,VN201908-202410

main48231-02P40iZRE210..TH201908-202306

main48231-02P80iMZEA1#,ZRE210..N201904-202305

main48231-02P90iZWE211..TAIW202304

main48231-02P91iZRE211..TAIW201904-202305

main48231-02Q00iZWE211..TAIW201904-202304

main48231-02Q20iZWE211..GCC201904-202305

main48231-02T40iMZEA17,18,ZRE217,218202304

main48231-02T60iZRE211..IDN201908-202306

main48231-02T70iZWE211..V..IDN201908-202306

main48231-02V50iZRE211..X202411

main48231-02V50iZRE210..V;ZRE210,211..G..(SGP,VN)202201-202306

X PACKAGE

main48231-02V60iZWE211..V..TH202201-202306

X PACKAGE

main48231-02V60iZWE211..V..TH202306-202410

main48231-02V80iZRE211..TAIW202304-202405

main48231-02Y80iZWE211..X..SGP202411

main48231-02Y90iZWE211..X..IDN202411

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-02110iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main48257-06050iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-02070iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main48258-06260iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main48258-0A020iMZEA17,18,ZRE217,218202304

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-02070iZRE211,ZWE211..TAIW201904-202405

main48258-06260iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main48258-0A020iMZEA17,18,ZRE217,218202304

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-02110iZRE211..TAIW201904-202405

main48257-06050iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-47011iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202410

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-02V00iMZEA17,ZRE217,218202304

MARK 48530-02V00

main48530-02V10iMZEA18202305

MARK 48530-02V10

main48530-8Z118iMZEA11,ZRE210..GCC201904-202305

MARK 48530-02P60

main48530-8Z120iMZEA12201904-202305

MARK 48530-02P80

main48530-8Z121iMZEA12..GCC202305

MARK 48530-02P90

main48530-8Z122iZWE211..(D,E,V)..(GCC,TAIW)201904-202305

MARK 48530-02Q00

main48530-8Z123iZWE211..N..GCC202305

MARK 48530-02Q10

main48530-8Z130iZRE210..6F201908-202306

MARK 48530-02N70

main48530-8Z130iZRE211..E..(MA,VN);ZRE210,211..CVT..(D,E,G)..(GEN,IDN,PHL,SGP)201908-202306

MARK 48530-02N70,TIRE & DISC WHEEL-205/55R16 ALUMINUM

main48530-8Z131iZRE210..V;ZRE211..G..(IDN,TH,VN)201908-202410

MARK 48530-02N80

main48530-8Z131iZRE210,211..(E,G)..(MA,SGP)202306

MARK 48530-02N80,UP GRADE PACKAGE

main48530-8Z131iZRE210..V;ZRE211..G..VN201908-202306

MARK 48530-02N80, SPORTY PACKAGE

main48530-8Z131iZRE210..V;ZRE211..G..VN201908-202306

MARK 48530-02N80, UP GRADE PACKAGE

main48530-8Z132iZWE211..GEN201908-202306

MARK 48530-02N90

main48530-8Z133iZWE211..G201908-202410

MARK 48530-02P00

main48530-8Z134iZRE210..TH201908-202306

MARK 48530-02P10

main48530-8Z200iZWE211..V..TH202201-202410

MARK 48530-02V30,X PACKAGE

main48530-8Z200iZRE211..MA;ZRE211..G..VN202201-202410

MARK 48530-02V30

main48530-8Z251iZRE211..TAIW202304-202405

MARK 48530-02V40

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-02V00iMZEA17,ZRE217,218202304

MARK 48530-02V00

main48530-02V10iMZEA18202305

MARK 48530-02V10

main48530-8Z118iMZEA11,ZRE210..GCC201904-202305

MARK 48530-02P60

main48530-8Z120iMZEA12201904-202305

MARK 48530-02P80

main48530-8Z121iMZEA12..GCC202305

MARK 48530-02P90

main48530-8Z122iZWE211..TAIW201904-202305

MARK 48530-02Q00

main48530-8Z123iZWE211..N..GCC202305

MARK 48530-02Q10

main48530-8Z130iZRE210..6F201908-202306

MARK 48530-02N70

main48530-8Z130iZRE210..TH201908-202306

MARK 48530-02N70,TIRE & DISC WHEEL-205/55R16 ALUMINUM

main48530-8Z131iZRE211..TH201908-202410

MARK 48530-02N80

main48530-8Z131iZRE210,211..(E,G)..(MA,SGP)202306

MARK 48530-02N80,UP GRADE PACKAGE

main48530-8Z131iZRE210..V;ZRE211..G..VN201908-202306

MARK 48530-02N80, SPORTY PACKAGE

main48530-8Z131iZRE210..V;ZRE211..G..VN201908-202306

MARK 48530-02N80, UP GRADE PACKAGE

main48530-8Z132iZWE211..GEN201908-202306

MARK 48530-02N90

main48530-8Z133iZWE211..V..TH201908-202410

MARK 48530-02P00

main48530-8Z134iZRE210..TH201908-202306

MARK 48530-02P10

main48530-8Z200iZRE210,ZWE211..V..PHL;ZRE210,211..G..(SGP,VN)202201-202410

MARK 48530-02V30,X PACKAGE

main48530-8Z200iZRE211..TH;ZWE211..V..TH202201-202410

MARK 48530-02V30

main48530-8Z251iZRE211..TAIW202304-202405

MARK 48530-02V40

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-06030iMZEA1#,ZRE210,ZWE211..GCC201904-202410

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-06030iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201904-202410

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-02100iZRE211..TAIW201904-202405

main48710-F4020iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

48710FBOLT(FOR REAR TRAILING ARM)

main90105-14195iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

(J),NO.1:SEE ILLUST

main90105-14195iZRE211,ZWE211..TAIW201904-202405

NO.1:REFER ILLUST.

main90105-14197iZWE211..GCC,TAIW;MZEA11,12,ZRE210..N,X201904-202405

NO.2:REFER ILLUST.

main90105-14197iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

(J),NO.2:SEE ILLUST

main90105-T0217iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

(L),NO.1:SEE ILLUST

main90105-T0381iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

(L),NO.2:SEE ILLUST

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-02080iZRE211..TAIW201904-202405

main48717-06100iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main48717-0A020iMZEA17,18,ZRE217,218202304

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-02100iZWE211..GCC,TAIW;MZEA11,12,ZRE210..N,X201904-202405

main48710-F4020iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-02050iZRE211..TAIW201904-202405

main48727-06080iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

main48727-0A020iMZEA17,18,ZRE217,218202304

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-02090iZRE211,ZWE211..TAIW201904-202405

main48730-F4040iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-12426iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main90119-12426iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

(J)

main90119-T0519iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

(L)

48737COVER, REAR SUSPENSION ARM, RH

main48753-02030iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main48753-06120iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

48738COVER, REAR SUSPENSION ARM, LH

main48753-02040iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main48753-06130iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-12426iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

(J)

main90119-12426iZRE211..TAIW201904-202405

main90119-T0519iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

(L)

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-02090iZRE211..TAIW201904-202405

main48730-F4040iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-0A030iMZEA17,18,ZRE217,218202304

main48750-12050iMZEA12,ZRE21#,ZWE211201904-201907

sub48750-76010

main48750-76010iZRE211,ZWE211..TAIW201908-202410

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main94130-61200iZRE211..G..PHL;ZWE211..V..(PHL,TH)201904-202410

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-12050iMZEA12,ZRE21#,ZWE211201904-201907

sub48750-76010

main48750-76010iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main48760-0A030iMZEA17,18,ZRE217,218202304

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main94130-61200iZRE211..TAIW201904-202410

48760EARM ASSY, TRAILING, REAR RH

main48760-02040iZRE211..TAIW201904-202405

main48760-F4030iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-02020iZRE211..TAIW201904-202405

main48770-06020iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

48780EARM ASSY, TRAILING, REAR LH

main48780-02090iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main48780-F4030iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-02020iZRE211..TAIW201904-202405

main48790-06020iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

48805BAR SUB-ASSY, REAR STABILIZER

main48805-02040iZWE211..G201908-202112

main48805-02040iZRE211..E..(MA,VN);ZRE210,211,ZWE211..CVT..(D,E,G,N)..(GEN,IDN,PHL,SGP)201908-202306

TIRE & DISC WHEEL-205/55R16 ALUMINUM

main48805-02050iZRE211,ZWE211..(G,V)..PHL201908-202410

main48805-02050iZRE210,211..(E,G)..(MA,SGP)201908-202306

UP GRADE PACKAGE

main48805-02050iZRE211..G..VN;ZRE210,ZWE211..V..(IDN,PHL,SGP,VN)201908-202306

SPORTY PACKAGE

main48805-02060iZRE211,ZWE211..TAIW201904-202305

main48805-02070iMZEA11202305

UP GRADE PACKAGE

main48805-12130iZWE211..V..TH202201-202410

X PACKAGE

main48805-12130iMZEA12,ZRE211,ZWE211..X202304-202405

48830ANUT(FOR REAR STABILIZER LINK)

main90178-T0087iZRE210..TH201908-202410

(L)

main90178-T0087iZRE210..TH201908-202306

TIRE & DISC WHEEL-205/55R16 ALUMINUM,(L)

main94151-21241iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

(J)

main94151-21241iZRE211,ZWE211..TAIW201904-202405

main94151-21241iZRE210..TH201908-202306

TIRE & DISC WHEEL-205/55R16 ALUMINUM,(J)

48830DLINK ASSY, REAR STABILIZER, RH

main48830-06100iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

main48830-06100iZWE211..(G,V)..TH;ZRE211..(E,G)..(IDN,MA,TH,VN);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP,VN)201908-202306

TIRE & DISC WHEEL-205/55R16 ALUMINUM

main48830-47010iZRE211..TAIW201904-202405

48840ALINK ASSY, REAR STABILIZER, LH

main48830-06100iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

main48830-06100iZWE211..(G,V)..TH;ZRE211..(E,G)..(IDN,MA,TH,VN);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP,VN)201908-202306

TIRE & DISC WHEEL-205/55R16 ALUMINUM

main48830-47010iZRE211..TAIW201904-202405

9010512393

main90105-12393

90105T0210

main90105-T0210

9010910181

main90109-10181

9011912436

main90119-12436

9011912444

main90119-12444

9011912456

main90119-12456

90119T0576

main90119-T0576

90119T0586

main90119-T0586

90119T0611

main90119-T0611

9017812009

main90178-12009

9017814017

main90178-14017

9017816007

main90178-16007

90178T0047

main90178-T0047

9020116039

main90201-16039

9415121441

main94151-21441

52 parts on this diagram · 3 diagrams in section
