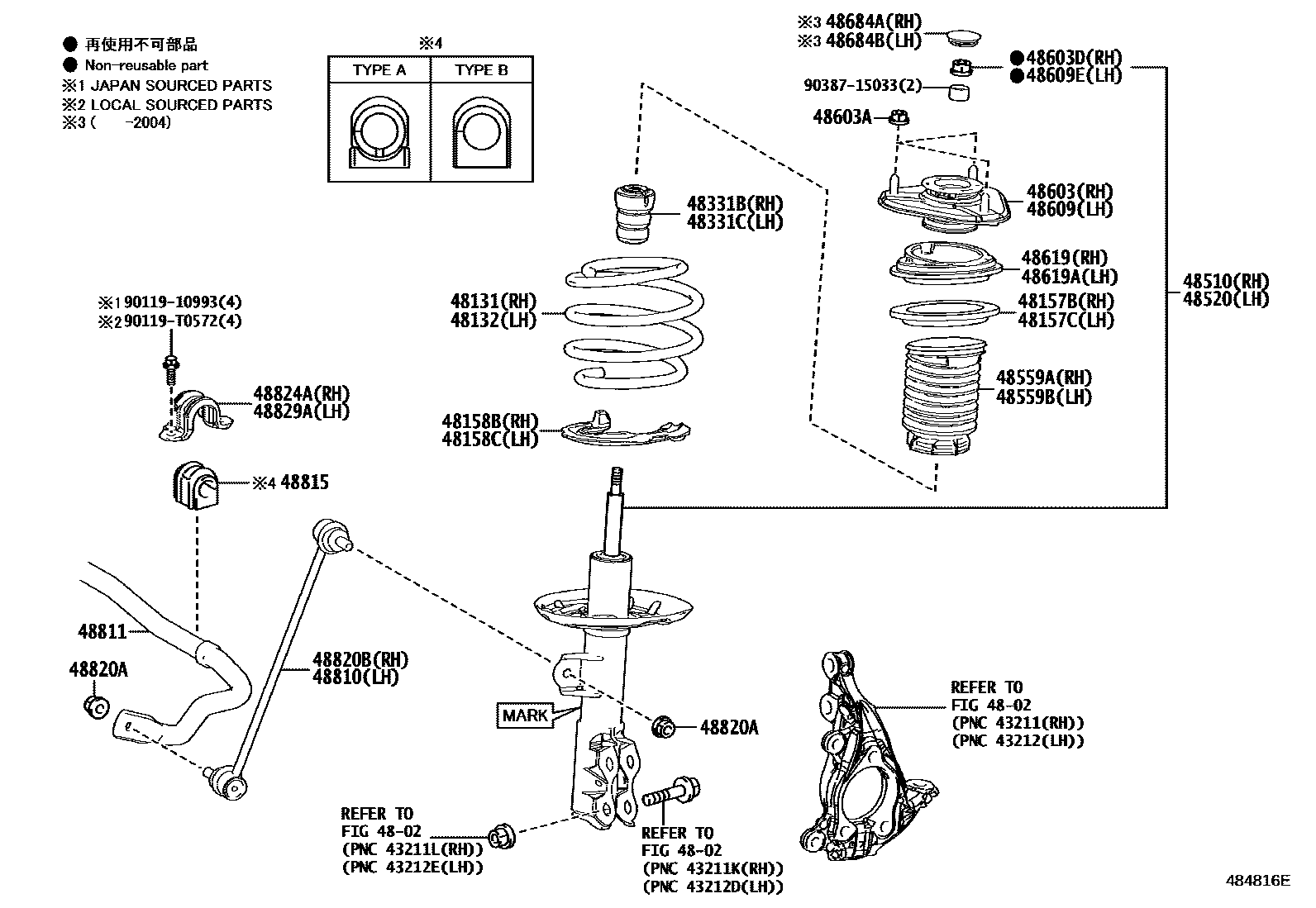

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-0Z420iZRE210..D..PHL;ZRE21#..(E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)201908-202005

BRUNEI SPEC

sub48131-0Z421

main48131-0Z420iZRE210..D..PHL;ZRE21#..(E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)201908-202005

TRINIDAD & TOBAGO,BARBADOSE SPEC

sub48131-0Z421

main48131-0Z420iZRE210..D..PHL;ZRE21#..(E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)201908-202005

MYANMAR SPEC&X PACKAGE

sub48131-0Z421

main48131-0Z420iZRE210..D..PHL;ZRE21#..(E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)201908-202005

CAMBODIA SPEC&X PACKAGE

sub48131-0Z421

main48131-0Z421iZRE210..6F202006-202410

main48131-0Z421iZRE210..D202006-202306

BRUNEI SPEC

main48131-0Z421iZRE210..D202006-202306

TRINIDAD & TOBAGO,BARBADOSE SPEC

main48131-0Z430iZWE211..SGP201908-202005

sub48131-0Z431

main48131-0Z431iZWE211..SGP202006-202306

main48131-0Z440iZRE210..E..GEN201908-202212

NEPAL OR BANGLADESH SPEC

sub48131-0Z441

main48131-0Z440iZRE210..D..GEN201908-202212

CAMBODIA SPEC

sub48131-0Z441

main48131-0Z440iZRE210..D..GEN201908-202212

MYANMAR SPEC

sub48131-0Z441

main48131-0Z441iZRE210..E202301-202306

CAMBODIA SPEC

main48131-0Z441iZRE210..V202301-202306

MYANMAR SPEC

main48131-0Z441iZRE210..D..GEN202301-202306

NEPAL OR BANGLADESH SPEC

main48131-0Z441iZRE210..D..GEN202301-202306

CAMBODIA SPEC&X PACKAGE

main48131-0Z441iZRE210..D..GEN202301-202306

MYANMAR SPEC&X PACKAGE

main48131-0Z441iZRE210..V202306

NEPAL, BANGLADESH, SRI LANKA SPEC

main48131-0Z450iZWE211..E;ZWE211..MA201908-202212

sub48131-0Z451

main48131-0Z451iZWE211..GEN,IDN,PHL,TH,VN202301-202410

main48131-0Z520iMZEA17,18,ZRE217;MZEA11,ZRE210,218..LHD..(E,N)201904-202305

main48131-0Z530iMZEA12..GCC201904-202305

main48131-0Z540iZWE211..TAIW201904-202304

main48131-0Z550iZWE211..GCC201904-202305

main48131-0Z560iZRE211..D201904-202304

main48131-0ZC20iZRE211..TH202201-202306

X PACKAGE

main48131-0ZC20iZRE211..X202411

main48131-0ZC30iZRE211..TAIW202304-202405

48132SPRING, FRONT COIL, LH

main48131-0Z420iZRE210..D..PHL;ZRE21#..(E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)201908-202005

BRUNEI SPEC

sub48131-0Z421

main48131-0Z420iZRE210..D..PHL;ZRE21#..(E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)201908-202005

TRINIDAD & TOBAGO,BARBADOSE SPEC

sub48131-0Z421

main48131-0Z420iZRE210..D..PHL;ZRE21#..(E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)201908-202005

CAMBODIA SPEC&X PACKAGE

sub48131-0Z421

main48131-0Z420iZRE210..D..PHL;ZRE21#..(E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)201908-202005

MYANMAR SPEC&X PACKAGE

sub48131-0Z421

main48131-0Z421iZRE210..D202006-202306

TRINIDAD & TOBAGO,BARBADOSE SPEC

main48131-0Z421iZRE210..6F202006-202410

main48131-0Z421iZRE210..CVT..D..PHL;ZRE210..CVT..(E,G,V);ZRE211..(E,G)..(IDN,MA,VN)202006-202306

BRUNEI SPEC

main48131-0Z430iZWE211..SGP201908-202005

sub48131-0Z431

main48131-0Z431iZWE211..SGP202006-202306

main48131-0Z440iZRE210..D..GEN201908-202212

MYANMAR SPEC

sub48131-0Z441

main48131-0Z440iZRE210..D..GEN201908-202212

NEPAL OR BANGLADESH SPEC

sub48131-0Z441

main48131-0Z440iZRE210..(G,V)..PHL201908-202212

CAMBODIA SPEC

sub48131-0Z441

main48131-0Z441iZRE210..V202301-202306

CAMBODIA SPEC

main48131-0Z441iZRE210..V202301-202306

NEPAL OR BANGLADESH SPEC

main48131-0Z441iZRE210..V202301-202306

CAMBODIA SPEC&X PACKAGE

main48131-0Z441iZRE210..V202301-202306

MYANMAR SPEC&X PACKAGE

main48131-0Z441iZRE210..V202301-202306

MYANMAR SPEC

main48131-0Z441iZRE210..D202306

NEPAL, BANGLADESH, SRI LANKA SPEC

main48131-0Z450iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,VN201908-202212

sub48131-0Z451

main48131-0Z451iZWE211..GEN,IDN,VN;ZWE211..(G,X)..(PHL,TH)202301-202410

main48131-0Z520iMZEA12..D;MZEA11,ZRE210..GCC201904-202305

main48131-0Z530iMZEA12..GCC201904-202305

main48131-0Z540iMZEA12,ZWE211..TAIW201904-202304

main48131-0Z550iZWE211..GCC201904-202305

main48131-0Z560iZRE218..D201904-202304

main48131-0ZC20iZRE211..TH202201-202306

X PACKAGE

main48131-0ZC20iZRE211..X202411

main48131-0ZC30iZRE211..TAIW202304-202405

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-02360iZRE211..TAIW201904-202405

main48157-F4020iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-02360iZRE211..TAIW201904-202405

main48157-F4020iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-02250iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

main48158-F4020iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-02250iZRE211,ZWE211..TAIW201904-202405

main48158-F4020iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

48331BBUMPER, FRONT SPRING, RH

main48331-10120iMZEA1#,ZRE210..GCC201904-202410

main48331-12280iZRE210..D..GEN;ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,VN201904-202410

48331CBUMPER, FRONT SPRING, LH

main48331-10120iZRE211,ZWE211..TAIW201904-202410

main48331-12280iZRE210..D..GEN;ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,VN201904-202410

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z412iZRE211..TAIW201904-202305

MARK 48510-02R10

main48510-8Z414iMZEA12201904-202305

MARK 48510-02R30

main48510-8Z415iMZEA12..GCC202305

MARK 48510-02R40

main48510-8Z416iZWE211..GCC201904-202305

MARK 48510-02R50

main48510-8Z417iZWE211..N..GCC202305

MARK 48510-02R60

main48510-8Z443iZRE210..TH201908-202306

MARK 48510-02Q20

main48510-8Z443iZRE211..E..(MA,VN);ZRE210,211..CVT..(D,E,G)..(GEN,IDN,PHL,SGP)201908-202306

MARK 48510-02Q20,TIRE & DISC WHEEL-205/55R16 ALUMINUM

main48510-8Z444iZRE210,211..(E,G)..(IDN,MA,SGP)201908-202410

MARK 48510-02Q30

main48510-8Z444iZRE210,211..(E,G)..(IDN,MA,SGP)201908-202306

MARK 48510-02Q30, SPORTY PACKAGE

main48510-8Z444iZRE210,211..(E,G)..(IDN,MA,SGP)201908-202306

MARK 48510-02Q30, UP GRADE PACKAGE

main48510-8Z444iZRE210..V;ZRE211..G..(IDN,TH,VN)202306

MARK 48510-02Q30,UP GRADE PACKAGE

main48510-8Z445iZWE211..G201908-202306

MARK 48510-02Q40

main48510-8Z446iZWE211..PHL201908-202410

MARK 48510-02Q50

main48510-8Z552iZWE211..V..TH202201-202410

MARK 48510-02V70

main48510-8Z552iZRE210,ZWE211..V..PHL;ZRE210,211..G..(SGP,VN)202201-202410

MARK 48510-02V70,X PACKAGE

main48510-8Z634iMZEA17,ZRE217,218202304

MARK 48510-02W20

main48510-8Z635iMZEA18202305

MARK 48510-02W30

main48510-8Z636iZRE211..TAIW202304-202405

MARK 48510-02V80

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-8Z266iMZEA11,ZRE210..GCC201904-202305

MARK 48520-02R10

main48520-8Z268iMZEA12201904-202305

MARK 48520-02R30

main48520-8Z269iMZEA12..GCC202305

MARK 48520-02R40

main48520-8Z270iZWE211..TAIW201904-202305

MARK 48520-02R50

main48520-8Z271iZWE211..N..GCC202305

MARK 48520-02R60

main48520-8Z301iZRE211..E..(MA,VN);ZRE210,211..CVT..(D,E,G)..(GEN,IDN,PHL,SGP)201908-202306

MARK 48520-02Q20,TIRE & DISC WHEEL-205/55R16 ALUMINUM

main48520-8Z301iZRE210..6F201908-202306

MARK 48520-02Q20

main48520-8Z302iZRE210,211..(E,G)..(MA,SGP)201908-202410

MARK 48520-02Q30

main48520-8Z302iZRE210..V;ZRE211..G..VN201908-202306

MARK 48520-02Q30, SPORTY PACKAGE

main48520-8Z302iZRE210..V;ZRE211..G..VN201908-202306

MARK 48520-02Q30, UP GRADE PACKAGE

main48520-8Z302iZRE210..V;ZRE211..G..(IDN,TH,VN)202306

MARK 48520-02Q30,UP GRADE PACKAGE

main48520-8Z303iZWE211..G201908-202306

MARK 48520-02Q40

main48520-8Z304iZWE211..IDN,PHL,SGP,VN201908-202410

MARK 48520-02Q50

main48520-8Z382iZRE210,ZWE211..V..PHL;ZRE210,211..G..(SGP,VN)202201-202410

MARK 48520-02V70

main48520-8Z382iZWE211..V..TH202201-202410

MARK 48520-02V70,X PACKAGE

main48520-8Z453iMZEA17,ZRE217,218202304

MARK 48520-02W20

main48520-8Z454iMZEA18202305

MARK 48520-02W30

main48520-8Z455iZRE211..TAIW202304-202405

MARK 48520-02V80

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-02060iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

main48559-F4020iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-02060iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main48559-F4020iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-02340iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

main48609-F4020iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10029iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

(J)

main90178-10029iZRE211,ZWE211..TAIW201904-202405

main90178-T0129iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

(L)

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iZRE211..TAIW201904-202410

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-02340iZRE211..TAIW201904-202405

main48609-F4020iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202410

48619BEARING, STRUT MOUNTING, RH

main48619-F4010iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202410

48619ABEARING, STRUT MOUNTING, LH

main48619-F4010iMZEA1#,ZRE210,ZWE211..GCC201904-202410

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-02030iZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH201908-202004

main48684-02040iMZEA12,ZRE21#,ZWE211..GCC,TAIW201904-202004

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-02030iZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH201908-202004

main48684-02040iMZEA12,ZRE21#,ZWE211..GCC,TAIW201904-202004

48810LINK ASSY, FRONT STABILIZER, LH

main48820-47040iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main48820-F4010iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

48811BAR, STABILIZER, FRONT

main48811-02400iZRE210..RHD;ZRE211,ZWE211..(D,E,N)..(GEN,MA,PHL,VN)201908-202306

main48811-02410iZWE211..MA201908-202306

main48811-02410iZRE210,211..(E,G)..(MA,SGP)201908-202306

UP GRADE PACKAGE

main48811-02410iZRE211..G..(TH,VN);ZRE210,ZWE211..V..(IDN,PHL,SGP,TH,VN)201908-202306

SPORTY PACKAGE

main48811-02410iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

X PACKAGE

main48811-02420iZRE211,ZWE211..TAIW201904-202305

main48811-02430iZRE211..TAIW202304-202405

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-02390iZWE211..G201904-202306

main48815-02400iZRE211..TH;ZRE210,ZWE211..V..(IDN,MA,PHL,SGP,TH)201908-202103

TYPE A:REFER ILLUST.

main48815-0A030iZRE210,211..(E,G)..(IDN,MA,SGP)202103-202306

TYPE B:REFER ILLUST.

main48815-0A030iZRE210,211..(E,G)..(IDN,MA,SGP)202103-202306

SPORTY PACKAGE,TYPE B:REFER ILLUST.

main48815-0A030iZRE210,211..(E,G)..(IDN,MA,SGP)202103-202306

UP GRADE PACKAGE,TYPE B:REFER ILLUST.

main48815-0A030iZRE211..TAIW202304-202405

main48815-0A030iZRE211..G..PHL;ZWE211..V..(PHL,TH)202304-202410

X PACKAGE

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-T0087iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

(L)

main94151-21241iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

(J)

main94151-21241iZRE211..TAIW201904-202405

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-47040iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main48820-F4010iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-02120iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main48824-F4020iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-02120iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main48824-F4020iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

9011910993

main90119-10993

90119T0572

main90119-T0572

9038715033

main90387-15033

32 parts on this diagram · 1 diagram in section
