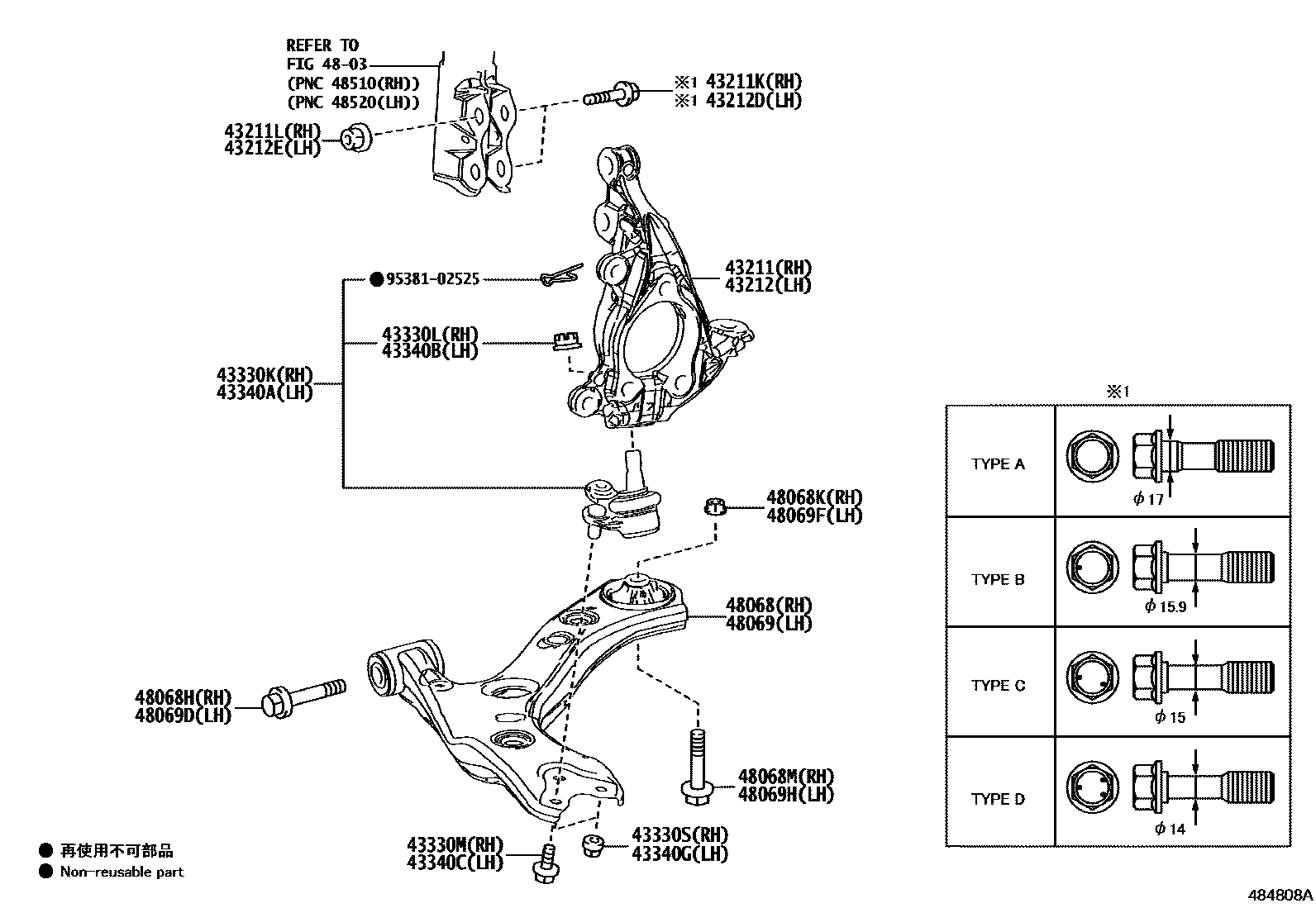

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-02470iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main43211-02480iZRE211,ZWE211..TAIW201904-202405

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17009iMZEA11,12,ZRE210..N,X;ZWE211..(G,X)..(PHL,TH);ZWE211..GCC,GEN,IDN,SGP,TAIW,VN;ZRE210,211..GEN,IDN,MA,SGP,TH,VN;MZEA17,18,ZRE211,217,218..(D,E,X)..(GCC,PHL,TAIW)201904-202410

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010iZRE211..G..PHL;ZWE211..V..(PHL,TH)201904-202410

OD=15,TYPE C:REFER ILLUST.

main90105-17011iZRE211,ZWE211..TAIW201904-202410

OD=14,TYPE D:REFER ILLUST.

main90105-17020iMZEA12,ZRE21#,ZWE211201904-201911

OD=17,TYPE A:REFER ILLUST.

main90105-17021iZRE211..G..PHL;ZWE211..V..(PHL,TH)201911-202410

OD=17,TYPE A:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002iZRE211,ZWE211..TAIW201904-202410

43212KNUCKLE, STEERING, LH

main43212-02470iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

main43212-02480iZRE211..TAIW201904-202405

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17009iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201904-202410

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010iZRE211..G..PHL;ZWE211..V..(PHL,TH)201904-202410

OD=15,TYPE C:REFER ILLUST.

main90105-17011iZRE211,ZWE211..TAIW201904-202410

OD=14,TYPE D:REFER ILLUST.

main90105-17020iMZEA12,ZRE21#,ZWE211201904-201911

OD=17,TYPE A:REFER ILLUST.

main90105-17021iZRE211,ZWE211..TAIW201911-202410

OD=17,TYPE A:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202410

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09B20iMZEA12,ZRE21#,ZWE211201904-202003

sub43330-09B21

main43330-09B21iMZEA11,12,ZRE210..N,X;ZWE211..(G,X)..(PHL,TH);ZWE211..GCC,GEN,IDN,SGP,TAIW,VN;ZRE210,211..GEN,IDN,MA,SGP,TH,VN;MZEA17,18,ZRE211,217,218..(D,E,X)..(GCC,PHL,TAIW)202003-202410

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

(J)

main90171-14003iZRE211,ZWE211..TAIW201904-202305

main90171-T0007iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

(L)

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12407iZRE211..TAIW201904-202405

main90105-12407iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

(J)

main90105-T0388iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

(L)

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main90178-12019iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

(J)

main90178-T0110iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

(L)

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09B20iMZEA12,ZRE21#,ZWE211201904-202003

sub43330-09B21

main43330-09B21iZRE211,ZWE211..TAIW202003-202410

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iMZEA11,12,ZRE210..N,X;ZWE211..(G,X)..(PHL,TH);ZWE211..GCC,GEN,IDN,SGP,TAIW,VN;ZRE210,211..GEN,IDN,MA,SGP,TH,VN;MZEA17,18,ZRE211,217,218..(D,E,X)..(GCC,PHL,TAIW)201904-202410

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12407iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

(J)

main90105-12407iZRE211..TAIW201904-202405

main90105-T0388iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

(L)

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019iZRE211..TAIW201904-202405

main90178-12019iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

(J)

main90178-T0110iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

(L)

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-02380iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main48068-02390iZRE211..TAIW201904-202405

main48068-02430iMZEA11,17202008-202305

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-16091iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main90105-16091iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

(J)

main90105-T0382iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

(L)

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90178-T0048iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

(L)

main90179-14068iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

(J)

main90179-14068iZRE211,ZWE211..TAIW201904-202405

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14180iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main90119-14180iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

(J)

main90119-T0584iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

(L)

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-02380iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main48069-02390iMZEA12,ZRE210..N,X;MZEA18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

main48069-02430iMZEA11,17202008-202305

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-16091iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

(J)

main90105-16091iZRE211,ZWE211..TAIW201904-202405

main90105-T0382iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

(L)

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90178-T0048iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

(L)

main90179-14068iZRE211..TAIW201904-202405

main90179-14068iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

(J)

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14180iZRE211,ZWE211..TAIW201904-202405

main90119-14180iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

(J)

main90119-T0584iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

(L)

9538102525

main95381-02525

24 parts on this diagram · 1 diagram in section
