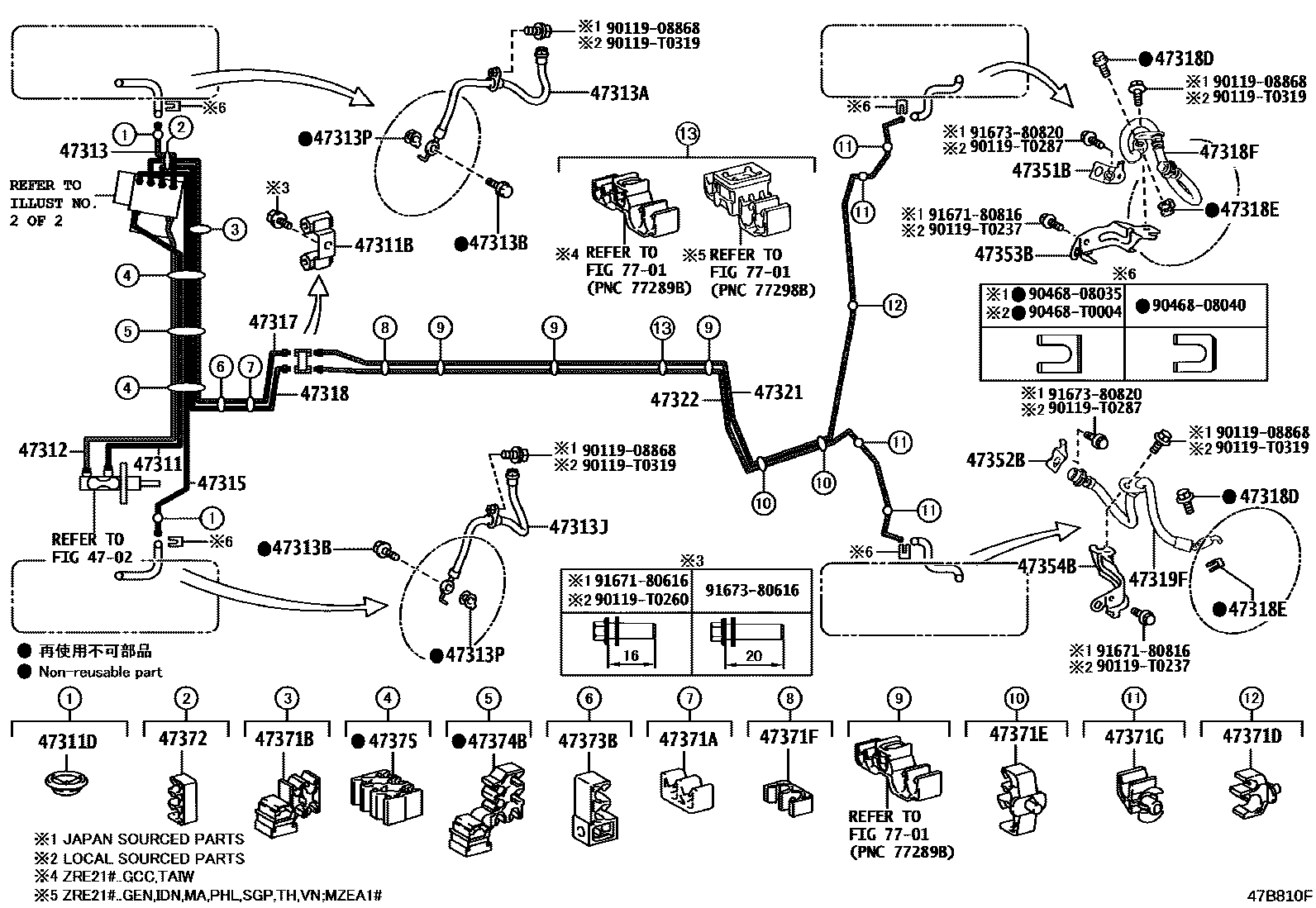

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE,ELECTRIC PARKING B0004 1BRAKE TUBE 0005 1BRAKE TUBE,ELECTRIC PARKING B0006 1BRAKE TUBE 0007 1BRAKE TUBE 0008 1BRAKE TUBE 0009 1BRAKE ACTUATOR 0010 1BRAKE ACTUATOR & BOOSTER PUMP0011 1BRAKE ACTUATOR 0012 1BRAKE ACTUATOR & BOOSTER PUMP

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-02F00iZRE211..G..PHL202306-202410

main47311-02F10iZWE211..PHL,VN201908-202306

main47311-02F20iMZEA1#,ZRE210..GCC201904-202305

main47311-02F30iZWE211..GCC,TAIW202304

main47311-F4050iZRE210,211..RHD..(D,E,G)201908-202306

main47311-F4060iZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP201908-202306

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037×2iMZEA1#,ZRE210,ZWE211..GCC201904-202305

47312TUBE, FRONT BRAKE, NO.2

main47312-02D40iZRE211..(D,X)..PHL;ZRE210,211..LHD..(GEN,VN)202306

main47312-02D50iZWE211..PHL202306-202410

main47312-02D60iZRE211..TAIW201904-202304

main47312-02D70iZWE211..GCC,TAIW202304

main47312-F4050iZRE210,211..RHD202306

main47312-F4060iZWE211..V..TH202306-202410

47313TUBE, FRONT BRAKE, NO.3

main47313-02F60iZRE210,211..CVT..(PHL,VN)201908-202306

main47313-02F70iZWE211..PHL202306-202410

main47313-02F80iZRE211..TAIW202304-202405

main47313-02F90iZWE211..GCC201904-202305

main47313-F4050iZRE210,211..RHD..(D,E,G)201908-202306

main47313-F4060iZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP201908-202306

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-T2128iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main90947-T2147iZRE211..TAIW202304-202405

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201904-202306

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-T2129iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main90947-T2148iZRE211,ZWE211..TAIW201904-202304

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iZRE211,ZWE211..TAIW201904-202304

47315TUBE, FRONT BRAKE, NO.5

main47315-02520iZRE210..6F201908-202112

main47315-02530iZWE211..PHL202306-202410

main47315-02540iZRE211..TAIW202304-202405

main47315-02550iZWE211..GCC,TAIW202304

main47315-F4050iZRE210,211..RHD202306

main47315-F4060iZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP201908-202306

47317TUBE, FRONT BRAKE, NO.7

main47317-02E50iZRE211..(D,X)..PHL;ZRE210,211..LHD..(GEN,VN)202306

main47317-02E60iZWE211..VN;ZWE211..X..PHL202306

main47317-02E70iZRE211..TAIW202304-202405

main47317-02E80iZWE211..TAIW201904-202304

main47317-F4050iZRE210,211..RHD..(D,E,G)201908-202306

main47317-F4060iZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP201908-202306

47318TUBE, FRONT BRAKE, NO.8

main47318-02E70iZRE211..G..PHL202306-202410

main47318-02E80iZWE211..PHL,VN201908-202306

main47318-02E90iMZEA1#,ZRE210..GCC201904-202305

main47318-02F00iZWE211..TAIW201904-202304

main47318-F4050iZRE210,211..RHD..(D,E,G)201908-202306

main47318-F4060iZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP201908-202306

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-T2132iZWE211..E;ZWE211..MA201908-202112

main90947-T2145iZRE211,ZWE211..TAIW201904-202304

main90947-T2159iZRE210..G;ZRE211..(D,E)..(MA,PHL)202306

main90947-T2164iMZEA17,18,ZRE217,218202304

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-T2133iZRE210,211..(E,G)..(MA,SGP); ZRE211..E..MA; ZRE211..IDN,TH,VN;ZRE211..X..(MA,PHL);ZWE211..(G,X)..(PHL,TH);ZRE210,ZWE211..(D,E,N,V,X)..(GEN,IDN,SGP,VN)202306

BRUNEI SPEC; UP GRADE PACKAGE

main90947-T2145iZRE211,ZWE211..TAIW201904-202304

main90947-T2159iZRE210..6F201908-202112

main90947-T2165iMZEA17,18,ZRE217,218202304

47321TUBE, REAR BRAKE, NO.1

main47321-02680iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main47321-02690iZRE211..TAIW202304-202405

main47321-02810iMZEA17,18,ZRE217,218202304

47322TUBE, REAR BRAKE, NO.2

main47322-02680iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main47322-02690iZRE211,ZWE211..TAIW201904-202304

main47322-02810iMZEA17,18,ZRE217,218202304

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-02210iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main47351-06100iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main47351-0A060iMZEA17,18,ZRE217,218202304

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-02210iZRE211..TAIW202304-202405

main47352-06100iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main47352-0A060iMZEA17,18,ZRE217,218202304

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-02190iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main47351-02220iZRE211..TAIW202304-202405

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-02190iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main47352-02220iZRE211..TAIW202304-202405

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01D91×3iZWE211..E;ZWE211..MA201908-202112

main90949-01E43iZRE210,211..RHD..(D,E,G)201908-202306

47371BCLAMP, BRAKE TUBE, NO.6

main90461-10854iZWE211..E;ZWE211..MA201908-202112

main90949-01E10iZWE211..X..PHL;ZWE211..GCC,TAIW,VN202304

main90949-01E51iZRE210,211..CVT..(PHL,VN)201904-202306

47371DCLAMP, BRAKE TUBE, NO.8

main77285-47110iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

47371ECLAMP, BRAKE TUBE, NO.9

main77286-47050×2iMZEA1#,ZRE210,ZWE211..GCC201904-202305

47371FCLAMP, BRAKE TUBE, NO.10

main90464-00904iZRE211,ZWE211..TAIW201904-202304

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01E01iMZEA17,18,ZRE217,218202304

main90949-01E10×4iZRE211,ZWE211..TAIW201904-202304

47372CLAMP, BRAKE TUBE, NO.2

main90949-01D92iZRE211..TAIW201904-202304

main90949-01D99×2iZWE211..TAIW201904-202304

main90949-01E30×2iZRE210,211..RHD202306

main90949-01E49×2iZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP201908-202306

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E15iZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP201908-202306

main90949-01E33iZRE211..VN;ZWE211..X..PHL;ZWE211..GCC,TAIW,VN;MZEA11,12,ZRE210..(N,V,X)..(GCC,GEN,TAIW);MZEA17,18,ZRE211,217,218..(D,E,X)..(GCC,PHL,TAIW)202304

main90949-01E44×2iZRE210,211..RHD..(D,E,G)201908-202306

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E17iZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP201908-202306

main90949-01E34iZRE210,211..RHD..(D,E,G)201908-202306

main90949-01E42iZRE210..6F201904-202112

main90949-01E50iZWE211..GCC201904-202305

47375CLAMP, BRAKE TUBE, NO.5

main90949-01E34iZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP201908-202306

main90949-01E44×2iMZEA1#,ZRE210..GCC201904-202305

main90949-01E51iZWE211..GCC201904-202305

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908868

main90119-08868

90119T0237

main90119-T0237

90119T0260

main90119-T0260

90119T0287

main90119-T0287

90119T0319

main90119-T0319

9046808035

main90468-08035

9046808040

main90468-08040

90468T0004

main90468-T0004

9167180616

main91671-80616

9167180816

main91671-80816

9167380616

main91673-80616

9167380820

main91673-80820

46 parts on this diagram · 12 diagrams in section
