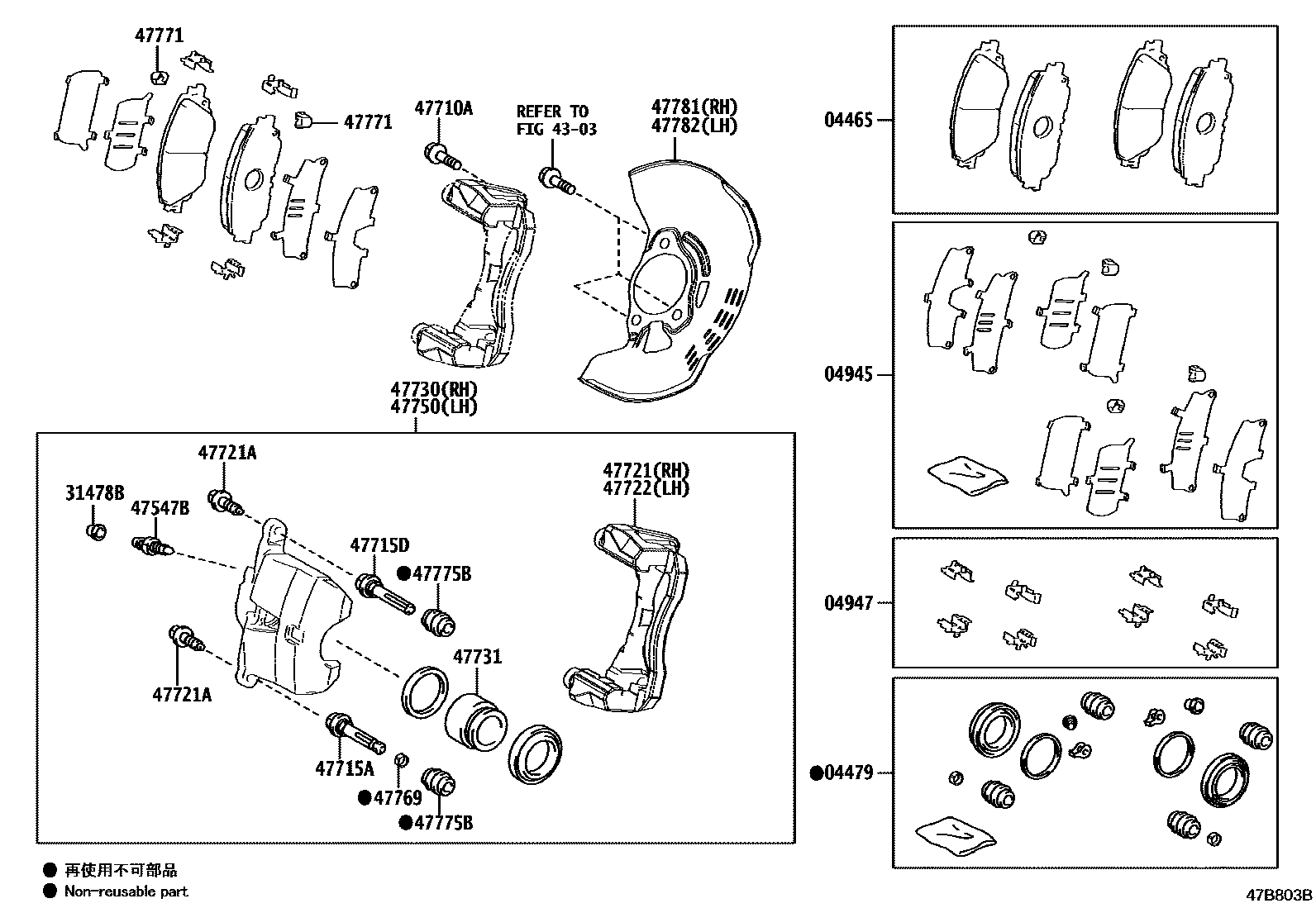

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-02510iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

MARK NBK D6994H

main04465-12670iZRE211..TAIW201904-202405

MARK ADVICS VC084H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02390iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main04478-02430iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-02250iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main04945-02290iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

04947FITTING KIT, DISC BRAKE, FRONT

main04947-02140iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main04947-47030iZRE211..TAIW201904-202405

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main90069-39026iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iMZEA1#,ZRE21#,ZWE211..GCC,TAIW201904-202012

main90016-AJ004iZRE211..TAIW202012-202405

main90069-39025iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

*12-1.25PX29.5-23,(J)

main90105-12208iZRE211,ZWE211..TAIW201904-202305

*12-1.25PX29.5-23

main90105-T0186iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

*12-1.25PX29.5-23,(L)

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-06250iMZEA1#,ZRE210,ZWE211..GCC201904-202405

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-06250iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW201904-202405

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-02610iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main47721-09580iZRE211..G..PHL;ZWE211..V..(PHL,TH)201908-202410

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main47715-05060iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

sub47715-28060

main90080-10247iMZEA1#,ZRE210,ZWE211..GCC201904-202405

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-02510iZRE211..TAIW201904-202405

main47722-09270iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02600iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main47730-02610iZRE211,ZWE211..TAIW201904-202305

47731PISTON, FRONT DISC BRAKE

main47731-52210iMZEA1#,ZRE210,ZWE211..GCC201904-202405

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02500iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main47750-02510iZRE211,ZWE211..TAIW201904-202405

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-06030iZRE211,ZWE211..TAIW201904-202405

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33380iZRE211,ZWE211..TAIW201904-202405

47775BBOOT, BUSH DUST, NO.1

main47775-06250iZRE211,ZWE211..TAIW201904-202405

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-02280iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main47781-F4020iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-02270iMZEA1#,ZRE210,ZWE211..GCC201904-202405

main47782-F4020iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

20 parts on this diagram · 2 diagrams in section
