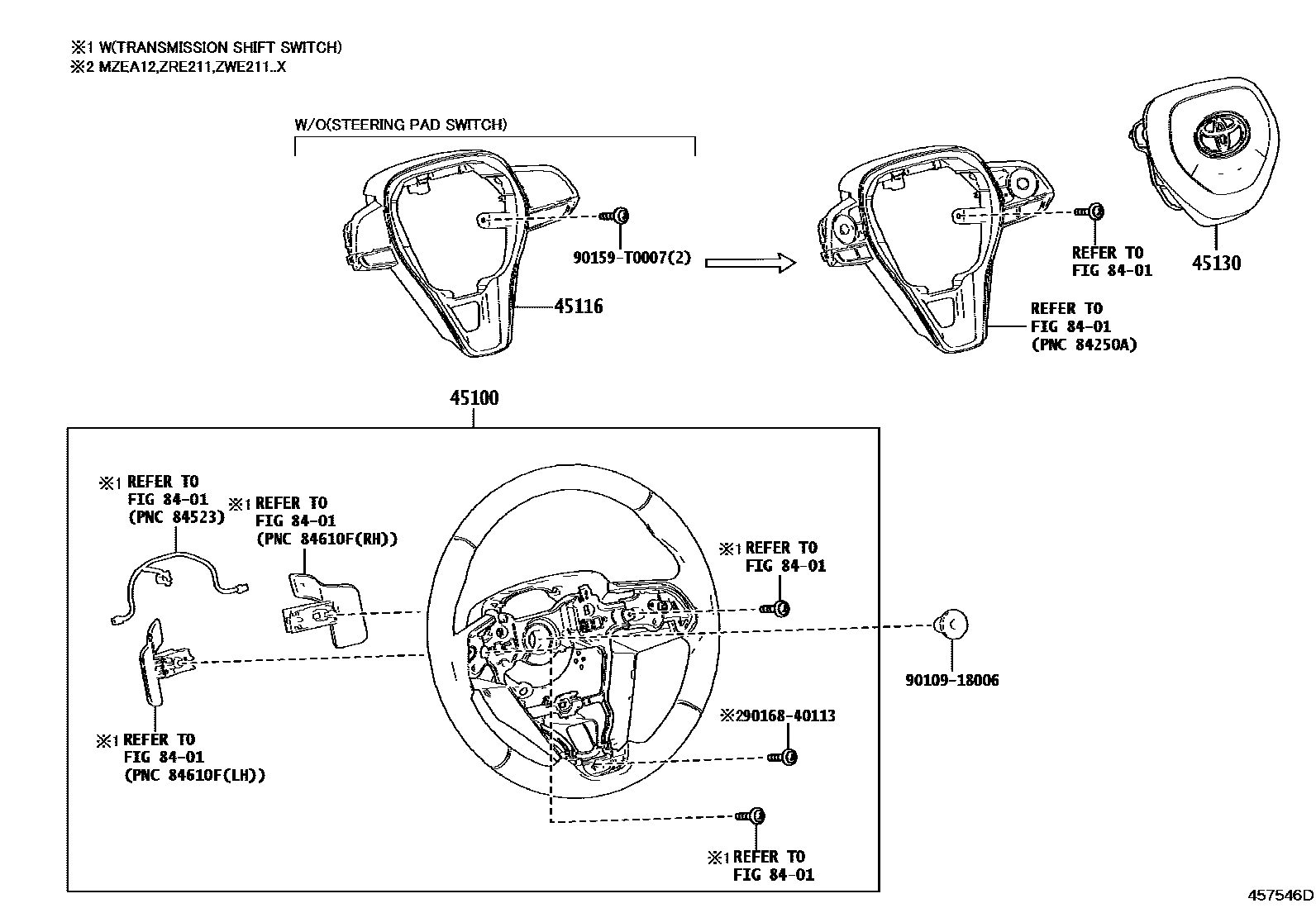

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,LEATHER,BLACK/BLACK,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM0#,1#,2#; 3-SPOKE,URETHANE,BLACK,TRIM1#; 3-SPOKE,URETHANE,BLACK,TRIM2#
main45100-0Z270-C0supersedes 45100-0Z260-C0iZRE210,211,ZWE211..(E,G,N,V)..(GEN,SGP,VN); ZRE210..D; ZRE211,ZWE211..(E,V)..(IDN,MA)202306
3-SPOKE,LEATHER,BLACK,TRIM0#,2#; 3-SPOKE,LEATHER,BLACK,TRIM2#; 3-SPOKE,LEATHER,BRUNEI SPEC,BLACK,TRIM0#,2#
3-SPOKE,LEATHER,BLACK,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM0#
3-SPOKE,LEATHER,BLACK,TRIM1#,2#
3-SPOKE,LEATHER,BLACK & RED,TRIM3#
3-SPOKE,LEATHER,BLACK/GR RED GOSEN Y55,TRIM2#
3-SPOKE,LEATHER,BLACK/GR RED GOSEN Y55,TRIM2#
3-SPOKE,LEATHER,X PACKAGE,BLACK,TRIM1#,2#
3-SPOKE,LEATHER,X PACKAGE,BLACK & RED,TRIM3#
45116ORNAMENT, STEERING WHEEL, NO.1
45130BUTTON ASSY, HORN
BLACK,TRIM0#,1#; BLACK,TRIM0#,2#; BLACK,TRIM1#
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#
BLACK,TRIM0#
8401SWITCH & RELAY & COMPUTER
9010918006
main90109-18006
90159T0007
main90159-T0007
9016840113
main90168-40113
7 parts on this diagram · 1 diagram in section
