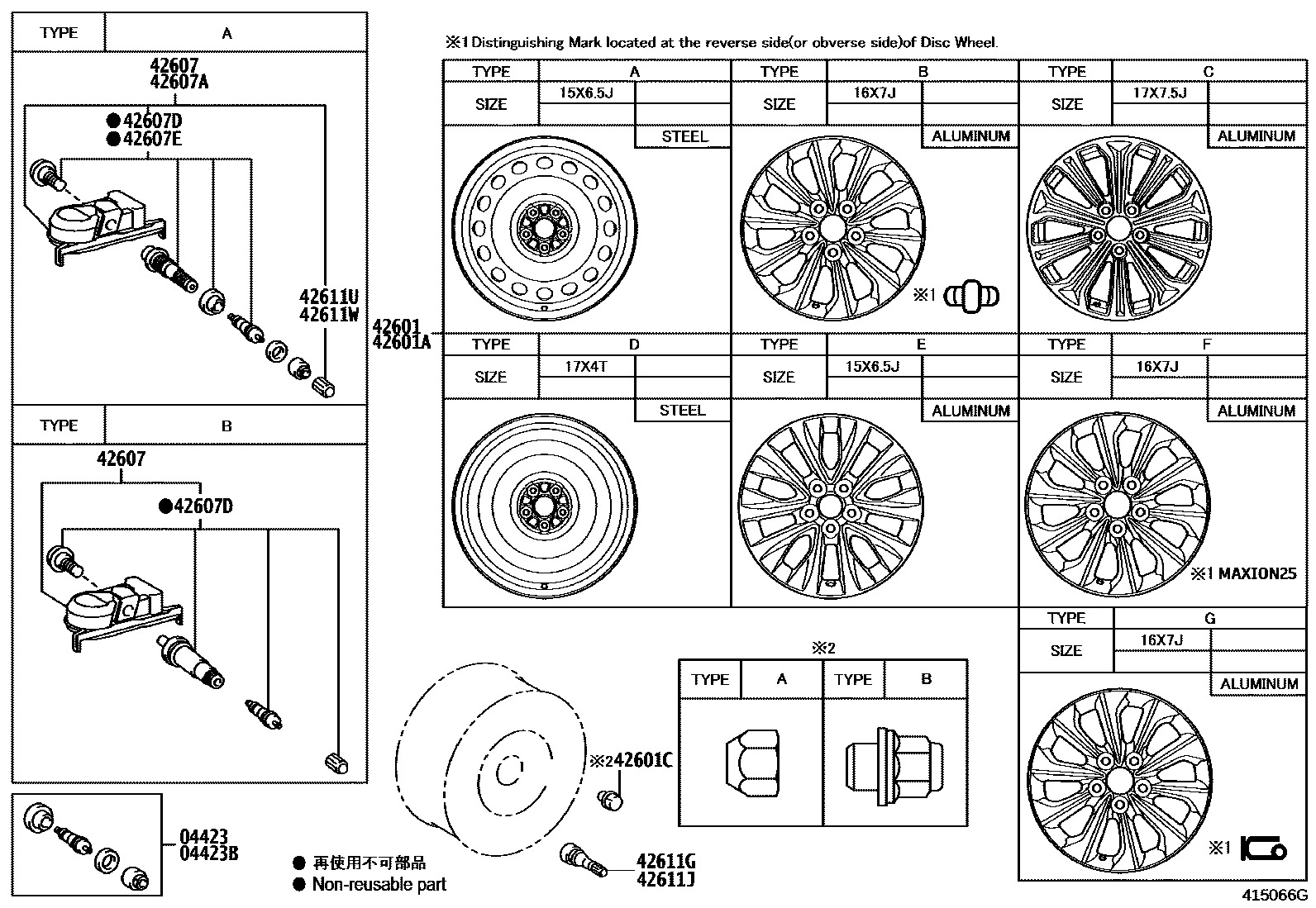

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
42601WHEEL, DISC
15X6.5J,TYPE E:REFER ILLUST.
main42611-02S30×4iZRE210..CVT..D..PHL;ZRE211..(E,G)..(IDN,MA);ZRE210,ZWE211..CVT..(E,G,N)..(GEN,PHL,SGP)201908-202306
16X7J,TIRE & DISC WHEEL-205/55R16 ALUMINUM&SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),TYPE G:REFER ILLUST.
main42611-02S40×4supersedes 42611-02S50iZRE210,211..CVT..(D,E)..(MA,PHL,VN);ZRE210,211,ZWE211..CVT..(E,G,N)..(GEN,IDN,PHL,SGP)201908-202306
16X7J,BRUNEI SPEC,TYPE F:REFER ILLUST.
17X7.5J,TYPE C:REFER ILLUST.
15X6.5J,TYPE A:REFER ILLUST.
16X7J,TYPE B:REFER ILLUST.
16X7J,#,TYPE B:REFER ILLUST.
17X7.5J,#,TYPE C:REFER ILLUST.
16X7J,#,TYPE M:REFER ILLUST.
18X8J,#,TYPE L:REFER ILLUST.
18X8J,#,TYPE L:REFER ILLUST.
16X7J,#,TYPE H:REFER ILLUST.
16X7J,#,TYPE J:REFER ILLUST.
main42611-02Z60×4iZWE211..X..PHL;ZWE211..V..(IDN,SGP,VN);ZRE210,211..(V,X)..(GEN,PHL);ZRE211,ZWE211..G..(IDN,TH,VN)202306
17X7.5J,#,TYPE K:REFER ILLUST.
17X7.5J, #,TYPE C:REFER ILLUST.
17X7.5J, SPORTY PACKAGE,TYPE C:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X4T,TYPE D:REFER ILLUST.
16X7J,TYPE G:REFER ILLUST.
16X7J,TYPE F:REFER ILLUST.
17X7.5J,TYPE C:REFER ILLUST.
16X7J,#,TYPE M:REFER ILLUST.
16X7J,#,TYPE H:REFER ILLUST.
16X7J,#,TYPE J:REFER ILLUST.
17X7.5J,#,TYPE K:REFER ILLUST.
17X7.5J, #,TYPE C:REFER ILLUST.
16X7J,SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),TYPE B:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-225/45R17 ALUMINUM&SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),TYPE C:REFER ILLUST.
17X7.5J,#,SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),TYPE C:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
42607DVALVE, TIRE PRESSURE MONITOR
42607EVALVE, TIRE PRESSURE MONITOR (FOR SPARE)
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
TIRE & DISC WHEEL-225/40R18,ALUMINUM
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
13 parts on this diagram · 4 diagrams in section
