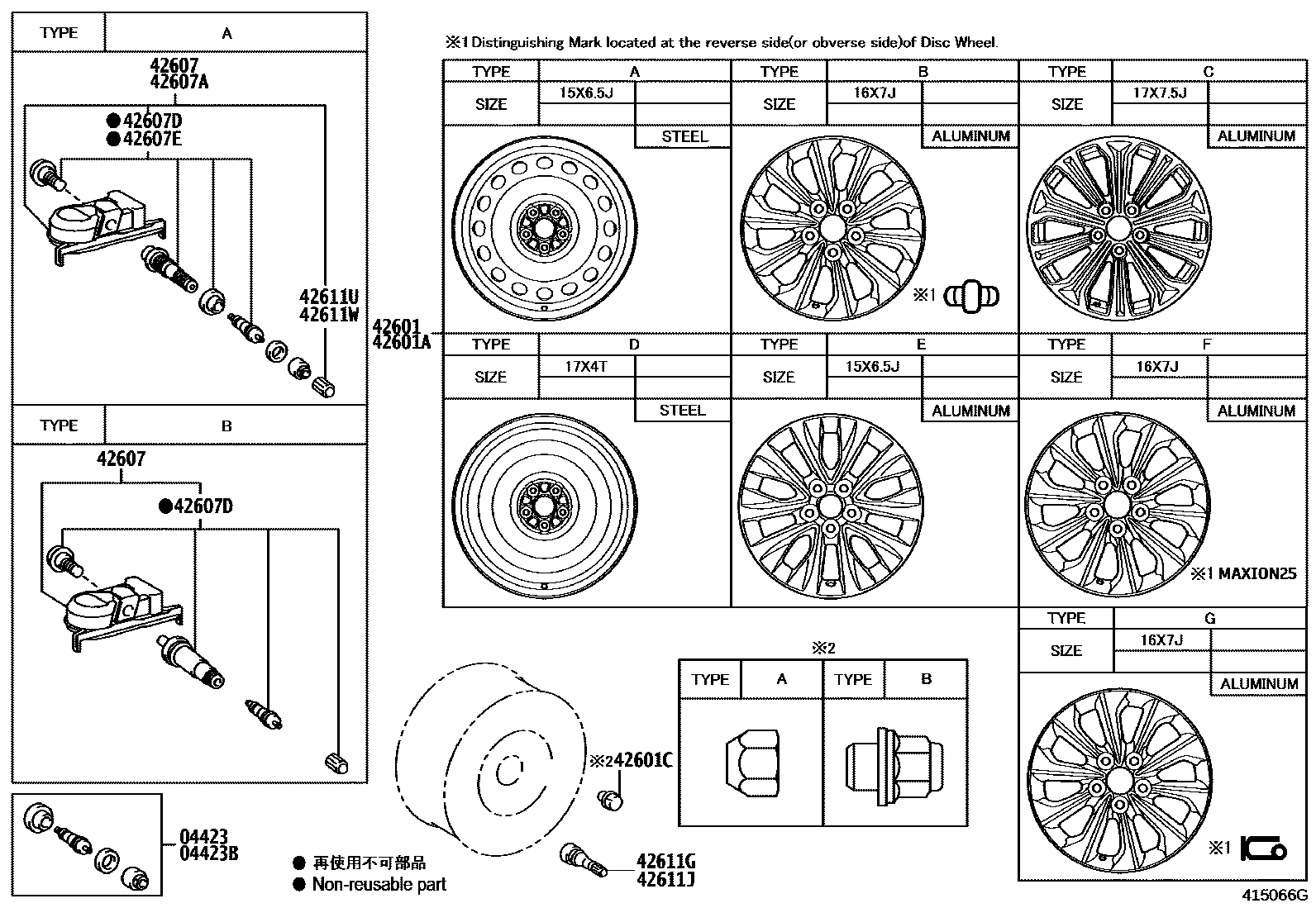

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
42601WHEEL, DISC
15X6.5J,TYPE E:REFER ILLUST.
16X7J,BRUNEI SPEC,TYPE G:REFER ILLUST.
16X7J,TYPE G:REFER ILLUST.
main42611-02S30iZRE210..CVT..D..PHL;ZRE211..(E,G)..(IDN,MA);ZRE210,ZWE211..CVT..(E,G,N)..(GEN,PHL,SGP)201908-202306
16X7J,TIRE & DISC WHEEL-205/55R16 ALUMINUM,TYPE G:REFER ILLUST.
main42611-02S30iZRE210..CVT..D..PHL;ZRE211..(E,G)..(IDN,MA);ZRE210,ZWE211..CVT..(E,G,N)..(GEN,PHL,SGP)201908-202306
16X7J,TIRE & DISC WHEEL-205/55R16 ALUMINUM&SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),TYPE G:REFER ILLUST.
16X7J,TYPE A:REFER ILLUST.
16X7J,TIRE & DISC WHEEL-205/55R16 ALUMINUM,TYPE F:REFER ILLUST.
16X7J,TYPE F:REFER ILLUST.
main42611-02S40iZRE210,211..CVT..(D,E)..(MA,PHL,VN);ZRE210,211,ZWE211..CVT..(E,G,N)..(GEN,IDN,PHL,SGP)201908-202306
16X7J,BRUNEI SPEC,TYPE F:REFER ILLUST.
main42611-02S40iZRE210,211..CVT..(D,E)..(MA,PHL,VN);ZRE210,211,ZWE211..CVT..(E,G,N)..(GEN,IDN,PHL,SGP)201908-202306
16X7J,TIRE & DISC WHEEL-205/55R16 ALUMINUM&SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),TYPE F:REFER ILLUST.
17X7.5J, UP GRADE PACKAGE,TYPE C:REFER ILLUST.
17X7.5J,TYPE C:REFER ILLUST.
17X7.5J, SPORTY PACKAGE,TYPE C:REFER ILLUST.
15X6.5J,TYPE A:REFER ILLUST.
16X7J,TYPE B:REFER ILLUST.
16X7J,#,TYPE B:REFER ILLUST.
17X7.5J,#,TYPE C:REFER ILLUST.
17X7.5J,#,X PACKAGE,TYPE C:REFER ILLUST.
17X7.5J,#,TYPE C:REFER ILLUST.
16X7J,#,TYPE M:REFER ILLUST.
18X8J,#,TYPE L:REFER ILLUST.
18X8J,#,TYPE L:REFER ILLUST.
16X7J,#,TYPE H:REFER ILLUST.
16X7J,#,TYPE J:REFER ILLUST.
17X7.5J,#,UP GRADE PACKAGE&TIRE & DISC WHEEL-225/45R17,ALUMINUM,TYPE K:REFER ILLUST.
17X7.5J,#,TYPE K:REFER ILLUST.
main42611-02Z60iZWE211..X..PHL;ZWE211..V..(IDN,SGP,VN);ZRE210,211..(V,X)..(GEN,PHL);ZRE211,ZWE211..G..(IDN,TH,VN)202306
17X7.5J,#,UP GRADE PACKAGE,TYPE K:REFER ILLUST.
17X7.5J,#,TYPE K:REFER ILLUST.
17X7.5J,#,UP GRADE PACKAGE,TYPE K:REFER ILLUST.
17X7.5J,#,TIRE & DISC WHEEL-225/45R17,ALUMINUM,TYPE K:REFER ILLUST.
17X7.5J, #,TYPE C:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X4T,TYPE D:REFER ILLUST.
17X4T,TIRE & DISC WHEEL-225/40R18,ALUMINUM,TYPE D:REFER ILLUST.
17X4T,SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),TYPE D:REFER ILLUST.
15X6.5J,TYPE E:REFER ILLUST.
15X6.5J,SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),TYPE E:REFER ILLUST.
16X7J,BRUNEI SPEC,TYPE G:REFER ILLUST.
16X7J,TIRE & DISC WHEEL-205/55R16 ALUMINUM&SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),TYPE G:REFER ILLUST.
main42611-02S30iZRE210..CVT..D..PHL;ZRE211..(E,G)..(IDN,MA);ZRE210,ZWE211..CVT..(E,G,N)..(GEN,PHL,SGP)201908-202306
16X7J,TYPE G:REFER ILLUST.
16X7J,TIRE & DISC WHEEL-205/55R16 ALUMINUM&SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),TYPE F:REFER ILLUST.
16X7J,TYPE F:REFER ILLUST.
16X7J,BRUNEI SPEC,TYPE F:REFER ILLUST.
17X7.5J,TYPE C:REFER ILLUST.
17X7.5J, SPORTY PACKAGE,TYPE C:REFER ILLUST.
17X7.5J, UP GRADE PACKAGE,TYPE C:REFER ILLUST.
17X7.5J,SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),TYPE C:REFER ILLUST.
15X6.5J,TYPE A:REFER ILLUST.
15X6.5J,TIRE & DISC WHEEL-195/65R15,STEEL,TYPE A:REFER ILLUST.
15X6.5J,LOW GRADE PACKAGE&TIRE & DISC WHEEL-195/65R15,STEEL,TYPE A:REFER ILLUST.
17X4T,SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE D:REFER ILLUST.
17X4T,TYPE D:REFER ILLUST.
17X4T,SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),TYPE D:REFER ILLUST.
16X7J,#,TYPE M:REFER ILLUST.
16X7J,#,TIRE & DISC WHEEL-205/55R16,ALUMINUM,TYPE M:REFER ILLUST.
16X7J,#,TYPE H:REFER ILLUST.
16X7J,#,TYPE J:REFER ILLUST.
17X7.5J,#,TYPE K:REFER ILLUST.
17X7.5J,#,UP GRADE PACKAGE&TIRE & DISC WHEEL-225/45R17,ALUMINUM,TYPE K:REFER ILLUST.
17X7.5J,#,UP GRADE PACKAGE,TYPE K:REFER ILLUST.
17X7.5J,#,UP GRADE PACKAGE,TYPE K:REFER ILLUST.
17X7.5J,#,TYPE K:REFER ILLUST.
17X7.5J,#,TIRE & DISC WHEEL-225/45R17,ALUMINUM,TYPE K:REFER ILLUST.
17X7.5J, #,TYPE C:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
main90942-01033iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201904-202410
TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL),TYPE B:REFER ILLUST.
42607DVALVE, TIRE PRESSURE MONITOR
42607EVALVE, TIRE PRESSURE MONITOR (FOR SPARE)
SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL)
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
TIRE & DISC WHEEL-225/40R18,ALUMINUM
main90080-94031iZWE211..(G,V)..TH;ZWE211..GEN,PHL,SGP,VN;ZRE210,211..CVT..(GEN,PHL,SGP,TH,VN)201908-202306
SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL)
main90080-94031iZRE211..D;ZWE211..VN;ZRE211..X..MA;ZRE210,211,ZWE211..(D,E,G,N,X)..(GEN,SGP,TH,VN)202306
UP GRADE PACKAGE
SPARE TIRE-GROUND TIRE(ALUMINUM WHEEL)
SPARE TIRE-GROUND TIRE(STEEL WHEEL)
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
13 parts on this diagram · 4 diagrams in section
