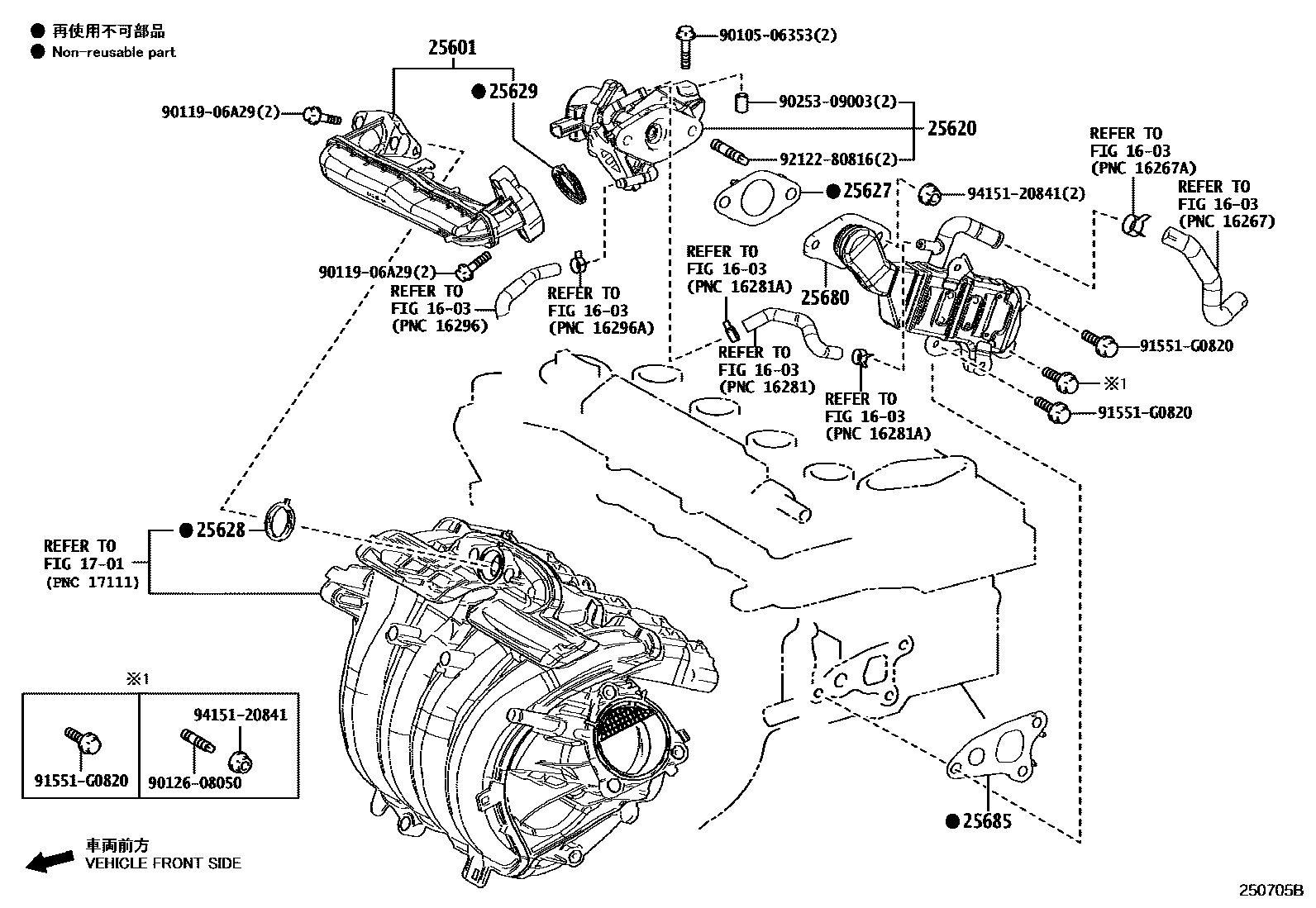

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25601PIPE SUB-ASSY, EGR, NO.1

main25601-15050iM15AFKS..MZEA11202008-202305

main25601-24030iM20AFKS..MZEA12201904-202305

25620VALVE ASSY, EGR

main25620-15350iM15AFKS..MZEA11,17202008-202305

main25620-24050iM20AFKS..MZEA12201904-202305

main25620-37150i2ZRFXE..ZWE211..TAIW201904-202410

25627GASKET, EGR VALVE

main25627-0T010i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN202006-202410

(L)

main25627-15010iM15AFKS..MZEA11,17202008-202305

main25627-24010iM20AFKS..MZEA12,18201904-202305

main25627-37020i2ZRFXE..ZWE211..TAIW202006-202410

(J)

main25627-37020i2ZRFXE..ZWE211201904-202006

25628GASKET, EGR INLET

main25628-25010iM15AFKS..MZEA11,17201904-202310

main25628-25010iM15AFKS..MZEA11,17202310

(J)

main25628-F2040iM15AFKS..MZEA11,17202310

(L)

25629GASKET, EGR VALVE ADAPTER

main25628-25010iM15AFKS..MZEA11202008-202310

main25628-25010iM15AFKS..MZEA11,17202310

(J)

main25628-F2040iM15AFKS..MZEA11,17202310

(L)

main25629-25010iM20AFKS..MZEA12,18201904-202305

25680COOLER ASSY, EGR

main25680-15010iM15AFKS..MZEA11202008-202305

main25680-24010iM20AFKS..MZEA12,18201904-202305

25685GASKET, EGR COOLER, NO.1

main25685-15010iM15AFKS..MZEA11202008-202305

main25685-25011iM20AFKS..MZEA12,18201904-202305

main25685-37020i2ZRFXE..ZWE211..GCC201904-202410

9010506353

main90105-06353

9011906A29

main90119-06A29

9012608050

main90126-08050

9025309003

main90253-09003

91551G0820

main91551-G0820

9212280816

main92122-80816

9415120841

main94151-20841

16 parts on this diagram · 3 diagrams in section
