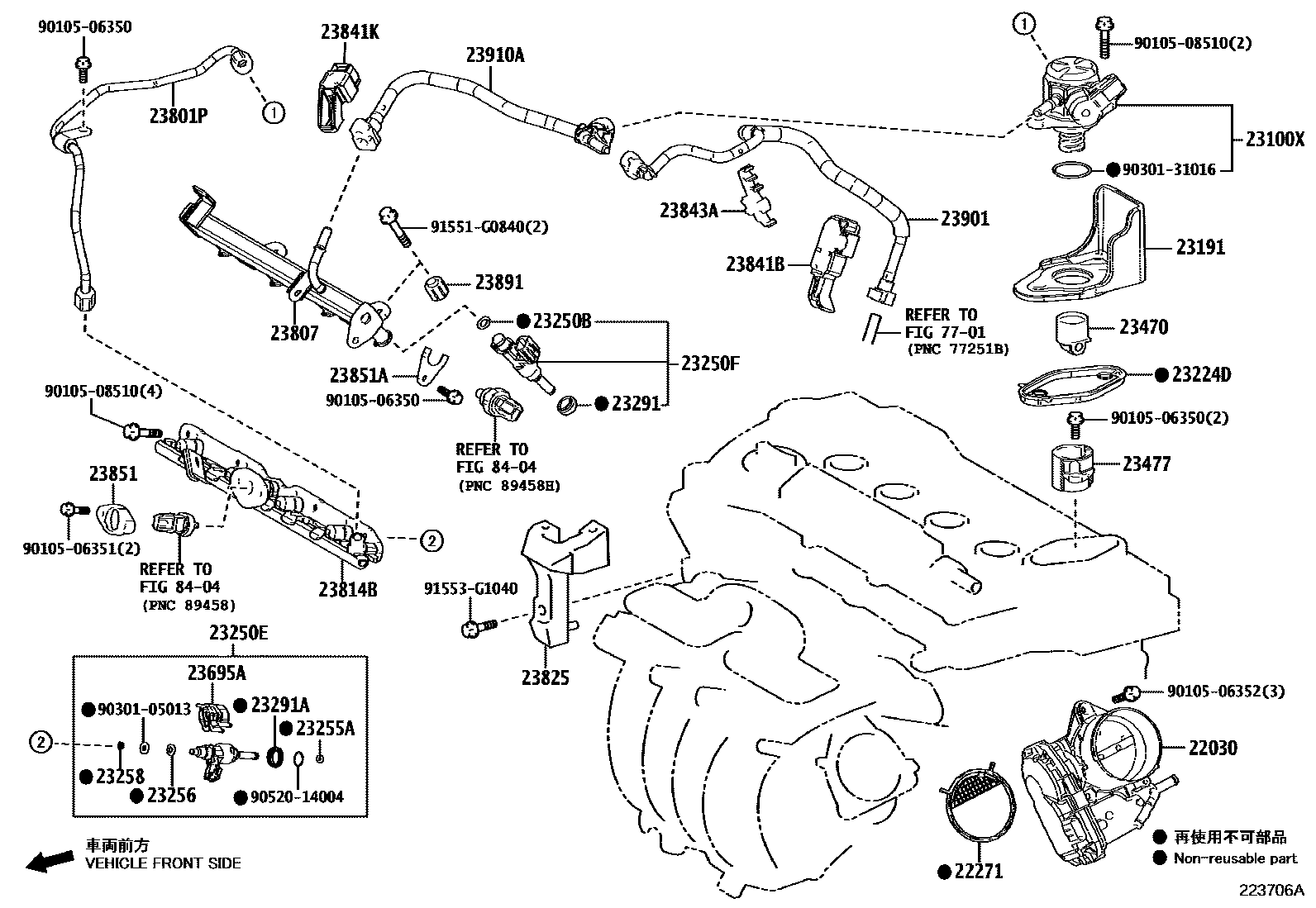

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0006 1 0008 1

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-15010iM15AFKS..MZEA11202008-202305

main22030-24010iM20AFKS..MZEA12,18202305

22271GASKET, THROTTLE BODY

main22271-0T021i1ZRFAE..ZRE210201908-202306

(L)

main22271-0T060i1ZRFE..ZRE210..6F201904-202112

(L)

main22271-15050iM15AFKS..MZEA11,17202305

main22271-24010iM20AFKS..MZEA12,18202305

main22271-37020i2ZRFXE..ZWE211..E;2ZRFXE..ZWE211..MA201904-202112

main22271-75031i1ZRFE..ZRE210..6F201904-202112

(J)

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-25040iM15AFKS,M20AFKS..MZEA1#202305

23191FLANGE, FUEL PUMP

main23191-25050iM15AFKS,M20AFKS..MZEA1#201904-202305

23224DGASKET, FUEL PUMP SPACER

main23224-25010iM15AFKS,M20AFKS..MZEA1#201904-202106

main23224-25011iM15AFKS,M20AFKS..MZEA1#202107-202305

23250INJECTOR ASSY, FUEL

main23209-09200×4i1ZRFE..ZRE210..N;1ZRFE,2ZRFE..ZRE210,211..GEN,IDN;1ZRFE,2ZRFE..ZRE211,217,218..D,E,X202304

(L)

main23209-09410×4i1ZRFBE,2ZRFBE..ZRE210,211202306

(L)

main23209-24010-01×3iM15AFKS..MZEA11,17202305

MARK 1,REFER REPAIR MANUAL

main23209-24010-02×3iM15AFKS..MZEA11202008-202305

MARK 2,REFER REPAIR MANUAL

main23209-24010-03×3iM15AFKS..MZEA11202008-202305

MARK 3,REFER REPAIR MANUAL

main23209-24010-04×3iM15AFKS..MZEA11202008-202305

MARK 4,REFER REPAIR MANUAL

main23209-24010-05×3iM15AFKS..MZEA11,17202305

MARK 5,REFER REPAIR MANUAL

main23209-24010-06×3iM15AFKS..MZEA11,17202305

MARK 6,REFER REPAIR MANUAL

main23209-24010-07×3iM15AFKS..MZEA11,17202305

MARK 7,REFER REPAIR MANUAL

main23209-24010-08×3iM15AFKS..MZEA11202008-202305

MARK 8,REFER REPAIR MANUAL

main23209-24010-09×3iM15AFKS..MZEA11202008-202305

MARK 9,REFER REPAIR MANUAL

main23209-39146×4i1ZRFAE..ZRE210201908-202306

main23209-39295×4i2ZRFXE..ZWE211..E;2ZRFXE..ZWE211..MA201904-202112

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i2ZRFE..ZRE211..TAIW; 2ZRFXE..ZWE211..TAIW201904-202304

(J)

main90301-C0072×4iM20AFKS..MZEA12201904-202305

(L)

main90301-T0051×4i2ZRFE..ZRE211..TAIW202304-202405

(L)

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-24010-01×4iM20AFKS..MZEA12,18202305

MARK 1,REFER REPAIR MANUAL

main23209-24010-02×4iM20AFKS..MZEA12201904-202305

MARK 2,REFER REPAIR MANUAL

main23209-24010-03×4iM20AFKS..MZEA12,18202305

MARK 3,REFER REPAIR MANUAL

main23209-24010-04×4iM20AFKS..MZEA12201904-202305

MARK 4,REFER REPAIR MANUAL

main23209-24010-05×4iM20AFKS..MZEA12,18202305

MARK 5,REFER REPAIR MANUAL

main23209-24010-06×4iM20AFKS..MZEA12,18202305

MARK 6,REFER REPAIR MANUAL

main23209-24010-07×4iM20AFKS..MZEA12,18202305

MARK 7,REFER REPAIR MANUAL

main23209-24010-08×4iM20AFKS..MZEA12,18202305

MARK 8,REFER REPAIR MANUAL

main23209-24010-09×4iM20AFKS..MZEA12201904-202305

MARK 9,REFER REPAIR MANUAL

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-29115×4iM20AFKS..MZEA12,18202305

main23209-29165×4iM20AFKS..MZEA12201907-202305

23255ASEAL, FUEL INJECTOR

main23255-25010×3iM15AFKS..MZEA11,17; M20AFKS..MZEA12,18202305

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×3iM15AFKS..MZEA11,17; M20AFKS..MZEA12,18202305

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-47010×3iM15AFKS..MZEA11,17; M20AFKS..MZEA12,18202305

23291INSULATOR, INJECTOR VIBRATION

main23291-0T010×4i1ZRFBE,2ZRFBE..ZRE210,211201908-202306

(L),T/P B:REF.ILLUST

main23291-23010×4i1ZRFAE..ZRE210201908-202306

TYPE A:REFER ILLUST.

main23291-28020×4i2ZRFXE..ZWE211..MA;1ZRFE,2ZRFXE..ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

(J)

23291AINSULATOR, INJECTOR VIBRATION

main23291-31020×3iM15AFKS..MZEA11,17; M20AFKS..MZEA12,18202305

23470LIFTER ASSY, FUEL PUMP

main23470-25010iM15AFKS,M20AFKS..MZEA1#201904-202305

23477GUIDE, FUEL PUMP LIFTER

main23477-25010iM15AFKS,M20AFKS..MZEA1#201904-202305

23695ACLAMP, NOZZLE HOLDER

main23695-24010×3iM15AFKS..MZEA11202008-202305

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-15070iM15AFKS..MZEA11,17202305

main23801-24070iM20AFKS..MZEA12,18202305

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-24020iM20AFKS..MZEA12,18202305

main23814-37051i2ZRFE..ZRE211..TAIW202304-202405

main23814-37100i2ZRFXE..ZWE211..V..(PHL,TH)202304-202410

23814BPIPE, FUEL DELIVERY

main23814-15070iM15AFKS..MZEA11202008-202207

main23814-15071iM15AFKS..MZEA11202208-202305

main23814-24010iM20AFKS..MZEA12201904-202210

main23814-24011iM20AFKS..MZEA12202211-202305

23825GUARD, FUEL DELIVERY

main23825-24010iM20AFKS..MZEA12,18202305

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0T042i2ZRFE,2ZRFXE..ZRE211,ZWE211..TAIW201904-202304

main23841-24040iM15AFKS,M20AFKS..MZEA1#201904-202305

23841KCLAMP, FUEL PIPE

main23841-0T080i2ZRFE..ZRE211..TAIW201904-202304

main23841-0T130i2ZRFE..ZRE211..D,E,X;1ZR#,2ZRFBE,2ZRFE..ZRE210,211..GEN,IDN,SGP,TH,VN202306

main23841-15020iM15AFKS..MZEA11202008-202305

main23841-25040iM20AFKS..MZEA12201904-202305

23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)

main23847-24010iM20AFKS..MZEA12201904-202305

main23847-F3060iM15AFKS..MZEA11202008-202305

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-25020iM15AFKS,M20AFKS..MZEA1#201904-202305

23851AHOLDER, FUEL PRESSURE SENSOR, NO.2

main23851-25030iM15AFKS,M20AFKS..MZEA1#201904-202305

23891SPACER, FUEL DELIVERY

main23891-24010×2iM20AFKS..MZEA12201904-202305

23901TUBE SUB-ASSY, FUEL

main23901-0T280i2ZRFXE..ZWE211..V..(PHL,TH)202305-202410

main23901-0T290i2ZRFE..ZRE211..D,E,X;1ZR#,2ZRFBE,2ZRFE..ZRE210,211,217..GCC,GEN,IDN,SGP,TH,VN202305

main23901-15080iM15AFKS..MZEA11,17202305

main23901-24010iM20AFKS..MZEA12201904-201906

main23901-24011iM20AFKS..MZEA12,18..GCC202305

main23901-24021iM20AFKS..MZEA12..TAIW202405

main23901-37260i2ZRFXE..ZWE211..TAIW202108-202304

main23901-37290i2ZRFE..ZRE211..TAIW202108-202304

23910ATUBE SUB-ASSY, FUEL

main23901-24071iM20AFKS..MZEA12,18202305

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9010506350

main90105-06350

9010506351

main90105-06351

9010506352

main90105-06352

9010508510

main90105-08510

9030105013

main90301-05013

9030131016

main90301-31016

9052014004

main90520-14004

91551G0840

main91551-G0840

91553G1040

main91553-G1040

40 parts on this diagram · 6 diagrams in section
