ALTERNATOR

0001 112V 80A 0002 112V 80A 0003 112V 100A 0004 112V 100A 0005 112V 100A

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

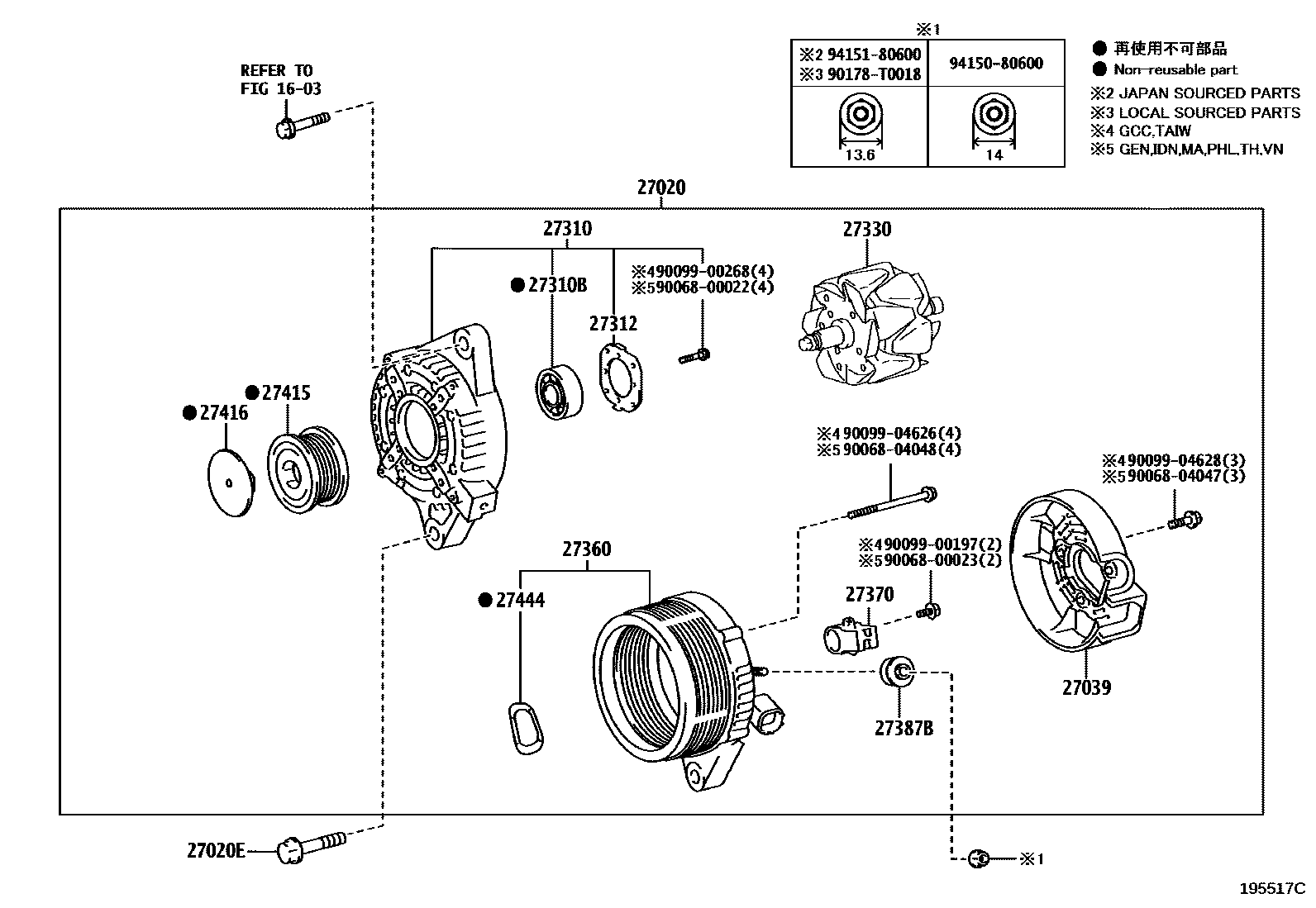

27020ALTERNATOR ASSY

main27060-0T330i1ZRFE..ZRE210..N;1ZRFE,2ZRFE..ZRE217,218202304

12V 80A

main27060-0T391i2ZRFE..ZRE211..D,E,X;1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..GEN,IDN,TH,VN202306

12V 80A

main27060-0T430i1ZRFAE..ZRE210202306

12V 80A

main27060-F2080iM20AFKS..MZEA12201904-202305

12V 100A

main27060-F2220iM20AFKS..MZEA12,18202305

12V 100A

main27060-K0050iM15AFKS..MZEA11,17202305

12V 100A

27020EBOLT(FOR ALTERNATOR)

main90105-10307i1ZRFE..ZRE210..6F201904-202112

27039COVER, ALTERNATOR REAR END

main27039-0C180iM20AFKS..MZEA12201904-202305

main27039-0M100i1ZR#,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main27039-0Y180i2ZRFE..ZRE211..TAIW202304-202405

main27039-37220iM15AFKS..MZEA11,17202305

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0T270i1ZRFE..ZRE210..6F201908-202112

main27310-0T280i2ZRFE..ZRE211..TAIW202304-202405

main27310-0T390i1ZRFAE..ZRE210202012-202302

main27310-24150iM15AFKS..MZEA11202008-202305

main27310-F2070iM20AFKS..MZEA12,18202305

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10029i2ZRFE..ZRE211..D,E,X;1ZR#,2ZRFBE,2ZRFE..ZRE210,211..GEN,IDN,SGP,TH,VN202306

main90068-10033iM20AFKS..MZEA12,18202305

main90068-10047i1ZRFE..ZRE210..GCC201904-202305

main90068-10050iM20AFKS..MZEA12201904-202201

main90068-10052i1ZRFAE..ZRE210202012-202302

27312PLATE, RETAINER

main27312-0C020i1ZRFE..ZRE210..6F201908-202112

main27312-0M070iM20AFKS,1ZRFE..MZEA12,ZRE210..N,X;M20AFKS,1ZRFE,2ZRFE..MZEA18,ZRE217,218202304

main27312-72100iM15AFKS..MZEA11202008-202305

27330ROTOR ASSY, ALTERNATOR

main27330-0M100i1ZRFE..ZRE210..6F201908-202112

main27330-0T260iM20AFKS..MZEA12201904-202305

main27330-0Y180i1ZRFE..ZRE210..GCC201904-202305

main27330-47330iM15AFKS..MZEA11,17202305

27360COIL ASSY, ALTERNATOR

main27360-0T310i2ZRFE..ZRE211..TAIW201904-202304

main27360-0T390i2ZRFE..ZRE211..G..PHL202306-202410

main27360-24150iM15AFKS..MZEA11,17202305

main27360-F2070iM20AFKS..MZEA12201904-202305

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0M040i2ZRFE..ZRE211..D,E,X;1ZR#,2ZRFBE,2ZRFE..ZRE210,211..GEN,IDN,SGP,TH,VN202306

main27370-0T030iM20AFKS,1ZRFE..MZEA12,ZRE210..N,X;M20AFKS,1ZRFE,2ZRFE..MZEA18,ZRE217,218202304

main27370-31220iM15AFKS..MZEA11202008-202305

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-0C020i1ZRFE..ZRE210..6F201908-202112

main27387-0H110iM20AFKS,1ZRFE..MZEA12,ZRE210..N,X;M20AFKS,1ZRFE,2ZRFE..MZEA18,ZRE217,218202304

main27387-20130iM15AFKS..MZEA11,17202305

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0T070i1ZRFE..ZRE210..N;1ZRFE,2ZRFE..ZRE211,217,218..D,E,X;1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..GEN,IDN,TH,VN202304

main27415-15020iM15AFKS..MZEA11,17202305

main27415-F2040iM20AFKS..MZEA12201904-202305

27416CAP, ALTERNATOR PULLEY

main27416-0W050i2ZRFE..ZRE211..G..PHL202306-202410

main27416-47010iM15AFKS..MZEA11202008-202305

main27416-F0010iM20AFKS,1ZRFE..MZEA12,ZRE210..GCC202106-202305

27444PACKING, ALTERNATOR BEARING COVER

main27444-0Y180i1ZRFE..ZRE210..6F201904-202112

main27444-21190iM15AFKS..MZEA11202008-202305

9006800022

main90068-00022

9006800023

main90068-00023

9006804047

main90068-04047

9006804048

main90068-04048

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904628

main90099-04628

90178T0018

main90178-T0018

9415080600

main94150-80600

9415180600

main94151-80600

25 parts on this diagram · 5 diagrams in section
