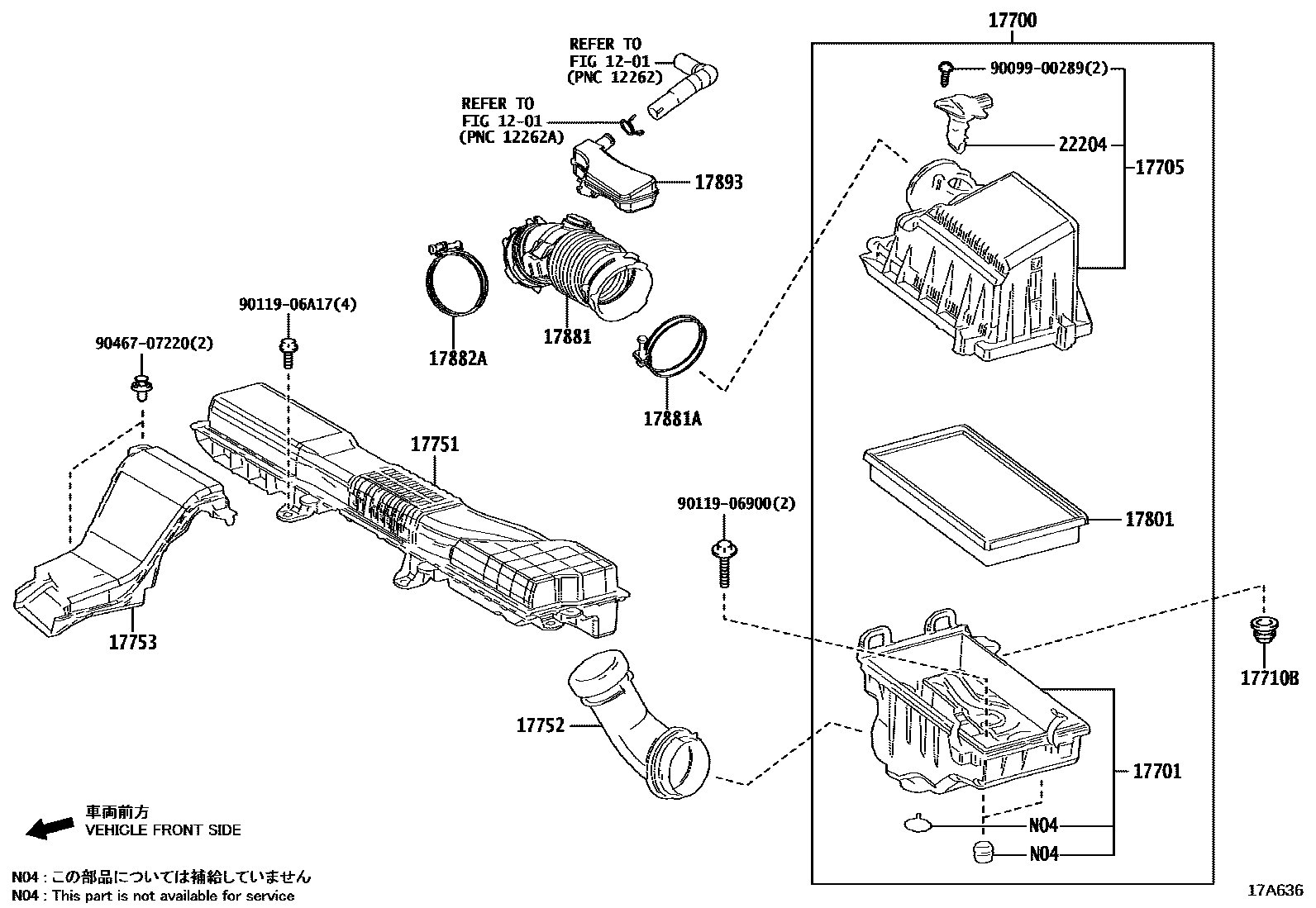

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1

1201

17700CLEANER ASSY, AIR

main17700-0T270i1ZR#,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main17700-0T280i2ZRFXE..ZWE211..V..(PHL,TH)201908-202410

main17700-0T300i1ZRFE..ZRE210..GCC201904-202405

main17700-0T310i2ZRFXE..ZWE211..GCC,TAIW201904-202305

main17700-F2070iM20AFKS..MZEA12,18201904-202305

main17700-F3030iM15AFKS..MZEA11,17202008-202305

17701CASE SUB-ASSY, AIR CLEANER

main17701-0T220i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN201908-202410

main17701-0T230i2ZRFE..ZRE211..G..PHL201908-202410

main17701-0T250i1ZRFE..ZRE210..N;1ZRFE,2ZRFE..ZRE217,218201904-202405

main17701-0T260i2ZRFXE..ZWE211..GCC,TAIW201904-202305

main17701-F2040iM15AFKS,M20AFKS..MZEA1#201904-202305

17705CAP SUB-ASSY, AIR CLEANER

main17705-0T300i1ZRFE..ZRE210..GCC201904-202405

main17705-0T310i2ZRFXE..ZWE211..TAIW201904-202305

main17705-F2060iM20AFKS..MZEA12201904-202305

main17705-F3030iM15AFKS..MZEA11,17202008-202305

17710BGROMMET

main90480-18006i2ZRFE..ZRE211..G..PHL;2ZRFXE..ZWE211..V..(PHL,TH)201904-202410

17751INLET, AIR CLEANER, NO.1

main17751-0T250i2ZRFXE..ZWE211..E;2ZRFXE..ZWE211..MA201904-202410

main17751-0T260i1ZR#,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main17751-15110iM15AFKS..MZEA11202008-202305

main17751-24010iM20AFKS..MZEA12201904-202305

main17751-37150i2ZRFE..ZRE211..TAIW201904-202405

17752INLET, AIR CLEANER, NO.2

main17752-0T110i1ZR#,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main17752-0T132i2ZRFXE..ZWE211..E;2ZRFXE..ZWE211..MA201904-202410

main17752-24050iM15AFKS,M20AFKS..MZEA1#201904-202305

main17752-47020i2ZRFE..ZRE211..TAIW201904-202405

17753INLET, AIR CLEANER, NO.3

main17753-0T090iM15AFKS,M20AFKS..MZEA1#201904-202410

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0T090i2ZRFXE..ZWE211..V..(PHL,TH)201904-202410

(L)

main17801-21060i2ZRFXE..ZWE211..TAIW201904-202305

(J)

main17801-77050iM15AFKS,M20AFKS..MZEA1#201904-202405

(J)

main17801-F0030i1ZRFE..ZRE210..GCC201904-202410

(L)

17881HOSE, AIR CLEANER, NO.1

main17881-0T490i2ZRFXE..ZWE211..E;2ZRFXE..ZWE211..MA201908-202410

main17881-0T510i2ZRFE..ZRE211..G..PHL201908-202410

main17881-0T540i2ZRFXE..ZWE211..GCC,TAIW201904-202305

main17881-0T550i1ZRFE..ZRE210..6F201908-202112

main17881-0T560i1ZRFE..ZRE210..GCC201904-202306

main17881-0T570i2ZRFE..ZRE211..TAIW201904-202405

MADE IN THAILAND

main17881-0T570i1ZRFAE..ZRE210201908-202306

main17881-0T580i2ZRFE..ZRE211..TAIW201904-202405

MADE IN TAIWAN

main17881-24050iM20AFKS..MZEA12,18201904-202305

(J)

main17881-F2040iM20AFKS..MZEA12,18201904-202305

(L)

main17881-F3010iM15AFKS..MZEA11,17202008-202305

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-T0004i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN201908-202410

(L)

main96111-10650i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN201904-202410

(J)

main96111-10730iM15AFKS..MZEA11,17202008-202305

main96111-10780i1ZRFE..ZRE210..GCC201904-202410

main96111-10850iM20AFKS..MZEA12201904-202305

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-T0015i1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,TH,VN)201904-202410

main96111-10710iM15AFKS..MZEA11202008-202305

main96111-10800iM20AFKS..MZEA12,18201904-202305

17893RESONATOR, INTAKE AIR

main17893-0T120i2ZRFXE..ZWE211..V..(PHL,TH)201908-202410

main17893-0T130i2ZRFXE..ZWE211..GCC,TAIW201904-202305

main17893-24020iM20AFKS..MZEA12201904-202305

main17893-F3010iM15AFKS..MZEA11,17202008-202305

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-24010iM15AFKS..MZEA11202008-202305

main22204-75030i2ZRFXE..ZWE211..TAIW201904-202410

main22204-75040i2ZRFE..ZRE211..TAIW201904-202410

9009900289

main90099-00289

9011906900

main90119-06900

9011906A17

main90119-06A17

9046707220

main90467-07220

18 parts on this diagram · 6 diagrams in section
