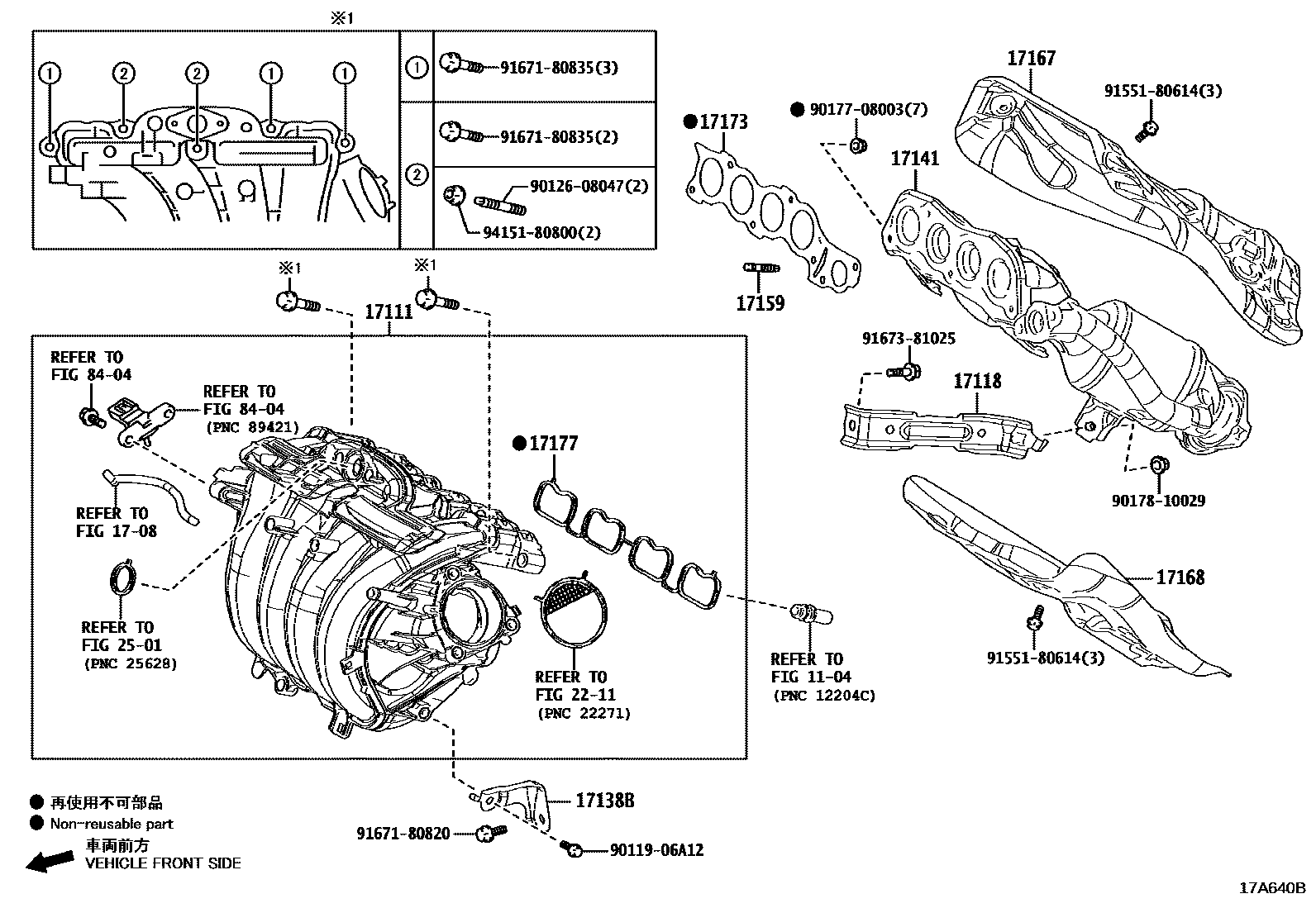

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0006 1 0008 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1708VACUUM PIPING

→ Go to FIG 17-08

17111MANIFOLD, INTAKE

main17101-15120iM15AFKS..MZEA11,17202305

MARK 17101-15120

main17101-F3010iM15AFKS..MZEA11,17202310

MARK 17101-F3010

main17101-F3020iM15AFKS..MZEA11,17202310

MARK 17101-F3020

main17120-0T031i1ZRFAE..ZRE210201908-202306

main17120-0T090i1ZRFBE,1ZRFE..ZRE210..CVT..(GEN,PHL,TH)201904-202306

(L)

main17120-0T100i2ZRFE..ZRE211..TAIW202304-202405

(L)

main17120-0T200i2ZRFXE..ZWE211..(G,X)..(PHL,TH);2ZRFXE..ZWE211..GCC,GEN,IDN,SGP,TAIW,VN202304

(L)

main17120-24010iM20AFKS..MZEA12,18202305

main17120-37022i1ZRFBE,1ZRFE..ZRE210,217..GCC,GEN,TH202305

(J)

main17120-37070i2ZRFE..ZRE211..G..PHL202304-202410

(J)

main17120-37110i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN202006-202306

(J)

17118STAY, MANIFOLD

main17118-0T040i2ZRFE..ZRE211..TAIW202304-202405

(L)

main17118-0T100i2ZRFXE..ZWE211..TAIW202006-202304

(L)

main17118-15090iM15AFKS..MZEA11202008-202305

main17118-24010iM20AFKS..MZEA12201904-202305

main17118-37010i2ZRFE..ZRE211..TAIW201904-202304

(J)

main17118-37090i2ZRFXE..ZWE211..(G,X)..(PHL,TH);2ZRFXE..ZWE211..GCC,GEN,IDN,SGP,TAIW,VN202304

(J)

17138BSTAY, INTAKE MANIFOLD

main17138-0T040i1ZRFE..ZRE210..6F201904-202112

(L)

main17138-24010iM20AFKS..MZEA12201904-202305

main17138-37011i1ZRFE..ZRE210..GCC201904-202305

(J)

17141MANIFOLD, EXHAUST

main17141-0T130i1ZRFE..ZRE210..6F201904-202112

(L)

main17141-0T131i1ZRFE..ZRE210..N;1ZRFE,2ZRFE..ZRE211,217,218..D,E,X;1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..GEN,IDN,TH,VN202304

(L)

main17141-15190iM15AFKS..MZEA11202008-202305

main17141-15270iM15AFKS..MZEA11,17202411

main17141-24120iM20AFKS..MZEA12201904-202305

main17141-37210i2ZRFXE..ZWE211..E;2ZRFXE..ZWE211..MA201904-202112

*114=TOYOTA/AT37180Y

main17141-37211i2ZRFXE..ZWE211..GCC,TAIW202202-202209

*114=TOYOTA/AT37180Y

main17141-37230i2ZRFE..ZRE211..TAIW202302-202304

main17141-37250i1ZRFE..ZRE210..6F201904-202112

(J)

main17141-37321i2ZRFXE..ZWE211..TAIW202209-202304

main17141-37340i2ZRFXE..ZWE211..(G,X)..(PHL,TH);2ZRFXE..ZWE211..GCC,GEN,IDN,SGP,TAIW,VN202410

*114=*389,(L)

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i1ZRFE..ZRE210..N;2ZRFXE..ZWE211..(G,X)..(PHL,TH);1ZRFE,2ZRFE..ZRE211,217,218..D,E,X;2ZRFXE..ZWE211..GCC,GEN,IDN,SGP,TAIW,VN;1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..GEN,IDN,TH,VN202304

(J),NO.1

main90126-08052×5i1ZRFE,2ZRFXE..ZRE210,ZWE211..GCC; M20AFKS..MZEA12201904-202305

(J),NO.2

main90126-T0003×2i1ZRFE,2ZRFXE..ZRE210,ZWE211..GCC201904-202305

(L),NO.1

main90126-T0016×5i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN;1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,TH,VN)201904-202306

(L),NO.2

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-0T040i2ZRFE..ZRE211..TAIW201904-202304

(L)

main17167-0T130i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW202008-202201

(L),TYPE A:REF ILL.

main17167-0T160i2ZRFXE..ZWE211..TAIW202209-202304

(L)

main17167-15100iM15AFKS..MZEA11202008-202305

main17167-24030iM20AFKS..MZEA12201904-202305

main17167-37040i2ZRFXE..ZWE211201904-202008

main17167-37110i1ZRFAE..ZRE210201908-202306

main17167-37140i2ZRFXE..ZWE211..GCC202209-202305

(J)

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-0T140i1ZRFE..ZRE210..N;1ZRFE,2ZRFE..ZRE211,217,218..D,E,X;1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..GEN,IDN,TH,VN202304

(L)

main17168-0T150i2ZRFXE..ZWE211..E;2ZRFXE..ZWE211..MA202008-202112

(L)

main17168-15040iM15AFKS..MZEA11,17202305

main17168-24030iM20AFKS..MZEA12,18202305

(J)

main17168-37120i2ZRFXE..ZWE211..GCC201904-202305

(J)

main17168-37130i1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,TH,VN)201904-202306

(J)

main17168-F2050iM20AFKS..MZEA12201905-202305

(L)

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0T041i2ZRFXE..ZWE211..MA;1ZRFE,2ZRFXE..ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

(L)

main17173-15050iM15AFKS..MZEA11202008-202305

main17173-24010iM20AFKS..MZEA12,18202305

main17173-37010i2ZRFE..ZRE211..G..PHL;2ZRFXE..ZWE211..V..(PHL,TH)202304-202410

(J)

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-15040iM15AFKS..MZEA11,17202305

main17171-24020iM20AFKS..MZEA12,18202305

main17177-0T030i1ZRFAE..ZRE210202306

(L)

main17177-0T040i2ZRFXE..ZWE211..VN;1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,TH,VN)201904-202306

(L)

main17177-37030i2ZRFE..ZRE211..TAIW202304-202405

(J)

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9011906A12

main90119-06A12

9012608047

main90126-08047

9017708003

main90177-08003

9017810029

main90178-10029

9155180614

main91551-80614

9167180820

main91671-80820

9167180835

main91671-80835

9167381025

main91673-81025

9415180800

main94151-80800

23 parts on this diagram · 6 diagrams in section
