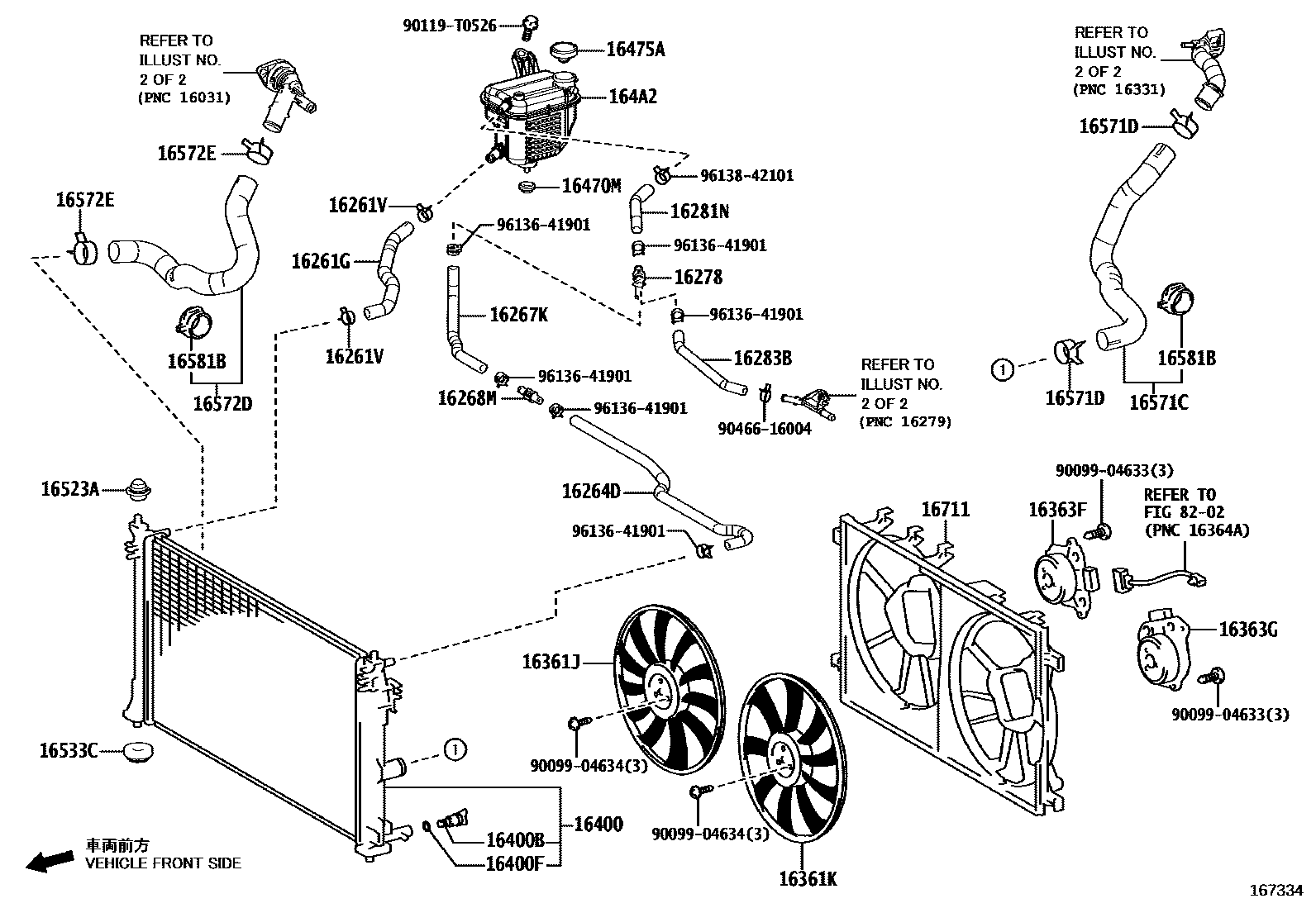

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1RADIATOR SIDE 0003 1ENGINE SIDE 0004 1RADIATOR SIDE 0005 1ENGINE SIDE 0006 1 0007 1 0009 1 0011 1 0012 1W(HEATER) 0014 1W/O(HEATER) 0015 1 0016 1

16261HOSE, WATER BY-PASS

main16261-0T260i2ZRFE..ZRE211..TAIW201904-202410

(L)

main16261-0T280i2ZRFXE..ZWE211..V..(PHL,TH)202006-202410

(L)

main16261-37031i1ZRFE..ZRE210201904-201907

main16261-37160i2ZRFXE..ZWE211..(G,X)..(PHL,TH);2ZRFXE..ZWE211..GCC,GEN,IDN,SGP,TAIW,VN201904-202410

main16261-37160i2ZRFXE..ZWE211..E;2ZRFXE..ZWE211..MA202006-202306

(J)

main16261-37200i1ZRFE..ZRE210..GCC201904-202410

(J)

main16261-37200i1ZRFAE..ZRE210201908-202306

16261GHOSE, WATER BY-PASS, NO.1

main16261-0T300i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN201908-202410

main16261-0T310i1ZRFE..ZRE210..6F201908-202410

main16261-0T340i1ZRFE..ZRE210..N;1ZRFE,2ZRFE..ZRE217,218201904-202405

main16261-0T380i2ZRFXE..ZWE211..TAIW201904-202305

main16261-F2130iM15AFKS,M20AFKS..MZEA1#201904-202305

16261VCLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main96138-42501iM20AFKS..MZEA12201904-202305

16264HOSE, WATER BY-PASS, NO.2

main16264-0T210i1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,TH,VN)201904-202410

(L)

main16264-0T400i2ZRFXE..ZWE211..(G,X)..(PHL,TH);2ZRFXE..ZWE211..GCC,GEN,IDN,SGP,TAIW,VN202006-202410

(L)

main16264-37130i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN202006-202306

(J)

main16264-37130i2ZRFXE..ZWE211..V..(PHL,TH)201904-202410

main16264-37210i1ZRFE..ZRE210..6F201904-202410

(J)

main16264-37210i1ZRFAE..ZRE210201908-202306

main16264-F3030iM15AFKS..MZEA11,17202008-202305

16264DHOSE, WATER BY-PASS, NO.2

main16264-0T250i2ZRFXE..ZWE211..E;2ZRFXE..ZWE211..MA201908-202410

main16264-0T270i2ZRFE..ZRE211..G..PHL201908-202410

main16264-0T300i1ZRFE..ZRE210..N;1ZRFE,2ZRFE..ZRE217,218201904-202405

main16264-0T330i2ZRFXE..ZWE211..TAIW201904-202305

main16264-F2080iM20AFKS..MZEA12,18201904-202305

16267HOSE, WATER BY-PASS, NO.3

main16267-0T220i2ZRFXE..ZWE211..GEN,IDN,SGP,VN;2ZRFXE..ZWE211..(G,X)..(PHL,TH)201908-202410

main16267-0T240i2ZRFE..ZRE211..G..PHL201908-202410

main16267-0T270i1ZRFE..ZRE210..GCC201904-202405

main16267-0T300i2ZRFXE..ZWE211..TAIW201904-202305

main16267-24040iM20AFKS..MZEA12,18201904-202305

main16267-F3040iM15AFKS..MZEA11,17202008-202305

16267KHOSE, WATER BY-PASS, NO.3

main16267-0T040i1ZRFE..ZRE210..6F201904-202410

(L)

main16267-37010i2ZRFE..ZRE211..IDN201908-202306

UP GRADE PACKAGE,(J)

main16267-37010i1ZRFE..ZRE210..6F201904-202410

(J)

main16267-37010i1ZRFAE..ZRE210202306

main16267-37100i2ZRFXE..ZWE211..TAIW201904-202410

main16267-F2090iM20AFKS..MZEA12201904-202305

16268PIPE, WATER BY-PASS, NO.1

main16268-0T200i2ZRFE..ZRE211..D,E,X;2ZRFXE..ZWE211..GEN,IDN,SGP,VN;2ZRFXE..ZWE211..(G,X)..(PHL,TH);1ZR#,2ZRFBE,2ZRFE..ZRE210,211..GEN,IDN,SGP,TH,VN201908-202410

main16268-F2070iM15AFKS..MZEA11,17202008-202305

main16268-F2080i2ZRFE..ZRE211..TAIW201904-202405

16268MPIPE, WATER BY-PASS, NO.3

main16268-F2080iM20AFKS..MZEA12,18201904-202305

16278PIPE, WATER BY-PASS, NO.2

main16268-0T190i2ZRFXE..ZWE211..V..(PHL,TH)201908-202410

main16268-F2070i2ZRFXE..ZWE211..GCC201904-202305

main16278-15080iM15AFKS..MZEA11202008-202305

16281HOSE, WATER BY-PASS, NO.4

main16281-0T170i2ZRFXE..ZWE211..GEN,IDN,SGP,VN;2ZRFXE..ZWE211..(G,X)..(PHL,TH)201908-202410

main16281-0T230i2ZRFXE..ZWE211..TAIW201904-202305

main16281-15010iM15AFKS..MZEA11202008-202305

main16281-24030iM20AFKS..MZEA12,18201904-202305

16281NHOSE, WATER BY-PASS, NO.4

main16281-37080i2ZRFXE..ZWE211..(E,G,V)..TH;2ZRFXE..ZWE211..GCC,GEN,IDN,MA,PHL,SGP,TAIW201904-202107

main16281-37190i2ZRFXE..ZWE211..(E,G,V)..TH;2ZRFXE..ZWE211..GCC,GEN,IDN,MA,PHL,SGP,TAIW202107-202110

sub16281-37191

main16281-37191i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN202111-202410

main16281-F2050iM20AFKS..MZEA12201904-202305

main16281-F3060iM15AFKS..MZEA11,17202008-202305

16283HOSE, WATER BY-PASS, NO.6

main16283-15010iM15AFKS..MZEA11,17202008-202305

main16283-24010iM20AFKS..MZEA12201904-202305

main16283-37021i2ZRFXE..ZWE211..V..(PHL,TH)201904-202410

16283BHOSE, WATER BY-PASS

main16296-F2050iM20AFKS..MZEA12201904-202305

16361FAN

main16361-0T320i1ZRFE..ZRE210..GCC201904-202305

main16361-0T540i2ZRFE..ZRE211..G..PHL201908-202410

main16361-0T550i2ZRFE..ZRE218201904-202405

16361JFAN, RH

main16361-0T340i2ZRFXE..ZWE211..TAIW201904-202304

main16361-0T360i2ZRFXE..ZWE211..GCC201904-202305

main16361-37070i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN201908-202410

main16361-F2080iM15AFKS,M20AFKS..MZEA1#..GCC201904-202305

16361KFAN, LH

main16361-0T330i2ZRFXE..ZWE211..TAIW201904-202304

main16361-0T350i2ZRFXE..ZWE211..GCC201904-202305

main16361-37060i2ZRFXE..ZWE211..V..(PHL,TH)201908-202410

main16361-F2070iM15AFKS,M20AFKS..MZEA1#201904-202305

16363MOTOR, COOLING FAN

main16363-24120i1ZRFE..ZRE210,217..GCC202305

main16363-37130i1ZRFE..ZRE210..GCC201904-202304

main16363-47060i1ZR#,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201904-202410

16363FMOTOR, COOLING FAN, RH

main16363-24160i2ZRFXE..ZWE211..(G,X)..(PHL,TH);2ZRFXE..ZWE211..GEN,IDN,SGP,TAIW,VN202305-202410

main16363-36160i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,TAIW,VN201904-202305

sub16363-24160

main16363-37070i2ZRFXE..ZWE211..GCC201904-202305

main16363-47050iM15AFKS,M20AFKS..MZEA1#201904-202305

16363GMOTOR, COOLING FAN, LH

main16363-24140i2ZRFXE..ZWE211..GCC202305

main16363-24170i2ZRFXE..ZWE211..(G,X)..(PHL,TH);2ZRFXE..ZWE211..GEN,IDN,SGP,TAIW,VN202305-202410

main16363-37060i2ZRFXE..ZWE211..E;2ZRFXE..ZWE211..MA201904-202305

sub16363-24170

main16363-37080i2ZRFXE..ZWE211..GCC201904-202304

sub16363-24140

main16363-47060iM15AFKS,M20AFKS..MZEA1#..GCC201904-202305

16400RADIATOR ASSY

main16400-0T400i1ZR#,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main16400-0T460i1ZRFE..ZRE210..GCC201904-202405

main16400-0T481i2ZRFXE..ZWE211..TAIW201904-202304

main16400-0T500i2ZRFXE..ZWE211..GCC201904-202305

main16400-37311i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN201908-202306

main16400-37410i2ZRFXE..ZWE211..V..(PHL,TH)202306-202410

main16400-F2050iM15AFKS,M20AFKS..MZEA1#201904-202305

16400BPLUG, RADIATOR DRAIN COCK

main16417-0C180i1ZRFE..ZRE210..6F201904-202410

sub16417-21280

main16417-21280i2ZRFXE..ZWE211..E;2ZRFXE..ZWE211..MA201908-202410

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-0L060i1ZRFE..ZRE210..6F201908-202410

main16492-21050iM15AFKS,M20AFKS..MZEA1#201904-202410

16470MGROMMET

main90480-18010i2ZRFE,2ZRFXE..ZRE211,ZWE211..TAIW201904-202410

16475ACAP, RESERVE TANK

main16475-28140i2ZRFE..ZRE211..G..PHL;2ZRFXE..ZWE211..V..(PHL,TH)201904-202410

164A2TANK, RESERVE SEALED W/O CAP

main164A2-0T050i2ZRFXE..ZWE211..MA;1ZRFE,2ZRFXE..ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

main164A2-0T070iM15AFKS,M20AFKS..MZEA1#201904-202405

16523ACUSHION, RADIATOR SUPPORT

main16523-0T100i2ZRFE..ZRE211..D,E,X;2ZRFXE..ZWE211..GEN,IDN,SGP,VN;2ZRFXE..ZWE211..(G,X)..(PHL,TH);1ZR#,2ZRFBE,2ZRFE..ZRE210,211..GEN,IDN,SGP,TH,VN201908-202410

main16523-0T120i1ZRFE,2ZRFXE..ZRE210,ZWE211..GCC201904-202405

16533CGROMMET(FOR RADIATOR SUPPORT)

main90480-40021i2ZRFXE..ZWE211..MA;1ZRFE,2ZRFXE..ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202410

16571CHOSE, RADIATOR, NO.1

main16571-0T320i2ZRFXE..ZWE211..E;2ZRFXE..ZWE211..MA201908-202410

main16571-0T340i1ZRFE..ZRE210..6F201908-202410

main16571-0T370i2ZRFE..ZRE211..TAIW201904-202405

main16571-0T400i2ZRFXE..ZWE211..GCC201904-202305

main16571-F2040iM20AFKS..MZEA12201904-202305

main16571-F3020iM15AFKS..MZEA11202008-202305

16571DCLIP, RADIATOR HOSE, NO.1

main90466-C0008iM15AFKS..MZEA11202008-202305

NO.1:REFER ILLUST.

main90466-T0067i2ZRFXE..ZWE211..GEN,IDN,SGP,VN;2ZRFXE..ZWE211..(G,X)..(PHL,TH)201908-202410

(L),NO.1

main96136-43901i1ZR#,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201904-202410

NO.2

main96136-43901iM15AFKS..MZEA11202008-202305

NO.2:REFER ILLUST.

main96136-43901i2ZRFE..ZRE211..TAIW202304-202405

main96136-44301i2ZRFXE..ZWE211..V..(PHL,TH)201908-202410

(J),NO.1

main96136-44301i2ZRFXE..ZWE211..GCC,TAIW201904-202305

NO.1

main96136-44301iM20AFKS..MZEA12,18202305

16572DHOSE, RADIATOR, NO.2

main16572-0T260i2ZRFXE..ZWE211..V..(PHL,TH)201908-202410

main16572-0T280i2ZRFE..ZRE211..D,E,X;1ZR#,2ZRFBE,2ZRFE..ZRE210,211..GEN,IDN,SGP,TH,VN201908-202410

main16572-0T300i2ZRFE..ZRE211..TAIW201904-202405

main16572-0T330i2ZRFXE..ZWE211..GCC201904-202305

main16572-F2040iM20AFKS..MZEA12,18201904-202305

main16572-F3030iM15AFKS..MZEA11,17202008-202305

16572ECLIP, RADIATOR HOSE, NO.2

main90466-C0008iM15AFKS..MZEA11202008-202305

NO.1:REFER ILLUST.

main90466-T0067i2ZRFXE..ZWE211..MA;1ZRFE,2ZRFXE..ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202410

(L)

main96136-43901iM15AFKS..MZEA11202008-202305

NO.2:REFER ILLUST.

main96136-44301i2ZRFE..ZRE211..TAIW201904-202405

main96136-44301i2ZRFE..ZRE211..G..PHL;2ZRFXE..ZWE211..V..(PHL,TH)201908-202410

(J)

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-15090iM15AFKS..MZEA11,17202212-202305

main16581-37130i1ZRFE..ZRE210..GCC201904-202410

main16581-F3060iM15AFKS..MZEA11202008-202212

16581BCLAMP, HOSE(FOR RADIATOR HOSE)

main16581-25030i1ZRFE..ZRE210..6F201908-202410

main16581-28070iM20AFKS..MZEA12,18201904-202305

main16581-31040iM15AFKS..MZEA11202008-202305

main16581-36030i2ZRFE..ZRE211..TAIW201904-202405

16711SHROUD, FAN

main16711-0T240i1ZRFE..ZRE210,217..GCC201904-202305

main16711-0T260i2ZRFXE..ZWE211..GCC201904-202305

main16711-0T370i1ZR#,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

main16711-0T380i2ZRFE..ZRE211..TAIW201904-202405

main16711-37160i2ZRFXE..ZWE211..V..(PHL,TH)201908-202410

main16711-F2050iM15AFKS,M20AFKS..MZEA1#201904-202305

main16711-F2290iM20AFKS..MZEA12..TAIW202405

8202

9009904633

main90099-04633

9009904634

main90099-04634

90119T0526

main90119-T0526

9046616004

main90466-16004

9613641901

main96136-41901

9613842101

main96138-42101

42 parts on this diagram · 13 diagrams in section
