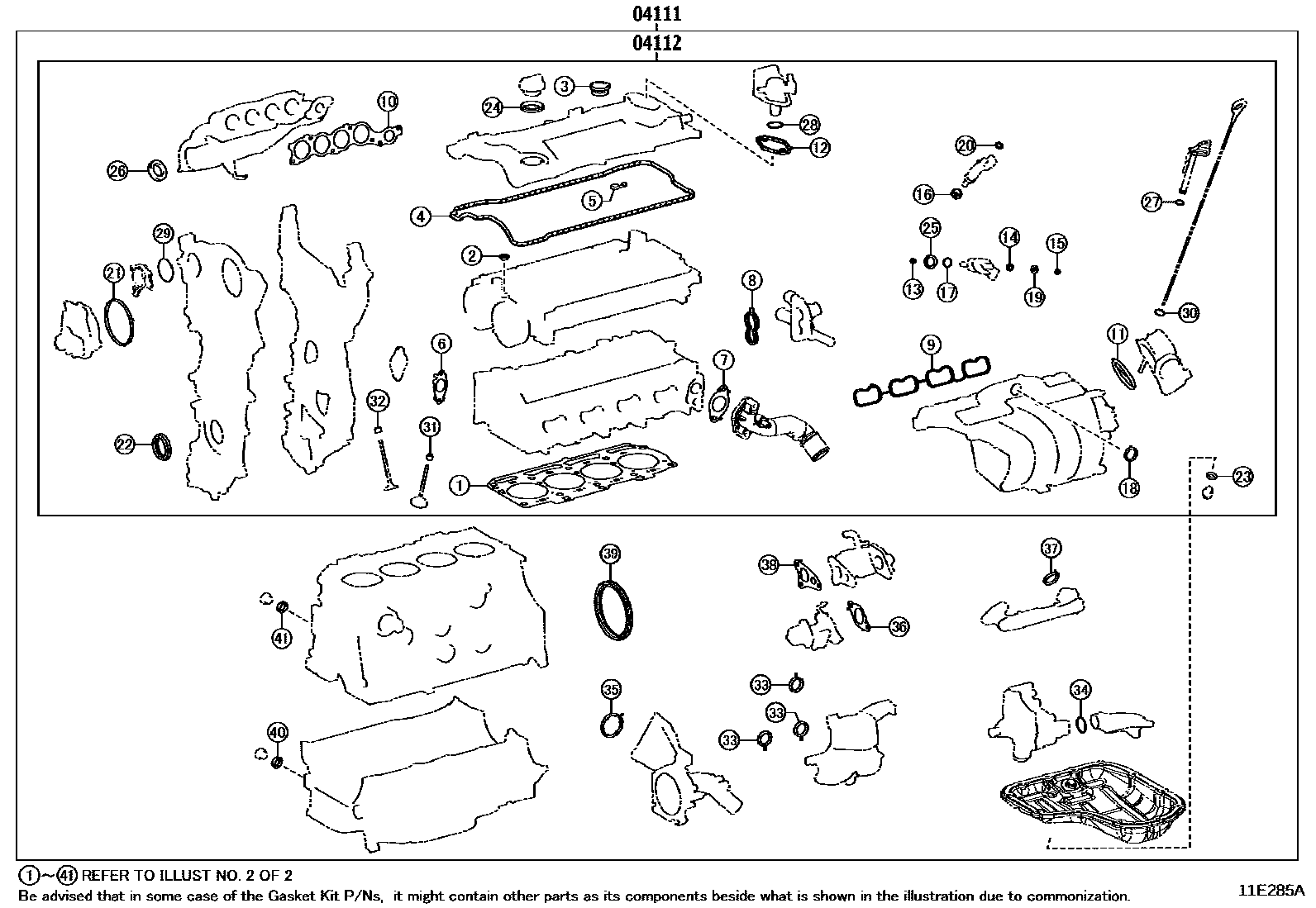

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0009 1 0010 1 0012 1 0014 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-0T291i2ZRFXE..ZWE211201904-202104

sub04111-0T293

main04111-0T292i2ZRFXE..ZWE211..(E,G,V)..TH;2ZRFXE..ZWE211..GCC,GEN,IDN,MA,PHL,SGP,TAIW202105-202110

sub04111-0T293

main04111-0T293i2ZRFXE..ZWE211..(G,X)..(PHL,TH);2ZRFXE..ZWE211..GEN,IDN,SGP,TAIW,VN202110-202410

main04111-15130iM15AFKS..MZEA11202008-202107

sub04111-15131

main04111-15131iM15AFKS..MZEA11202107-202305

main04111-24110iM20AFKS..MZEA12201904-202107

sub04111-24111

main04111-24111iM20AFKS..MZEA12,18202107-202305

main04111-30521i1ZRFE..ZRE210,217..GCC,GEN202110-202306

main04111-37275i1ZRFAE..ZRE210201908-202110

sub04111-37276

main04111-37276i1ZRFAE..ZRE210202110-202306

main04111-37510i1ZRFBE,2ZRFBE,2ZRFE..ZRE21#..D,E,G201904-202110

sub04111-37511

main04111-37511i2ZRFE..ZRE211..PHL202110-202410

main04111-37520i1ZRFE..ZRE210..CVT201904-202112

sub04111-30521

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0T241i2ZRFXE..ZWE211201904-202104

sub04112-0T243

main04112-0T242i2ZRFXE..ZWE211..(E,G,V)..TH;2ZRFXE..ZWE211..GCC,GEN,IDN,MA,PHL,SGP,TAIW202105-202110

sub04112-0T243

main04112-0T243i2ZRFXE..ZWE211..(G,X)..(PHL,TH);2ZRFXE..ZWE211..GEN,IDN,SGP,TAIW,VN202110-202410

main04112-15140iM15AFKS..MZEA11202008-202107

main04112-15141iM15AFKS..MZEA11,17202107-202305

main04112-24060iM20AFKS..MZEA12201904-202107

sub04112-24061

main04112-24061iM20AFKS..MZEA12,18202107-202305

main04112-37076i2ZRFE..ZRE211..D,E,G;1ZRFBE,1ZRFE,2ZRFBE..ZRE21#..CVT201904-202112

sub04112-37077

main04112-37077i2ZRFE..ZRE211..D202110-202410

main04112-37224i1ZRFAE..ZRE210201908-202110

sub04112-37225

main04112-37225i1ZRFAE..ZRE210202110-202306

2 parts on this diagram · 10 diagrams in section
