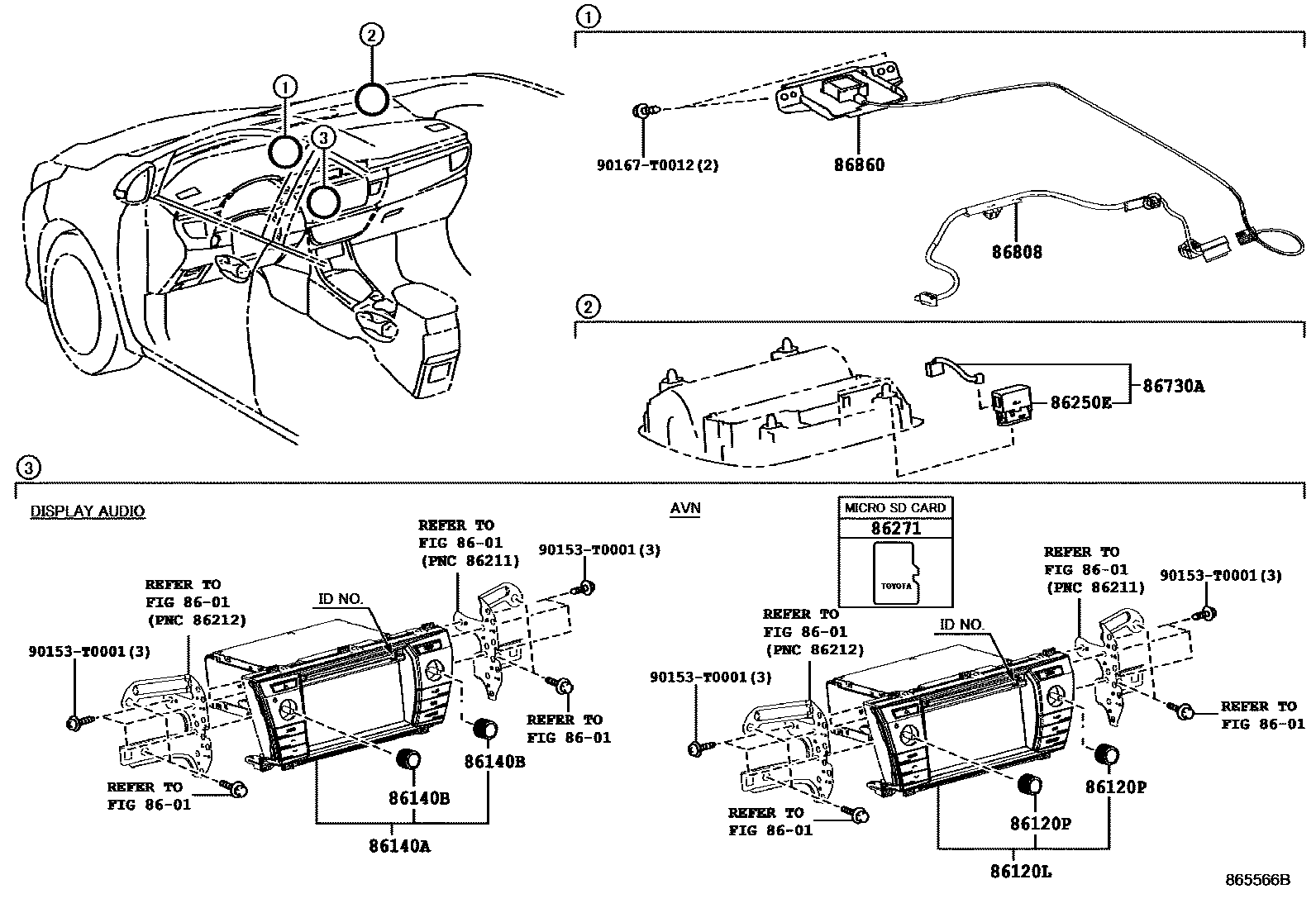

NAVIGATION & FRONT MONITOR DISPLAY
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
86120LRECEIVER ASSY, NAVIGATION
PIONEER,ID=P10426
FUJITSU TEN,ID100196
PIONEER,ID=P11317
PIONEER
86120PKNOB, NAVIGATION RECEIVER SWITCH
86140ARECEIVER ASSY, RADIO & DISPLAY
FUJITSU TEN,ID100198
FUJITSU TEN,ID100197
FUJITSU TEN,ID100654
PIONEER,ID=P11314
PIONEER,ID=P11313
PIONEER,ID=P11312,AUDIO-*DA & 6SPEAKER
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
86250EMICROPHONE ASSY, AMPLIFIER
CARIBBEAN NATIONS SPEC&AUDIO-AM/FM & CD & USB & *BT & 6SPEAKER
86271DISC, DISC PLAYER
MICRO SD CARD
MICRO SD CARD
AUDIO-*BT & 6SPEAKER,MICRO SD CARD; MICRO SD CARD
MICRO SD CARD
MICRO SD CARD
MICRO SD CARD
86730AMICROPHONE ASSY, TELEPHONE
LOW GRADE PACKAGE
CARIBBEAN NATIONS SPEC&AUDIO-AM/FM & CD & USB & *BT & 6SPEAKER
XLI LOW PLUS&AUDIO-AM/FM & CD & USB & *BT & 4SPEAKER; XLI LOW PLUS&AUDIO-AM/FM & CD & USB & *BT & 6SPEAKER; XLI PLUS&AUDIO-AM/FM & CD & USB & *BT & 4SPEAKER; XLI PLUS&AUDIO-AM/FM & CD & USB & *BT & 6SPEAKER
86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1
86860ANTENNA ASSY, NAVIGATION
90153T0001
main90153-T0001
90167T0012
main90167-T0012
12 parts on this diagram · 2 diagrams in section
