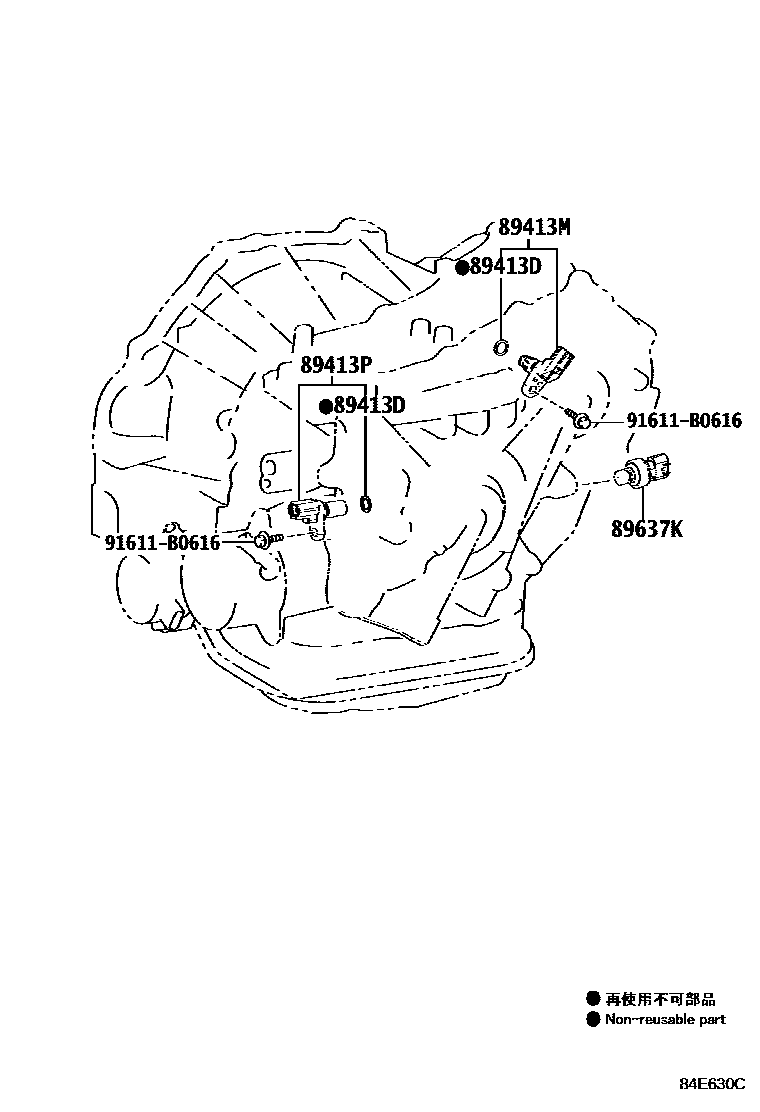

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1K313 0003 1U340E,U341E,U441E 0004 1U241E 0005 1K111 0006 1K313

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iZZE172..4FC201310-201409

89413MSENSOR, TRANSMISSION REVOLUTION, (NOUT)

main89413-12020iZRE171..CVT..(PHL,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH)201310-201610

main89413-28010iZRE173..GCC201512-201609

main89413-28011iZRE173201808-202007

89413PSENSOR, TRANSMISSION REVOLUTION, (NIN)

main89413-60020iZRE172..TAIW201310-201609

main89413-60021iZRE172..18G..VN201808-202201

89637KSENSOR, OIL PRESSURE

main89637-63010iZRE171..16G..TH201310-201601

91611B0616

main91611-B0616

5 parts on this diagram · 5 diagrams in section
