83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12050iZRE17#201310-201402

main83530-12060iZRE171..4FC..N201610-202208

main83530-12060iZRE173..6F;ZRE171..6F..GLI201402-201610

YAZAKI

main83530-28010iNDE170201405-201906

DENSO

main83530-28020iNZE170201310-201911

DENSO

main83530-60010iNDE170201405-201906

YAZAKI

main83530-60020iNZE170201310-201911

YAZAKI

89429FSENSOR, TEMPERATURE

main89429-12010iZRE171..GCC201512-202201

89465SENSOR, OXYGEN

main89465-02420iZRE171..HTWC..TH201310-201907

main89465-12B90iZRE171..4FC..N201610-202208

main89465-52380iNZE170201407-201911

89467BSENSOR, AIR FUEL RATIO

main89467-02080iNDE170201405-201906

main89467-52060iZRE172..18E..VN;ZRE171..4FC..GEN;ZRE171,173..CVT,MTM;ZRE172..6F..(ARL,IDN,IND);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW,TH)201310-202208

89615SENSOR, KNOCK CONTROL

main89615-20090iZRE172..IND201310-202208

8271512L60BRACKET,WIRING HARNESS CLAMP

main82715-12L60

8271512Q50BRACKET,WIRING HARNESS CLAMP

main82715-12Q50

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

90105T0178

main90105-T0178

9017906219

main90179-06219

90182T0006

main90182-T0006

9043012221

main90430-12221

9155180835

main91551-80835

9155381014

main91553-81014

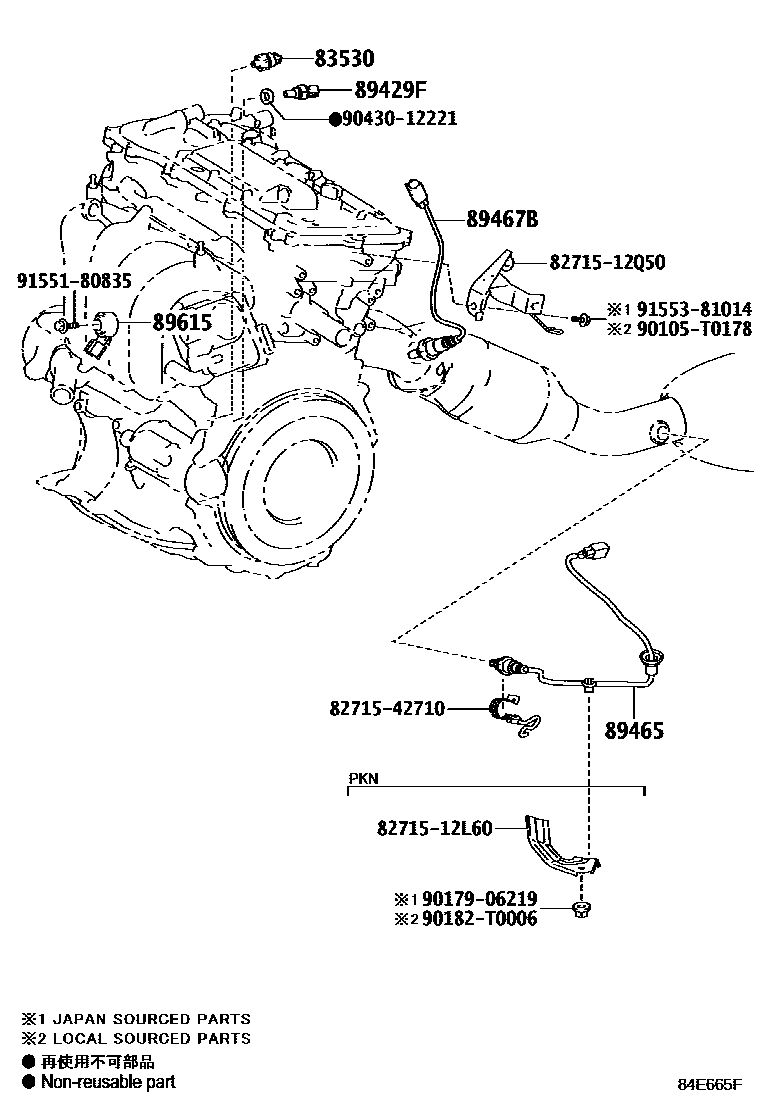

14 parts on this diagram · 15 diagrams in section
