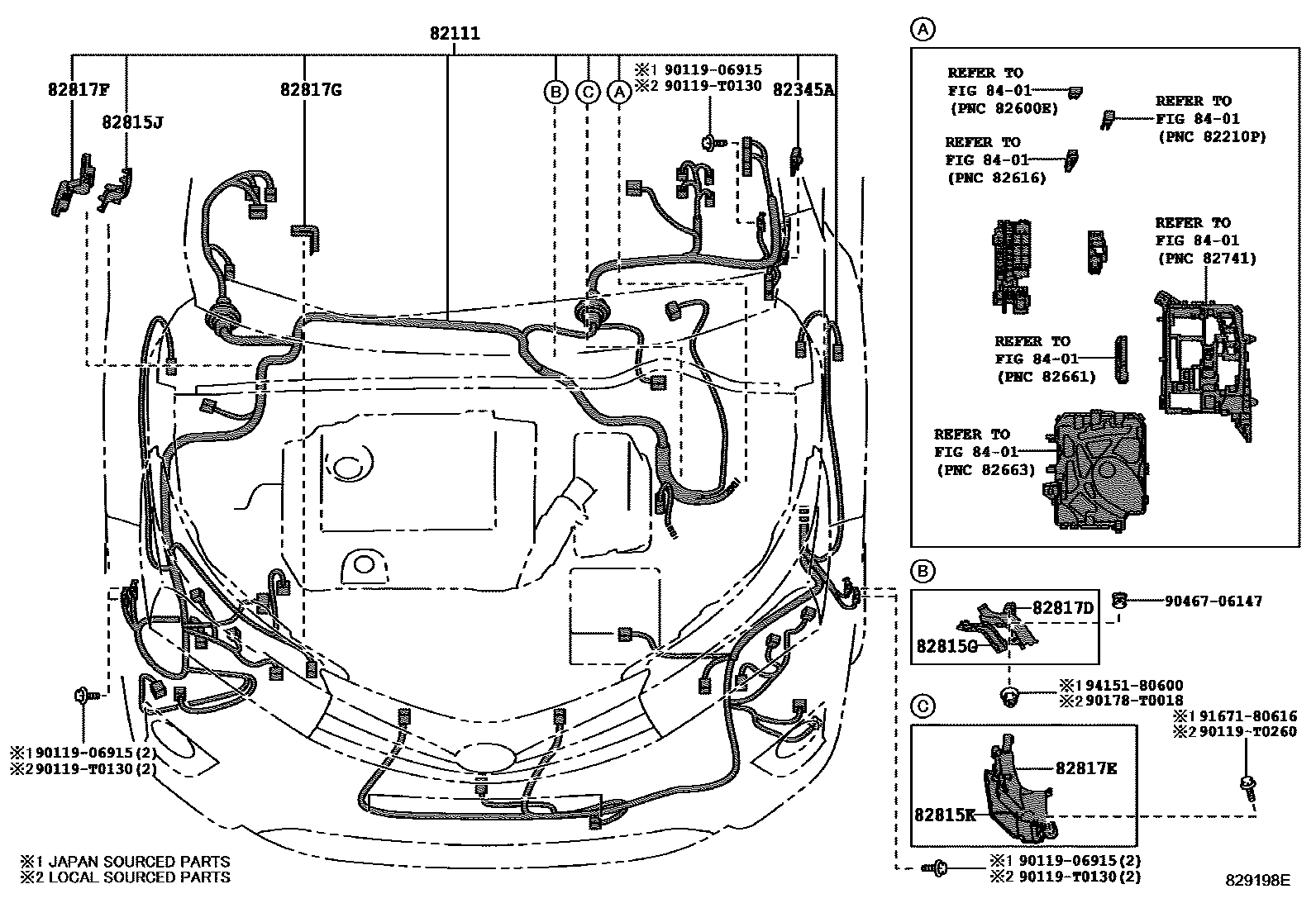

Toyota COROLLA/ALTIS — WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
82345ADIODE
82815GCOVER, WIRING HARNESS PROTECTOR NO.5
82815JCOVER, WIRING HARNESS PROTECTOR, NO.7
82815KCOVER, WIRING HARNESS PROTECTOR, NO.8
82817PROTECTOR, WIRING HARNESS, NO.1
82817DPROTECTOR, WIRING HARNESS, NO.5
82817EPROTECTOR, WIRING HARNESS, NO.6
82817FPROTECTOR, WIRING HARNESS, NO.7
82817GPROTECTOR, WIRING HARNESS, NO.8
8401SWITCH & RELAY & COMPUTER
9011906915
90119T0130
90119T0260
90178T0018
9046706147
9167180616
9415180600
19 parts on this diagram · 19 diagrams in section
WIRING & CLAMP for Toyota COROLLA/ALTIS
This section contains 200 genuine Toyota parts for the WIRING & CLAMP system of the Toyota COROLLA/ALTIS. Key components include: CYLINDER HEAD, MANIFOLD, MAT & CARPET, INTERIOR LAMP, WIRE, ENGINE ROOM MAIN.
