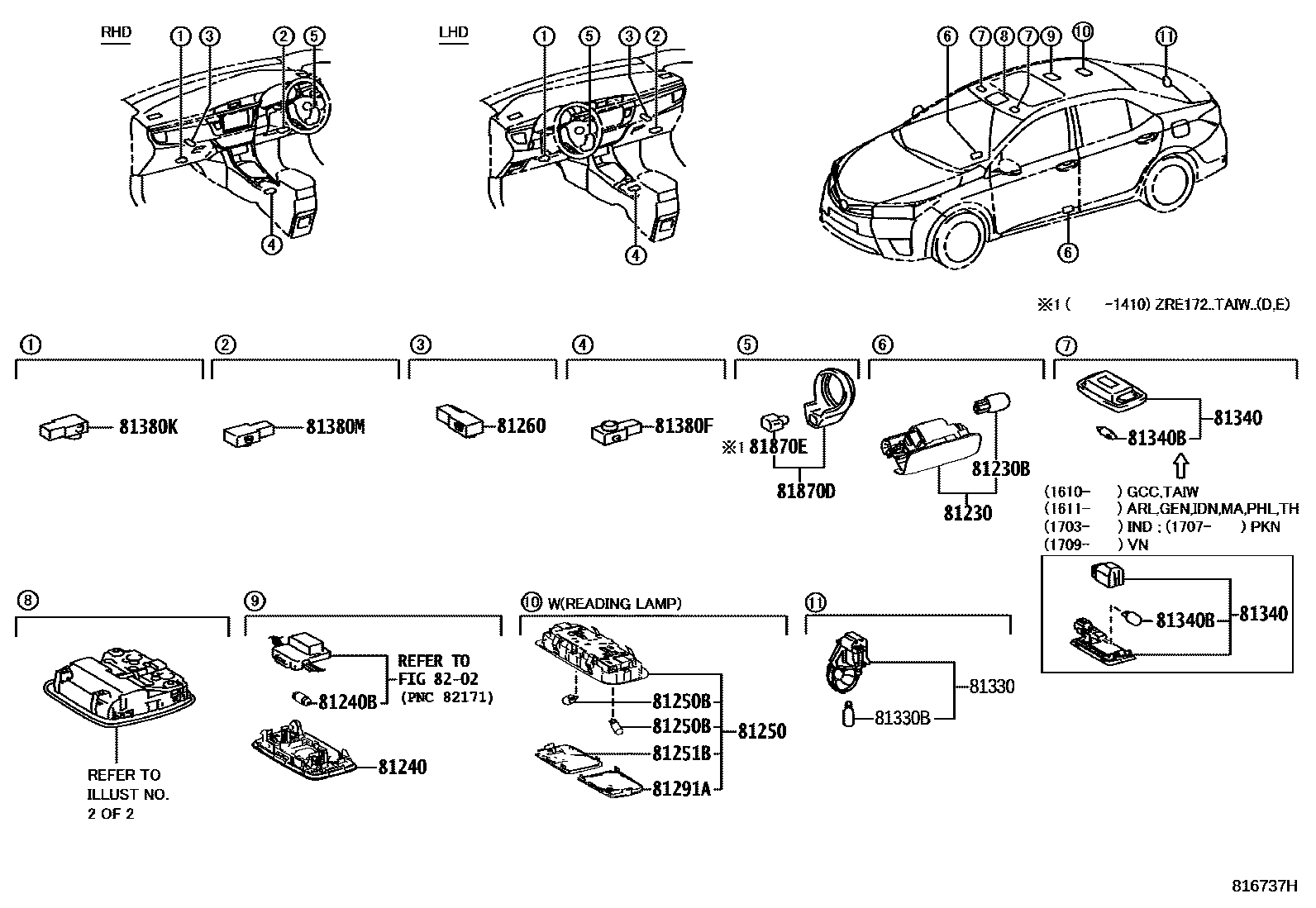

INTERIOR LAMP

0001 1 0002 1

81230LAMP ASSY, COURTESY

main81230-30200×2iZRE172..TAIW..(E,G)201310-201609

81230BBULB(FOR COURTESY LAMP)

main90981-12010×2iZRE172..TAIW..(E,G)201310-201609

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-35020-A1iZRE173..6F;ZRE171..6F..GLI201310-201511

IVORY,TRIM0#

main81240-35020-A3iZRE171..ATM,CVT;ZRE172..TAIW..(E,G);ZRE172..6F..(IDN,PKN);ZRE172..(18E,18V,GL,J)..(IDN,IND,VN);NDE170,NZE170,ZRE173..GCC,IND,PKN,VN;ZRE171,172..6F..(16E,16G,G,GXLI,XLI);ZRE172..CVT..(18E,18G,G,VL)..(IND,TH,VN)201610-202210

FLAXEN,TRIM0#

main81240-35020-B0iZRE171..16E..PHL; ZRE171..6F..16G;ZRE171..CVT..(PHL,SGP);ZRE172,173..ARL,MA,PHL,TH; ZRE171..GEN;ZRE171..16J..HTWCF201310-201610

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#

main81240-42020-A0iZRE17#202210

FLAXEN,TRIM0#

main81240-42020-B0iZRE172202210

UP GRADE PACKAGE,LT.GRAY,TRIM2#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iZRE173..6F;ZRE171..6F..GLI201310-201511

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-05030-A0iNDE170,ZRE172..G,GL,VL201405-201702

IVORY,TRIM0#

main81250-05030-A1iZRE172..G,GL201703-201804

FLAXEN,TRIM0#

main81250-05030-B0iZRE172..6F202011-202109

UP GRADE PACKAGE,LT.GRAY,TRIM2#

81250BBULB, ROOM LAMP, NO.2

main90981-11062×2iNDE170,ZRE172..G,GL,VL201405-201702

12V 8W

81251BLENS, REAR ROOM LAMP, RH

main81251-05030iZRE172..G,GL201703-201804

81260LAMP ASSY, GLOVE BOX

main81080-12080iZRE172..TAIW..(E,G)201610-201903

81291ALENS, REAR ROOM LAMP, LH

main81291-05030iZRE172..G,GL201703-201804

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-0D020iZRE171,173..CVT..GCC201512-201609

main81330-12020iZRE172..18E..VN;ZRE172..RHD..CVT;ZRE171..4FC..GEN;ZRE172..6F..(ARL,IDN,IND);NDE170,NZE170,ZRE173..IND,MA,PHL,PKN,VN;ZRE171..(CVT,MTM)..(GEN,PHL,PKN,SGP,TH)201611

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iZZE172201310-201409

12V 3.8W

81340LAMP ASSY, VANITY

main81340-33140-A0×2iZRE171..16G..HTWCF;ZRE171,172..(16V,18V,GLI,GXLI)..(GEN,IDN,PHL)201310-201610

IVORY,TRIM0#

main81340-33140-B0×2iZRE172..ARL,MA;ZRE17#..(16V,18GS,18V,20G,20V)..(MA,PHL,TH)201310-201610

LT.GRAY,TRIM2#

main81340-52010-A0×2iZRE171,172..(16V,18V,G,GL,VL)..HTWC;NDE170,ZRE171,173..(16G,20V,G,GL,GLI)..(GEN,IND,TH,VN)201611-202007

FLAXEN,TRIM0#

main81340-52010-B0×2iZRE172..ARL,MA;ZRE17#..(16V,18GS,18V,20G,20V)..(MA,PHL,TH,VN)201611-202007

LT.GRAY,TRIM2#

81340BBULB (FOR VANITY LAMP)

main99132-12050×2iZRE172..ARL,MA;ZRE171..RHD..(16G,GLI);NDE170,ZRE17#..16V,18GS,18V,20G,20V,G,GL,VL201611-202007

12V 5W

main99132-13050×2iZRE171..16G..TH201310-201601

12V 5W

81380FLAMP ASSY, CONSOLE BOX

main81080-12080iNDE170,ZRE172..G,GL,VL201312-201702

81380KBULB, INSTRUMET PANEL UNDER LAMP, NO.2

main81080-12080iZRE172,173..(18E,18V,20V)..(IDN,MA,PHL);ZRE171..LHD..(ATM,CVT)..(16V,XLI)..(GEN,PHL)201611-201907

81380MBULB, INSTRUMET PANEL UNDER LAMP, NO.1

main81080-12080iNDE170,ZRE172..G,GL,VL201312-201702

81870DLAMP ASSY, KEY CYLINDER

main81870-12050iZRE172..TAIW..(D,E)201410-201609

main81870-22130iZRE171..16J..CNG201312-201512

main81870-52020iZRE172..TAIW..(D,E)201310-201410

81870EBULB, KEY CYLINDER LAMP

main90010-01030iZRE172..TAIW..(D,E)201310-201410

14V1.4W,W/ORANGE CAP

8202WIRING & CLAMP

→ Go to FIG 82-02

19 parts on this diagram · 2 diagrams in section
