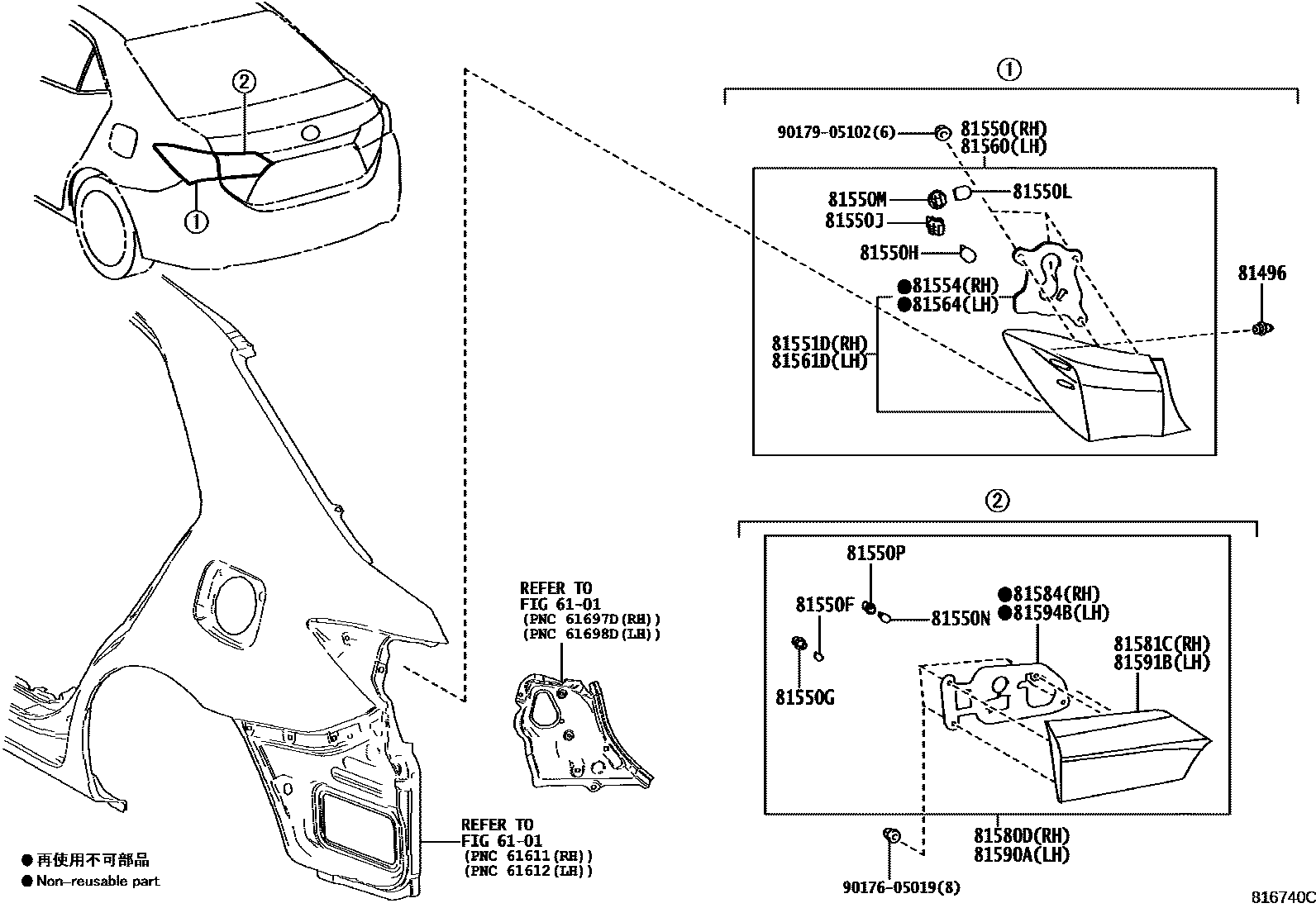

REAR COMBINATION LAMP

0001 1STOP LAMP(BULB) 0003 1STOP LAMP(LED) 0004 1 0007 1 0009 1STOP LAMP(LED) 0010 1STOP LAMP(BULB) 0011 1 0014 1

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-60010iZZE172201310-202208

81550LAMP ASSY, REAR COMBINATION, RH

main81550-02780iZRE171..HTWC..TH201312-201709

main81550-02790iZRE171..6F..XLI..GCC201310-201609

main81550-02850iZRE172..TAIW201310-201609

main81550-02A10iNZE170,ZRE171,172..PKN201407-201911

main81550-02B20iZRE172..CVT..VN;ZRE172..18E..VN;ZRE172..ARL,IDN,IND,MA,TH;NDE170,ZRE171,173..GEN,IND,MA,PHL,SGP,TH,VN201611-202201

main81550-02B40iZRE17#..GCC,TAIW201610-201903

main81550-02B50iZRE171..4FC..N201707-202208

81550FBULB, TAILLAMP

main99132-12050iZZE172201310-201609

12V 5W

81550GSOCKET, TAILLAMP

main90075-60077iZRE171..6F..XLI..GCC201310-201609

81550HBULB, TAIL & STOP LAMP

main90981-13044iZZE172201310-201609

12V 21/5W

81550JSOCKET, TAIL & STOP LAMP

main90075-60079iZZE172201310-201609

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iZZE172201310-202208

12V 21W,AMBER

81550MSOCKET, REAR TURN SIGNAL LAMP

main90075-60026iZZE172201310-202201

81550NBULB, BACK UP LAMP

main90981-11059iZRE172..6F..PKN201310-202208

12V 16W

81550PSOCKET, BACK UP LAMP

main90075-60001iZRE173..20G201310-202201

main90075-60066iZRE172,173..VN201310-201709

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-02780iNDE170,ZRE172..IND201312-201709

main81551-02790iZRE171,173..CVT..GCC201310-201609

main81551-02850iZRE172..TAIW201310-201609

main81551-02B20iZRE173..20G201611-202201

main81551-02B40iZRE17#..GCC,TAIW201610-201903

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-02780iZRE171..HTWC..TH201312-201709

main81552-02B20iZRE173..20G201611-202201

main81564-02790iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

main81564-02B40iZRE17#..GCC,TAIW201610-201903

81560LAMP ASSY, REAR COMBINATION, LH

main81560-02780iZRE171..HTWC..TH201312-201709

main81560-02790iZRE171..6F..XLI..GCC201310-201609

main81560-02830iZRE172..TAIW201310-201609

main81560-02A10iNZE170,ZRE171,172..PKN201407-201911

main81560-02B20iZRE172..CVT..VN;ZRE172..18E..VN;ZRE172..ARL,IDN,IND,MA,TH;NDE170,ZRE171,173..GEN,IND,MA,PHL,SGP,TH,VN201611-202201

main81560-02B40iZRE17#..GCC,TAIW201610-201903

main81560-02B50iNZE170..GLI;ZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201707-202208

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-02780iZRE171..16J..CNG201312-201709

main81561-02790iZRE171..6F..XLI..GCC201310-201609

main81561-02830iZRE172..TAIW201310-201609

main81561-02B20iZRE173..20G201611-202201

main81561-02B40iZRE17#..GCC,TAIW201610-201903

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-02780iZRE172,173..VN201312-201709

main81552-02B20iNDE170,ZRE172..IND201611-202201

main81564-02790iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

main81564-02B40iZRE17#..GCC,TAIW201610-201903

81580DLAMP ASSY, REAR, RH

main81580-02550iZRE171..16J..CNG201312-201601

main81580-02551iZRE172,173..VN201601-201709

main81580-02560iZRE172,173..MA201312-201702

main81580-02570iZZE172201310-201609

main81580-02710iZRE172..TAIW201310-201512

main81580-02711iZRE172..TAIW201512-201609

main81580-02810iNZE170..XLI201407-201911

main81580-02A70iZRE172..CVT..VN;ZRE172..18E..VN;ZRE172..ARL,IDN,TH;ZRE171,173..GEN,PHL,SGP,TH,VN201611-202201

main81580-02A80iNDE170,ZRE172,173..IND,MA201611-201907

main81580-02A90iZRE17#..GCC,TAIW201610-201903

main81580-02B00iZRE172..6F..PKN201707-202208

81581CLENS AND BODY, REAR LAMP, RH

main81581-02550iZRE171..G;ZRE171..16J..HTWC;ZRE172,173..ARL,IDN,PHL,TH,VN;ZRE171..(16E,16G,16V,GLI,GXLI,XLI)..(GEN,PHL,TH)201312-201601

main81581-02551iZRE172,173..VN201601-201709

main81581-02560iZRE172,173..MA201312-201702

main81581-02570iZRE171..6F..XLI..GCC201310-201609

main81581-02710iZRE172..TAIW201310-201512

main81581-02711iZRE172..TAIW201512-201609

main81581-02A70iZRE17#..ARL,GEN,IDN,PHL,SGP,TH201611-202201

main81581-02A80iZRE173..20G201611-201907

main81581-02A90iZRE17#..GCC,TAIW201610-201903

81584PACKING, REAR LAMP RH

main81584-02550iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH201312-201709

main81584-02570iZRE173..6F;ZRE171..6F..GLI201310-201609

main81584-02710iZRE171,173..GLI..GCC201512-201609

X PACKAGE(REAR EMBLEM "X")

main81584-02A70iNDE170,ZRE172..IND201611-202201

main81584-02A90iZRE17#..GCC,TAIW201610-201903

81590ALAMP ASSY, REAR, LH

main81590-02550iZRE171..G;ZRE171..16J..HTWC;NDE170,ZRE172,173..ARL,IDN,IND,MA,PHL,TH,VN;ZRE171..(16E,16G,16V,GLI,GXLI,XLI)..(GEN,PHL,TH)201312-201601

main81590-02551iZRE17#..ARL,GEN,IDN,MA,PHL,SGP,TH201601-201709

main81590-02570iZRE171,173..CVT..GCC201310-201609

main81590-02710iZRE172..TAIW201310-201609

main81590-02820iNZE170,ZRE171,172..PKN201407-201911

main81590-02A70iZRE172..CVT..VN;ZRE172..18E..VN;ZRE172..ARL,IDN,IND,MA,TH;NDE170,ZRE171,173..GEN,IND,MA,PHL,SGP,TH,VN201611-202201

main81590-02A90iZRE17#..GCC,TAIW201610-201903

main81590-02B00iNZE170..GLI;ZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201707-202208

81591BLENS AND BODY, REAR LAMP, LH

main81591-02550iZRE171..16J..CNG201312-201601

main81591-02551iZRE172,173..VN201601-201709

main81591-02570iZRE171,173..4FC..GCC201310-201609

main81591-02710iZRE172..TAIW201310-201609

main81591-02A70iZRE172,173..(18E,20V)..VN201611-202201

main81591-02A90iZRE17#..GCC,TAIW201610-201903

81594BPACKING, REAR LAMP LH

main81584-02550iZRE172,173..VN201312-201709

main81584-02570iZRE173..6F;ZRE171..6F..GLI201310-201609

main81584-02A70iNDE170,ZRE172..IND201611-202201

main81584-02A90iZRE17#..GCC,TAIW201610-201903

9017605019

main90176-05019

9017905102

main90179-05102

24 parts on this diagram · 8 diagrams in section
