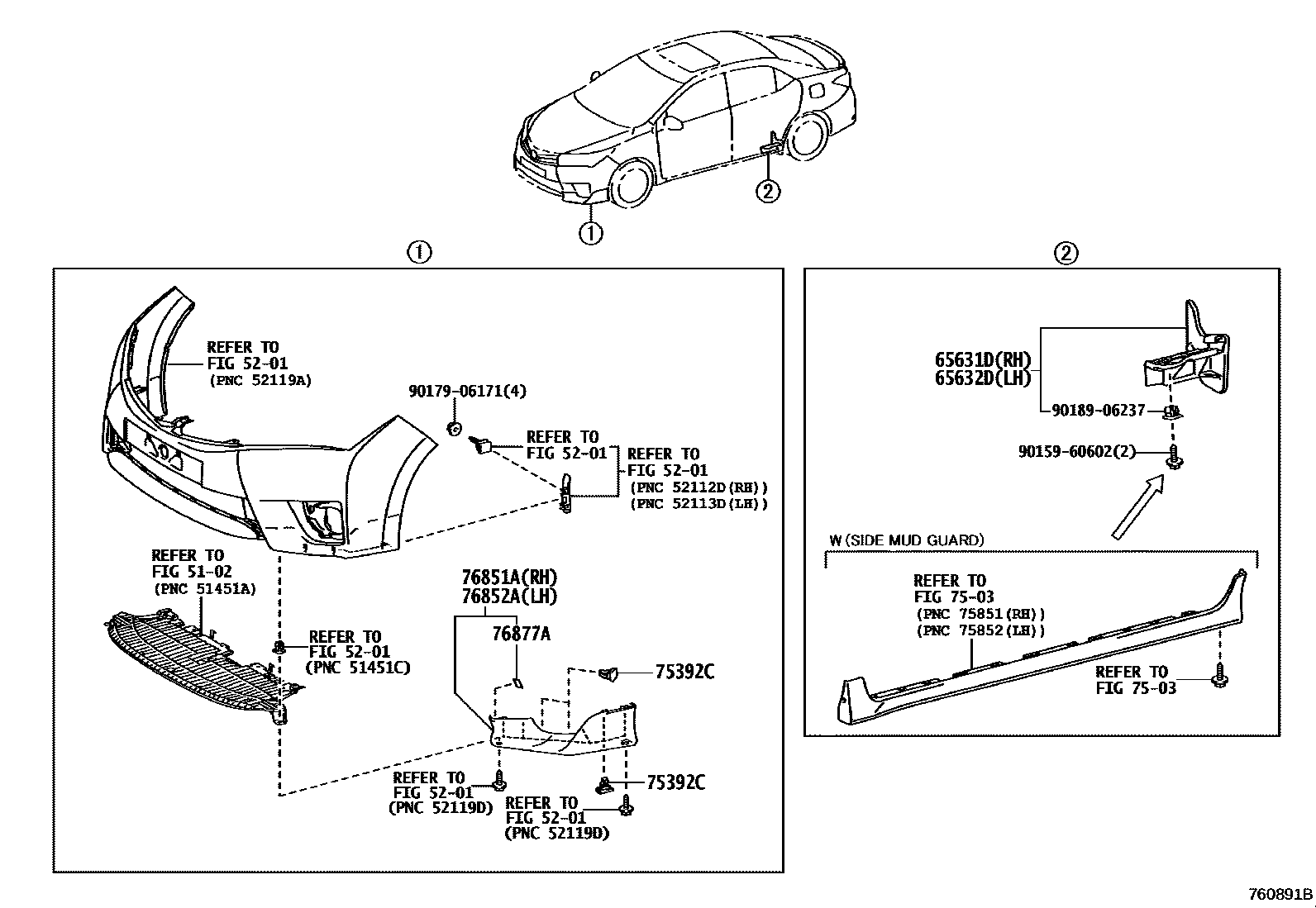

MUDGUARD & SPOILER

0001 1FRONT & SIDE 0006 1FRONT & SIDE 0010 1REAR 0011 1X PACKAGE,FRONT & REAR 0012 1FRONT & REAR

5102

5201

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-02260iZRE173..6F;ZRE171..6F..GLI201310-201511

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-02260iZRE173..6F;ZRE171..6F..GLI201310-201511

7503

75392CRETAINER, OUTSIDE MOULDING

main75392-0K010×12supersedes 75392-0K010iZRE172..18E..TH201611-201907

SPORTY PACKAGE

main75392-35220×14supersedes 75392-35220iZRE172..VN202008-202201

76851ACOVER, FRONT SPOILER, RH

main76851-02910iZRE173..PHL201312-201610

main76851-02913supersedes 76851-02910iZRE172,173..(18GS,20V)..(PHL,TH,VN)201611-202007

main76851-02916iZRE172..VN202008-202201

main76851-02917iZRE17#..N202012

MLM PACKAGE

76852ACOVER, FRONT SPOILER, LH

main76852-02909iZRE173..PHL201312-201610

main76852-02912supersedes 76852-02909iZRE172,173..(18GS,20V)..(PHL,TH,VN)201611-202007

main76852-02915iZRE172..VN202008-202201

main76852-02916iZRE172..CVT..N;ZRE171..CVT,MTM202012

MLM PACKAGE

76877APROTECTOR, FRONT SPOILER

main76877-02160×2iZRE173..PHL201312-201610

9015960602

main90159-60602

9017906171

main90179-06171

9018906237

main90189-06237

12 parts on this diagram · 5 diagrams in section
