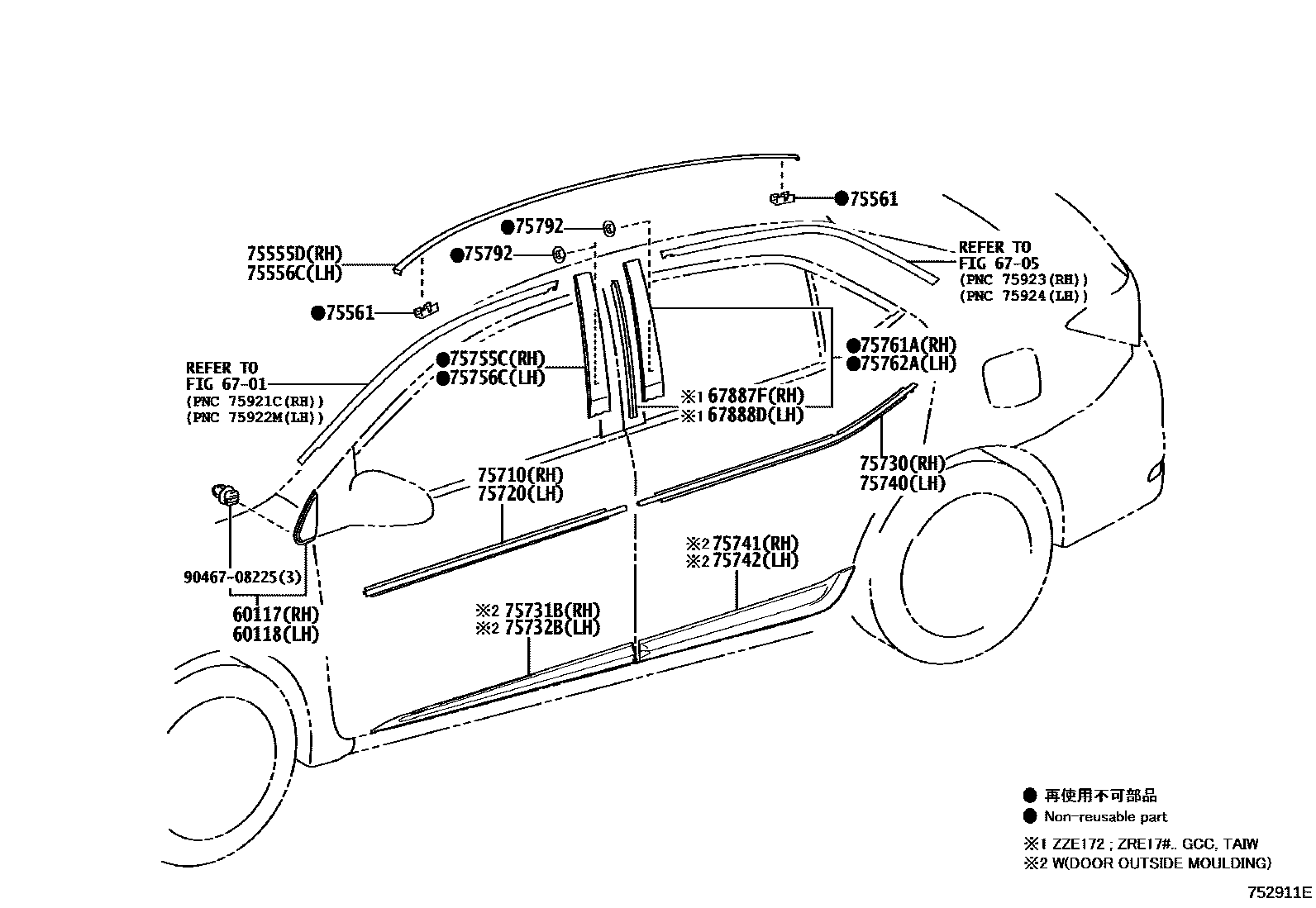

SIDE MOULDING

0001 1 0002 1

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-02150iZRE171..16J..CNG201310-201512

main60117-02190iZRE171,173..CVT..GCC201512-201609

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-02150iZRE17#..GCC,TAIW201310-201507

main60118-02190iZRE171,173..CVT..GCC201512-201609

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

67887FWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-02010iZRE171,173..4FC..GCC201310-201512

67888DWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-02010iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-02240iNZE170,ZRE171,172..PKN201312-201707

main75555-02250iZRE17#..GCC,TAIW201610-201903

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-02230iZRE172,173..VN201312-201709

main75556-02240iZZE172201310-201409

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030×4iZRE172..CVT..VN201610-202201

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-02370iZRE173..6F201310-201511

main75710-02380iZRE172..CVT..VN201610-202201

main75710-02410iZRE171..GXLI; ZRE172..ARL..D;ZRE171..16J..HTWCF;ZRE171,172..(16E,18G,XLI)..(GEN,IDN,PHL)201312-201610

LOW GRADE PACKAGE

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-02370iZRE171,173..CVT..XLI201512-201609

main75720-02380iZRE172..PKN201310-201707

main75720-02410iZRE171..4FC..N201611-202208

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-02350iZRE171,173..4FC..XLI..GCC201310-201512

main75730-02360iNDE170,ZRE172..G,GL,VL201310-201702

main75730-02390iNZE170,ZRE171..PKN201312-201707

75731BMOULDING, FRONT DOOR, OUTSIDE RH

main75731-02410iZRE172..TAIW;ZRE171,173..GLI..GCC201601-201609

X PACKAGE(REAR EMBLEM "X")

75732BMOULDING, FRONT DOOR, OUTSIDE LH

main75732-02410iZRE172..TAIW;ZRE171,173..GLI..GCC201601-201609

X PACKAGE(REAR EMBLEM "X")

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-02350iZRE172..TAIW..D;ZRE171,173..XLI..GCC201610-201903

main75740-02360iZRE172..ARL..(E,N);ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(IDN,MA,TH);ZRE171..RHD..(CVT,MTM)..(GEN,SGP);ZRE171,173..(16G,16V,20G,20V,GLI)..(GEN,MA,PHL)201310-201610

main75740-02390iZRE172..J201312-201702

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-02360iZRE172..TAIW;ZRE171,173..GLI..GCC201601-201609

NO PAINT REQ.,X PACKAGE(REAR EMBLEM "X")

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-02360iZRE172..TAIW;ZRE171,173..GLI..GCC201601-201609

NO PAINT REQ.,X PACKAGE(REAR EMBLEM "X")

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-02070iZZE172201310-201409

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-02060iZRE173..6F;ZRE171..6F..GLI201310-201511

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-02060iZRE172..18E..VN;ZRE172..RHD..CVT;ZRE171..4FC..GEN;ZRE172..6F..(ARL,IDN,IND);NDE170,NZE170,ZRE173..IND,MA,PHL,PKN,VN;ZRE171..(CVT,MTM)..(GEN,PHL,PKN,SGP,TH)201611

main75761-02080iZRE173..6F;ZRE171..6F..GLI201310-201511

NO PAINT REQ.

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-02060iZRE172..6F..PKN201611-202109

main75762-02080iZZE172201310-201409

NO PAINT REQ.

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010×4iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-201512

9046708225

main90467-08225

23 parts on this diagram · 2 diagrams in section
