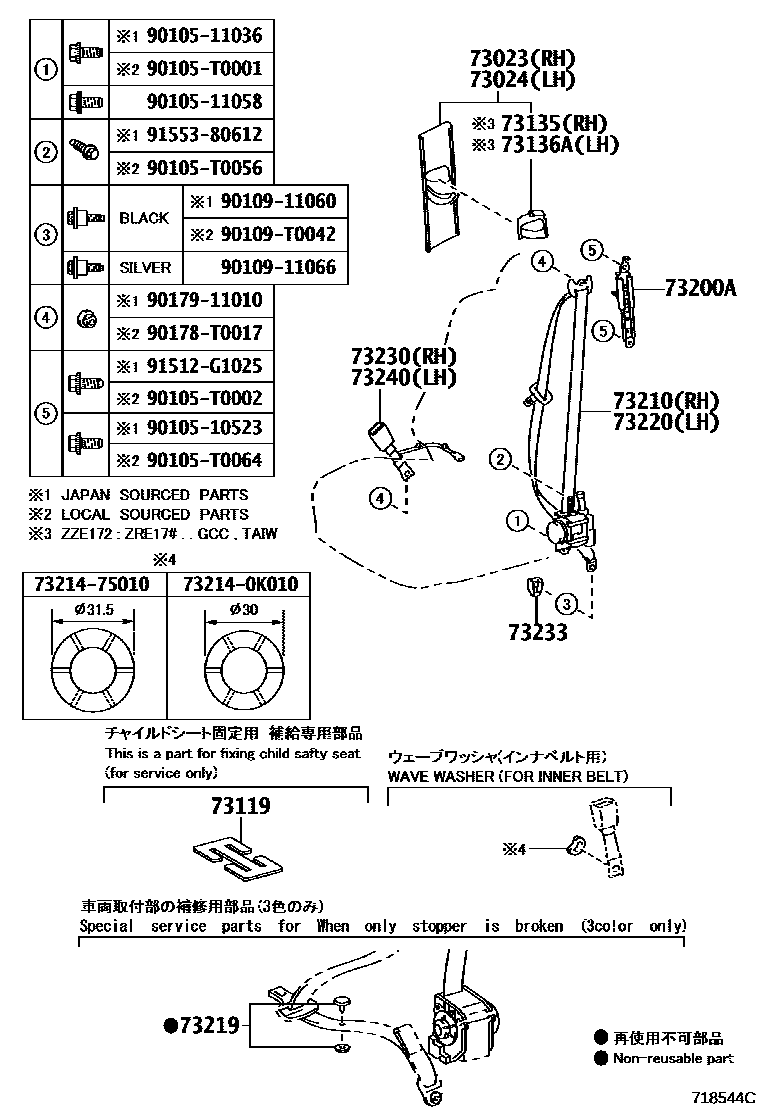

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
IVORY,TRIM0#
main73023-06080-A2iZRE172..IDN,PKN;ZRE172..6F..(18E,G,GL,J);ZRE171..6F..(GEN,PHL,PKN);NDE170,NZE170,ZRE173..IND,PKN,VN;ZRE171..(ATM,CVT)..(GEN,PHL,PKN,SGP,TH);ZRE172..CVT..(18E,18G,G,VL)..(IND,TH,VN)201611
FLAXEN,TRIM0#
main73023-06080-B1iZRE171..16E..PHL; ZRE171..6F..16G;ZRE171..CVT..(PHL,SGP);ZRE172,173..ARL,MA,PHL,TH; ZRE171..GEN;ZRE171..16J..HTWCF201312-201610
LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#
IVORY,TRIM0#
FLAXEN,TRIM0#
LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
IVORY,TRIM0#
main73024-06110-A2iZRE172..IDN,PKN;ZRE172..6F..(18E,G,GL,J);ZRE171..6F..(GEN,PHL,PKN);NDE170,NZE170,ZRE173..IND,PKN,VN;ZRE171..(ATM,CVT)..(GEN,PHL,PKN,SGP,TH);ZRE172..CVT..(18E,18G,G,VL)..(IND,TH,VN)201611
FLAXEN,TRIM0#
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#
IVORY,TRIM0#
FLAXEN,TRIM0#
LT.GRAY,TRIM1#; LT.GRAY,TRIM2#
73119PLATE, SEAT BELT WEBBING CLIP
73135COVER, SHOULDER BELT ANCHORAGE PLATE
main73135-06120-A1iZRE171..CVT..GLI;ZRE173..CVT..GCC;ZRE172..TAIW..(E,G);ZRE171..(CVT,MTM)..XLI..GCC201310-201609
IVORY,TRIM0#
FLAXEN,TRIM0#
main73135-06120-B1iZRE171..CVT..GLI;ZRE173..CVT..GCC;ZRE171..(CVT,MTM)..XLI..GCC; ZRE172..TAIW201310-201609
LT.GRAY,TRIM1#; LT.GRAY,TRIM2#
73136ACOVER, SHOULDER BELT ANCHOR, LH
IVORY,TRIM0#
FLAXEN,TRIM0#
LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-02140×2iZRE172..RHD;ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173..GEN,IND,MA,PHL,PKN,SGP,TH,VN201611
73210BELT ASSY, FRONT SEAT OUTER, RH
IVORY,TRIM0#
IVORY,TRIM0#
IVORY,TRIM0#
IVORY,TRIM0#
FLAXEN,TRIM0#
main73210-02610-A0iZRE172..18V..IDN;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172..(18E,18G)..(IDN,TH)201312-201610
IVORY,TRIM0#
main73210-02610-A1iZRE172..(18E,18V)..(IDN,VN);ZRE171,172..6F..(GEN,IDN,PHL);ZRE171..(ATM,CVT)..(GEN,PHL,SGP,TH);ZRE172,173..CVT..(18E,18G,20V)..(TH,VN)201611-202201
FLAXEN,TRIM0#
main73210-02610-C0iZRE171..16J..HTWCF;ZRE171..(16E,GLI,GXLI,XLI)..(GEN,PHL); ZRE171..6F..16G;ZRE171..CVT..(PHL,SGP);ZRE172,173..ARL,MA,PHL,TH201312-201610
BLACK,TRIM1#; BLACK,TRIM2#
IVORY,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM1#; BLACK,TRIM1#,2#; BLACK,TRIM2#
FLAXEN,TRIM0#
BLACK,TRIM2#
FLAXEN,TRIM0#
BLACK,TRIM1#; BLACK,TRIM1#,2#; BLACK,TRIM2#
LOW FLEET PACKAGE,BLACK,TRIM1#,2#
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
IVORY,TRIM0#
IVORY,TRIM0#
FLAXEN,TRIM0#
IVORY,TRIM0#
main73220-02560-A1iZRE172..(18E,18V)..(IDN,VN);ZRE171,172..6F..(GEN,IDN,PHL);ZRE171..(ATM,CVT)..(GEN,PHL,SGP,TH);ZRE172,173..CVT..(18E,18G,20V)..(TH,VN)201611-202201
FLAXEN,TRIM0#
main73220-02560-C0iZRE171..16J..HTWCF;ZRE171..(16E,GLI,GXLI,XLI)..(GEN,PHL); ZRE171..6F..16G;ZRE171..CVT..(PHL,SGP);ZRE172,173..ARL,MA,PHL,TH201312-201610
BLACK,TRIM1#; BLACK,TRIM2#
IVORY,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM1#; BLACK,TRIM1#,2#; BLACK,TRIM2#
FLAXEN,TRIM0#
BLACK,TRIM2#
FLAXEN,TRIM0#
BLACK,TRIM1#; BLACK,TRIM1#,2#; BLACK,TRIM2#
LOW FLEET PACKAGE,BLACK,TRIM1#,2#
UP GRADE PACKAGE,IVORY,TRIM0#
73230BELT ASSY, FRONT SEAT INNER, RH
IVORY,TRIM0#
main73230-02670-A1iZRE171..RHD..(ATM,CVT)..(GEN,SGP,TH);ZRE171,172..(18E,18G,GXLI)..(GEN,IDN,TH)201611-201907
FLAXEN,TRIM0#
main73230-02670-C0iZRE171..RHD..GEN;ZRE171..16J..HTWCF; ZRE172,173..18E,20G;ZRE171,172..(ARL,SGP)..(D,G,N)201312-201610
BLACK,TRIM1#; BLACK,TRIM2#
IVORY,TRIM0#
FLAXEN,TRIM0#; UP GRADE PACKAGE,FLAXEN,TRIM0#
BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
FLAXEN,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
FLAXEN,TRIM0#
IVORY,TRIM0#
FLAXEN,TRIM0#
IVORY,TRIM0#
FLAXEN,TRIM0#
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM1#; BLACK,TRIM1#,2#
main73240-02150-A0supersedes 73240-02090-A1iZRE172,173..CVT..VN;ZRE171,172..LHD..(16E,16G,16V,18E)201611-202201
FLAXEN,TRIM0#
BLACK,TRIM1#; MYANMAR, CAMBODIA SPEC,BLACK,TRIM1#; MYANMAR, CAMBODIA SPEC,BLACK,TRIM2#
UP GRADE PACKAGE,IVORY,TRIM0#
73233COVER, LAP BELT OUTER ANCHOR
main73233-0M010-C0×2iZRE171,173..GLI..GCC; ZRE171,173..XLI..GCC; ZRE172..TAIW..(E,G); ZRE172..TAIW..D201705-201903
BLACK,TRIM0#,1#; BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,2#; BLACK,TRIM2#
main73233-60020-C0×2iZRE171..6F..16G;ZRE171..CVT..(PHL,SGP);ZRE172..CVT..(18E,18G)..(TH,VN); ZRE171..GEN; ZRE172..ARL,MA;ZRE172,173..(18GS,18V,20G,20V)..(MA,PHL,TH,VN)201310-201610
BLACK,TRIM0#,1#; BLACK,TRIM0#,2#; BLACK,TRIM2#
main73233-60020-C1×2iZRE171,173..GLI..GCC; ZRE171,173..XLI..GCC; ZRE172..TAIW..(E,G); ZRE172..TAIW..D201610-201704
BLACK,TRIM0#,1#; BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,2#; BLACK,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
IVORY,TRIM0#
main73230-02840-A1supersedes 73230-02850-A0iZRE171,172..LHD..(16E,16G,16V,18E,XLI)..(GEN,PHL,VN)201611-202007
FLAXEN,TRIM0#
BLACK,TRIM1#; BLACK,TRIM1#,2#; BLACK,TRIM2#
FLAXEN,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM1#; BLACK,TRIM2#
IVORY,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM1#; LOW FLEET PACKAGE,BLACK,TRIM1#,2#
main73240-02100-A1iZRE171..RHD..4FC..GEN; ZRE171..RHD..CVT;ZRE172..18V..IDN;ZRE172..(18E,18G)..(IDN,TH)201611-201907
CARIBBEAN NATIONS SPEC,FLAXEN,TRIM0#; FLAXEN,TRIM0#; JAMAICA SPEC,FLAXEN,TRIM0#
BLACK,TRIM2#; CARIBBEAN NATIONS SPEC,BLACK,TRIM1#; JAMAICA SPEC,BLACK,TRIM1#; SAFETY PACKAGE,BLACK,TRIM2#
IVORY,TRIM0#
FLAXEN,TRIM0#
IVORY,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM2#
FLAXEN,TRIM0#
BLACK,TRIM2#
UP GRADE PACKAGE,IVORY,TRIM0#
UP GRADE PACKAGE,FLAXEN,TRIM0#
UP GRADE PACKAGE,BLACK,TRIM2#
CARIBBEAN NATIONS SPEC,IVORY,TRIM0#; JAMAICA SPEC,IVORY,TRIM0#
732140K010PLATE, FRONT SEAT BELT ANCHOR
main73214-0K010
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511036
main90105-11036
9010511058
main90105-11058
90105T0001
main90105-T0001
90105T0002
main90105-T0002
90105T0056
main90105-T0056
90105T0064
main90105-T0064
9010911060
main90109-11060
9010911066
main90109-11066
90109T0042
main90109-T0042
90178T0017
main90178-T0017
9017911010
main90179-11010
91512G1025
main91512-G1025
9155380612
main91553-80612
28 parts on this diagram · 2 diagrams in section
