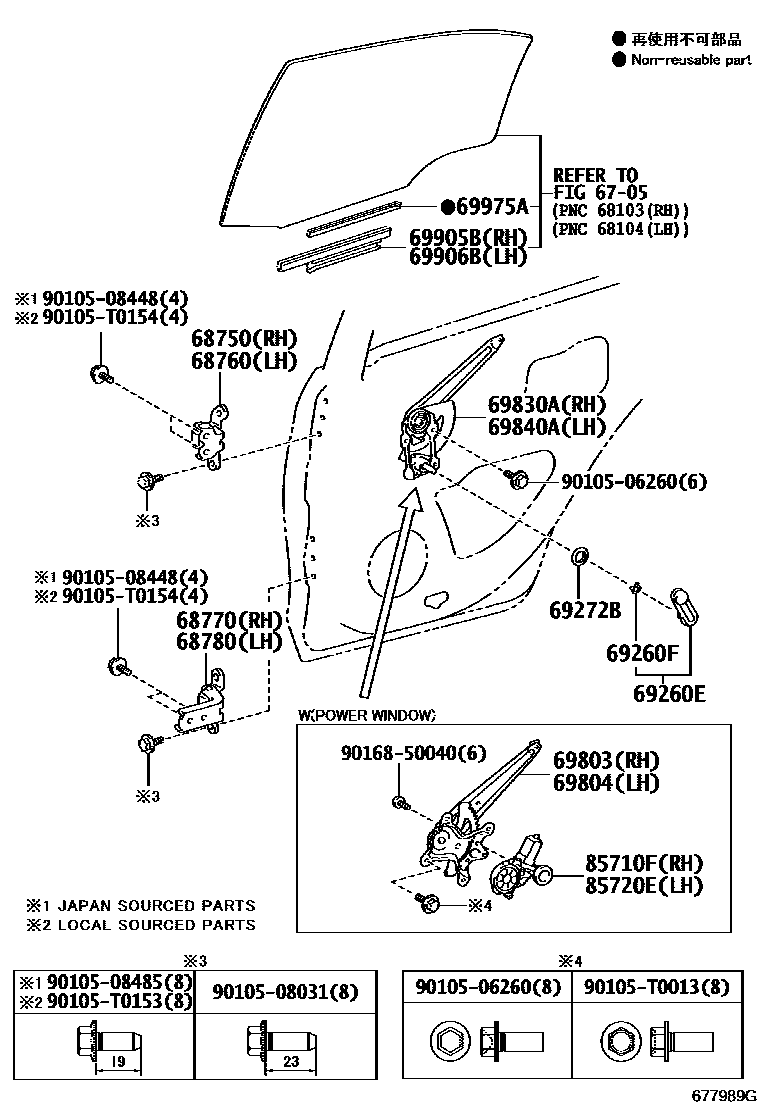

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-02080iNDE170,ZRE172..IND201405-201702

main68750-0D030iZRE171..HTWC..TH201312-201601

main68750-20121iZRE171..4FC..N201707-202208

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-02080iNDE170,ZRE172..IND201405-201702

main68760-0D030iZRE171,173..4FC..GCC201310-201512

main68760-20121iNZE170;ZRE171..6F..N;ZRE172..CVT..PKN201707

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02070iNDE170,ZRE172..IND201405-201702

main68770-0D030iZRE171,173..4FC..GCC201310-201512

main68770-52031iNZE170,ZRE171,172..PKN201407-201707

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02070iNDE170,ZRE172..IND201703-201906

main68780-0D030iZRE171..16J..CNG201312-201512

main68780-52031iNZE170,ZRE171,172..PKN201407-201707

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-52070-C0×2iNZE170..XLI201407-201707

BLACK,TRIM0#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274iNZE170..XLI201407-201707

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-12020×2iNZE170..XLI201407-201707

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-02280iZRE171,173..CVT..GCC201512-201609

main69803-02290iNDE170,ZRE172..IND201405-201702

main69803-02330iNZE170..GLI;ZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201707

main69803-0D160iZRE171..16J..CNG201312-201512

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-02280iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

main69804-02290iNDE170,ZRE172..IND201405-201702

main69804-02330iZRE172..6F..PKN201707-202109

main69804-0D160iZRE172..CVT..VN;ZRE172..18E..VN;ZRE172..ARL,IDN,MA,TH;ZRE171,173..GEN,MA,PHL,SGP,TH,VN201611-202201

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-02630iNZE170..XLI201707-201911

main69830-02540iZRE171,173..CVT..XLI201512-201609

LOW FLEET PACKAGE

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-02630iNZE170..XLI201707-201911

main69840-02540iZRE171..6F..XLI..GCC201310-201609

LOW FLEET PACKAGE

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-02130iZRE17#..GCC,TAIW201610-201903

main69905-12200iZRE172..CVT..VN201611-202201

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-02130iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

main69906-12190iZRE172..6F..PKN201611-202109

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-0D040×2iNDE170,ZRE172..IND201801-201906

main69975-12020×2iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-02360iNDE170,ZRE172..IND201405-201702

main85720-06120iZRE171,173..CVT..GCC201512-201609

main85720-0K010iZRE171..4FC..N201611-202208

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-02380iNDE170,ZRE172..IND201703-201906

main85710-06090iZRE171,173..4FC..GCC201310-201512

main85710-0K010iZRE171..HTWC..TH201312-201601

9010506260

main90105-06260

9010508031

main90105-08031

9010508448

main90105-08448

9010508485

main90105-08485

90105T0013

main90105-T0013

90105T0153

main90105-T0153

90105T0154

main90105-T0154

9016850040

main90168-50040

25 parts on this diagram · 1 diagram in section
