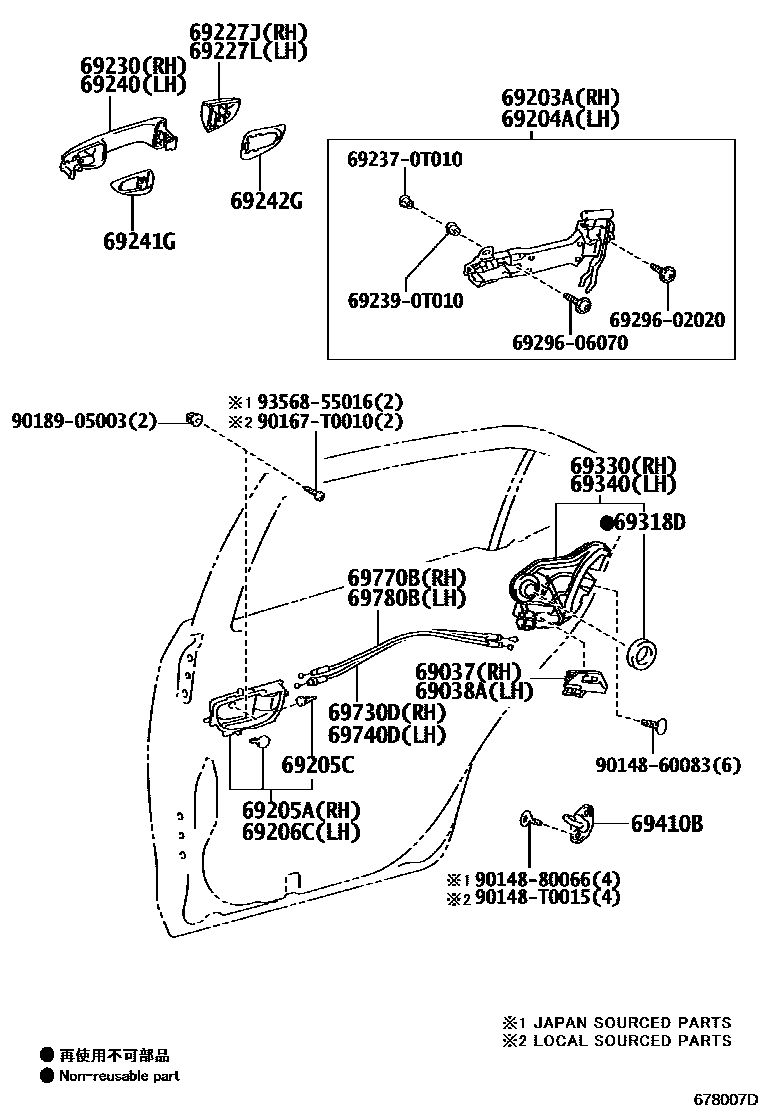

REAR DOOR LOCK & HANDLE

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-02040iNZE170,ZRE171,172..PKN201312-202208

main69037-02050iZRE173..6F;ZRE171..6F..GLI201310-201903

main69037-02080iNDE170,ZRE172..IND201405-201906

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-02040iZRE172..6F..PKN201312-202208

main69038-02050iZRE171,173..CVT..GCC201310-201903

main69038-02080iNDE170,ZRE172..IND201405-201906

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-02220iZRE173..6F;ZRE171..6F..GLI201310-201707

sub69203-02330

main69203-02270iNDE170,ZRE172..IND201405-201906

main69203-02330iZRE172..CVT..VN;ZRE172..18E..VN;ZRE172..ARL,IDN,MA,TAIW,TH;ZRE171,173..GCC,GEN,MA,PHL,SGP,TH,VN201503-202201

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-02220iNZE170,ZRE171,172..PKN201310-201707

sub69204-02330

main69204-02270iNDE170,ZRE172..IND201405-201906

main69204-02330iZRE172..CVT..VN;ZRE172..18E..VN;ZRE172..ARL,IDN,MA,TAIW,TH;ZRE171,173..GCC,GEN,MA,PHL,SGP,TH,VN201503-202201

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-02280-A0iZZE172..GLI201310-201709

IVORY,TRIM0#

main69205-02280-A1iZRE172..6F..PKN;ZRE172..TAIW..(E,G);ZRE172..6F..(18E,G,GL);ZRE172..CVT..(IDN,PKN);ZRE171,172..CVT..(16V,18E,18G,G,VL)..(IND,PHL,TH,VN);NDE170,ZRE171,173..(16E,16G,2201610

FLAXEN,TRIM0#

main69205-02280-B0iZRE171,173..GLI..GCC201310-201903

GRAY,TRIM1#

main69205-02280-B0iZRE171,173..GLI..GCC201512-201609

GRAY,TRIM11

main69205-02280-C0iZRE172..TAIW..(E,G)201310-201709

BLACK,TRIM2#

main69205-02280-C0iZRE171,173..GLI..GCC201512-201609

BLACK,TRIM10

main69205-02290-A0iZRE173..6F201310-201707

IVORY,TRIM0#

main69205-02290-A1iNZE170,ZRE171..GEN,PKN,SGP;ZRE17#..(16E,16G,18G,J,XLI)..(GCC,IDN,IND,PHL)201610

FLAXEN,TRIM0#

main69205-02290-B0iZRE171..6F..XLI..GCC201310-201907

GRAY,TRIM1#

main69205-02290-C0iZRE172..TAIW..D201310-201907

BLACK,TRIM2#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04027iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201709

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-02280-A0iZZE172..GLI201310-201709

IVORY,TRIM0#

main69206-02280-A1iZRE172..6F..PKN;ZRE172..TAIW..(E,G);ZRE172..6F..(18E,G,GL);ZRE172..CVT..(IDN,PKN);ZRE171,172..CVT..(16V,18E,18G,G,VL)..(IND,PHL,TH,VN);NDE170,ZRE171,173..(16E,16G,2201610

FLAXEN,TRIM0#

main69206-02280-B0iZRE171,173..4FC..GLI..GCC201310-201903

GRAY,TRIM1#

main69206-02280-B0iZRE171,173..GLI..GCC201512-201609

GRAY,TRIM11

main69206-02280-C0iZRE171..16G..TH201310-201709

BLACK,TRIM2#

main69206-02280-C0iZRE171,173..GLI..GCC201512-201609

BLACK,TRIM10

main69206-02290-A0iZRE171,173..CVT..XLI201310-201707

IVORY,TRIM0#

main69206-02290-A1iNZE170,ZRE171..GEN,PKN,SGP;ZRE17#..(16E,16G,18G,J,XLI)..(GCC,IDN,IND,PHL)201610

FLAXEN,TRIM0#

main69206-02290-B0iZRE171..16J..HTWCF;ZRE171..(16E,GLI,GXLI,XLI)..(GEN,PHL)201310-201907

GRAY,TRIM1#

main69206-02290-C0iZZE172..XLI201310-201907

BLACK,TRIM2#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-02220iNZE170,ZRE171..PKN201407-201605

BLACK MATERIAL

main69227-02340iNDE170..G201405-201702

HE PACKAGE,UNPAINTED

main69227-02340iNDE170..G201405-201906

NEW J PACKAGE,UNPAINTED

main69227-02340iNDE170..G201405-201906

UNPAINTED

main69227-02924iZRE172..TAIW..(D,E);ZRE171..6F..XLI..GCC201310-201707

LESS COLOR

main69250-02090-A1iZZE172..GLI201310-201903

SUPER WHITE 2,040

sub69250-02917

main69250-02090-A1iZRE172..G201310-201609

SPORTY PACKAGE,SUPER WHITE 2,040

sub69250-02917

main69250-02090-A2iZRE171,173..GLI..GCC201310-201903

WHITE PEARL CS.,070

sub69250-02917

main69250-02090-B2iZRE172..TAIW..E201310-201903

SILVER ME.,1F7

sub69250-02917

main69250-02090-B2iZRE172..G201310-201609

SPORTY PACKAGE,SILVER ME.,1F7

sub69250-02917

main69250-02090-B4iZRE172..TAIW..E201310-201609

SPORTY PACKAGE,GRAY ME.,1G3

sub69250-02917

main69250-02090-B4iZRE171,173..4FC..GLI..GCC201310-201903

GRAY ME.,1G3

sub69250-02917

main69250-02090-B5iZRE172..G201310-201410

SPORTY PACKAGE,DK. STEEL MC.,1H2

sub69250-02917

main69250-02090-B5iZRE172..TAIW..E201310-201410

DK. STEEL MC.,1H2

sub69250-02917

main69250-02090-C0iZRE172..TAIW..E201310-201609

SPORTY PACKAGE,BLACK MC.,209

sub69250-02917

main69250-02090-C0iZRE172..TAIW..(E,G);ZRE171,173..GLI..GCC201310-201903

BLACK MC.,209

sub69250-02917

main69250-02090-D0iZRE172..G201312-201903

RED M.M.,3R3

sub69250-02917

main69250-02090-D0iZRE172..G201312-201609

SPORTY PACKAGE,RED M.M.,3R3

sub69250-02917

main69250-02090-E0iZZE172..GLI201310-201409

YANMER BEIGE,4Q0

sub69250-02917

main69250-02090-E1iZRE171,173..GLI..GCC201610-201903

BEIGE ME.,4T8

sub69250-02917

main69250-02090-E5iZRE172..TAIW..(E,G);ZRE171,173..GLI..GCC201610-201903

PHANTOM BROWN ME.,4W9

sub69250-02917

main69250-02090-J0iZRE171..6F..GLI201310-201609

BLUE ME.,8N0

sub69250-02917

main69250-02090-J1iZRE172..TAIW..E201310-201609

SPORTY PACKAGE,DK.BLUE MC.,8S6

sub69250-02917

main69250-02090-J1iZRE171..6F..GLI201310-201609

DK.BLUE MC.,8S6

sub69250-02917

main69250-02290-A0iZRE172..PKN201407-201707

CKD COLOR,000

main69250-02290-A1iZRE172..PKN201707

SUPER WHITE 2,040

main69250-02290-A2iZRE172..PKN201707

WHITE,045

main69250-02290-B0iZRE172..PKN201707

SILVER ME.,1D4

main69250-02290-B1iZRE172..PKN201707

GRAY ME.,1G3

main69250-02290-C0iZRE172..PKN201707

ATTITUDE BLACK MC.,218

main69250-02290-E0iZRE172..PKN201707

BRONZE M.M.,4T3

main69250-02290-E1iZRE172..PKN201707

PHANTOM BROWN ME.,4W9

main69250-02290-F0iZRE172..PKN201707

BEIGE M.M.,587

main69250-02290-J0iZRE172..PKN201707

DK. BLUE M.M.,8E9

main69250-02917iZZE172..GLI201310-202201

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69228-02020iNZE170,ZRE171..PKN201407-201605

BLACK MATERIAL

main69228-02140iZRE172..J201405-201906

NEW J PACKAGE,UNPAINTED

main69228-02140iZRE172..J201405-201906

UNPAINTED

main69228-02140iZRE172..J201405-201702

HE PACKAGE,UNPAINTED

main69228-02902iZRE171..N;ZRE172..D;ZRE171,173..(CVT,MTM)..(16E,16G,XLI)..HTWC;NZE170,ZRE171..RHD..(16E,16J,GLI,GXLI,XLI)201310-201707

LESS COLOR

main69250-02100-A1iZRE172..G201310-201609

SPORTY PACKAGE,SUPER WHITE 2,040

sub69250-02918

main69250-02100-A1iZRE172..G201310-201903

SUPER WHITE 2,040

sub69250-02918

main69250-02100-A2iZRE171,173..(16V,20V)..PHL201310-201903

WHITE PEARL CS.,070

sub69250-02918

main69250-02100-B2iZRE172..TAIW..E201310-201903

SILVER ME.,1F7

sub69250-02918

main69250-02100-B2iZRE172..G201310-201609

SPORTY PACKAGE,SILVER ME.,1F7

sub69250-02918

main69250-02100-B4iZRE171..6F..GLI201310-201903

GRAY ME.,1G3

sub69250-02918

main69250-02100-B4iZRE172..G201310-201609

SPORTY PACKAGE,GRAY ME.,1G3

sub69250-02918

main69250-02100-B5iZRE172..G201310-201410

SPORTY PACKAGE,DK. STEEL MC.,1H2

sub69250-02918

main69250-02100-B5iZRE172..G201310-201410

DK. STEEL MC.,1H2

sub69250-02918

main69250-02100-C0iZZE172..GLI201310-201903

BLACK MC.,209

sub69250-02918

main69250-02100-C0iZRE172..G201310-201609

SPORTY PACKAGE,BLACK MC.,209

sub69250-02918

main69250-02100-D0iZRE172..TAIW..E201312-201609

SPORTY PACKAGE,RED M.M.,3R3

sub69250-02918

main69250-02100-D0iZRE171,173..GLI..GCC201312-201903

RED M.M.,3R3

sub69250-02918

main69250-02100-E0iZZE172..GLI201310-201409

YANMER BEIGE,4Q0

sub69250-02918

main69250-02100-E1iZRE171,173..GLI..GCC201610-201903

BEIGE ME.,4T8

sub69250-02918

main69250-02100-E5iZRE172..TAIW..(E,G);ZRE171,173..GLI..GCC201610-201903

PHANTOM BROWN ME.,4W9

sub69250-02918

main69250-02100-J0iZZE172..GLI201310-201609

BLUE ME.,8N0

sub69250-02918

main69250-02100-J1iZRE171..6F..GLI201310-201609

DK.BLUE MC.,8S6

sub69250-02918

main69250-02100-J1iZRE172..G201310-201609

SPORTY PACKAGE,DK.BLUE MC.,8S6

sub69250-02918

main69250-02300-A0iZRE172..PKN201407-201707

CKD COLOR,000

main69250-02300-A1iZRE172..PKN201707

SUPER WHITE 2,040

main69250-02300-A2iZRE172..PKN201707

WHITE,045

main69250-02300-B0iZRE172..PKN201707

SILVER ME.,1D4

main69250-02300-B1iZRE172..PKN201707

GRAY ME.,1G3

main69250-02300-C0iZRE172..PKN201707

ATTITUDE BLACK MC.,218

main69250-02300-E0iZRE172..PKN201707

BRONZE M.M.,4T3

main69250-02300-E1iZRE172..PKN201707

PHANTOM BROWN ME.,4W9

main69250-02300-F0iZRE172..PKN201707

BEIGE M.M.,587

main69250-02300-J0iZRE172..PKN201707

DK. BLUE M.M.,8E9

main69250-02918iZRE172,173..VN201310-202201

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-02200-A1iZRE172..TAIW..E201310-201609

SPORTY PACKAGE,SUPER WHITE 2,040

sub69210-02906

main69210-02200-A1iZRE171,173..4FC..GLI..GCC201310-201903

SUPER WHITE 2,040

sub69210-02906

main69210-02200-A2iZRE171..6F..GLI201310-201903

WHITE PEARL CS.,070

sub69210-02906

main69210-02200-B2iZRE171,173..4FC..GLI..GCC201310-201903

SILVER ME.,1F7

sub69210-02906

main69210-02200-B2iZRE172..TAIW..E201310-201609

SPORTY PACKAGE,SILVER ME.,1F7

sub69210-02906

main69210-02200-B3iZRE171,173..LHD..(ATM,CVT)..(16V,20V,XLI)..(GEN,PHL)201312-201507

GRAY ME.,1F9

sub69210-02906

main69210-02200-B4iZRE171,173..4FC..GLI..GCC201310-201903

GRAY ME.,1G3

sub69210-02906

main69210-02200-B4iZRE172..G201310-201609

SPORTY PACKAGE,GRAY ME.,1G3

sub69210-02906

main69210-02200-B5iZRE172..G201310-201410

DK. STEEL MC.,1H2

sub69210-02906

main69210-02200-B5iZRE172..TAIW..E201310-201410

SPORTY PACKAGE,DK. STEEL MC.,1H2

sub69210-02906

main69210-02200-C0iZRE172..TAIW..E201310-201609

SPORTY PACKAGE,BLACK MC.,209

sub69210-02906

main69210-02200-C0iZRE172..TAIW..E201310-201903

BLACK MC.,209

sub69210-02906

main69210-02200-C1iZRE171,173..LHD..(ATM,CVT)..(16V,20V,XLI)..(GEN,PHL)201312-201507

ATTITUDE BLACK MC.,218

sub69210-02906

main69210-02200-D0iZRE172..G201312-201609

SPORTY PACKAGE,RED M.M.,3R3

sub69210-02906

main69210-02200-D0iZRE172..TAIW..(E,G);ZRE171,173..GLI..GCC201312-201903

RED M.M.,3R3

sub69210-02906

main69210-02200-E0iZZE172..GLI201310-201409

YANMER BEIGE,4Q0

sub69210-02906

main69210-02200-E1iZRE171,173..GLI..GCC201610-201903

BEIGE ME.,4T8

sub69210-02906

main69210-02200-E5iZRE172..TAIW..(E,G);ZRE171,173..GLI..GCC201610-201903

PHANTOM BROWN ME.,4W9

sub69210-02906

main69210-02200-J0iZRE171..6F..GLI201310-201609

BLUE ME.,8N0

sub69210-02906

main69210-02200-J1iZRE172..G201310-201609

SPORTY PACKAGE,DK.BLUE MC.,8S6

sub69210-02906

main69210-02200-J1iZRE172..G201310-201609

DK.BLUE MC.,8S6

sub69210-02906

main69210-02270-A0iZRE172..PKN201407-201707

CKD COLOR,000

main69210-02270-A1iZRE172..PKN201707

SUPER WHITE 2,040

main69210-02270-A2iZRE172..PKN201707

WHITE,045

main69210-02270-B0iZRE172..PKN201707

SILVER ME.,1D4

main69210-02270-B1iZRE172..PKN201707

GRAY ME.,1G3

main69210-02270-C0iZRE172..PKN201707

ATTITUDE BLACK MC.,218

main69210-02270-E0iZRE172..PKN201707

BRONZE M.M.,4T3

main69210-02270-E1iZRE172..PKN201707

PHANTOM BROWN ME.,4W9

main69210-02270-F0iZRE172..PKN201707

BEIGE M.M.,587

main69210-02270-J0iZRE172..PKN201707

DK. BLUE M.M.,8E9

main69210-02906iZRE172..MA201310-202201

PAINT REQ.

main69211-02260iNZE170,ZRE171..PKN201407-201605

NO PAINT REQ.

main69211-02929iZRE172..TAIW..(D,E);ZRE171..6F..XLI..GCC201310-201707

PAINT REQ.

main69215-02020iZRE172..J201405-201906

PAINT REQ.,NEW J PACKAGE,UNPAINTED

main69215-02020iZRE172..J201405-201906

PAINT REQ.,UNPAINTED

main69215-02020iZRE172..J201405-201702

PAINT REQ.,HE PACKAGE,UNPAINTED

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69212-02110iNZE170,ZRE171..PKN201407-201605

NO PAINT REQ.

main69212-02902iZRE171..N;ZRE172..D;ZRE171,173..(CVT,MTM)..(16E,16G,XLI)..HTWC;NZE170,ZRE171..RHD..(16E,16J,GLI,GXLI,XLI)201310-201707

PAINT REQ.

main69216-02020iZRE172..J201405-201906

PAINT REQ.,NEW J PACKAGE,UNPAINTED

main69216-02020iNDE170..G201405-201906

PAINT REQ.,UNPAINTED

main69216-02020iNDE170..G201405-201702

PAINT REQ.,HE PACKAGE,UNPAINTED

main69220-02130-A1iZRE172..G201310-201609

SPORTY PACKAGE,SUPER WHITE 2,040

sub69220-02907

main69220-02130-A1iZZE172..GLI201310-201903

SUPER WHITE 2,040

sub69220-02907

main69220-02130-A2iZRE171,173..4FC..GLI..GCC201310-201903

WHITE PEARL CS.,070

sub69220-02907

main69220-02130-B2iZRE172..G201310-201903

SILVER ME.,1F7

sub69220-02907

main69220-02130-B2iZRE172..TAIW..E201310-201609

SPORTY PACKAGE,SILVER ME.,1F7

sub69220-02907

main69220-02130-B3iZRE173..VN201312-201507

GRAY ME.,1F9

sub69220-02907

main69220-02130-B4iZRE171..6F..GLI201310-201903

GRAY ME.,1G3

sub69220-02907

main69220-02130-B4iZRE172..G201310-201609

SPORTY PACKAGE,GRAY ME.,1G3

sub69220-02907

main69220-02130-B5iZRE172..TAIW..E201310-201410

DK. STEEL MC.,1H2

sub69220-02907

main69220-02130-B5iZRE172..TAIW..E201310-201410

SPORTY PACKAGE,DK. STEEL MC.,1H2

sub69220-02907

main69220-02130-C0iZZE172..GLI201310-201903

BLACK MC.,209

sub69220-02907

main69220-02130-C0iZRE172..G201310-201609

SPORTY PACKAGE,BLACK MC.,209

sub69220-02907

main69220-02130-C1iZRE171,173..LHD..(ATM,CVT)..(16V,20V,XLI)..(GEN,PHL)201312-201507

ATTITUDE BLACK MC.,218

sub69220-02907

main69220-02130-D0iZRE172..TAIW..(E,G);ZRE171,173..GLI..GCC201312-201903

RED M.M.,3R3

sub69220-02907

main69220-02130-D0iZRE172..TAIW..E201312-201609

SPORTY PACKAGE,RED M.M.,3R3

sub69220-02907

main69220-02130-E0iZZE172..GLI201310-201409

YANMER BEIGE,4Q0

sub69220-02907

main69220-02130-E1iZRE171,173..GLI..GCC201610-201903

BEIGE ME.,4T8

sub69220-02907

main69220-02130-E5iZRE172..TAIW..(E,G);ZRE171,173..GLI..GCC201610-201903

PHANTOM BROWN ME.,4W9

sub69220-02907

main69220-02130-J0iZZE172..GLI201310-201609

BLUE ME.,8N0

sub69220-02907

main69220-02130-J1iZRE171..6F..GLI201310-201609

DK.BLUE MC.,8S6

sub69220-02907

main69220-02130-J1iZRE172..TAIW..E201310-201609

SPORTY PACKAGE,DK.BLUE MC.,8S6

sub69220-02907

main69220-02210-A0iZRE172..PKN201407-201707

CKD COLOR,000

main69220-02210-A1iZRE172..PKN201707

SUPER WHITE 2,040

main69220-02210-A2iZRE172..PKN201707

WHITE,045

main69220-02210-B0iZRE172..PKN201707

SILVER ME.,1D4

main69220-02210-B1iZRE172..PKN201707

GRAY ME.,1G3

main69220-02210-C0iZRE172..PKN201707

ATTITUDE BLACK MC.,218

main69220-02210-E0iZRE172..PKN201707

BRONZE M.M.,4T3

main69220-02210-E1iZRE172..PKN201707

PHANTOM BROWN ME.,4W9

main69220-02210-F0iZRE172..PKN201707

BEIGE M.M.,587

main69220-02210-J0iZRE172..PKN201707

DK. BLUE M.M.,8E9

main69220-02907iZRE171..LHD..4FC;ZRE172..18G..IDN;ZRE172..ARL..(E,N);ZRE172..6F..(18E,G,GL);NDE170,ZRE171,173..(CVT,MTM)..(16V,20G,20V,G,GL,GLI);ZRE171,172..CVT..(HTWC,HTWCF,HTWVM)201310-202201

PAINT REQ.

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-02100iZZE172201310-201709

RH

main69242-02090iZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH201310-201709

LH

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69241-02110iZRE171..HTWC..TH201310-201709

RH

main69242-02100iZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH201310-201709

LH

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-202208

69330LOCK ASSY, REAR DOOR, RH

main69050-02360iZRE172..ARL..D;ZRE171..RHD..GEN;ZRE171..16J..HTWCF;ZRE171..6F..XLI..GEN201312-202208

main69050-02370iZRE172..CVT..VN201312-202201

main69050-02410iZZE172..XLI201310-201903

main69050-02420iZZE172..GLI201310-201903

main69050-02430iNDE170,ZRE172..IND201405-201906

main69330-02150iNZE170..XLI201407-201911

69340LOCK ASSY, REAR DOOR, LH

main69060-02360iZRE172..PKN201312-202208

main69060-02370iZRE172..IDN,MA,TH;ZRE172..ARL..(E,N);ZRE171..LHD..4FC..GEN;ZRE171,173..MA,PHL,SGP;ZRE171..CVT..(CNG,HTWCF)201312-202201

main69060-02410iZRE171,173..XLI..GCC201310-201903

main69060-02420iZRE171,173..4FC..GLI..GCC201310-201903

main69060-02430iNDE170,ZRE172..IND201405-201906

main69340-02150iNZE170..XLI201407-201911

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-02040iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-201709

main69410-02040iZRE172..CVT..VN;ZRE172..18E..VN;ZRE172..ARL,IDN,MA,TAIW,TH;ZRE171,173..GCC,GEN,MA,PHL,SGP,TH,VN201610-202201

(L)

main69410-0D050iNDE170,ZRE172..IND201405-201906

main69410-0K010iZRE171..4FC..N201407-202208

main69410-20110iZRE172..CVT..VN;ZRE172..18E..VN;ZRE172..ARL,IDN,MA,TAIW,TH;ZRE171,173..GCC,GEN,MA,PHL,SGP,TH,VN201610-201907

(J)

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-02230iZRE172..18E..VN;ZRE171..4FC..GEN;ZRE172..6F..(ARL,IDN);NZE170,ZRE173..MA,PHL,PKN,VN;ZRE172..CVT..(ARL,IDN,MA,PKN,TH);ZRE171..(CVT,MTM)..(GEN,PHL,PKN,SGP,TH)201312-202208

main69730-02250iZRE173..6F;ZRE171..6F..GLI201310-201903

main69730-02300iNDE170,ZRE172..IND201405-201906

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-02230iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH201312-202208

main69730-02250iZRE173..6F;ZRE171..6F..GLI201310-201903

main69730-02300iNDE170,ZRE172..IND201405-201906

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-02320iZRE172..18E..VN;ZRE171..4FC..GEN;ZRE172..6F..(ARL,IDN);NZE170,ZRE173..MA,PHL,PKN,VN;ZRE172..CVT..(ARL,IDN,MA,PKN,TH);ZRE171..(CVT,MTM)..(GEN,PHL,PKN,SGP,TH)201312-202208

main69770-02350iZRE173..6F;ZRE171..6F..GLI201310-201903

main69770-02400iNDE170,ZRE172..IND201405-201906

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-02320iNZE170,ZRE171,172..PKN201312-202208

main69770-02350iZRE171,173..CVT..GCC201310-201903

main69770-02400iNDE170,ZRE172..IND201405-201906

692370T010RETAINER, DOOR OUTSIDE HANDLE

main69237-0T010

692390T010PIN, BACK DOOR OUTSIDE HANDLE

main69239-0T010

6929602020SCREW, DOOR INSIDE HANDLE

main69296-02020

6929606070SCREW, DOOR INSIDE HANDLE

main69296-06070

9014860083

main90148-60083

9014880066

main90148-80066

90148T0015

main90148-T0015

90167T0010

main90167-T0010

9018905003

main90189-05003

9356855016

main93568-55016

31 parts on this diagram · 1 diagram in section
