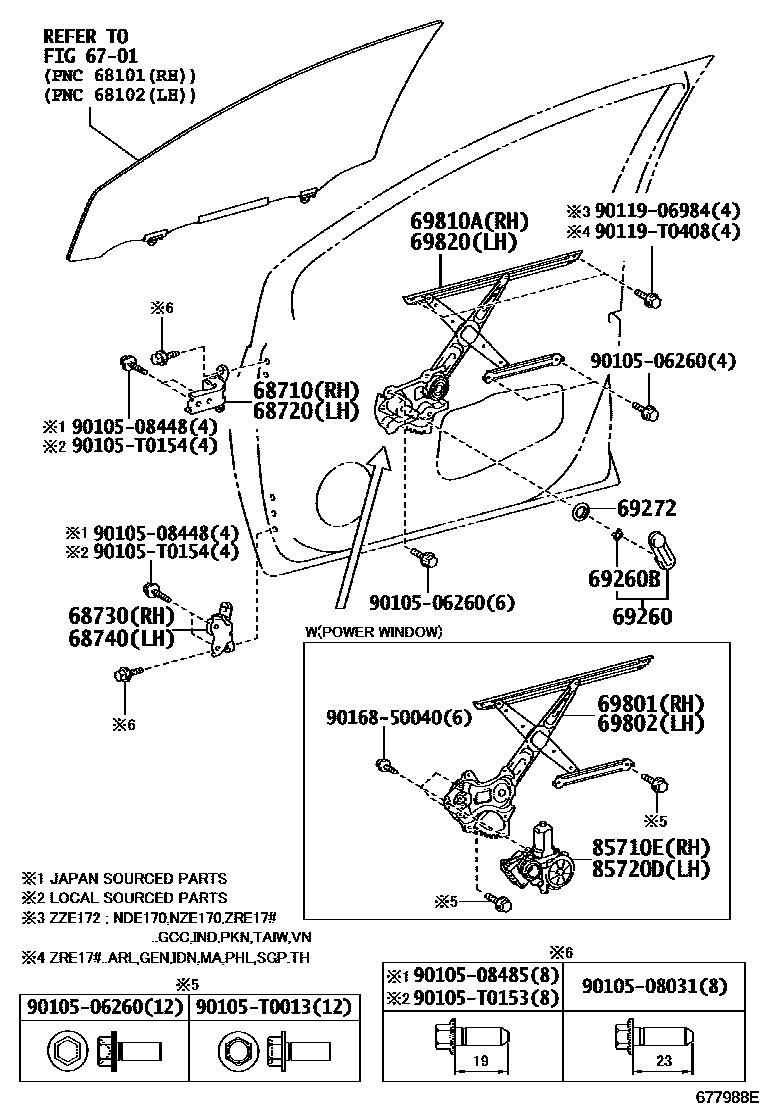

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02080iNDE170,ZRE172..IND201703-201906

main68710-0D050iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

main68710-12151iZRE172..6F..PKN201707-202109

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02080iNDE170,ZRE172..IND201703-201906

main68720-0D050iZRE173..6F;ZRE171..6F..GLI201310-201511

main68720-12151iZRE172..6F..PKN201707-202109

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02090iNDE170,ZRE172..IND201405-201702

main68730-02100iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02090iNDE170,ZRE172..IND201405-201702

main68740-02100iZRE171..HTWC..TH201310-201601

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-52070-C0×2iNZE170..XLI201407-201707

BLACK,TRIM0#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iNZE170..XLI201407-201707

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-12020×2iNZE170..XLI201407-201707

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-02340iZZE172201310-201409

main69801-02350iNDE170,ZRE172..IND201405-201702

main69801-02390iNZE170..GLI;ZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201707

main69801-0D180iZRE171..HTWC..TH201312-201601

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-02350iZZE172201310-201409

main69802-02360iNDE170,ZRE172..IND201703-201906

main69802-02400iZRE171..4FC..N201707-202208

main69802-0D190iNZE170..GLI;ZRE171,172..PKN201312-201707

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-02670iNZE170..XLI201707-201911

main69810-02540iZRE171..CVT..XLI201610-201903

LOW FLEET PACKAGE

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-02690iNZE170..XLI201407-201707

main69820-02550iZRE173..6F201310-201511

LOW FLEET PACKAGE

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-02480iNDE170,ZRE172..IND201703-201906

main85710-02510iZRE171..16J..CNG201312-201512

main85710-06090iZRE173..6F;ZRE171..6F..GLI201310-201511

main85710-0K010iZRE172..CVT..VN;ZRE17#..LHD..(16E,16G,16V,18E,20V,XLI)..(GEN,PHL,VN)201611-202201

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-02360iNDE170,ZRE172..IND201405-201702

main85720-02470iZZE172201310-201409

main85720-02540iZRE172,173..VN201312-201709

main85720-0K010iZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH201312-201610

9010506260

main90105-06260

9010508031

main90105-08031

9010508448

main90105-08448

9010508485

main90105-08485

90105T0013

main90105-T0013

90105T0153

main90105-T0153

90105T0154

main90105-T0154

9011906984

main90119-06984

90119T0408

main90119-T0408

9016850040

main90168-50040

24 parts on this diagram · 1 diagram in section
