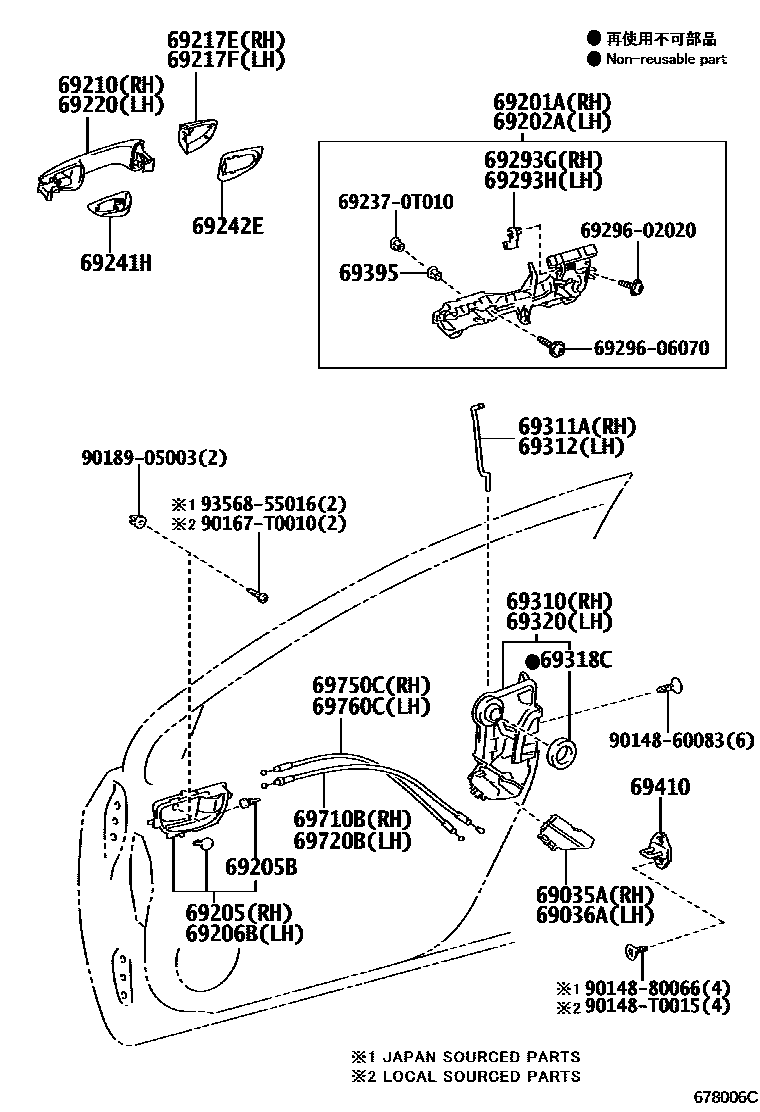

FRONT DOOR LOCK & HANDLE

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02040iNZE170,ZRE171,172..PKN201312-202208

main69035-02050iZZE172201310-201903

main69035-02080iNDE170,ZRE172..IND201405-201906

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02040iZRE172..18E..VN;ZRE171..4FC..GEN;ZRE172..6F..(ARL,IDN);NZE170,ZRE173..MA,PHL,PKN,VN;ZRE172..CVT..(ARL,IDN,MA,PKN,TH);ZRE171..(CVT,MTM)..(GEN,PHL,PKN,SGP,TH)201312-202208

main69036-02050iZRE173..6F;ZRE171..6F..GLI201310-201903

main69036-02080iNDE170,ZRE172..IND201405-201906

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-02230iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-201709

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-02170iZRE173..6F;ZRE171..6F..GLI201310-201709

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-02280-A0iZRE171..16G..TH201310-201709

IVORY,TRIM0#

main69205-02280-A1iZRE172..6F..PKN;ZRE172..TAIW..(E,G);ZRE172..6F..(18E,G,GL);ZRE172..CVT..(IDN,PKN);ZRE171,172..CVT..(16V,18E,18G,G,VL)..(IND,PHL,TH,VN);NDE170,ZRE171,173..(16E,16G,2201610

FLAXEN,TRIM0#

main69205-02280-B0iZRE171,173..GLI..GCC201310-201903

GRAY,TRIM1#

main69205-02280-B0iZRE171,173..GLI..GCC201512-201609

GRAY,TRIM11

main69205-02280-C0iZRE172,173..CVT..VN201310-201709

BLACK,TRIM2#

main69205-02280-C0iZRE171,173..GLI..GCC201512-201609

BLACK,TRIM10

main69205-02290-A0iZRE171,173..4FC..XLI..GCC201310-201707

IVORY,TRIM0#

main69205-02290-A1iNZE170,ZRE171..GEN,PKN,SGP;ZRE17#..(16E,16G,18G,J,XLI)..(GCC,IDN,IND,PHL)201610

FLAXEN,TRIM0#

main69205-02290-B0iZRE173..6F201310-201907

GRAY,TRIM1#

main69205-02290-C0iZRE172..TAIW..D201310-201907

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iNZE170,ZRE171,172..PKN201310-201709

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-02280-A0iZRE171..16G..TH201310-201709

IVORY,TRIM0#

main69206-02280-A1iZRE172..6F..PKN;ZRE172..TAIW..(E,G);ZRE172..6F..(18E,G,GL);ZRE172..CVT..(IDN,PKN);ZRE171,172..CVT..(16V,18E,18G,G,VL)..(IND,PHL,TH,VN);NDE170,ZRE171,173..(16E,16G,2201610

FLAXEN,TRIM0#

main69206-02280-B0iZZE172..GLI201310-201903

GRAY,TRIM1#

main69206-02280-B0iZRE171,173..GLI..GCC201512-201609

GRAY,TRIM11

main69206-02280-C0iZRE172..ARL..(E,N);ZRE17#..(16V,18E,18GS,18V,20G,20V)..(MA,PHL,TH)201310-201709

BLACK,TRIM2#

main69206-02280-C0iZRE171,173..GLI..GCC201512-201609

BLACK,TRIM10

main69206-02290-A0iZRE171..6F..XLI..GCC201310-201707

IVORY,TRIM0#

main69206-02290-A1iNZE170,ZRE171..GEN,PKN,SGP;ZRE17#..(16E,16G,18G,J,XLI)..(GCC,IDN,IND,PHL)201610

FLAXEN,TRIM0#

main69206-02290-B0iZRE171..16J..HTWCF;ZRE171..(16E,GLI,GXLI,XLI)..(GEN,PHL)201310-201907

GRAY,TRIM1#

main69206-02290-C0iZRE171..16J..HTWC201310-201907

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-02200-A1iZRE171,173..4FC..GLI..GCC201310-201903

SUPER WHITE 2,040

sub69210-02906

main69210-02200-A1iZRE172..TAIW..E201310-201609

SPORTY PACKAGE,SUPER WHITE 2,040

sub69210-02906

main69210-02200-A2iZRE171,173..GLI..GCC201310-201903

WHITE PEARL CS.,070

sub69210-02906

main69210-02200-B2iZRE171,173..GLI..GCC201310-201903

SILVER ME.,1F7

sub69210-02906

main69210-02200-B2iZRE172..G201310-201609

SPORTY PACKAGE,SILVER ME.,1F7

sub69210-02906

main69210-02200-B3iZRE173..VN201312-201507

GRAY ME.,1F9

sub69210-02906

main69210-02200-B4iZRE171..6F..GLI201310-201903

GRAY ME.,1G3

sub69210-02906

main69210-02200-B4iZRE172..G201310-201609

SPORTY PACKAGE,GRAY ME.,1G3

sub69210-02906

main69210-02200-B5iZRE172..TAIW..E201310-201410

SPORTY PACKAGE,DK. STEEL MC.,1H2

sub69210-02906

main69210-02200-B5iZRE172..G201310-201410

DK. STEEL MC.,1H2

sub69210-02906

main69210-02200-C0iZZE172..GLI201310-201903

BLACK MC.,209

sub69210-02906

main69210-02200-C0iZRE172..G201310-201609

SPORTY PACKAGE,BLACK MC.,209

sub69210-02906

main69210-02200-C1iZRE171,173..LHD..(ATM,CVT)..(16V,20V,XLI)..(GEN,PHL)201312-201507

ATTITUDE BLACK MC.,218

sub69210-02906

main69210-02200-D0iZRE172..TAIW..E201312-201903

RED M.M.,3R3

sub69210-02906

main69210-02200-D0iZRE172..TAIW..E201312-201609

SPORTY PACKAGE,RED M.M.,3R3

sub69210-02906

main69210-02200-E0iZZE172..GLI201310-201409

YANMER BEIGE,4Q0

sub69210-02906

main69210-02200-E1iZRE171,173..GLI..GCC201610-201903

BEIGE ME.,4T8

sub69210-02906

main69210-02200-E5iZRE172..TAIW..(E,G);ZRE171,173..GLI..GCC201610-201903

PHANTOM BROWN ME.,4W9

sub69210-02906

main69210-02200-J0iZZE172..GLI201310-201609

BLUE ME.,8N0

sub69210-02906

main69210-02200-J1iZRE172..TAIW..E201310-201609

DK.BLUE MC.,8S6

sub69210-02906

main69210-02200-J1iZRE172..G201310-201609

SPORTY PACKAGE,DK.BLUE MC.,8S6

sub69210-02906

main69210-02270-A0iZRE172..PKN201407-201707

CKD COLOR,000

main69210-02270-A1iZRE172..PKN201707

SUPER WHITE 2,040

main69210-02270-A2iZRE172..PKN201707

WHITE,045

main69210-02270-B0iZRE172..PKN201707

SILVER ME.,1D4

main69210-02270-B1iZRE172..PKN201707

GRAY ME.,1G3

main69210-02270-C0iZRE172..PKN201707

ATTITUDE BLACK MC.,218

main69210-02270-E0iZRE172..PKN201707

BRONZE M.M.,4T3

main69210-02270-E1iZRE172..PKN201707

PHANTOM BROWN ME.,4W9

main69210-02270-F0iZRE172..PKN201707

BEIGE M.M.,587

main69210-02270-J0iZRE172..PKN201707

DK. BLUE M.M.,8E9

main69210-02906iZRE172,173..VN201310-202201

PAINT REQ.

main69210-12330-A0iZRE172..MA;ZRE172..ARL..(E,N);ZRE171..CVT..(HTWCF,HTWVM);NDE170,ZRE172,173..RHD..(18G,18GS,18V,20G,20V,GL,VL)201312-201907

SUPER WHITE 2,040

main69210-12330-A0iZRE172..18E..TH201611-201907

SPORTY PACKAGE,SUPER WHITE 2,040

main69210-12330-A1iZRE172..18E..TH201611-201907

SPORTY PACKAGE,WHITE PEARL CS.,070

main69210-12330-A1iZRE171..G;ZRE172,173..RHD..(18G,18GS,18V,20V)201312-201907

WHITE PEARL CS.,070

main69210-12330-B0iZRE172..MA;ZRE172..ARL..(E,N);ZRE172..RHD..(18G,18GS,18V);ZRE171,173..RHD..CVT..(HTWC,HTWCF,HTWVM)201611-201907

SPORTY PACKAGE,SILVER ME.,1D4

main69210-12330-B0iZRE171,172..(ARL,SGP)..(E,G,N);ZRE172,173..RHD..(18G,18GS,18V,20V)201312-201907

SILVER ME.,1D4

main69210-12330-B1iNDE170,ZRE172..GL,VL201405-201906

SILVER M.M.,1E7

main69210-12330-B2iZRE172..18E..TH201312-201907

GRAY ME.,1F9

main69210-12330-B2iZRE172..18E..TH201611-201907

SPORTY PACKAGE,GRAY ME.,1F9

main69210-12330-B3iNDE170,ZRE172..GL,VL201405-201906

GRAY ME.,1G3

main69210-12330-C1iZRE171,172..(ARL,SGP)..(E,G,N);ZRE172,173..RHD..(18G,18GS,18V,20V)201312-201907

ATTITUDE BLACK MC.,218

main69210-12330-C1iZRE172..MA;ZRE172..ARL..(E,N);ZRE172..RHD..(18G,18GS,18V);ZRE171,173..RHD..CVT..(HTWC,HTWCF,HTWVM)201611-201907

SPORTY PACKAGE,ATTITUDE BLACK MC.,218

main69210-12330-C2iNDE170,ZRE172..GL,VL201405-201906

BLACK MC.,215

main69210-12330-D0iZRE172..MA;ZRE172..ARL..(E,N);ZRE172..RHD..(18G,18GS,18V);ZRE171,173..RHD..CVT..(HTWC,HTWCF,HTWVM)201611-201907

SPORTY PACKAGE,RED M.M.,3R3

main69210-12330-D0iZRE172,173..(18E,20G)..MA201312-201907

RED M.M.,3R3

main69210-12330-E0iZRE171,172..(ARL,SGP)..(E,G,N);ZRE172,173..RHD..(18G,18GS,18V,20V)201312-201610

DK. BROWN M.M.,4U3

main69210-12330-E3iZRE172..18E..TH201611-201907

SPORTY PACKAGE,PHANTOM BROWN ME.,4W9

main69210-12330-E3iZRE172..MA;ZRE172..ARL..(E,N);ZRE171..CVT..(HTWCF,HTWVM);NDE170,ZRE172,173..RHD..(18G,18GS,18V,20G,20V,GL,VL)201611-201907

PHANTOM BROWN ME.,4W9

main69210-12330-F0iNDE170,ZRE172..GL,VL201405-201906

BEIGE M.M.,587

main69210-12330-J0iNDE170,ZRE172..GL,VL201405-201702

BLUE ME.,8U6

main69210-12330-J1iZRE172..ARL..(E,N)201312-201907

TRUE BLUE M.M.,8W1

main69211-02260iNZE170,ZRE171..PKN201407-201605

NO PAINT REQ.

main69211-02929iZRE171,173..CVT..XLI201310-201707

PAINT REQ.

main69215-02020iZRE172..J201405-201906

PAINT REQ.,NEW J PACKAGE,UNPAINTED

main69215-02020iNDE170..G201405-201906

PAINT REQ.,UNPAINTED

main69215-02020iNDE170..G201405-201702

PAINT REQ.,HE PACKAGE,UNPAINTED

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-02280iNZE170,ZRE171..PKN201407-201605

BLACK MATERIAL

main69217-02490iNZE170,ZRE171..PKN201405-201707

main69217-02490iNDE170..G201405-201702

HE PACKAGE,UNPAINTED

main69217-02490iNDE170..G201405-201906

NEW J PACKAGE,UNPAINTED

main69217-02490iNDE170..G201405-201906

UNPAINTED

main69217-02947iZRE173..6F201310-201907

LESS COLOR

main69217-02948iZRE172..ARL..D;ZRE171..16E..PHL;ZRE171,172..RHD..(16E,16J,18E,GLI,GXLI,XLI)201312-201405

LESS COLOR

sub69217-02490

main69250-02050-A1iZRE171,173..GLI..GCC201310-201903

SUPER WHITE 2,040

main69250-02050-A1iZRE172..G201310-201609

SPORTY PACKAGE,SUPER WHITE 2,040

main69250-02050-A2iZRE171,173..(16V,20V)..PHL201310-201903

WHITE PEARL CS.,070

main69250-02050-B1iZRE172..TAIW..E201310-201903

SILVER ME.,1F7

main69250-02050-B1iZRE172..G201310-201609

SPORTY PACKAGE,SILVER ME.,1F7

main69250-02050-B2iZRE173..VN201312-201507

GRAY ME.,1F9

main69250-02050-B3iZRE171,173..GLI..GCC201310-201903

GRAY ME.,1G3

main69250-02050-B3iZRE172..G201310-201609

SPORTY PACKAGE,GRAY ME.,1G3

main69250-02050-B4iZRE172..G201310-201410

DK. STEEL MC.,1H2

main69250-02050-B4iZRE172..TAIW..E201310-201410

SPORTY PACKAGE,DK. STEEL MC.,1H2

main69250-02050-C0iZRE172..TAIW..(E,G);ZRE171,173..GLI..GCC201310-201903

BLACK MC.,209

main69250-02050-C0iZRE172..G201310-201609

SPORTY PACKAGE,BLACK MC.,209

main69250-02050-D0iZRE172..G201312-201903

RED M.M.,3R3

main69250-02050-D0iZRE172..G201312-201609

SPORTY PACKAGE,RED M.M.,3R3

main69250-02050-E0iZZE172..GLI201310-201409

YANMER BEIGE,4Q0

main69250-02050-E1iZRE171,173..GLI..GCC201610-201903

BEIGE ME.,4T8

main69250-02050-E3iZRE172..TAIW..(E,G);ZRE171,173..GLI..GCC201610-201903

PHANTOM BROWN ME.,4W9

main69250-02050-J0iZRE171,173..4FC..GLI..GCC201310-201609

BLUE ME.,8N0

main69250-02050-J1iZRE172..G201310-201609

DK.BLUE MC.,8S6

main69250-02050-J1iZRE172..TAIW..E201310-201609

SPORTY PACKAGE,DK.BLUE MC.,8S6

main69250-02270-A0iZRE172..PKN201407-201707

CKD COLOR,000

main69250-02270-A1iZRE172..PKN201707

SUPER WHITE 2,040

main69250-02270-A2iZRE172..PKN201707

WHITE,045

main69250-02270-B0iZRE172..PKN201707

SILVER ME.,1D4

main69250-02270-B1iZRE172..PKN201707

GRAY ME.,1G3

main69250-02270-C0iZRE172..PKN201707

ATTITUDE BLACK MC.,218

main69250-02270-E0iZRE172..PKN201707

BRONZE M.M.,4T3

main69250-02270-E1iZRE172..PKN201707

PHANTOM BROWN ME.,4W9

main69250-02270-F0iZRE172..PKN201707

BEIGE M.M.,587

main69250-02270-J0iZRE172..PKN201707

DK. BLUE M.M.,8E9

main69250-02913iZZE172..GLI201310-202201

main69250-02914iNDE170,ZRE172..G201312-201702

main69250-02914iZRE171..16G..TH201312-201601

SPORTY PACKAGE

main69250-02914iNDE170,ZRE172..(18E,G)..(IND,TH)201611-201907

LOW GRADE PACKAGE

main69250-12020-A0iZRE172..MA;ZRE172..ARL..(E,N);ZRE171..CVT..(HTWCF,HTWVM);NDE170,ZRE172,173..RHD..(18G,18GS,18V,20G,20V,GL,VL)201312-201907

SUPER WHITE 2,040

main69250-12020-A0iZRE172..MA;ZRE172..ARL..(E,N);ZRE171..CVT..(HTWCF,HTWVM);NDE170,ZRE172,173..RHD..(18G,18GS,18V,20G,20V,GL,VL)201611-201907

SPORTY PACKAGE,SUPER WHITE 2,040

main69250-12020-A1iZRE172..18E..TH201611-201907

SPORTY PACKAGE,WHITE PEARL CS.,070

main69250-12020-A1iZRE171..G;ZRE172,173..RHD..(18G,18GS,18V,20V)201312-201907

WHITE PEARL CS.,070

main69250-12020-B0iZRE172..MA;ZRE172..ARL..(E,N);ZRE172..RHD..(18G,18GS,18V);ZRE171,173..RHD..CVT..(HTWC,HTWCF,HTWVM)201312-201907

SILVER ME.,1D4

main69250-12020-B0iZRE172..18E..TH201611-201907

SPORTY PACKAGE,SILVER ME.,1D4

main69250-12020-B1iNDE170,ZRE172..GL,VL201405-201906

SILVER M.M.,1E7

main69250-12020-B2iZRE172..18E..TH201312-201907

GRAY ME.,1F9

main69250-12020-B2iZRE172..MA;ZRE172..ARL..(E,N);ZRE172..RHD..(18G,18GS,18V);ZRE171,173..RHD..CVT..(HTWC,HTWCF,HTWVM)201611-201907

SPORTY PACKAGE,GRAY ME.,1F9

main69250-12020-B3iNDE170,ZRE172..GL,VL201405-201906

GRAY ME.,1G3

main69250-12020-C1iZRE172..18E..TH201611-201907

SPORTY PACKAGE,ATTITUDE BLACK MC.,218

main69250-12020-C1iZRE172,173..(18E,20G)..MA201312-201907

ATTITUDE BLACK MC.,218

main69250-12020-C2iNDE170,ZRE172..GL,VL201405-201906

BLACK MC.,215

main69250-12020-D0iZRE172..18E..TH201611-201907

SPORTY PACKAGE,RED M.M.,3R3

main69250-12020-D0iZRE172..MA;ZRE172..ARL..(E,N);ZRE172..RHD..(18G,18GS,18V);ZRE171,173..RHD..CVT..(HTWC,HTWCF,HTWVM)201312-201907

RED M.M.,3R3

main69250-12020-E0iZRE171,172..(ARL,SGP)..(E,G,N);ZRE172,173..RHD..(18G,18GS,18V,20V)201312-201610

DK. BROWN M.M.,4U3

main69250-12020-E2iZRE172..MA;ZRE172..ARL..(E,N);ZRE171..CVT..(HTWCF,HTWVM);NDE170,ZRE172,173..RHD..(18G,18GS,18V,20G,20V,GL,VL)201611-201907

SPORTY PACKAGE,PHANTOM BROWN ME.,4W9

main69250-12020-E2iZRE172..18E..TH201611-201907

PHANTOM BROWN ME.,4W9

main69250-12020-F0iNDE170,ZRE172..GL,VL201405-201906

BEIGE M.M.,587

main69250-12020-J0iNDE170,ZRE172..GL,VL201405-201702

BLUE ME.,8U6

main69250-12020-J1iZRE172..ARL..(E,N)201312-201907

TRUE BLUE M.M.,8W1

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69218-02030iNZE170,ZRE171..PKN201407-201605

BLACK MATERIAL

main69218-02260iZRE172..J201405-201906

NEW J PACKAGE,UNPAINTED

main69218-02260iZRE172..ARL..D;ZRE171..RHD..(16E,GLI,GXLI,XLI)201405-201707

main69218-02260iZRE172..J201405-201906

UNPAINTED

main69218-02904iZRE173..6F201310-201911

LESS COLOR

main69218-02905iZRE172..ARL..D;ZRE171,172..RHD..(16E,18E,GLI,GXLI,XLI)..(GEN,TH)201312-201405

LESS COLOR

sub69218-02260

main69250-02280-A0iZRE172..PKN201407-201707

CKD COLOR,000

main69250-02280-A1iZRE172..PKN201707

SUPER WHITE 2,040

main69250-02280-A2iZRE172..PKN201707

WHITE,045

main69250-02280-B0iZRE172..PKN201707

SILVER ME.,1D4

main69250-02280-B1iZRE172..PKN201707

GRAY ME.,1G3

main69250-02280-C0iZRE172..PKN201707

ATTITUDE BLACK MC.,218

main69250-02280-E0iZRE172..PKN201707

BRONZE M.M.,4T3

main69250-02280-E1iZRE172..PKN201707

PHANTOM BROWN ME.,4W9

main69250-02280-F0iZRE172..PKN201707

BEIGE M.M.,587

main69250-02280-J0iZRE172..PKN201707

DK. BLUE M.M.,8E9

main69250-02915iZRE172..18E..TH201312-201907

main69250-02915iZRE171..16G..TH201312-201601

SPORTY PACKAGE

main69250-02916iZRE172..18E..VN201312-202007

main69250-12010-A1iZRE172..TAIW..E201310-201609

SPORTY PACKAGE,SUPER WHITE 2,040

main69250-12010-A1iZRE171,173..GLI..GCC201310-202201

SUPER WHITE 2,040

main69250-12010-A2iZRE171,173..LHD..(16V,20V,GLI)201310-202201

WHITE PEARL CS.,070

main69250-12010-B0iZRE173..VN201312-202201

SILVER ME.,1D4

main69250-12010-B1iZRE171,173..GLI..GCC201310-201903

SILVER ME.,1F7

main69250-12010-B1iZRE172..TAIW..E201310-201609

SPORTY PACKAGE,SILVER ME.,1F7

main69250-12010-B2iZRE172..18G..VN201312-201907

GRAY ME.,1F9

main69250-12010-B3iZRE171,173..GLI..GCC201310-201903

GRAY ME.,1G3

main69250-12010-B3iZRE172..TAIW..E201310-201609

SPORTY PACKAGE,GRAY ME.,1G3

main69250-12010-B4iZRE172..G201310-201410

SPORTY PACKAGE,DK. STEEL MC.,1H2

main69250-12010-B4iZRE172..G201310-201410

DK. STEEL MC.,1H2

main69250-12010-C0iZRE172..TAIW..(E,G);ZRE171,173..GLI..GCC201310-201903

BLACK MC.,209

main69250-12010-C0iZRE172..G201310-201609

SPORTY PACKAGE,BLACK MC.,209

main69250-12010-C1iZRE171,173..LHD..(ATM,CVT)..(16V,20V,XLI)..(GEN,PHL)201312-202201

ATTITUDE BLACK MC.,218

main69250-12010-D0iZRE172..TAIW..E201312-201609

SPORTY PACKAGE,RED M.M.,3R3

main69250-12010-D0iZRE172..G201312-202201

RED M.M.,3R3

main69250-12010-E0iZZE172..GLI201310-201409

YANMER BEIGE,4Q0

main69250-12010-E1iZRE173..VN201312-201709

DK. BROWN M.M.,4U3

main69250-12010-E4iZRE172..18G..VN201610-202201

PHANTOM BROWN ME.,4W9

main69250-12010-E5iZRE171,173..GLI..GCC201610-201903

BEIGE ME.,4T8

main69250-12010-J0iZRE171,173..GLI..GCC201310-201609

BLUE ME.,8N0

main69250-12010-J1iZRE172..G201310-201609

DK.BLUE MC.,8S6

main69250-12010-J1iZRE172..G201310-201609

SPORTY PACKAGE,DK.BLUE MC.,8S6

main69250-12010-J2iZRE171..LHD..4FC..GEN201312-201907

TRUE BLUE M.M.,8W1

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69212-02110iNZE170,ZRE171..PKN201407-201605

NO PAINT REQ.

main69212-02902iZZE172..XLI201310-201707

PAINT REQ.

main69216-02020iZRE172..J201405-201906

PAINT REQ.,UNPAINTED

main69216-02020iNDE170..G201405-201906

PAINT REQ.,NEW J PACKAGE,UNPAINTED

main69216-02020iNDE170..G201405-201702

PAINT REQ.,HE PACKAGE,UNPAINTED

main69220-02210-A0iZRE172..PKN201407-201707

CKD COLOR,000

main69220-02210-A1iZRE172..PKN201707

SUPER WHITE 2,040

main69220-02210-A2iZRE172..PKN201707

WHITE,045

main69220-02210-B0iZRE172..PKN201707

SILVER ME.,1D4

main69220-02210-B1iZRE172..PKN201707

GRAY ME.,1G3

main69220-02210-C0iZRE172..PKN201707

ATTITUDE BLACK MC.,218

main69220-02210-E0iZRE172..PKN201707

BRONZE M.M.,4T3

main69220-02210-E1iZRE172..PKN201707

PHANTOM BROWN ME.,4W9

main69220-02210-F0iZRE172..PKN201707

BEIGE M.M.,587

main69220-02210-J0iZRE172..PKN201707

DK. BLUE M.M.,8E9

main69220-02907iZRE172,173..VN201310-202201

PAINT REQ.

main69220-12260-A1iZRE172..G201310-201609

SPORTY PACKAGE,SUPER WHITE 2,040

main69220-12260-A1iZZE172..GLI201310-202201

SUPER WHITE 2,040

main69220-12260-A2iZRE171,173..GLI..GCC201310-202201

WHITE PEARL CS.,070

main69220-12260-B0iZRE171,173..LHD..(ATM,CVT)..(16V,20V,XLI)..(GEN,PHL,VN)201312-202201

SILVER ME.,1D4

main69220-12260-B1iZRE172..G201310-201903

SILVER ME.,1F7

main69220-12260-B1iZRE172..TAIW..E201310-201609

SPORTY PACKAGE,SILVER ME.,1F7

main69220-12260-B2iZRE171,173..LHD..(ATM,CVT)..(16V,20V,XLI)..(GEN,PHL,VN)201312-201907

GRAY ME.,1F9

main69220-12260-B3iZRE172..TAIW..(E,G);ZRE171,173..GLI..GCC201310-201903

GRAY ME.,1G3

main69220-12260-B3iZRE172..G201310-201609

SPORTY PACKAGE,GRAY ME.,1G3

main69220-12260-B4iZRE172..TAIW..E201310-201410

SPORTY PACKAGE,DK. STEEL MC.,1H2

main69220-12260-B4iZRE172..G201310-201410

DK. STEEL MC.,1H2

main69220-12260-C0iZRE171,173..4FC..GLI..GCC201310-201903

BLACK MC.,209

main69220-12260-C0iZRE172..G201310-201609

SPORTY PACKAGE,BLACK MC.,209

main69220-12260-C1iZRE171,173..LHD..(ATM,CVT)..(16V,20V,XLI)..(GEN,PHL)201312-202201

ATTITUDE BLACK MC.,218

main69220-12260-D0iZRE172..TAIW..E201312-201609

SPORTY PACKAGE,RED M.M.,3R3

main69220-12260-D0iZRE172..VN201312-202201

RED M.M.,3R3

main69220-12260-E0iZZE172..GLI201310-201409

YANMER BEIGE,4Q0

main69220-12260-E1iZRE173..VN201312-201709

DK. BROWN M.M.,4U3

main69220-12260-E4iZRE171..LHD..4FC;ZRE172..TAIW..(E,G);ZRE171,173..LHD..(16V,20V,GLI)201610-202201

PHANTOM BROWN ME.,4W9

main69220-12260-E5iZRE171,173..GLI..GCC201610-201903

BEIGE ME.,4T8

main69220-12260-J0iZRE171,173..GLI..GCC201310-201609

BLUE ME.,8N0

main69220-12260-J1iZRE171,173..4FC..GLI..GCC201310-201609

DK.BLUE MC.,8S6

main69220-12260-J1iZRE172..TAIW..E201310-201609

SPORTY PACKAGE,DK.BLUE MC.,8S6

main69220-12260-J2iZRE171..LHD..4FC..GEN201312-201907

TRUE BLUE M.M.,8W1

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-02100iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201709

RH

main69242-02090iZRE171,173..CVT..GCC201310-201709

LH

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69241-02110iZRE171..HTWC..TH201310-201709

RH

main69242-02100iZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH201310-201709

LH

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-33010iZZE172201310-201709

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-33020iZZE172201310-201709

69310LOCK ASSY, FRONT DOOR, RH

main69030-02470iZRE171..16J..CNG201312-202208

main69030-02480iZRE172,173..VN201312-202201

main69030-02490iZRE171..16E..PHL201312-201610

main69030-02580iZRE171..6F..GLI201310-201903

main69030-02590iZRE171..6F..XLI..GCC201310-201903

main69030-02600iZRE171..6F..XLI..GEN201312-201907

main69030-02610iNDE170,ZRE172..IND201405-201906

main69310-02160iNZE170..XLI201407-201911

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-02280iZRE172..CVT..VN201312-202208

main69311-02300iZRE17#..GCC,TAIW201310-201903

main69311-02330iNDE170,ZRE172..IND201405-201906

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-02280iNZE170,ZRE171,172..PKN201312-202208

main69312-02300iZRE173..6F;ZRE171..6F..GLI201310-201903

main69312-02330iNDE170,ZRE172..IND201405-201906

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iZRE172,173..VN201310-202208

69320LOCK ASSY, FRONT DOOR, LH

main69040-02450iZRE171,173..LHD..(GEN,PHL)201312-202201

main69040-02460iZRE171..N;NZE170..GLI201312-201610

main69040-02470iZRE172,173..(18E,20G)..MA201312-202109

main69040-02480iZRE172,173..(18E,20G)..MA201312-201410

main69040-02550iZRE171..N;NZE170..GLI201312-202208

main69040-02560iZRE171,173..4FC..GCC201310-201903

main69040-02570iNDE170,ZRE172..IND201405-201906

main69320-02160iNZE170..XLI201407-201911

69395BUSH(FOR DOOR OUTSIDE HANDLE)

main69239-0T010iZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH201310-201709

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-02040iZZE172201310-201709

main69410-02040iZRE172..CVT..VN;ZRE172..18E..VN;ZRE172..ARL,IDN,MA,TAIW,TH;ZRE171,173..GCC,GEN,MA,PHL,SGP,TH,VN201610-202201

(L)

main69410-0D050iNDE170,ZRE172..IND201405-201906

main69410-0K010iNZE170;ZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201407-202208

main69410-20110iZRE172..CVT..VN;ZRE172..18E..VN;ZRE172..ARL,IDN,MA,TAIW,TH;ZRE171,173..GCC,GEN,MA,PHL,SGP,TH,VN201610-201907

(J)

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-02260iZRE172..18E..VN;ZRE171..4FC..GEN;ZRE172..6F..(ARL,IDN);NZE170,ZRE173..MA,PHL,PKN,VN;ZRE172..CVT..(ARL,IDN,MA,PKN,TH);ZRE171..(CVT,MTM)..(GEN,PHL,PKN,SGP,TH)201312-202208

main69710-02280iZRE171,173..4FC..GCC201310-201903

main69710-02330iNDE170,ZRE172..IND201405-201906

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-02260iZRE172..18E..VN;ZRE171..4FC..GEN;ZRE172..6F..(ARL,IDN);NZE170,ZRE173..MA,PHL,PKN,VN;ZRE172..CVT..(ARL,IDN,MA,PKN,TH);ZRE171..(CVT,MTM)..(GEN,PHL,PKN,SGP,TH)201312-202208

main69710-02280iZRE173..6F;ZRE171..6F..GLI201310-201903

main69710-02330iNDE170,ZRE172..IND201405-201906

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-02290iZRE172..6F..PKN201312-202208

main69750-02310iZZE172201310-201903

main69750-02360iNDE170,ZRE172..IND201405-201906

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-02290iZRE171..HTWC..TH201312-202208

main69750-02310iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201903

main69750-02360iNDE170,ZRE172..IND201405-201906

692370T010RETAINER, DOOR OUTSIDE HANDLE

main69237-0T010

6929602020SCREW, DOOR INSIDE HANDLE

main69296-02020

6929606070SCREW, DOOR INSIDE HANDLE

main69296-06070

9014860083

main90148-60083

9014880066

main90148-80066

90148T0015

main90148-T0015

90167T0010

main90167-T0010

9018905003

main90189-05003

9356855016

main93568-55016

35 parts on this diagram · 1 diagram in section
