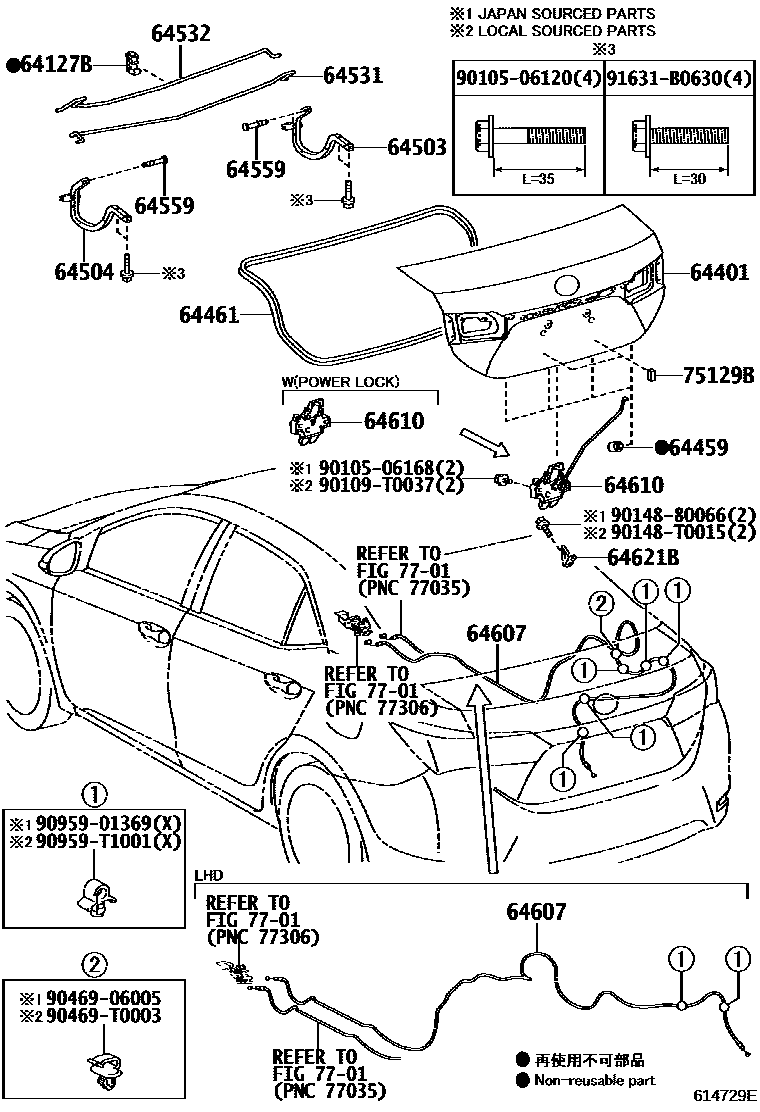

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-33071iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-201512

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-02B60iZZE172..XLI201310-201409

main64401-02B61supersedes 64401-02B71iZRE171..16G..TH201506-201601

main64401-02B70iZZE172..GLI201310-201409

main64401-02B71supersedes 64401-02B61iZRE172..IDN,MA;ZRE171..LHD..4FC;ZRE172..TAIW..(E,G);ZRE171..CVT..(HTWCF,HTWVM);NDE170,ZRE171,173..(20G,20V,GL,GLI)..(GCC,IND,MA)201610-202201

main64401-02C01iZRE172,173..(18GS,20V)..(PHL,TH,VN)201611-202007

main64401-02C20iZRE172..ARL..D201312-201506

main64401-02C21iZRE172..ARL..D201506-201610

main64401-02C30iZRE172..ARL..(E,N);NDE170,ZRE172..(18GS,18V,GL,VL)..(IND,TH)201312-201506

main64401-02C31iZRE172..GL,VL201506-201702

W/BACK CAMERA HOLE

main64401-02C50iZRE172,173..(18E,20G)..MA201312-201410

main64401-02C51supersedes 64401-02B61iNZE170..XLI201506-201707

main64401-02D90iZRE172..TAIW..(D,E);ZRE171..6F..XLI..GCC201506-201609

main64401-02E00iZRE171,173..GLI..GCC201512-201609

main64401-02B90supersedes 64401-02B71iZRE171,173..4FC..GLI..GCC201410-201506

SPORTY PACKAGE

main64401-02B91iZRE172..18E..TH201611-201907

SPORTY PACKAGE

main64401-02C10iZRE172..18E..TH201312-201506

SPORTY PACKAGE

main64401-02C11iZRE171..GLI..GEN201611-201907

CARIBBEAN NATIONS SPEC

main64401-02E10iZRE172..G;ZRE171,173..GLI..GCC; ZRE172..TAIW..E201512-201609

SPORTY PACKAGE&X PACKAGE(REAR EMBLEM "X"); X PACKAGE(REAR EMBLEM "X")

main64401-02E20iZRE171..6F..XLI..GCC201506-201609

LOW FLEET PACKAGE

main64401-02E30iZRE172..TAIW..(D,E)201512-201609

X PACKAGE(REAR EMBLEM "X")

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09069×4iZZE172201310-201409

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-02220iZRE172..CVT..VN201610-202201

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-02180iZRE171,173..CVT..GCC201512-201609

main64503-02181iNZE170,ZRE171,172..PKN201506-201707

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-02180iZZE172201310-201409

main64503-02181iZRE171..4FC..N201610-202208

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-02290iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

main64531-02291iZRE171,173..4FC..GCC201506-201510

main64531-02310supersedes 64531-02322iZRE173..MA;NDE170,ZRE171,172..ARL,GEN,IDN,IND,MA,PHL,SGP,TH,VN; ZRE173..PHL201312-201506

LAOS SPEC

main64531-02311iNDE170,ZRE171,172..(DCR,HTWC)..(IND,TH); ZRE173..PHL201506-201510

LAOS SPEC

main64531-02312supersedes 64531-02322iZRE171..HTWC..TH; ZRE173..PHL201510-201601

LAOS SPEC

main64531-02320iZRE172..18E..TH; ZRE173..LHD..20V201312-201506

SPORTY PACKAGE

main64531-02322iZRE172,173..(18GS,20V)..(PHL,TH,VN)201611-202007

main64531-02520iNZE170,ZRE171,172..PKN201604-201707

main64531-02300iZRE172..TAIW..E; ZRE172..TAIW;ZRE171,173..GLI..GCC201601-201609

SPORTY PACKAGE&X PACKAGE(REAR EMBLEM "X"); X PACKAGE(REAR EMBLEM "X")

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-02290iNZE170,ZRE172..PKN;ZRE171,173..4FC..(GCC,PKN)201310-201506

main64532-02291iNZE170,ZRE171,172..PKN201506-201603

main64532-02310supersedes 64532-02322iZRE173..MA;NDE170,ZRE171,172..ARL,GEN,IDN,IND,MA,PHL,SGP,TH,VN; ZRE173..PHL201312-201506

LAOS SPEC

main64532-02311iNDE170,ZRE171,172..(DCR,HTWC)..(IND,TH); ZRE173..PHL201506-201510

LAOS SPEC

main64532-02312supersedes 64532-02322iZRE172..ARL;ZRE172..6F..(18E,G,GL,J);ZRE172,173..RHD..(18G,20G,20V);ZRE172..CVT..(18E,18G,18V,G,VL);NDE170,ZRE171..GEN,IND,PHL,SGP,TH201611-202201

main64532-02320iZRE172..18E..TH; ZRE173..LHD..20V201312-201506

SPORTY PACKAGE

main64532-02322iZRE172,173..(18GS,20V)..(PHL,TH,VN)201611-202007

main64532-02520iNZE170,ZRE173..GCC,PKN;ZRE172..CVT..(PKN,TAIW);ZRE171..(CVT,MTM)..(GCC,PKN)201610

main64532-02300iZRE172..TAIW..E; ZRE172..TAIW;ZRE171,173..GLI..GCC201601-201609

SPORTY PACKAGE&X PACKAGE(REAR EMBLEM "X"); X PACKAGE(REAR EMBLEM "X")

64559PIN, LUGGAGE DOOR HINGE

main64559-12040×2iZRE171..HTWC..TH201310-201601

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-02380iNZE170,ZRE171,172..PKN201312-201707

main64607-02390iNDE170,ZRE172..IND201405-201702

main64607-02400iZRE171,173..LHD..(GEN,PHL)201312-201610

main64607-02410iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-02080iZRE171..4FC..N201610-202208

main64610-02200iZRE172,173..(18E,20G)..MA201312-201410

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-06080iZRE171..16J..CNG201312-201512

main64621-33030iZZE172201310-201409

75129BCUSHION, REAR LICENCE PLATE

main75129-13010×2iZRE172..TAIW201310-201609

main75129-21010×2iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-201512

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9010506120

main90105-06120

9010506168

main90105-06168

90109T0037

main90109-T0037

9014880066

main90148-80066

90148T0015

main90148-T0015

9046906005

main90469-06005

90469T0003

main90469-T0003

9095901369

main90959-01369

90959T1001

main90959-T1001

91631B0630

main91631-B0630

24 parts on this diagram · 1 diagram in section
