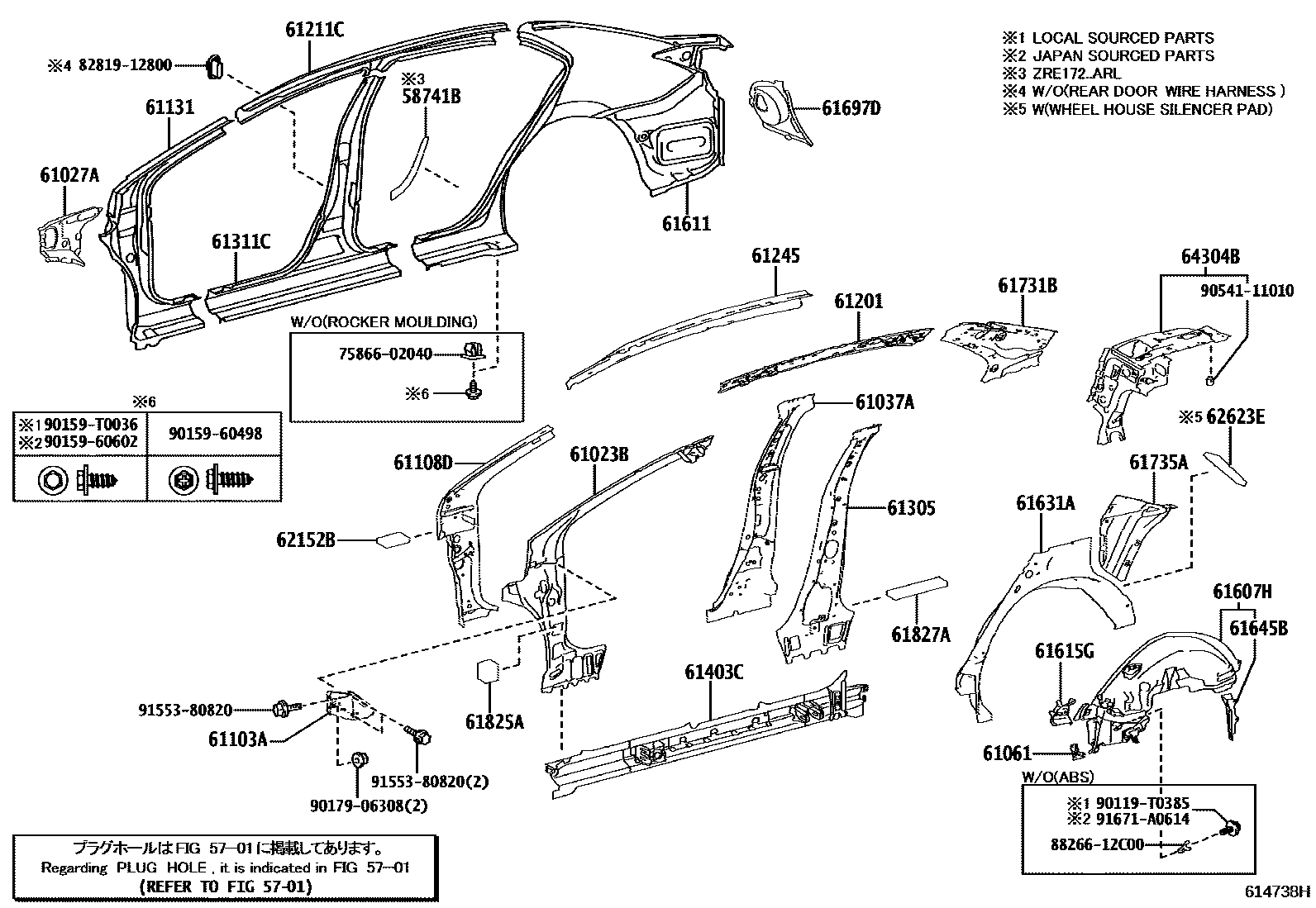

SIDE MEMBER

0001 1RH 0002 1LH

5701HOLE PLUG

→ Go to FIG 57-01

58741BPROTECTOR, QUARTER PANEL, RH

main58741-02200iZRE172..ARL201312-201610

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-02250iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-02040iZZE172201310-201409

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-02917iZZE172201310-201409

61061REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH

main61061-02080iZZE172201310-201409

61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH

main61103-02190iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-201512

61108DREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH

main61108-02221iZZE172201310-201409

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-02230supersedes 61131-02320iNDE170,ZRE172..IND201310-201702

main61131-02320iZRE172..6F..PKN201611-202109

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-02230iZZE172201310-201409

main61201-02400iZRE172..6F..PKN201804-202109

main61201-02410iNDE170201809-201906

61211CRAIL, ROOF SIDE, RH

main61211-02150iNDE170,ZRE172..IND201310-201702

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-02220iZZE172201310-201409

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-02140iZRE171..CVT,MTM;ZRE171..4FC..GEN;ZRE172..18G..IDN;NDE170,NZE170,ZRE173;ZRE172..6F..(18E,G,GL,J);ZRE172..CVT..(IDN,IND,MA,PKN,TAIW,TH)201610

main61305-02150iZRE172..ARL201312-201610

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-02190supersedes 61311-02310iZZE172201310-201409

main61311-02310iZRE172..6F..PKN201611-202109

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-02902iNZE170,ZRE171,172..PKN201310-201707

61607HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH

main61607-02680iZRE171..16J..CNG201312-201512

main61607-02690iZRE171..N;NZE170..GLI201310-201707

main61607-02700iZRE171,173..GLI..GCC201512-201609

main61607-02710iNDE170,ZRE172..IND201312-201702

61611PANEL, QUARTER, RH

main61601-02270supersedes 61601-02420iZZE172201310-201409

main61601-02420iZRE172..6F..PKN201611-202109

61615GREINFORCEMENT, REAR BODY REAR SIDE PANEL, RH

main61615-02120iZZE172201310-201409

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-02200iZRE171..HTWC..TH201310-201601

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-12150iNDE170,ZRE172..IND201310-201702

61697DHOUSING, QUARTER PANEL END, RH

main61697-02913iZZE172201310-201409

61731BPANEL, ROOF SIDE, INNER RH

main61731-02290iZRE172,173..VN201310-201709

main61731-02450iZRE171..4FC..GEN;ZRE172..RHD..CVT;ZRE172..6F..(ARL,IDN,IND,VN);ZRE171..(CVT,MTM)..(GEN,PHL,PKN,SGP,TH);NDE170,NZE170,ZRE173..IND,MA,PHL,PKN,VN201711

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-02190iZRE172..6F..PKN201610-202109

61825APLATE, NOISE CONTROL, NO.2

main61825-02080×2iZRE171..HTWC..TH201310-201601

61827APLATE, NOISE CONTROL, NO.4

main61827-02070×2iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-201512

62152BPAD, COWL SIDE SILENCER, NO.2

main62152-02050×2iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH201312-201610

main62152-12050×2iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

62623EPAD, QUARTER WHEEL HOUSE, INNER REAR RH

main62623-02090iZZE172201310-201409

64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH

main64304-02190iZZE172..XLI201310-201409

main64304-02200iZRE171,173..GLI..GCC201512-201609

7586602040MOULDING, REAR QUARTER PANEL, LH

main75866-02040

8281912800GROMMET, WIRING HARNESS

main82819-12800

8826612C00CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-12C00

90119T0385

main90119-T0385

9015960498

main90159-60498

9015960602

main90159-60602

90159T0036

main90159-T0036

9017906308

main90179-06308

9054111010

main90541-11010

9155380820

main91553-80820

91671A0614

main91671-A0614

39 parts on this diagram · 2 diagrams in section
