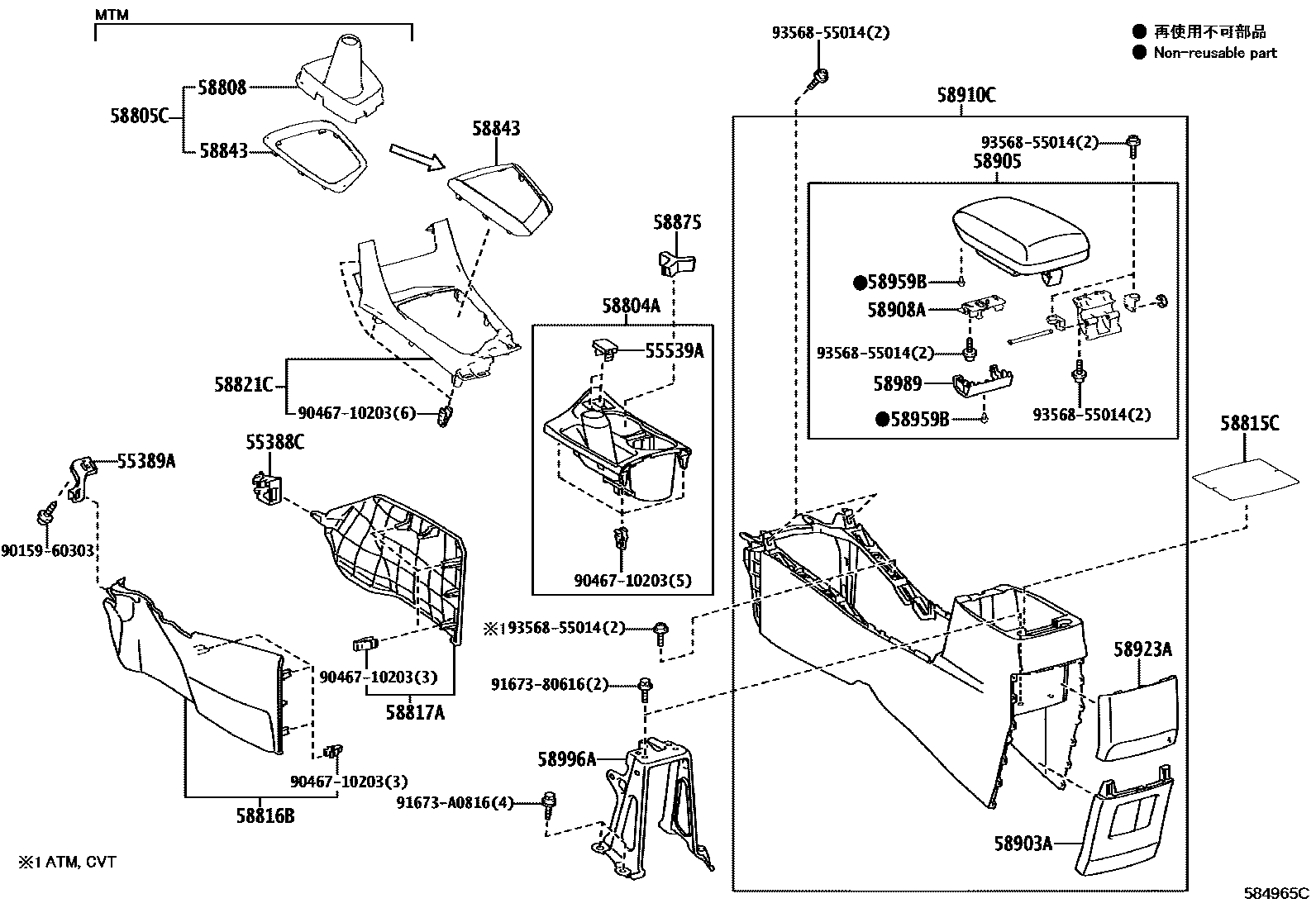

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1 0005 1W(SLIDE DOOR)

55388CBRACKET, CONSOLE MOUNTING, RH

main55388-02070iZRE171,173..4FC..GCC201310-202201

main55389-02060iZRE171..HTWC..TH201312-201707

55389ABRACKET, CONSOLE MOUNTING, LH

main55388-02080iZRE171..HTWC..TH201312-201707

main55389-02050iZRE172,173..VN201310-202201

55539ACOVER, SPARE SWITCH HOLE

main55539-0D090-C0iZRE172..TAIW..(E,G)201310-201709

BLACK,TRIM0#,2#

main55539-0D090-C0iZRE172..TAIW..(E,G)201310-201907

BLACK,TRIM2#

main55539-0D090-C0iZRE172..TAIW..(E,G)201310-201907

BLACK,TRIM0#,1#

main55539-0D090-C0iZRE171..16J201312-201511

BLACK,TRIM1#,2#

main55539-0D090-C0iZRE172..IDN;ZRE171..CVT..(CNG,HTWCF)201312-201709

BLACK,TRIM0#

main55539-0D090-C0iZRE171..16E..PHL201511-201907

BLACK,TRIM1#

main55539-0D090-C0iZRE171..16G..TH201312-201907

BLACK,TRIM0#,1#,2#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-02300-C0iZRE173..VN;ZRE172..TAIW..D201310-201510

BLACK,TRIM0#,2#

sub58804-02301

main58804-02300-C0iZZE172..GLI201310-201510

BLACK,TRIM0#,1#,2#

sub58804-02301

main58804-02300-C0iZRE171..16E..PHL201310-201510

BLACK,TRIM0#,1#

sub58804-02301

main58804-02300-C0iZRE171..16E..PHL201310-201510

BLACK,TRIM2#

sub58804-02301

main58804-02300-C0iZRE172..6F..VN201409-201510

BLACK,TRIM0#

sub58804-02301

main58804-02301-C0iZRE172..6F..VN201512-201709

BLACK,TRIM2#

main58804-02301-C0iZRE171..6F..(16E,XLI)..(GEN,PHL)201511-201610

BLACK,TRIM0#,1#

main58804-02301-C0iZRE171..6F..(16E,XLI)..(GEN,PHL)201511-201709

BLACK,TRIM0#,2#

main58804-02301-C0iZRE172..6F..VN201605-201709

BLACK,TRIM0#

main58804-02301-C0iZRE172,173..VN201511-201605

BLACK,TRIM0#,1#,2#

main58804-02310-C0iZRE171..LHD..4FC..GEN201312-201510

BLACK,TRIM0#,1#

sub58804-02311

main58804-02310-C0iZRE171..LHD..4FC..GEN201312-201510

BLACK,TRIM0#,2#

sub58804-02311

main58804-02311-C0iZRE171..LHD..4FC..GEN201511-201610

BLACK,TRIM2#

main58804-02311-C0iZRE173..PHL201511-201610

BLACK,TRIM0#,2#

main58804-02311-C0iZRE173..PHL201511-201610

BLACK,TRIM0#,1#

main58804-02320-C0iZRE171,173..XLI..GCC201310-201510

BLACK,TRIM0#,1#

sub58804-02321

main58804-02320-C0iZZE172..XLI201310-201409

BLACK,TRIM0#,1#,2#

sub58804-02321

main58804-02321-C0iZRE171,173..CVT..XLI201511-201609

BLACK,TRIM0#,1#

main58804-02330-C0iZRE172..18E..TH;ZRE171..RHD..CVT..HTWC201312-201510

BLACK,TRIM0#,1#

sub58804-02331

main58804-02330-C0iZRE171..RHD..GEN201312-201510

BLACK,TRIM0#

sub58804-02331

main58804-02330-C0iZRE171..RHD..GEN201312-201510

BLACK,TRIM2#

sub58804-02331

main58804-02330-C0iZRE171..RHD..GEN201312-201510

BLACK,TRIM0#,2#

sub58804-02331

main58804-02331-C0iNDE170..G201511-201702

HE PACKAGE,BLACK,TRIM0#

sub58804-02351

main58804-02331-C0iZRE171..16G..TH201511-201702

BLACK,TRIM0#

sub58804-02351

main58804-02331-C0iZRE172..J201511-201702

NEW J PACKAGE,BLACK,TRIM0#

sub58804-02351

main58804-02331-C0iZRE171..RHD..GEN201511-201610

BLACK,TRIM0#,1#

sub58804-02351

main58804-02331-C0iZRE171..RHD..GEN201511-201610

BLACK,TRIM0#,2#

sub58804-02351

main58804-02331-C0iZRE171..RHD..GEN201511-201610

BLACK,TRIM2#

sub58804-02351

main58804-02340-C0iZRE171..16J201312-201510

BLACK,TRIM1#,2#

sub58804-02341

main58804-02341-C0iZRE171..16J..HTWC201511-201907

BLACK,TRIM1#

sub58804-02810

main58804-02350-C0iNDE170,ZRE172..(18V,G,GL,VL)..(IDN,IND)201312-201510

BLACK,TRIM2#

sub58804-02351

main58804-02350-C0iZRE173..20V..MA201312-201510

BLACK,TRIM0#

sub58804-02351

main58804-02351-C0iZRE172..18V..IDN201511-201702

BLACK,TRIM0#

main58804-02351-C0iZRE172,173..MA201511-201610

BLACK,TRIM2#

main58804-02360-C0iNZE170,ZRE171,172..PKN201407-201601

BLACK,TRIM0#

sub58804-02361

main58804-02361-C0iNZE170,ZRE171,172..PKN201602-201707

BLACK,TRIM0#

main58804-02620-C0iZRE172,173..MA201611-201907

BLACK,TRIM2#

sub58804-02810

main58804-02620-C0iZRE172,173..MA201611-201907

BLACK,TRIM0#

sub58804-02810

main58804-02630-C0iZRE172,173..CVT..VN;ZRE172..TAIW..(E,G)201610-202201

BLACK,TRIM0#,2#

main58804-02630-C0iZRE172..TAIW..D201610-201903

BLACK,TRIM2#

main58804-02630-C0iZRE172..TAIW..D201610-201903

BLACK,TRIM0#,1#,2#

main58804-02630-C0iZRE172..TAIW..D201610-201903

BLACK,TRIM0#,1#

main58804-02640-C0iZRE173..PHL201611-201907

BLACK,TRIM2#

main58804-02660-C0iZRE172..18E..TH201611-201907

BLACK,TRIM2#

sub58804-02810

main58804-02660-C0iZRE172..CVT..ARL;ZRE172..(18GS,18V)..TH201611-201907

BLACK,TRIM0#,2#

sub58804-02810

main58804-02700-C0iZRE172..CVT..PKN201707

UP GRADE PACKAGE&MLM PACKAGE,BLACK,TRIM0#,2#

main58804-02700-C0iZRE172..CVT..PKN201707

BLACK,TRIM0#,2#

main58804-02770-C0iZRE171..(CVT,MTM)..(16E,XLI)..HTWC201610-201907

BLACK,TRIM0#,1#

main58804-02770-C0iZRE171..GLI..GCC201610-201903

BLACK,TRIM0#,1#,2#

main58804-02770-C0iZRE171..16G..PHL201611-201907

BLACK,TRIM0#,2#

main58804-02780-C0iZRE171..16V201611-201907

BLACK,TRIM0#,2#

main58804-02780-C0iZRE171..16V201611-201907

BLACK,TRIM0#,1#,2#

main58804-02790-C0iZRE171..RHD..GEN201611-201907

BLACK,TRIM0#,2#

sub58804-02810

main58804-02790-C0iZRE171,172..RHD..(16E,16G,18G)201611-201907

BLACK,TRIM2#

sub58804-02810

main58804-02790-C0iZRE171,172..RHD..(16E,16G,18G)201611-201907

BLACK,TRIM0#,1#

sub58804-02810

main58804-02790-C0iZRE171,172..RHD..(16E,16G,18G)201611-201907

BLACK,TRIM0#

sub58804-02810

main58804-02800-C0iZRE172..18E..VN201709-202007

BLACK,TRIM0#

main58804-02810-C0iNDE170,ZRE172..6F..(G,GL)201703-201906

BLACK,TRIM0#

main58804-02820-C0iNDE170..G201703-201906

NEW J PACKAGE,BLACK,TRIM0#

sub58804-02810

main58804-02820-C0iNDE170..G201703-201906

BLACK,TRIM0#

sub58804-02810

main58804-02830-C0iNZE170,ZRE171..PKN201707

BLACK,TRIM0#

main58804-02830-C0iZRE172..6F..PKN201707-202109

BLACK,TRIM0#,2#

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-02070iZRE171..6F..XLI..GCC201310-201609

main58805-02080iZRE171..6F..GCC201610-201903

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-02380-C0iZRE171..6F..(16E,XLI)..(GEN,PHL)201310-201907

BLACK,TRIM0#,1#

main58808-02380-C0iZRE171..6F..16G201312-201907

BLACK,TRIM0#,2#

main58808-02380-C0iZRE171..16E..PHL201312-201610

BLACK,TRIM0#,1#,2#

main58808-02380-C0iZRE172..18E..VN201409-202007

BLACK,TRIM0#

main58808-02390-C0iZRE171..16J201312-201907

BLACK,TRIM0#,1#

main58808-02390-C0iZRE171..16J201312-201907

BLACK,TRIM0#

main58808-02390-C0iZRE171..16J201601-201907

BLACK,TRIM1#

main58808-02390-C0iZRE172..6F..ARL201312-201907

BLACK,TRIM2#

main58808-02390-C0iZRE171..16J..CNG201312-201601

BLACK,TRIM1#,2#

main58808-02400-C0iZRE172..6F..PKN201707-202109

BLACK,TRIM0#,2#

main58808-02400-C0iZRE171..6F..N201407-201911

BLACK,TRIM0#

main58808-02410-C0iNDE170,ZRE172..6F..IND201405-201906

BLACK,TRIM0#

58815CCARPET, CONSOLE BOX

main58815-02310iNDE170,ZRE172..IND201312-202201

main58815-02330iZRE173..6F;ZRE171..6F..GLI201310-201903

main58815-02340iNZE170,ZRE171,172..PKN201407-201707

58816BINSERT, CONSOLE BOX

main58816-02230-C0iZRE172..TAIW..(E,G)201310-202201

BLACK,TRIM0#,2#

main58816-02230-C0iZRE172..TAIW..(E,G)201310-201907

BLACK,TRIM2#

main58816-02230-C0iZRE172..TAIW..(E,G)201310-201907

BLACK,TRIM0#,1#

main58816-02230-C0iZRE173..PHL;ZRE172..TAIW..D201310-201907

BLACK,TRIM0#,1#,2#

main58816-02230-C0iZRE172..18E..VN201409-202007

BLACK,TRIM0#

main58816-02240-C0iZRE171..16J201312-201907

BLACK,TRIM0#,2#

main58816-02240-C0iZRE171..16J..CNG201312-201601

BLACK,TRIM1#,2#

main58816-02240-C0iZRE171..RHD..GEN201312-201907

BLACK,TRIM0#,1#

main58816-02240-C0iZRE171..RHD..GEN201312-201907

BLACK,TRIM2#

main58816-02240-C0iZRE171..RHD..GEN201312-201907

BLACK,TRIM0#

main58816-02240-C0iZRE171..16J201601-201907

BLACK,TRIM1#

main58816-02250-C0iNDE170,ZRE172..IND201405-201906

BLACK,TRIM0#

main58816-02270-C0iZRE172..PKN201407-202406

BLACK,TRIM0#

sub58816-02271

main58816-02270-C0iNZE170,ZRE171..PKN201707-202406

BLACK,TRIM0#,2#

sub58816-02271

main58816-02271-C0iZRE171202407

BLACK,TRIM0#

main58816-02271-C0iZRE171202407

BLACK,TRIM0#,2#

main58816-02330-C0iNZE170201510-201707

BLACK,TRIM0#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-02230-C0iZRE171..6F..XLI..GCC201310-202201

BLACK,TRIM0#,2#

main58817-02230-C0iZRE171..6F..XLI..GCC201310-201907

BLACK,TRIM2#

main58817-02230-C0iZRE171..6F..XLI..GCC201310-201907

BLACK,TRIM0#,1#

main58817-02230-C0iZRE171..LHD..GEN201310-201907

BLACK,TRIM0#,1#,2#

main58817-02230-C0iZRE172..6F..VN201409-202007

BLACK,TRIM0#

main58817-02240-C0iZRE171..RHD..GEN201312-201907

BLACK,TRIM0#

main58817-02240-C0iZRE171..16J..CNG201312-201601

BLACK,TRIM1#,2#

main58817-02240-C0iZRE171..16G..TH201312-201907

BLACK,TRIM0#,2#

main58817-02240-C0iZRE171..RHD..GEN201312-201907

BLACK,TRIM0#,1#

main58817-02240-C0iZRE171..RHD..GEN201312-201907

BLACK,TRIM2#

main58817-02240-C0iZRE171..16J201601-201907

BLACK,TRIM1#

main58817-02250-C0iNDE170,ZRE172..IND201405-201906

BLACK,TRIM0#

main58817-02270-C0iZRE172..PKN201407-202406

BLACK,TRIM0#

sub58817-02271

main58817-02270-C0iNZE170,ZRE171..PKN201707-202406

BLACK,TRIM0#,2#

sub58817-02271

main58817-02271-C0iZRE172202407

BLACK,TRIM0#,2#

main58817-02271-C0iZRE171202407

BLACK,TRIM0#

main58817-02340-C0iNZE170201510-201707

BLACK,TRIM0#

58821CPANEL, CONSOLE, UPPER

main58821-02780-C0iZRE171,173..(CVT,MTM)..(16E,XLI)..HTWC201310-201907

BLACK,TRIM0#,1#

main58821-02780-C0iZRE171,173..(CVT,MTM)..(16E,XLI)..HTWC201310-201907

BLACK,TRIM2#

main58821-02780-C0iZRE173..PHL;ZRE172..TAIW..D201610-201907

BLACK,TRIM0#,1#,2#

main58821-02780-C0iZRE172..TAIW..(E,G)201310-202201

BLACK,TRIM0#,2#

main58821-02780-C0iZRE172..6F..VN201409-202007

BLACK,TRIM0#

main58821-02790-C0iZRE171..G;ZRE172..18E..TH201312-201907

BLACK,TRIM0#,1#

main58821-02790-C0iZRE171..16J..CNG201312-201907

BLACK,TRIM1#

main58821-02790-C0iZRE171..16G..TH201312-201907

BLACK,TRIM0#

main58821-02790-C0iZRE171..RHD..GEN201312-201907

BLACK,TRIM2#

main58821-02790-C0iZRE171..RHD..GEN201312-201907

BLACK,TRIM0#,2#

main58821-02800-C0iZRE172..PKN201407-202502

BLACK,TRIM0#

main58821-02800-C0iNZE170,ZRE171..PKN201707-202502

BLACK,TRIM0#,2#

main58821-02810-C0iNDE170,ZRE172..IND201405-201906

BLACK,TRIM0#

58843BEZEL, SHIFTING HOLE

main58843-02600iZRE171..6F..XLI..GCC201310-201709

main58843-02610iZRE172..TAIW201310-201709

main58843-02620iZRE171..16J..HTWC201312-201707

sub58843-02A80

main58843-02630iZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..RHD..(ATM,CVT)..(GEN,MA,SGP)201312-201707

sub58843-02A90

main58843-02640iNDE170,ZRE172..6F..IND201405-201702

main58843-02A60iZRE171,172..6F..(16E,16G,18E,XLI)201610-202007

main58843-02A70iZRE17#..LHD..(ATM,CVT)201610-202201

main58843-02A80iNZE170,ZRE171,172..RHD..MTM..(ARL,GEN,IDN,PKN,TH)201611

main58843-02A90iNZE170,ZRE17#..RHD..(ATM,CVT)201611

main58843-02B00iNDE170,ZRE172..6F..IND201703-201906

58875SPACER, CONSOLE BOX

main58875-02010iZRE171,173..CVT..GCC201310-201907

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-02010-C0iZRE171..RHD..GEN;ZRE171..6F..(16E,XLI)..(GEN,PHL)201312-201907

BLACK,TRIM0#,1#

main58903-02010-C0iZRE172..ARL,MA;ZRE172,173..(18GS,18V,20G,20V)..(MA,PHL,TH)201312-201907

BLACK,TRIM2#

main58903-02010-C0iZRE172..ARL,MA;ZRE172,173..(18GS,18V,20G,20V)..(MA,PHL,TH)201312-201907

BLACK,TRIM0#,1#,2#

main58903-02010-C0iZRE172..ARL,MA;ZRE172,173..(18GS,18V,20G,20V)..(MA,PHL,TH)201601-201907

BLACK,TRIM1#

main58903-02010-C0iZRE171..GEN201312-202201

BLACK,TRIM0#,2#

main58903-02010-C0iZRE171..GEN201312-202007

BLACK,TRIM0#

main58903-02010-C0iZRE171..16J..CNG201312-201601

BLACK,TRIM1#,2#

main58903-02030-C0iZRE172..TAIW..D201310-201903

BLACK,TRIM0#,2#

main58903-02030-C0iZZE172..XLI201310-201903

BLACK,TRIM0#,1#,2#

main58903-02030-C0iZZE172..XLI201310-201903

BLACK,TRIM0#,1#

main58903-02030-C0iZRE172..TAIW..(E,G)201310-201903

BLACK,TRIM2#

main58903-02040-C0iNZE170,ZRE171..PKN201707

BLACK,TRIM0#,2#

main58903-02040-C0iZRE172..PKN201407-201707

BLACK,TRIM0#

main58903-02050-C0iNDE170,ZRE172..IND201405-201906

BLACK,TRIM0#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-02A40-A0iZRE172..TAIW..(E,G)201610-201903

FLAXEN,TRIM0#

main58905-02A40-C0iZRE172..TAIW201610-201903

BLACK,TRIM2#

main58905-02A90-A1iZRE172..J201312-201702

IVORY/BLACK,TRIM0#

main58905-02A90-A2iZRE171,172..(16E,18G,J)..(IDN,IND,PHL)201611-201907

FLAXEN/BLACK,TRIM0#

main58905-02A90-B1iZRE171..16J..CNG201312-201907

GRAY/BLACK,TRIM1#

main58905-02B00-A2iNDE170,ZRE172..G201312-201709

IVORY/BLACK,TRIM0#

main58905-02B00-A4iZRE171..(16G,16V)..PHL;ZRE172..(18E,G)..(IND,TH,VN);NDE170,ZRE171..RHD..(CNG,DCR,HTWC,HTWVM)..(GEN,IND,SGP,TH)201611-202007

FLAXEN/BLACK,TRIM0#

main58905-02B00-B2iZRE171..RHD..GEN201312-201907

GRAY/BLACK,TRIM1#

main58905-02B00-C1iZRE173..20G201312-201907

BLACK/BLACK,TRIM2#

main58905-02B10-A2iZRE172..GL,VL201312-201709

IVORY/BLACK,TRIM0#

main58905-02B10-A2iZRE172..18V..IDN;ZRE171..16G..HTWCF201312-201610

SPORTY PACKAGE,IVORY/BLACK,TRIM0#

main58905-02B10-A4iZRE172..CVT..(18G,18V,VL)..HTWC;ZRE17#..(16G,20V,GL)..(IND,TH,VN)201611-202201

FLAXEN/BLACK,TRIM0#

main58905-02B10-C1iZRE172..ARL..E;ZRE172,173..CVT..(18G,18GS,18V,20G,20V)..(MA,PHL,TH,VN)201312-202201

BLACK/BLACK,TRIM2#

main58905-02B10-C1iZRE171,172..MA,SGP201410-201610

UP GRADE PACKAGE,BLACK/BLACK,TRIM2#

main58905-02B10-C1iZRE172..ARL..E;ZRE172,173..(18GS,18V,20V)..(MA,PHL,TH)201312-201610

SPORTY PACKAGE,BLACK/BLACK,TRIM2#

main58905-02B20-A1iZRE173..6F201310-201609

IVORY/BLACK,TRIM0#

main58905-02B20-A2iZRE171,173..XLI..GCC201610-201903

FLAXEN/BLACK,TRIM0#

main58905-02B20-B1iZRE173..6F201310-201903

GRAY/BLACK,TRIM1#

main58905-02B30-A1iZRE171..6F..GLI201310-201609

IVORY/BLACK,TRIM0#

main58905-02B30-A2iZRE171,173..GLI..GCC201610-201903

FLAXEN/BLACK,TRIM0#

main58905-02B30-B1iZRE171,173..GLI..GCC201310-201903

GRAY/BLACK,TRIM1#

main58905-02B30-C1iZRE171,173..GLI..GCC201709-201903

BLACK/BLACK,TRIM2#

main58905-02B40-A3iZRE172..TAIW..(E,G)201310-201609

IVORY/BLACK,TRIM0#

main58905-02B40-C1iZRE172..TAIW201310-201609

BLACK/BLACK,TRIM2#

main58905-02B50-A1iNZE170,ZRE171..PKN201407-201707

IVORY/BLACK,TRIM0#

main58905-02B50-A2iNZE170,ZRE171..PKN201707

FLAXEN/BLACK,TRIM0#

main58905-02B60-A1iZRE172..PKN201407-201707

IVORY/BLACK,TRIM0#

main58905-02B60-A2iZRE172..PKN201707

FLAXEN/BLACK,TRIM0#

main58905-02B60-A2iZRE172..CVT..PKN201707

UP GRADE PACKAGE&MLM PACKAGE,FLAXEN/BLACK,TRIM0#

main58905-02B60-A2iZRE172..CVT..PKN201707

MLM PACKAGE,FLAXEN/BLACK,TRIM0#

main58905-02C30-A1iZRE171..LHD..GEN201312-201610

IVORY/BLACK,TRIM0#

main58905-02C30-A2iZRE171..LHD..GEN201611-201907

FLAXEN/BLACK,TRIM0#

main58905-02C30-B1iZRE171..LHD..GEN201312-201907

GRAY/BLACK,TRIM1#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-02120iZRE171..HTWC..TH201312-202201

main58908-02130iZRE171,173..4FC..GCC201310-201609

main58908-02130iZRE171,173..GCC201610-201903

LOW GRADE PACKAGE

main58908-02140iNZE170,ZRE171,172..PKN201407-201707

58910CBOX ASSY, CONSOLE, REAR

main58910-02480-C0iZRE171..LHD..4FC201601-201907

BLACK,TRIM1#

main58910-02480-C0iZRE171..16J..CNG201312-201601

BLACK,TRIM1#,2#

main58910-02480-C0iZRE171..16G..TH201312-202007

BLACK,TRIM0#

main58910-02480-C0iZRE171..GEN201312-201907

BLACK,TRIM0#,1#

main58910-02480-C0iZRE171..GEN201312-201907

BLACK,TRIM0#,1#,2#

main58910-02480-C0iZRE171..GEN201312-201907

BLACK,TRIM2#

main58910-02480-C0iZRE171..GEN201312-202201

BLACK,TRIM0#,2#

main58910-02490-C1iZRE171..6F..XLI..GCC201310-201609

BLACK/IVORY,TRIM0#

main58910-02490-C2iZRE171,173..CVT..XLI201310-201903

BLACK/GRAY,TRIM1#

main58910-02490-C3iZRE171,173..XLI..GCC201610-201903

BLACK/FLAXEN,TRIM0#

main58910-02500-C0iNZE170,ZRE171,172..PKN201407-201707

BLACK,TRIM0#

main58910-02500-C0iNZE170,ZRE171..PKN201707

BLACK,TRIM0#,2#

main58910-02510-C0iNDE170,ZRE172..IND201405-201906

BLACK,TRIM0#

main58910-02520-C0iZRE172..18E..TH201611-201907

BLACK,TRIM2#

sub58910-02480

main58910-02520-C0iZRE172..18E..TH201611-201907

BLACK,TRIM0#,2#

sub58910-02480

main58910-02520-C0iZRE172..18E..TH201611-201907

BLACK,TRIM0#

sub58910-02480

main58910-02530-C0iZRE172..TAIW..(E,G)201610-201903

FLAXEN,TRIM0#

main58910-02530-C1iZRE172..TAIW201610-201903

BLACK,TRIM2#

main58910-02610-C0iZZE172..GLI201310-201609

BLACK/IVORY,TRIM0#

main58910-02610-C1iZRE171,173..GLI..GCC201310-201903

BLACK/GRAY,TRIM1#

main58910-02610-C2iZRE171,173..GLI..GCC201610-201903

BLACK/FLAXEN,TRIM0#

main58910-02610-C3iZRE171,173..GLI..GCC201709-201903

BLACK/BLACK,TRIM2#

main58910-02620-C1iZRE172..TAIW201310-201609

BLACK/BLACK,TRIM2#

main58910-02620-C2iZRE172..TAIW..(E,G)201310-201609

BLACK/IVORY,TRIM0#

58923APANEL, CONSOLE REAR END

main58904-02210-C0iZRE171..CVT..TH201611-201907

BLACK,TRIM2#

main58904-02210-C0iZRE172..(18GS,18V)..TH201611-201907

BLACK,TRIM0#

main58904-02210-C0iZRE172..(18GS,18V)..TH201611-201907

BLACK,TRIM0#,2#

main58904-02330-C0iNDE170,ZRE172..IND201405-201702

BLACK,TRIM0#

main58904-02370-C0iNDE170,ZRE172..IND201703-201906

BLACK,TRIM0#

main58923-02200-C0iZRE171..16E..PHL201312-202201

BLACK,TRIM0#,2#

main58923-02200-C0iZRE171..16J..CNG201312-201601

BLACK,TRIM1#,2#

main58923-02200-C0iZRE171..GEN201312-201907

BLACK,TRIM0#,1#

main58923-02200-C0iZRE171..GEN201312-201907

BLACK,TRIM0#,1#,2#

main58923-02200-C0iZRE171..GEN201312-201907

BLACK,TRIM2#

main58923-02200-C0iZRE171..GEN201312-202007

BLACK,TRIM0#

main58923-02200-C0iZRE171..16J201601-201907

BLACK,TRIM1#

main58923-02210-C0iZRE171,173..XLI..GCC201610-201903

BLACK,TRIM0#,1#,2#

main58923-02210-C0iZRE171,173..XLI..GCC201310-201903

BLACK,TRIM0#,1#

main58923-02210-C0iZRE171..6F..XLI..GCC201310-201903

BLACK,TRIM2#

main58923-02210-C0iZRE171..6F..XLI..GCC201310-201903

BLACK,TRIM0#,2#

main58923-02220-C0iNZE170,ZRE171..PKN201407-201707

BLACK,TRIM0#

main58923-02220-C0iZRE172..PKN201707

BLACK,TRIM0#,2#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main90541-03078iZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH201310-201709

58989PANEL, CONSOLE COMPARTMENT DOOR

main58989-02160iZRE172..CVT..VN;ZRE172..18E..VN;ZRE172..ARL,IDN,IND,MA,TH;NDE170,ZRE171,173..GEN,IND,MA,PHL,SGP,TH,VN201312-202201

main58989-02170iZRE171,173..GCC201610-201903

LOW GRADE PACKAGE

main58989-02170iZZE172201310-201609

main58989-02180iNZE170,ZRE171,172..PKN201407-201707

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-02150iZRE171..HTWC..TH201312-202208

main58996-02160iZZE172201310-201903

main58996-02230iZRE173..20V..MA201312-201610

SAFETY PACKAGE

main58996-02230iZRE172..ARL201611-201907

9015960303

main90159-60303

9046710203

main90467-10203

9167380616

main91673-80616

91673A0816

main91673-A0816

9356855014

main93568-55014

25 parts on this diagram · 5 diagrams in section
