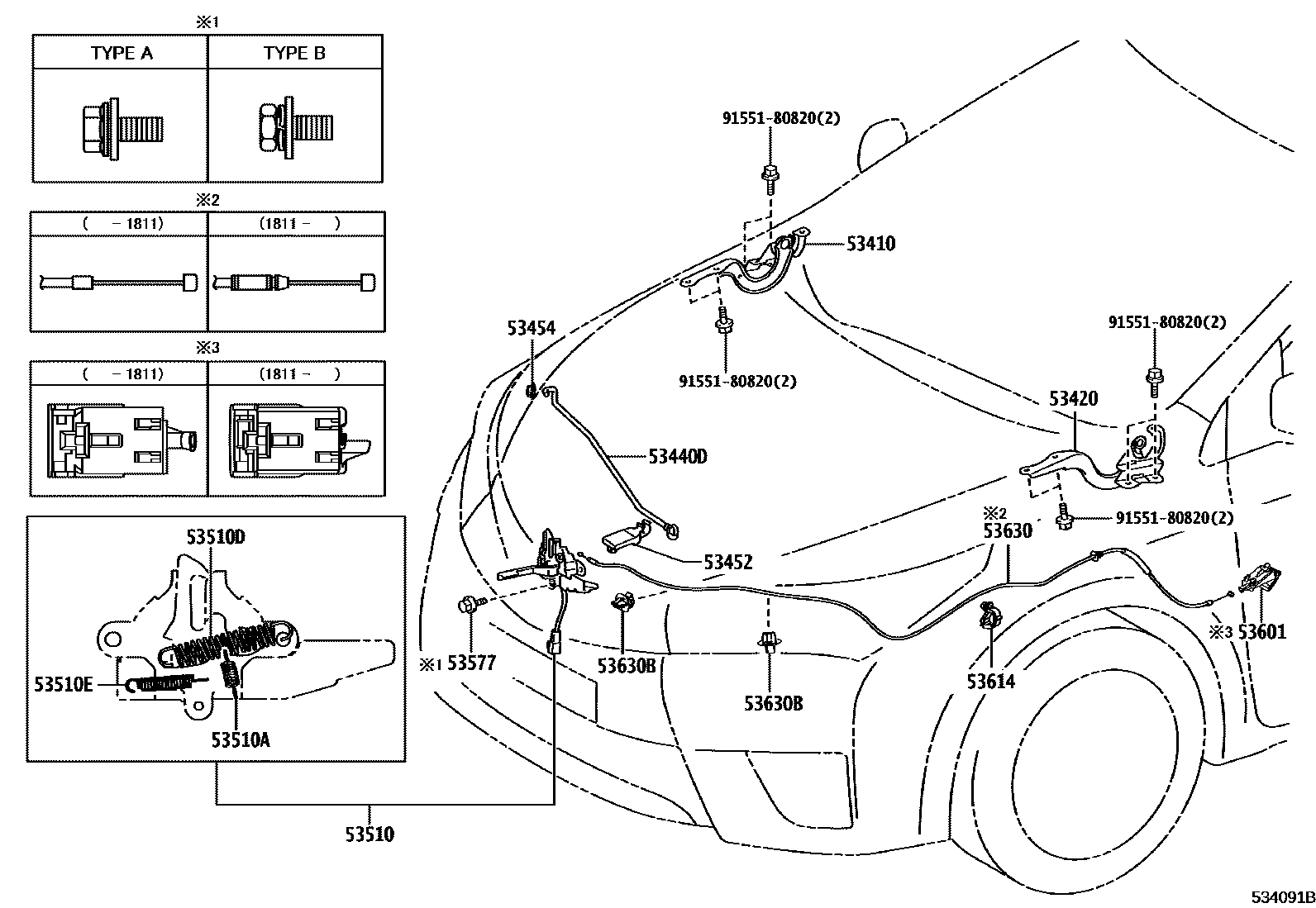

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-02360iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-201709

main53410-02370iZRE172..TAIW201310-201903

53420HINGE ASSY, HOOD, LH

main53420-02360iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH201310-201709

main53420-02370iZRE172..TAIW201310-201903

53440DSUPPORT ASSY, HOOD

main53440-02220iZZE172201310-202208

53452HOLDER, HOOD STAY

main53452-02180iZRE171..CVT,MTM;ZRE172..18E..VN;ZRE171..4FC..GEN;NDE170,NZE170,ZRE173;ZRE172..6F..(ARL,IDN,IND);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW,TH)201310-202208

53454CLIP, HOOD SUPPORT ROD

main53454-12040iZRE173..6F;ZRE171..6F..GLI201310-202208

53510LOCK ASSY, HOOD

main53510-02640iZRE171..LHD..(16E,XLI)..(GEN,PHL)201312-201504

sub53510-02641

main53510-02641iZRE171..16E..PHL201505-201907

main53510-02650iZRE17#..LHD..(16G,16V,18G,20V)201312-201504

sub53510-02651

main53510-02651iZRE172..CVT..VN;ZRE17#..LHD..(16G,16V,18E,20V)201505-202201

main53510-02660iZRE172..RHD..(D,N);ZRE171..RHD..(4FC,6F);NZE170,ZRE172,173..RHD..(18E,20G,20V,GLI,XLI)..HTWC201312-201506

sub53510-02661

main53510-02661iZRE171..16J..HTWCF;ZRE172..ARL..(D,N);ZRE17#..RHD..(GEN,MA)201507-202208

main53510-02670iZRE172..ARL..E;ZRE172..IDN,TH;ZRE171..RHD..CVT201312-201504

sub53510-02671

main53510-02671iZRE172..IDN,TH;ZRE171,172..RHD..(E,G);ZRE171..CVT..(CNG,HTWCF)201505-202109

main53510-02680iZZE172201310-201903

main53510-02690iZRE172..TAIW201310-201903

main53510-02750iNDE170,ZRE172..IND201405-201506

sub53510-02751

main53510-02751iNDE170,ZRE172..IND201507-201906

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-10046iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-202208

WD=1.0,CW=15.5

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-18067iZZE172201310-202208

WD=1.8,CW=13

main90506-T0003iZRE171..HTWC..TH201312-202103

WD=1.8,CW=13

sub90506-18067

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-09055iZRE171,173..CVT..GCC201310-201903

WD=0.9,CW=21

main90506-T0005iZRE172,173..VN201312-202208

WD=0.9,CW=21

53577BOLT, HOOD LOCK

main90109-T0027iZRE172,173..VN201907-202201

main90109-T0027iZRE172,173..VN201610-201709

TYPE C:REFER ILLUST.

main90119-06939iZRE173..6F;ZRE171..6F..GLI201310-202208

TYPE A:REFER ILLUST.

main90119-T0143iZRE171..16J..CNG201312-201907

TYPE B:REFER ILLUST.

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-02030-C0iZRE171..16J201312-201811

BLACK,TRIM2#

main53601-02030-C0iZRE171..GEN201312-201811

BLACK,TRIM0#,2#

main53601-02030-C0iZRE171..GEN201312-201906

BLACK,TRIM0#

main53601-02030-C0iZRE171..16E..PHL201312-201811

BLACK,TRIM0#,1#

main53601-02030-C0iZRE171..16E..PHL201312-201811

BLACK,TRIM0#,1#,2#

main53601-02030-C0iZRE171..16J201601-201811

BLACK,TRIM1#

main53601-02030-C0iZRE171..16J..CNG201312-201601

BLACK,TRIM1#,2#

main53601-0D040-C1iZRE171..LHD..4FC201811-201907

BLACK,TRIM1#

main53601-0D040-C1iZRE171..LHD..4FC201811-201907

BLACK,TRIM0#,1#

main53601-0D040-C1iZRE171..16J201811-201907

BLACK,TRIM0#,1#,2#

main53601-0D040-C1iZRE171..6F..16G;ZRE172..6F..PKN;ZRE172..CVT..(PKN,VN);ZRE171..CVT..(PHL,SGP)201811

BLACK,TRIM0#

main53601-0D040-C1iZRE171..6F..16G;ZRE172..6F..PKN;ZRE172..CVT..(PKN,VN);ZRE171..CVT..(PHL,SGP)201811

BLACK,TRIM0#,2#

main53601-0D040-C1iZRE173..20V;ZRE172..ARL,MA,TH201811-202007

BLACK,TRIM2#

main53601-0D080-C0iZRE172..TAIW..D201811-201903

BLACK,TRIM0#,2#

main53601-0D080-C0iZRE172..TAIW..D201811-201903

BLACK,TRIM2#

main53601-0D080-C0iZRE172..TAIW..D201811-201903

BLACK,TRIM0#,1#,2#

main53601-0D080-C0iZRE172..TAIW..D201811-201903

BLACK,TRIM0#,1#

main53601-52010-C0iZRE172..TAIW..D201310-201612

BLACK,TRIM2#

sub53601-52010

main53601-52010-C0iZRE171,173..4FC..GCC201310-201612

BLACK,TRIM0#,1#

sub53601-52010

main53601-52010-C0iZRE172..TAIW..(E,G)201310-201612

BLACK,TRIM0#,2#

sub53601-52010

main53601-52010-C0iZZE172201310-201409

BLACK,TRIM0#,1#,2#

sub53601-52010

main53601-52010-C1iZRE172..TAIW..D201612-201811

BLACK,TRIM0#,1#,2#

sub53601-52010

main53601-52010-C1iZRE172..TAIW..D201612-201811

BLACK,TRIM2#

sub53601-52010

main53601-52010-C1iZRE172..TAIW..D201612-201811

BLACK,TRIM0#,2#

sub53601-52010

main53601-52010-C1iZRE172..TAIW..(E,G)201612-201811

BLACK,TRIM0#,1#

sub53601-52010

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-12040iZRE171..HTWC..TH201310-201709

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-02310iZRE171..16J..CNG201312-201811

main53630-02320iZRE173..6F;ZRE171..6F..GLI201310-201811

main53630-02330iNDE170,ZRE172..IND201405-201906

main53630-02550iNZE170,ZRE17#..ARL,GEN,IDN,MA,PHL,PKN,SGP,TH,VN201811

main53630-02560iZRE17#..GCC,TAIW201811-201903

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iZRE172,173..VN201312-202112

(J)

main90469-06005iNDE170,ZRE172..IND201310-201906

main90469-T0003iZRE171..HTWC..TH201312-201709

(L)

9155180820

main91551-80820

15 parts on this diagram · 2 diagrams in section
