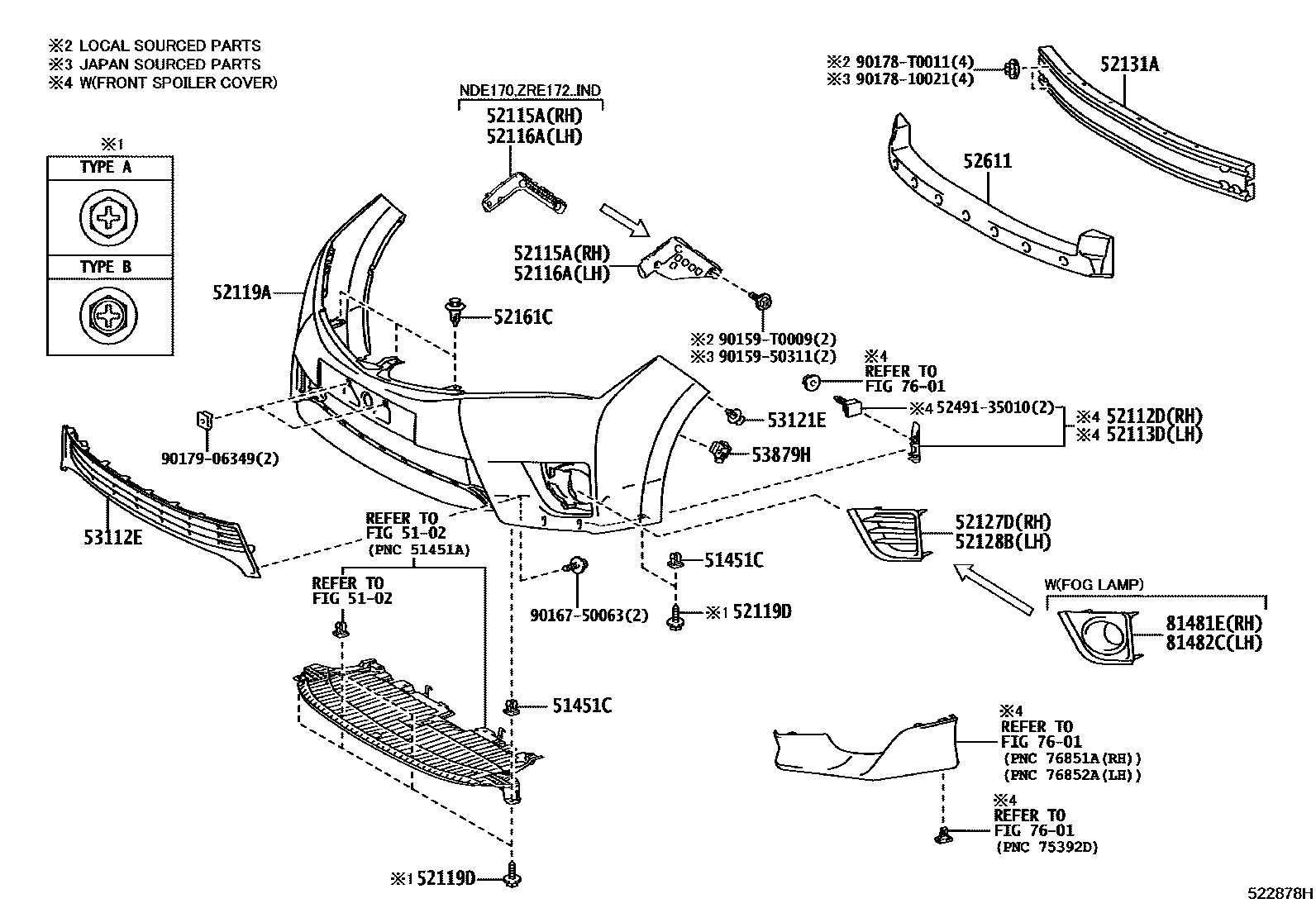

FRONT BUMPER & BUMPER STAY
5102SUSPENSION CROSSMEMBER & UNDER COVER
51451CGROMMET(FOR ENGINE UNDER COVER)
52112DEXTENSION, FRONT BUMPER, RH
NO PAINT REQ.
52113DEXTENSION, FRONT BUMPER, LH
NO PAINT REQ.
52115ASUPPORT, FRONT BUMPER SIDE, RH
main52115-02380iZRE172..18E..VN;ZRE172..ARL,IDN,MA,PKN,TH;NZE170,ZRE171,173..GEN,MA,PHL,PKN,SGP,TH,VN201611
52116ASUPPORT, FRONT BUMPER SIDE, LH
main52116-02370iZRE172..18E..VN;ZRE172..ARL,IDN,MA,PKN,TH;NZE170,ZRE171,173..GEN,MA,PHL,PKN,SGP,TH,VN201611
52119ACOVER, FRONT BUMPER
main52119-0Z942supersedes 52119-0Z943iZRE172..ARL..(E,N);ZRE172,173..CVT..(IDN,MA);ZRE171..LHD..(ATM,CVT)..(16V,XLI)..(GEN,PHL)201312-201610
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
main52119-0Z982iZRE172..ARL..D;ZRE172..18G..IDN;ZRE171..RHD..(GEN,SGP,TH);ZRE172..CVT..(18E,18G,18V)..(TH,VN);ZRE171,172..(CVT,MTM)..(16E,16G,18E,XLI)..(GEN,PHL,VN)201611-202008
PAINT REQ.; PAINT REQ.,SPORTY PACKAGE
main52119-0Z984supersedes 52119-0Z943iZRE172..ARL..(E,N);ZRE172,173..CVT..(IDN,MA);ZRE171..LHD..(ATM,CVT)..(16V,XLI)..(GEN,PHL)201611-201907
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.,SPORTY PACKAGE
PAINT REQ.,SPORTY PACKAGE
PAINT REQ.,SPORTY PACKAGE&X PACKAGE(REAR EMBLEM "X"); PAINT REQ.,X PACKAGE(REAR EMBLEM "X")
52119DSCREW, NO.1
TYPE B:REFER ILLUST.
52127DCOVER, FRONT BUMPER HOLE, RH
main81481-02690iZRE172..ARL..D;ZRE171..4FC..XLI;ZRE171..(CVT,MTM)..(GEN,SGP,TH);ZRE171,172..(16E,18E)..(HTWC,HTWCF)..(PHL,TH,VN)201611-202007
LOW GRADE PACKAGE
MLM PACKAGE; MLM PACKAGE&FRONT FOG LAMP-WITH(LED , MLM PACKAGE); UP GRADE PACKAGE&MLM PACKAGE; UP GRADE PACKAGE&MLM PACKAGE&FRONT FOG LAMP-WITH(LED , MLM PACKAGE)
52128BCOVER, FRONT BUMPER HOLE, LH
main81482-02430iZRE171..16J..HTWCF;ZRE171,172..RHD..(D,G);ZRE171..(16E,XLI)..(GEN,PHL);ZRE171,172..(16E,16G,18E)..(CNG,HTWCF)201310-201610
main81482-02680iZRE172..ARL..D;ZRE171..4FC..XLI;ZRE171..(CVT,MTM)..(GEN,SGP,TH);ZRE171,172..(16E,18E)..(HTWC,HTWCF)..(PHL,TH,VN)201611-202007
LOW GRADE PACKAGE
MLM PACKAGE; MLM PACKAGE&FRONT FOG LAMP-WITH(LED , MLM PACKAGE); UP GRADE PACKAGE&MLM PACKAGE; UP GRADE PACKAGE&MLM PACKAGE&FRONT FOG LAMP-WITH(LED , MLM PACKAGE)
52131AREINFORCEMENT, FRONT BUMPER
52161CPIECE, FRONT BUMPER
(J)
52611ABSORBER, FRONT BUMPER ENERGY
X PACKAGE(REAR EMBLEM "X")
X PACKAGE(LOW)
MLM PACKAGE
53112EGRILLE, RADIATOR, LOWER NO.1
main53112-02300iZRE172..CVT..VN;ZRE172..18E..VN;ZRE172..ARL,IDN,MA,TH;ZRE171,173..GEN,MA,PHL,SGP,TH,VN201611-202008
NO PAINT REQ.
NO PAINT REQ.
main53112-02630iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH201312-201610
NO PAINT REQ.
NO PAINT REQ.,SPORTY PACKAGE&X PACKAGE(REAR EMBLEM "X"); NO PAINT REQ.,X PACKAGE(REAR EMBLEM "X")
53121ECLIP(FOR FRONT BUMPER), NO.1
53879HRETAINER, FRONT FENDER LINER
(J); SPORTY PACKAGE
7601MUDGUARD & SPOILER
81481ECOVER, FOG LAMP, RH
main81481-02700iZRE171..LHD..4FC; ZRE172..18E..TH; ZRE172..ARL..(E,N);ZRE172..RHD..(18G,18GS,18V);ZRE17#..(16G,16V,18E,20V,GLI)..(GEN,MA,PHL)201611-201907
MYANMAR, CAMBODIA SPEC; SPORTY PACKAGE
81482CCOVER, FOG LAMP, LH
5249135010BOLT, BUMPER PAD
main52491-35010
9015950311
main90159-50311
90159T0009
main90159-T0009
9016750063
main90167-50063
9017810021
main90178-10021
90178T0011
main90178-T0011
9017906349
main90179-06349
26 parts on this diagram · 5 diagrams in section
