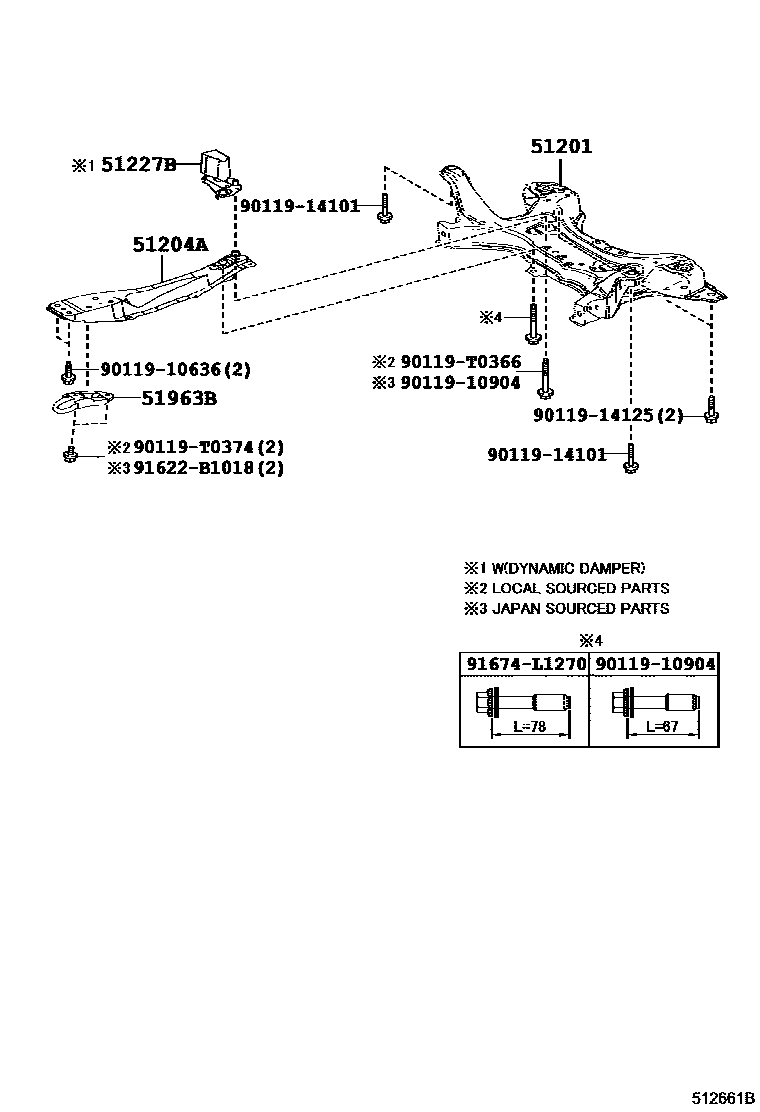

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1ENGINE UNDER COVER 0003 1ENGINE UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02170iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-202201

main51201-12431iZRE172..6F..PKN201407-202208

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-02091iZRE173..6F201310-202201

main51204-02120iZRE171,173..CVT..GCC201310-202007

main51204-12130iZZE172201310-201404

IRAQ SPEC

main51204-12130iZRE171..(CVT,MTM)..N;ZRE172..CVT..(IND,PKN);NDE170,NZE170,ZRE172..(ATM,MTM)..(G,GL,GLI,J,XLI)201310-202208

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-02100iZRE172..VN201310-202201

51963BHOOK, TRANSPORT, FRONT RH

main51960-02110iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH201310-202208

9011910636

main90119-10636

9011910904

main90119-10904

9011914101

main90119-14101

9011914125

main90119-14125

90119T0366

main90119-T0366

90119T0374

main90119-T0374

91622B1018

main91622-B1018

91674L1270

main91674-L1270

12 parts on this diagram · 3 diagrams in section
