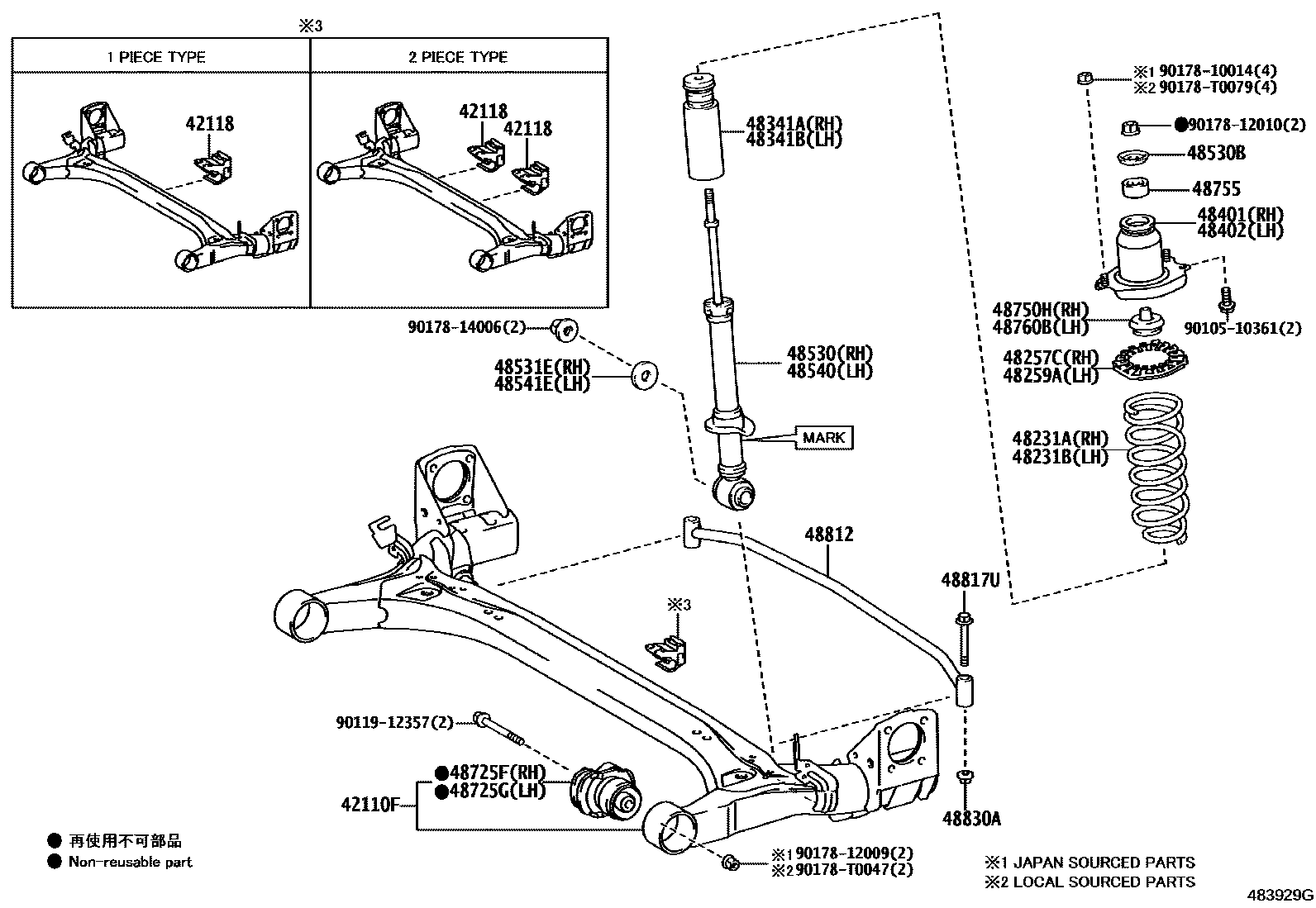

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-02350iZRE172..CVT..PKN;NDE170,ZRE172..GL,VL201405-202109

main42110-02430iZRE171..(CVT,MTM)..N;NDE170,NZE170,ZRE172..G,GLI,J,XLI201405-202208

main42110-02520iZRE172..18E..TH201312-201610

SPORTY PACKAGE

main42110-02520iZRE172..18GS201312-202201

main42110-02530iZRE171,172..(16G,16J,18GS)..(HTWC,HTWCF)..TH201312-202008

main42110-02560iZRE172..18E..VN;ZRE172..18G..IDN201312-202007

main42110-02710iZRE172..TAIW201310-201410

main42110-02730iZRE173..GLI201512-201609

UP GRADE PACKAGE&X PACKAGE(REAR EMBLEM "X")

sub42101-02410

sub48725-02360

main42110-02730iZRE173..6F;ZRE171..6F..GLI201310-201903

sub42101-02410

sub48725-02360

main42110-02750iZZE172..GLI201310-201409

sub42101-02410

sub48725-02310

main42110-02770iZZE172..XLI201310-201409

sub42101-02440

sub48725-02310

42118DAMPER, REAR AXLE BEAM

main42118-02020iZRE172,173..VN201312-201709

main42118-02030iZRE173..6F;ZRE171..6F..GLI201310-201609

main42118-02080iZRE172..CVT..VN201611-202208

main42118-02090iZRE17#..GCC,TAIW201610-201903

main42118-02100iNDE170,ZRE172..IND201703-201906

48231ASPRING, COIL, REAR RH

main48231-02E10iZRE171,172..(HTWC,HTWCF)..(ARL,GEN,IDN,MA,PHL,TH)201312-201907

main48231-02E20iZRE173..VN201312-202201

main48231-02E30iZRE171..16J..CNG201312-201907

main48231-02E40iZRE172..18GS201611-201907

SPORTY PACKAGE

main48231-02E60iZRE173..6F201310-201903

main48231-02E70iZRE171..6F..GLI201310-201903

main48231-02E80iZZE172..XLI201310-201409

main48231-02E90iZZE172..GLI201310-201409

main48231-02F00iNDE170201405-201906

main48231-02J40iZRE171..4FC..N201407-202208

main48231-02N80iZRE172..IND201703-201906

48231BSPRING, COIL, REAR LH

main48231-02E10iZRE171..16J..HTWCF201312-201907

main48231-02E20iZRE171..G201312-202201

main48231-02E30iZRE171..CNG201312-201907

main48231-02E40iZRE172..18E..TH201611-201907

SPORTY PACKAGE

main48231-02E60iZRE173..XLI201310-201903

main48231-02E70iZRE171..6F..GLI201310-201903

main48231-02E80iZZE172..XLI201310-201409

main48231-02E90iZZE172..GLI201310-201409

main48231-02F00iNDE170201405-201906

main48231-02J40iZRE172..6F..PKN201407-202208

main48231-02N80iZRE172..IND201703-201906

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-02010iZRE172..6F..PKN201312-202208

main48257-02020iZZE172201310-201903

main48257-02080iNDE170,ZRE172..IND201405-201906

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-02010iZRE171..HTWC..TH201312-202208

main48257-02020iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201903

main48257-02080iNDE170,ZRE172..IND201405-201906

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-12230iNDE170,ZRE172..IND201310-202208

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-12230iZZE172201310-202208

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48401-02060iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH201312-202208

sub48401-12020

main48401-02070iZRE173..6F;ZRE171..6F..GLI201310-201903

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48403-02050iZRE172..18E..VN;ZRE172..RHD..CVT;ZRE171..4FC..GEN;ZRE172..6F..(ARL,IDN,IND);NDE170,NZE170,ZRE173..IND,MA,PHL,PKN,VN;ZRE171..(CVT,MTM)..(GEN,PHL,PKN,SGP,TH)201312-202208

sub48403-12020

main48403-02060iZZE172201310-201903

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-02C50iZRE171,172..(HTWC,HTWCF)..(ARL,TH)201312-201405

MARK 48530-02C50

sub48530-02C51

main48530-02C51iZRE171..HTWCF;ZRE172..ARL,TH201406-201610

MARK 48530-02C51

main48530-02C60iZRE171..CNG201312-201405

MARK 48530-02C60

sub48530-02C61

main48530-02C61iZRE171..CNG201406-201907

MARK 48530-02C61

main48530-02C80iZRE17#..GEN,IDN,MA,PHL,SGP201312-201408

MARK 48530-02C80

sub48530-02C81

main48530-02C81iZRE17#..GEN,IDN,MA,PHL,SGP201409-201709

MARK 48530-02C81

main48530-02D00iZRE172..TAIW201310-201609

MARK 48530-02D00

main48530-02D10iZRE171,173..GCC201310-201404

MARK 48530-02D10

sub48530-02D11

main48530-02D11iZRE173..6F;ZRE171..6F..GLI201405-201903

MARK 48530-02D11

main48530-02D30iZRE171,173..GCC201310-201404

MARK 48530-02D30,ROUGH ROAD AREA SPEC

sub48530-02D31

main48530-02D30iZRE171,173..GCC201310-201404

MARK 48530-02D30,YEMEN SPEC

sub48530-02D31

main48530-02D30iZRE171..XLI..GCC;ZRE171..4FC..GLI..GCC201310-201404

MARK 48530-02D30,IRAN SPEC

sub48530-02D31

main48530-02D30iZRE171,173..GCC201310-201404

MARK 48530-02D30

sub48530-02D31

main48530-02D30iZRE171,173..GCC201310-201404

MARK 48530-02D30,IRAQ SPEC

sub48530-02D31

main48530-02D31iZZE172201405-201409

MARK 48530-02D31

main48530-02D40iNDE170,ZRE172..IND201405-201610

MARK 48530-02D40

sub48530-02D41

main48530-02D41iNDE170,ZRE172..IND201611-201906

MARK 48530-02D41

main48530-02D60iNZE170,ZRE171,172..PKN201407-201502

MARK 48530-02D60

sub48530-02D61

main48530-02D61iNZE170;ZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201503-202208

MARK 48530-02D61

main48530-02J60iZRE172..ARL;ZRE172..18E..VN;ZRE172..18G..IDN;ZRE172..CVT..(18E,18G,18V);ZRE171,173..(HTWC,HTWCF,HTWVM)..(GEN,MA,PHL,SGP,TH,VN)201611-202201

MARK 48530-02J60

main48530-02J70iZRE172..18E..TH201611-201907

MARK 48530-02J70,SPORTY PACKAGE

main48530-02J70iZRE172..18E..TH201611-201907

MARK 48530-02J70

main48530-02J80iZRE172..TAIW201610-201903

MARK 48530-02J80

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021iZZE172201310-202208

48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)

main90201-14034iZRE171,173..CVT..GCC201310-202208

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-02C50iZRE171,172..(HTWC,HTWCF)..(ARL,TH)201312-201405

MARK 48530-02C50

sub48530-02C51

main48530-02C51iZRE171..HTWCF;ZRE172..ARL,TH201406-201610

MARK 48530-02C51

main48530-02C60iZRE171..CNG201312-201405

MARK 48530-02C60

sub48530-02C61

main48530-02C61iZRE171..CNG201406-201907

MARK 48530-02C61

main48530-02C80iZRE17#..GEN,IDN,MA,PHL,SGP201312-201408

MARK 48530-02C80

sub48530-02C81

main48530-02C81iZRE17#..GEN,IDN,MA,PHL,SGP201409-201709

MARK 48530-02C81

main48530-02D00iZRE172..TAIW201310-201609

MARK 48530-02D00

main48530-02D10iZRE171,173..GCC201310-201404

MARK 48530-02D10

sub48530-02D11

main48530-02D11iZRE171,173..CVT..GCC201405-201903

MARK 48530-02D11

main48530-02D30iZRE171,173..GCC201310-201404

MARK 48530-02D30,ROUGH ROAD AREA SPEC

sub48530-02D31

main48530-02D30iZRE171,173..GCC201310-201404

MARK 48530-02D30,YEMEN SPEC

sub48530-02D31

main48530-02D30iZRE171,173..GCC201310-201404

MARK 48530-02D30,IRAN SPEC

sub48530-02D31

main48530-02D30iZRE171,173..GCC201310-201404

MARK 48530-02D30

sub48530-02D31

main48530-02D30iZRE171,173..GCC201310-201404

MARK 48530-02D30,IRAQ SPEC

sub48530-02D31

main48530-02D31iZZE172201405-201409

MARK 48530-02D31

main48530-02D40iNDE170,ZRE172..IND201405-201610

MARK 48530-02D40

sub48530-02D41

main48530-02D41iNDE170,ZRE172..IND201611-201906

MARK 48530-02D41

main48530-02D60iNZE170,ZRE171,172..PKN201407-201502

MARK 48530-02D60

sub48530-02D61

main48530-02D61iNZE170;ZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201503-202208

MARK 48530-02D61

main48530-02J60iZRE172..ARL;ZRE172..18E..VN;ZRE172..18G..IDN;ZRE172..CVT..(18E,18G,18V);ZRE171,173..(HTWC,HTWCF,HTWVM)..(GEN,MA,PHL,SGP,TH,VN)201611-202201

MARK 48530-02J60

main48530-02J70iZRE172..18E..TH201611-201907

MARK 48530-02J70

main48530-02J70iZRE172..18E..TH201611-201907

MARK 48530-02J70,SPORTY PACKAGE

main48530-02J80iZRE172..TAIW201610-201903

MARK 48530-02J80

48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)

main90201-14034iZRE172,173..VN201310-202208

48725FBUSH, REAR AXLE CARRIER, RH

main48725-02310iNZE170,ZRE171,172..PKN201310-202208

main48725-02360iZRE173..6F;ZRE171..6F..GLI201310-202201

main48725-02360iZRE171,173..CVT..GCC201512-201609

UP GRADE PACKAGE&X PACKAGE(REAR EMBLEM "X")

48725GBUSH, REAR AXLE CARRIER, LH

main48725-02310iZRE171..(CVT,MTM)..N;ZRE172..CVT..(IND,PKN);NDE170,NZE170,ZRE172..(ATM,MTM)..(G,GL,GLI,J,XLI)201310-202208

main48725-02360iZRE173..GLI201512-201609

UP GRADE PACKAGE&X PACKAGE(REAR EMBLEM "X")

main48725-02360iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH201310-202201

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-02020iZRE172,173..VN201312-202208

main48750-02030iZZE172201310-201903

main48750-02080iNDE170,ZRE172..IND201405-201906

48755SUPPORT, REAR SUSPENSION

main48755-02020iZRE171..HTWC..TH201312-202208

main48755-02030iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201903

main48755-02150iNDE170,ZRE172..IND201405-201906

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-02020iZRE171..HTWC..TH201312-202208

main48750-02030iZRE171,173..4FC..GCC201310-201903

main48750-02080iNDE170,ZRE172..IND201405-201906

48812BAR, STABILIZER, REAR

main48812-02260iZRE171..HTWC..TH201312-201709

main48812-02261iZRE172..18E..VN;ZRE171..4FC..GEN;ZRE172..6F..(ARL,IDN);NZE170,ZRE173..MA,PHL,PKN,VN;ZRE172..CVT..(ARL,IDN,MA,PKN,TH);ZRE171..(CVT,MTM)..(GEN,PHL,PKN,SGP,TH)201611-202208

main48812-02270iZRE173..6F;ZRE171..6F..GLI201310-201609

main48812-02271iZRE17#..GCC,TAIW201610-201903

main48812-02280iNDE170,ZRE172..IND201405-201702

main48812-02281iNDE170,ZRE172..IND201703-201906

48817UBOLT(FOR REAR STABILIZER)

main90105-16085iZRE172..CVT..VN201611-202208

(J)

main90105-16085iZZE172201310-201903

main90105-T0307iZRE172..CVT..VN201611-202208

(L)

48830ANUT(FOR REAR STABILIZER LINK)

main90178-T0101iZRE172..CVT..VN201611-202208

(L)

main94151-21641iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH201310-201903

main94151-21641iZRE172..6F..PKN201611-202208

(J)

9010510361

main90105-10361

9011912357

main90119-12357

9017810014

main90178-10014

9017812009

main90178-12009

9017812010

main90178-12010

9017814006

main90178-14006

90178T0047

main90178-T0047

90178T0079

main90178-T0079

31 parts on this diagram · 1 diagram in section
